Wiring Diagram Of Most Bus - Pe82.00-D-2710-97AA

Code: Designation: Position:
A2/6 CD changer 5A
A2/6 CD changer 11A
A34/14 Telephone control unit 12L
A34/14 Telephone control unit 16A
N87/1 Radio/radio with navigation 3L
N87/1 Radio/radio with navigation 8L
N87/1 Radio/radio with navigation 16L
U25 Valid for vehicles with MOST without telephone subscriber 1F
U26 Valid for vehicles with MOST with telephone subscriber 5F
U27 Valid for vehicles with MOST without CD changer subscriber 14A
U72 Valid for all except USA, Canada 1F
U72 Valid for all except USA, Canada 5F
U72 Valid for all except USA, Canada 14A
Z35/10 D2B/MOST wake-up connector sleeve 11E
Z35/10 D2B/MOST wake-up connector sleeve 16E

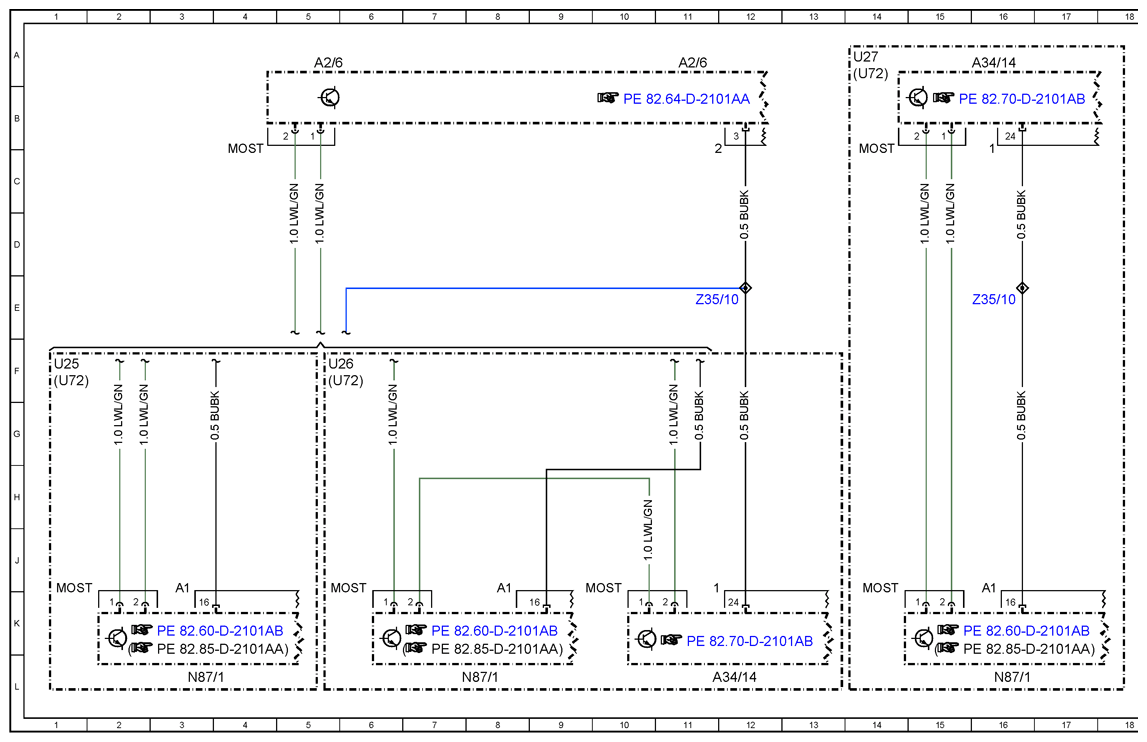

G13442314Courtesy of MERCEDES-BENZ USA

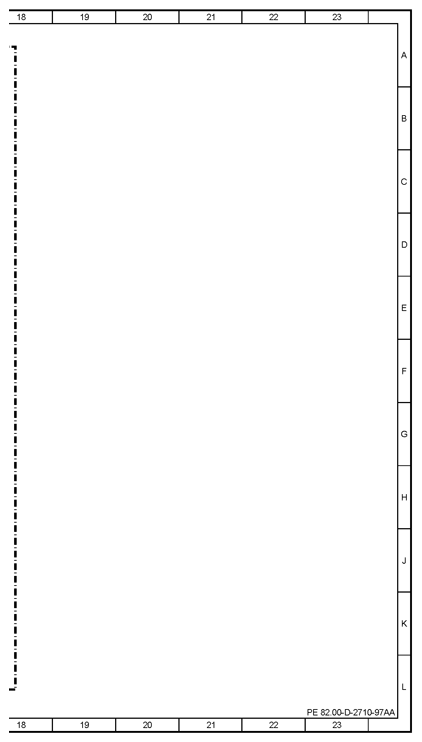

G13442315Courtesy of MERCEDES-BENZ USA
