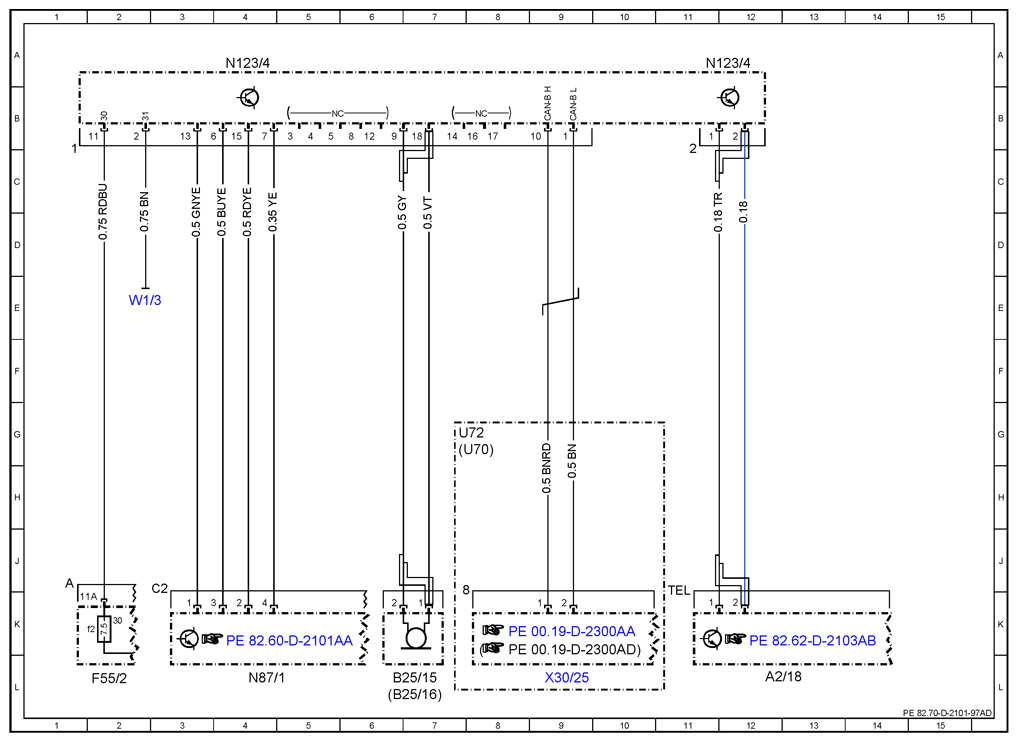

Wiring Diagram Of Cellular Telephone (CTEL) Control Module - Pe82.70-D-2101-97AD
| Code: | Designation: | Position: |
|---|---|---|
| A2/18 | Antenna amplifier | 12L |
| B25/15 | Hands-free system microphone LHD | 7L |
| B25/16 | Hands-free system microphone RHD | 6L |
| F55/2 | Fuse block (9 fuses) | 2L |
| F55/2f2 | Fuse 11 (7.5 A), mobile phone, tachograph | 1K |
| N123/4 | Bluetooth hands-free system | 4A |
| N123/4 | Bluetooth hands-free system | 11A |
| N87/1 | Radio/radio with navigation | 4L |
| U70 | Valid for USA, Canada | 7G |
| U72 | Valid for all except USA, Canada | 7G |
| W1/3 | CLS cockpit ground point 1 | 2E |
| X30/25 | Interior CAN bus connector | 9L |
