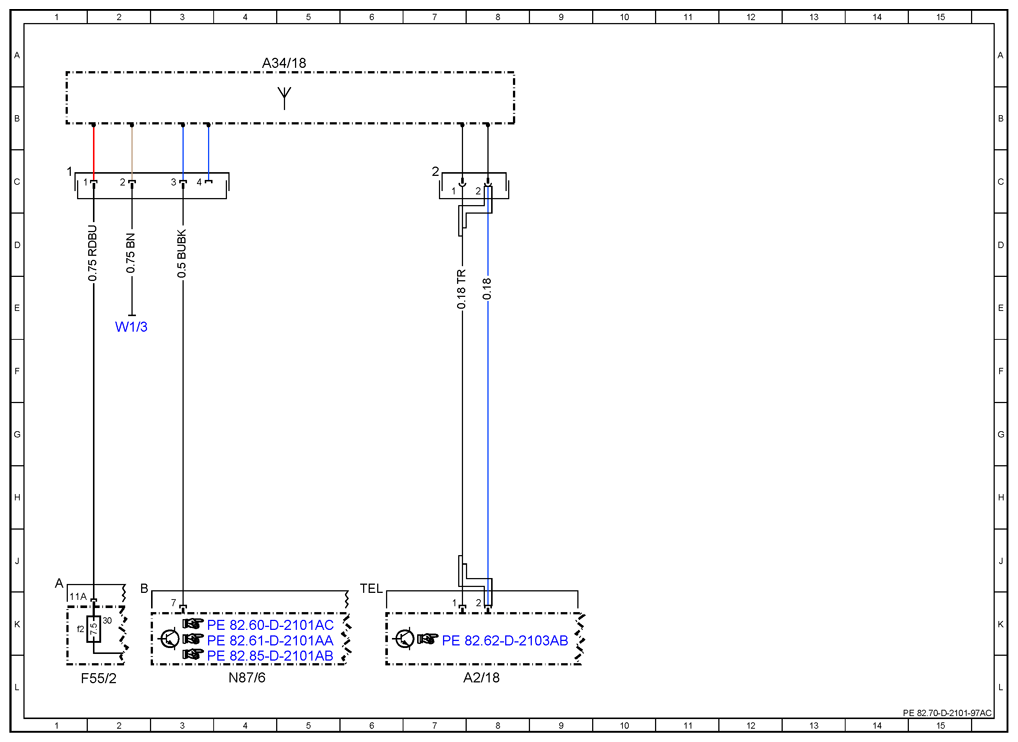

Wiring Diagram Of Cellular Telephone (CTEL) Control Module - Pe82.70-D-2101-97AC

Code:	Designation:	Position:
A2/18	Antenna amplifier	8L
A34/18	Mobile phone bracket with Bluetooth module	4A
F55/2	Fuse block (9 fuses)	2L
F55/2f2	Fuse 11 (7.5 A), mobile phone, tachograph	1K
N87/6	Radio/radio with navigation NG	4L
W1/3	CLS cockpit ground point 1	2E

Courtesy of MERCEDES-BENZ USA
