| A0 |
Color code key |
39L |
| E15/70 |
Blue ambiance lamp, left passenger compartment |
33A |
| E15/70 |
Blue ambiance lamp, left passenger compartment |
29A |
| E15/70 |
Blue ambiance lamp, left passenger compartment |
36A |
| E15/70 |
Blue ambiance lamp, left passenger compartment |
38A |
| E15/71 |
White ambiance lamp, left passenger compartment |
31A |
| E15/71 |
White ambiance lamp, left passenger compartment |
35A |

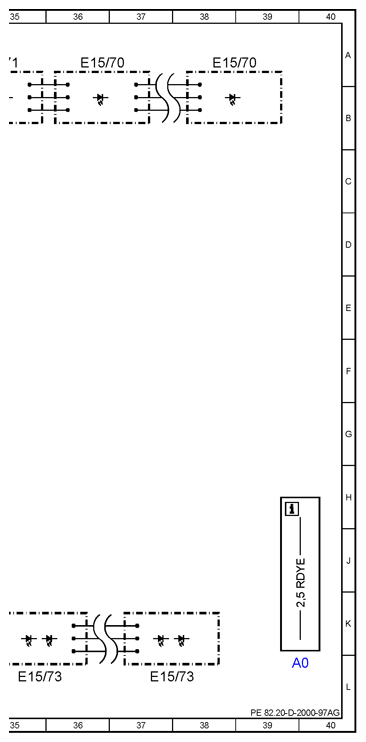

| E15/72 |
Blue ambiance lamp, right passenger compartment |
34L |
| E15/73 |
White ambiance lamp, right passenger compartment |
35L |
| E15/73 |
White ambiance lamp, right passenger compartment |
37L |
| E15/74 |
LED ambiance lamp 1, blue, front ceiling |
20L |
| E15/75 |
LED ambiance lamp 2, blue, front ceiling |
21L |
| E15/76 |
LED ambiance lamp, white, front ceiling |
23L |
| E15/77 |
LED ambiance lamp 1, blue, rear ceiling |
24L |
| E15/78 |
LED ambiance lamp 2, blue, rear ceiling |
25L |
| E15/79 |
LED ambiance lamp, white, rear ceiling |
27L |

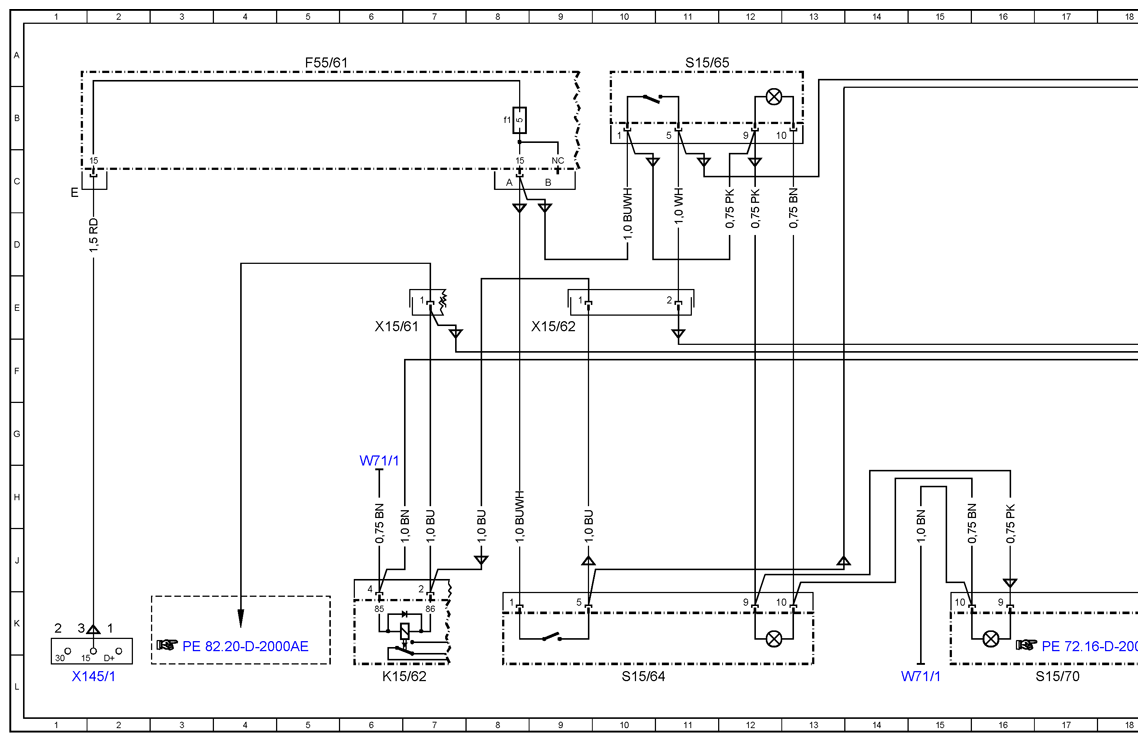

| F55/61 |
Fuse block 6, Arobus (9 fuses) |
5A |
| F55/61f1 |
Electrical fuse 28, LED ambiance illumination |
8B |
| K15/62 |
Passenger compartment overhead control panel reading lamps relay |
6L |
| S15/64 |
Blue ambiance illumination switch |
10L |
| S15/65 |
White ambiance illumination switch |
11A |
| S15/70 |
Bus stop signal switch |
17L |
| W71/1 |
Driver seat frame ground point 1 |
6H |
| W71/1 |
Driver seat frame ground point 1 |
15L |
| W71/1 |
Driver seat frame ground point 1 |
22A |
| X145/1 |
Body manufacturer electrical connector |
1L |
| X15/61 |
Left passenger compartment stowage compartment electrical connector |
6E |
| X15/62 |
Ambiance illumination button electrical connector |
9E |
| X15/63 |
Left passenger compartment ambiance illumination electrical connector |
27D |
| X15/64 |
Right passenger compartment stowage compartment electrical connector |
29H |
| X15/65 |
Right passenger compartment ambiance illumination electrical connector |
31H |
| X15/66 |
Ambiance illumination button/LED ambiance lamps electrical connector front and rear ceiling |
19D |
| X15/67 |
LED ambiance lamps electrical connector, front ceiling |
19H |
| X15/68 |
LED ambiance lamps electrical connector, rear ceiling |
23H |

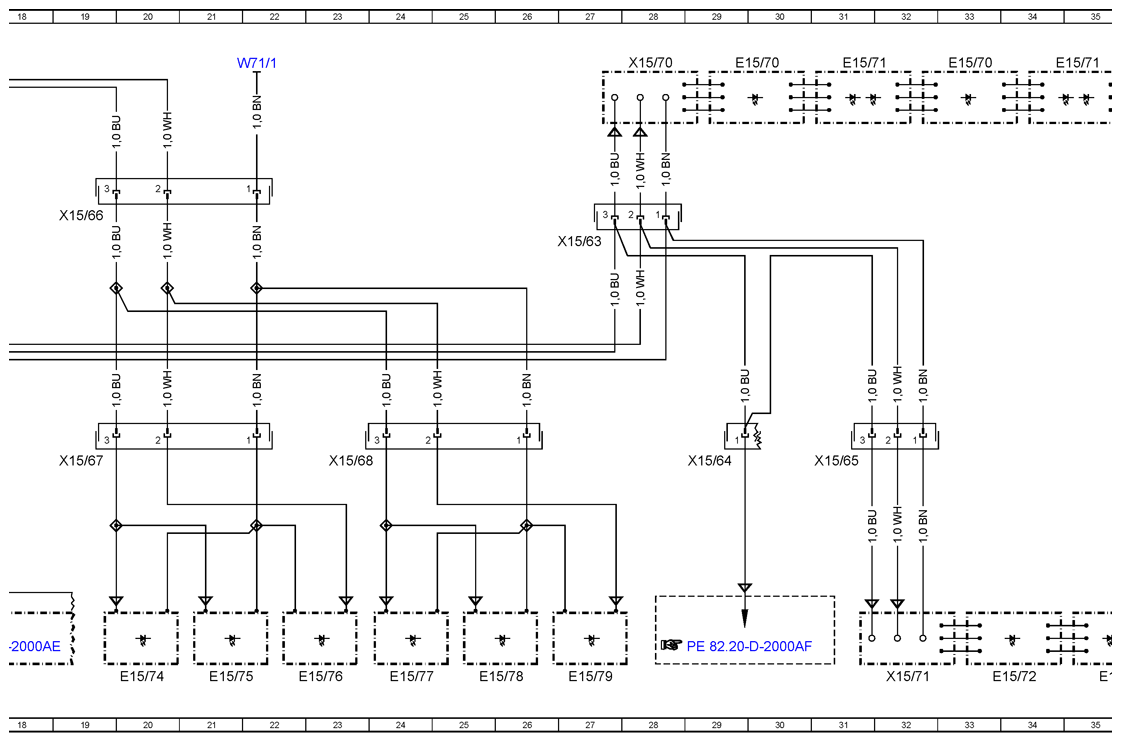

| X15/70 |
Left passenger compartment ambiance illumination strip connector |
28A |
| X15/71 |
Right passenger compartment ambiance illumination strip connector |
32L |
