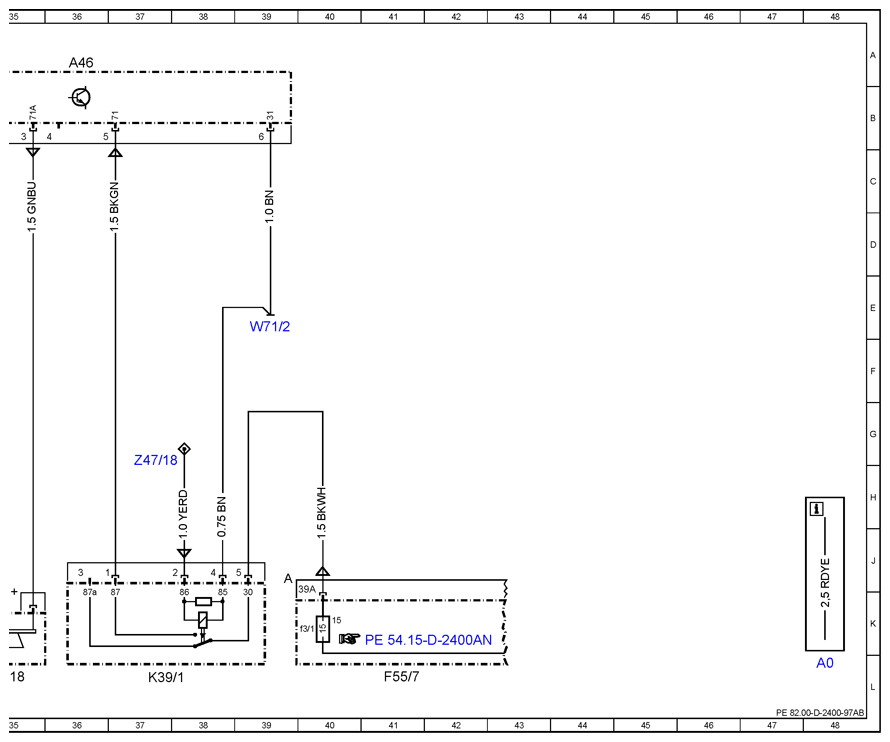

| A0 |
Color code key |
48L |
| A46 |
Tone signal generator |
12A |
| A46 |
Tone signal generator |
20A |
| A46 |
Tone signal generator |
28A |
| A46 |
Tone signal generator |
36A |
| Code LB7 |
|
13F |
| Code LB8 |
|
17F |
| E42/1 |
Left front rotating beacon |
16L |
| E42/1 |
Left front rotating beacon |
19L |
| E42/2 |
Right rear rotating beacon |
14L |
| E42/3 |
Blue left front rotating beacon |
32L |
| E42/4 |
Blue right front rotating beacon |
30L |
| F55/7 |
Fuse block 7 (9-pin) |
41L |
| F55/7f3/1 |
Siren/roof ventilator fuse 39 |
40K |
| H1 |
Signaling horn |
28L |
| H18 |
Low high-volume horn |
35L |
| H18/1 |
High high-volume horn |
33L |
| K39/1 |
Tone sequence relay |
37L |

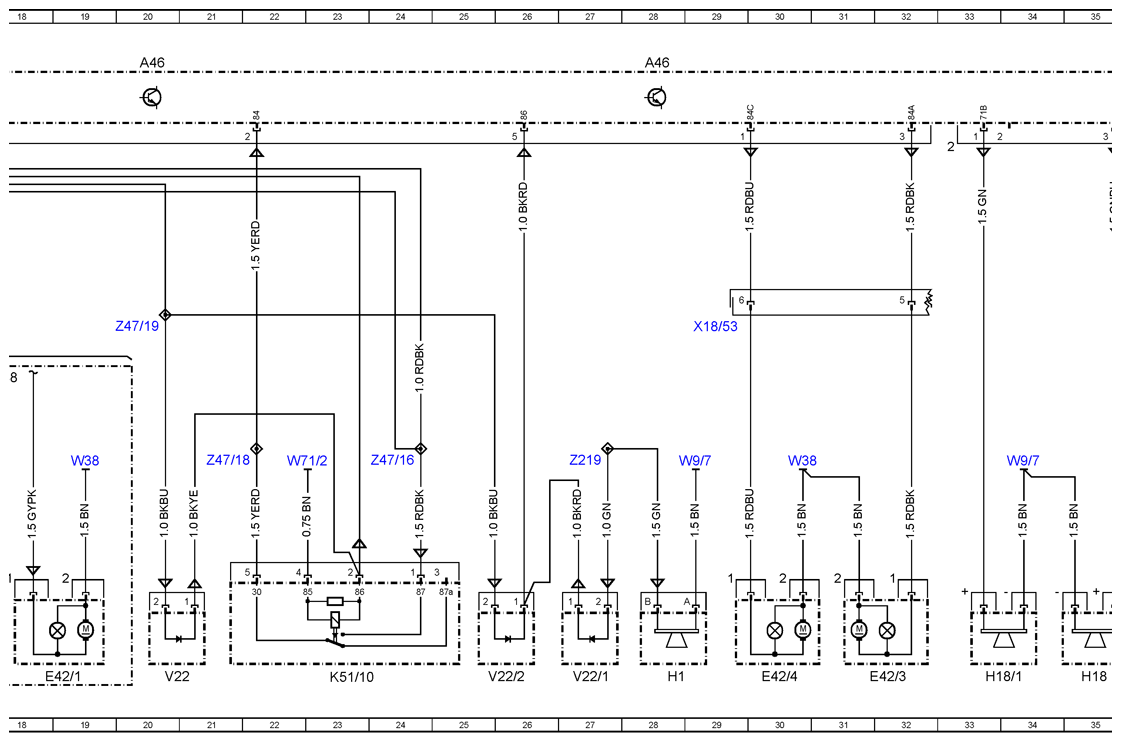

| K51/10 |
Rotating beacon relay |
23L |

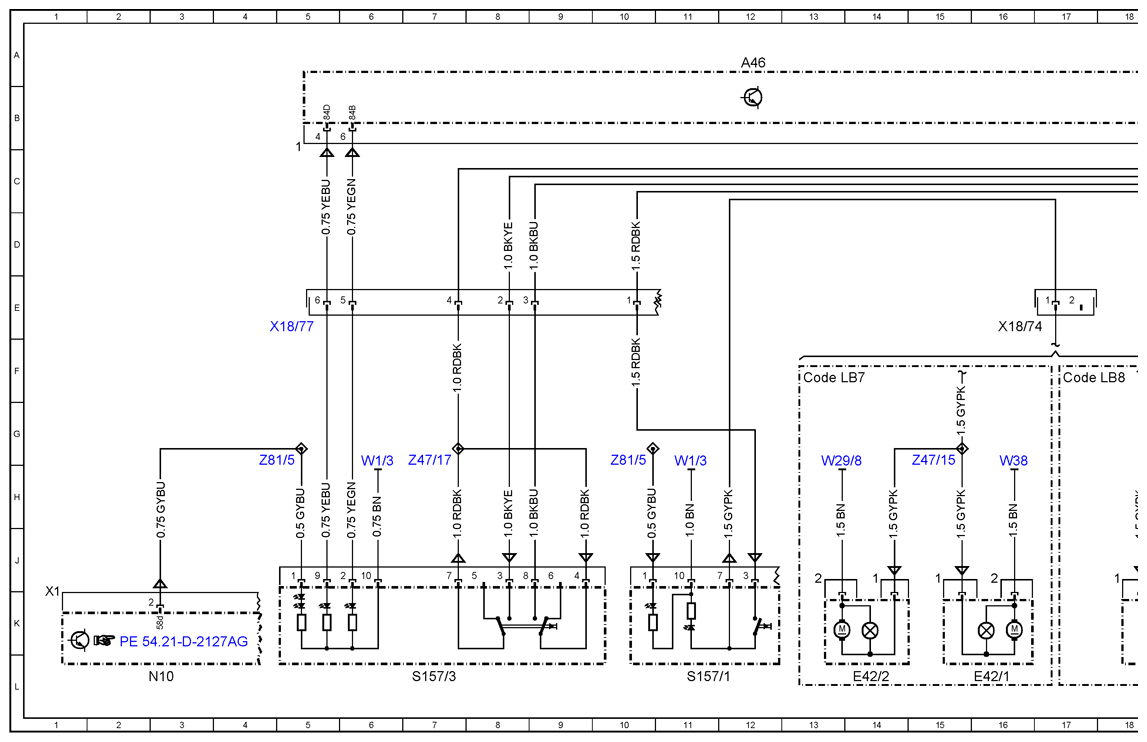

| N10 |
SAM control unit |
3L |
| S157/1 |
Rotating beacon switch |
11L |
| S157/3 |
Rotating beacon with tone sequence switch |
7L |
| V22 |
Tone sequence diode |
20L |
| V22/1 |
Tone sequence/horn decoupling diode |
27L |
| V22/2 |
Horn/tone sequence decoupling diode |
26L |
| W1/3 |
CLS cockpit ground point 1 |
11H |
| W1/3 |
CLS cockpit ground point 1 |
6H |
| W29/8 |
Left D-pillar ground point |
13H |
| W38 |
Roof ground point |
30H |
| W38 |
Roof ground point |
16H |
| W38 |
Roof ground point |
19H |
| W71/2 |
Driver seat frame ground point 2 |
22H |
| W71/2 |
Driver seat frame ground point 2 |
39E |
| W9/7 |
Left front ground point 2 |
34H |
| W9/7 |
Left front ground point 2 |
29H |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
29E |
| X18/74 |
Cockpit and roof electrical connector 4 |
16E |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
5E |
| Z219 |
Signaling horn actuation connector sleeve |
27G |
| Z47/15 |
Rotating beacon connector sleeve |
15G |
| Z47/16 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
24G |
| Z47/17 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
7G |
| Z47/18 |
Rotating beacon with tone sequence connector sleeve |
21G |
| Z47/18 |
Rotating beacon with tone sequence connector sleeve |
37G |
| Z47/19 |
Rotating beacon with tone sequence connector sleeve |
20E |
| Z81/5 |
Circuit 58d connector sleeve |
5G |
| Z81/5 |
Circuit 58d connector sleeve |
10G |
