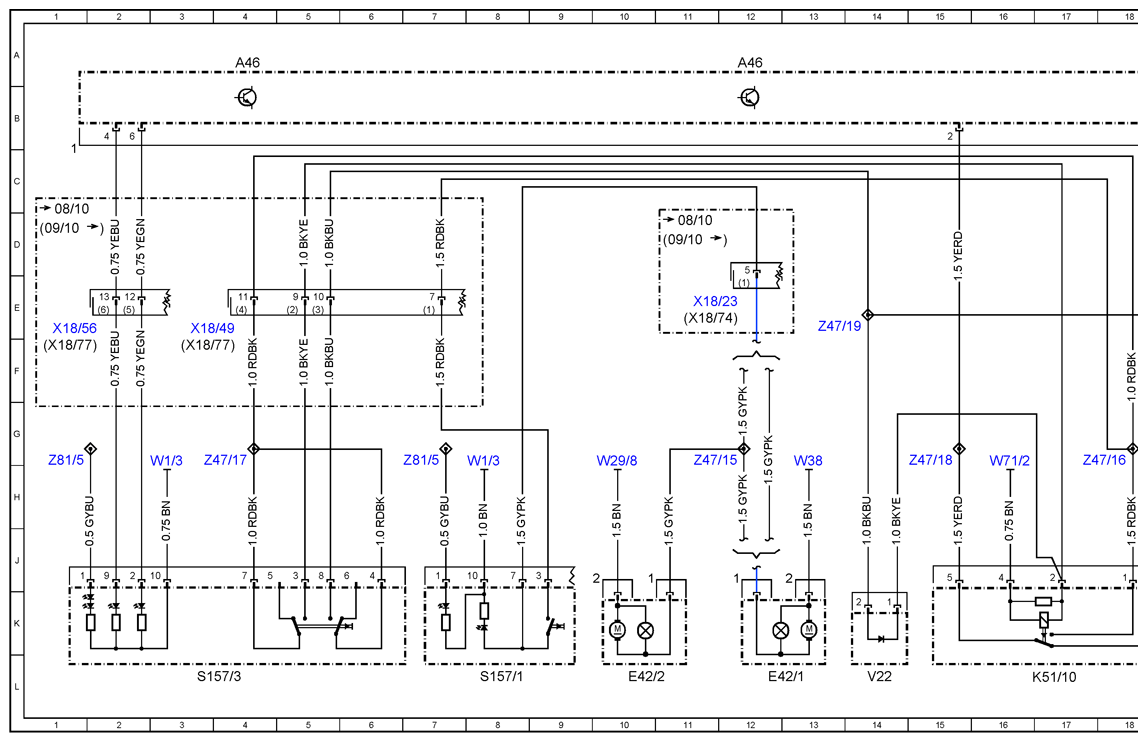

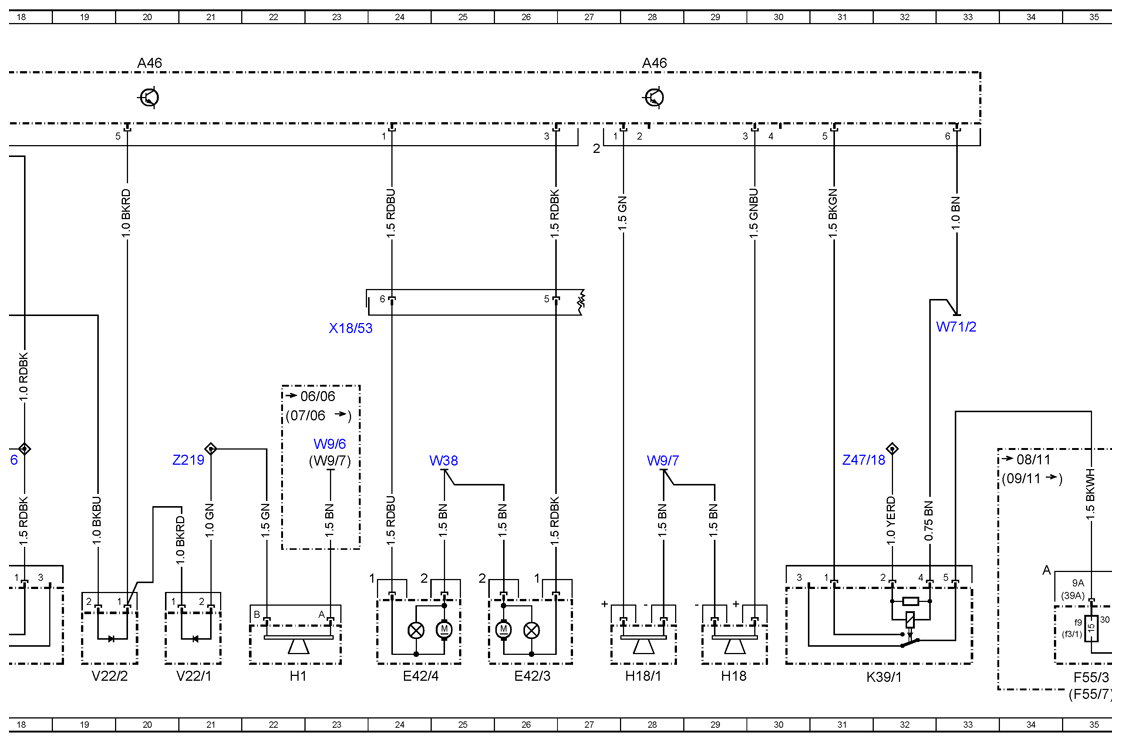

| A46 |
Tone signal generator |
4A |
| A46 |
Tone signal generator |
12A |
| A46 |
Tone signal generator |
20A |
| A46 |
Tone signal generator |
28A |
| E42/1 |
Left front rotating beacon |
12L |
| E42/2 |
Right rear rotating beacon |
10L |
| E42/3 |
Blue left front rotating beacon |
26L |
| E42/4 |
Blue right front rotating beacon |
24L |
| F55/3 |
Fuse block (9 fuses) |
35L |
| F55/3f9 |
Fuse 9 (15 A), multitone horn/roof fan |
35K |
| F55/7 |
Fuse block (9 fuses) |
35L |
| F55/7f3/1 |
Fuse 39 (15 A), siren/roof ventilator |
34K |
| H1 |
Signaling horn |
22L |
| H18 |
Low high-volume horn |
29L |
| H18/1 |
High high-volume horn |
28L |
| K39/1 |
Tone sequence relay |
32L |
| K51/10 |
Rotating beacon relay |
17L |
| S157/1 |
Rotating beacon switch |
8L |
| S157/3 |
Rotating beacon with tone sequence switch |
3L |
| V22 |
Tone sequence diode |
14L |
| V22/1 |
Tone sequence/horn decoupling diode |
21L |
| V22/2 |
Horn/tone sequence decoupling diode |
19L |
| W1/3 |
CLS cockpit ground point 1 |
8H |
| W1/3 |
CLS cockpit ground point 1 |
3H |
| W29/8 |
Left D-pillar ground point |
10H |
| W38 |
Roof ground point |
13H |
| W38 |
Roof ground point |
25H |
| W71/2 |
Driver seat frame ground point 2 |
16H |
| W71/2 |
Driver seat frame ground point 2 |
33E |
| W9/6 |
Left front lamp unit ground point |
23G |
| W9/7 |
Left front ground point 2 |
23H |
| W9/7 |
Left front ground point 2 |
28H |
| X18/23 |
COC/roof connector |
11E |
| X18/49 |
HLS/COC connector 2 |
4E |
| X18/53 |
HLS/roof connector 2 |
23E |
| X18/56 |
HLS/COC connector |
1E |
| X18/74 |
COC/roof connector 4 |
11E |
| X18/77 |
HLS/COC connector 6 |
1F |
| X18/77 |
HLS/COC connector 6 |
3F |
| Z219 |
Signaling horn actuation connector sleeve |
21G |
| Z47/15 |
Rotating beacon connector sleeve |
11G |
| Z47/16 |
Rotating beacon with tone sequence tml. 30 connector sleeve |
18G |
| Z47/17 |
Rotating beacon with tone sequence tml. 30 connector sleeve |
4G |
| Z47/18 |
Rotating beacon with tone sequence connector sleeve |
15G |
| Z47/18 |
Rotating beacon with tone sequence connector sleeve |
31G |
| Z47/19 |
Rotating beacon with tone sequence connector sleeve |
13E |
| Z81/5 |
Tml. 58d connector sleeve |
1G |
| Z81/5 |
Tml. 58d connector sleeve |
7G |
