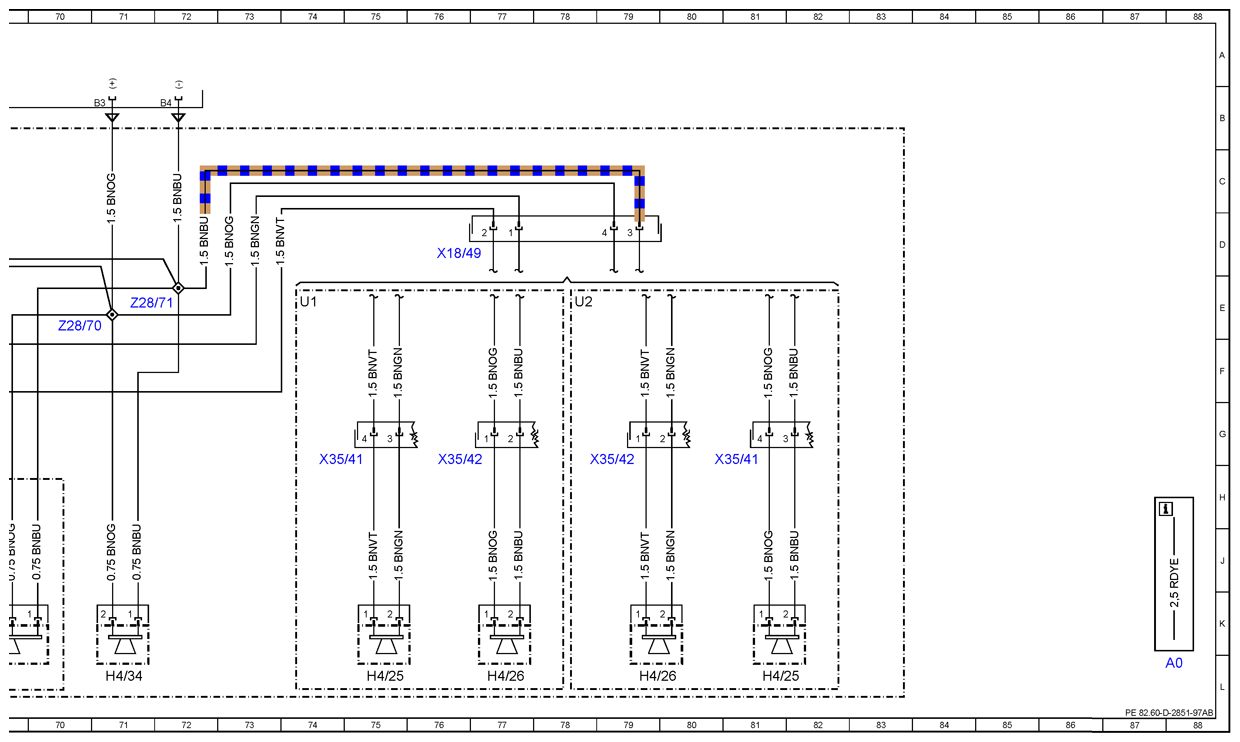

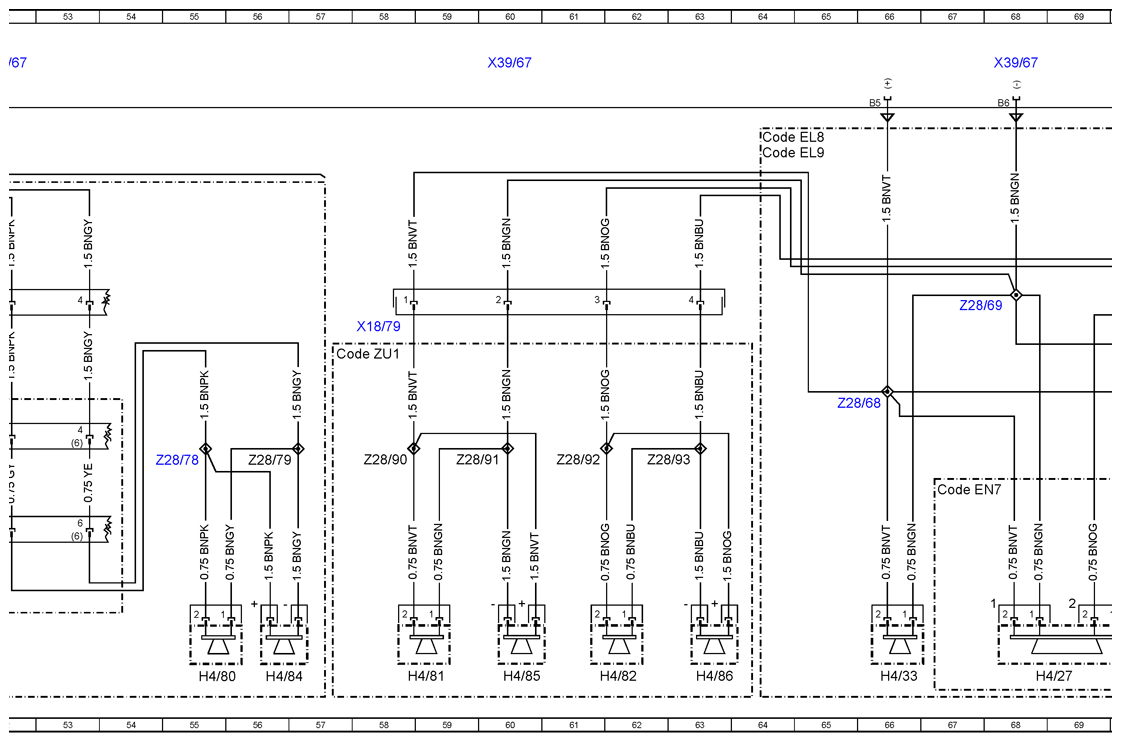

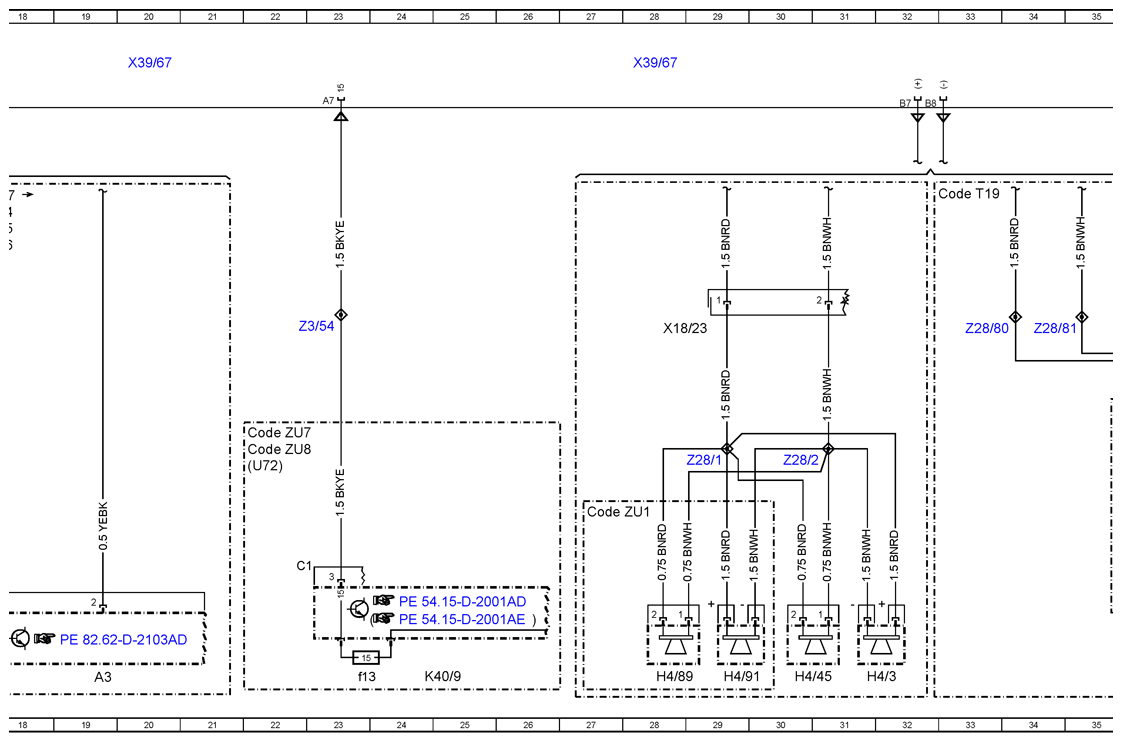

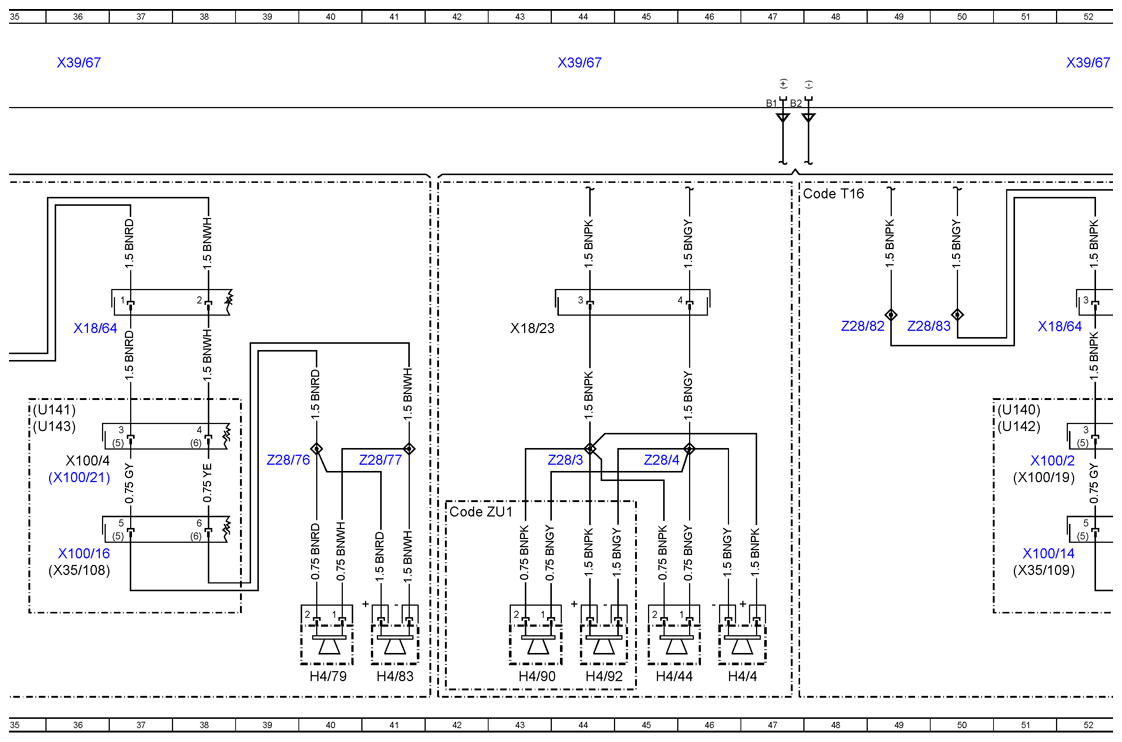

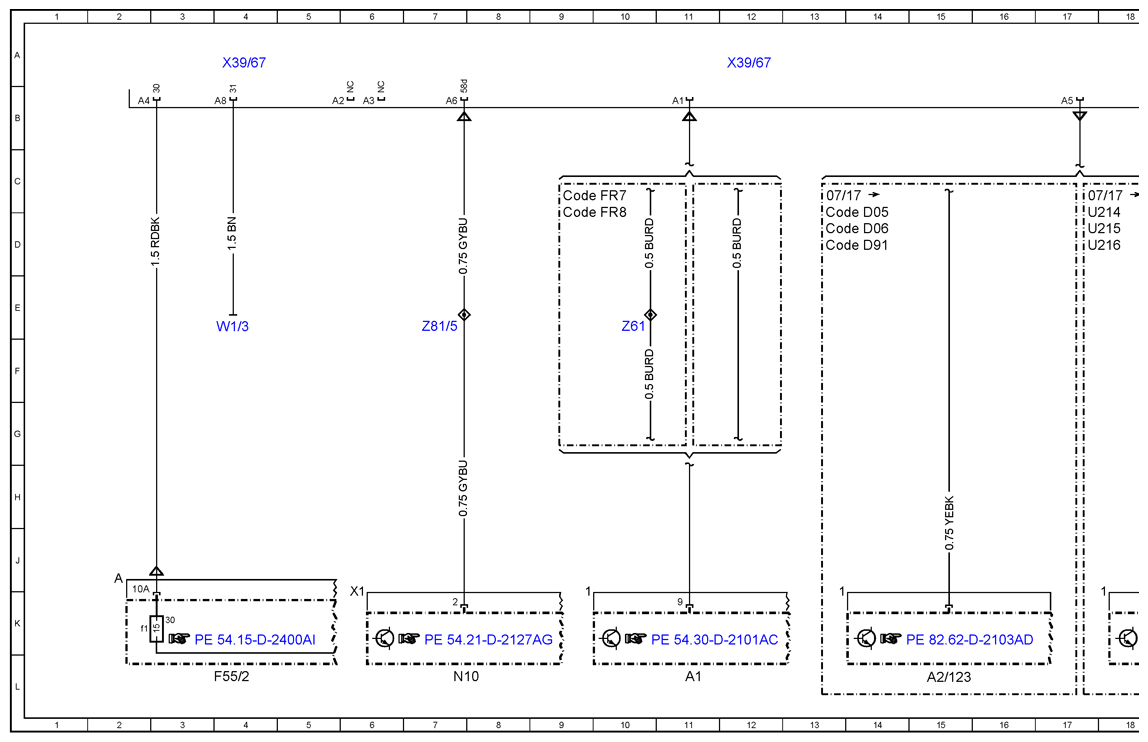

Wiring Diagram For Radio PREINSTALLATION - Pe82.60-D-2851-97AB
| Code: n |
Designation: | Position: |
|---|---|---|
| A0 | Color code key | 88L |
| A1 | Instrument cluster | 11L |
| A2/123 | Antenna amplifier | 15L |
| A3 | Antenna voltage converter | 19L |
| Code D05 | Super-high roof | 13D |
| Code D06 | Super-high roof painted in the vehicle color | 13D |
| Code D91 | Roof omission | 13D |
| Code EL8 | Front 2-way speaker | 64B |
| Code EL9 | 64C | |
| Code EN7 | Audio 15 | 67H |
| Code FR7 | Backup Assist electrical system preinstallation | 9C |
| Code FR8 | Backup camera | 9D |
| Code T16 | Right sliding door | 47C |
| Code T19 | Left sliding door | 32C |
| Code ZU1 | Minibus | 57F |
| Code ZU1 | Minibus | 27H |
| Code ZU1 | Minibus | 42H |
| Code ZU7 | Canada national version | 22G |
| Code ZU8 | USA national version | 22G |
| F55/2 | Fuse block 2 (9-pin) | 4L |
| F55/2f1 | Radio fuse 10 | 2K |
| H4/25 | Left bass midrange speaker | 75L |
| H4/25 | Left bass midrange speaker | 81L |
| H4/26 | Right bass midrange speaker | 77L |
| H4/26 | Right bass midrange speaker | 79L |
| H4/27 | Center front speaker | 68L |
| H4/3 | Left rear side wall speaker | 31L |
| H4/33 | Left front door tweeter | 66L |
| H4/34 | Right front door tweeter | 71L |
| H4/4 | Right rear side wall speaker | 46L |
| H4/44 | Right rear side wall tweeter | 45L |
| H4/45 | Left rear side wall tweeter | 30L |
| H4/79 | Left sliding door tweeter | 40L |
| H4/80 | Right sliding door tweeter | 55L |
| H4/81 | Left side wall tweeter | 59L |
| H4/82 | Right side wall tweeter | 62L |
| H4/83 | Left sliding door bass midrange speaker | 41L |
| H4/84 | Right sliding door bass midrange speaker | 56L |
| H4/85 | Left side wall bass midrange speaker | 60L |
| H4/86 | Right side wall bass midrange speaker | 63L |
| H4/89 | Left rear end tweeter | 28L |
| H4/90 | Right rear end tweeter | 43L |
| H4/91 | Left rear end bass and mid-range speaker | 29L |
| H4/92 | Right rear end bass and mid-range speaker | 44L |
| K40/9 | Fuse and relay module | 25L |
| K40/9f13 | Radio/cigar lighter fuse | 23L |
| N10 | SAM control unit | 7L |
| U1 | Valid for left-hand drive vehicles | 74E |
| U140 | Valid without code T50 (Right sliding door electric closing assist) | 51G |
| U141 | Valid without code T51 (Left sliding door electric closing assist) | 35G |
| U142 | Valid without code T55 (Electric operation for right sliding door) | 51G |
| U143 | Valid without code T56 (Electric operation for left sliding door) | 35G |
| U2 | Valid for right-hand drive vehicles | 78E |
| U214 | Valid without code D05 (Super-high roof) | 17D |
| U215 | Valid without code D06 (Super-high roof painted in the vehicle color) | 17D |
| U216 | Valid without code D91 (Roof omission) | 17D |
| U72 | Valid for all except USA, Canada | 22H |
| W1/3 | CLS cockpit ground point 1 | 4E |
| X100/14 | Right sliding door electrical connector | 51J |
| X100/16 | Left sliding door electrical connector | 36J |
| X100/19 | Right sliding door electrical connector (8-pin) | 51H |
| X100/2 | MWH [HLS]/right sliding door electrical connector | 51H |
| X100/21 | Left sliding door electrical connector (8-pin) | 36H |
| X100/4 | MWH [HLS]/left sliding door electrical connector | 36H |
| X18/23 | Cockpit and roof electrical connector | 29E |
| X18/23 | Cockpit and roof electrical connector | 43E |
| X18/49 | MWH [HLS]/cockpit electrical connector 2 | 76D |
| X18/64 | MWH [HLS]/cockpit electrical connector 5 | 36E |
| X18/64 | MWH [HLS]/cockpit electrical connector 5 | 52E |
| X18/79 | Cockpit and roof electrical connector 7 | 58E |
| X35/108 | Actuator/left sliding door central locking electrical connector (8-pin) | 36J |
| X35/109 | Actuator/right sliding door central locking electrical connector (8-pin) | 51J |
| X35/41 | Driver door/MWH [HLS] electrical connector 2 | 74G |
| X35/41 | Driver door/MWH [HLS] electrical connector 2 | 81G |
| X35/42 | Front passenger door electrical connector | 76G |
| X35/42 | Front passenger door electrical connector | 79G |
| X39/67 | Radio preinstallation electrical connector | 4A |
| X39/67 | Radio preinstallation electrical connector | 12A |
| X39/67 | Radio preinstallation electrical connector | 28A |
| X39/67 | Radio preinstallation electrical connector | 36A |
| X39/67 | Radio preinstallation electrical connector | 44A |
| X39/67 | Radio preinstallation electrical connector | 52A |
| X39/67 | Radio preinstallation electrical connector | 60A |
| X39/67 | Radio preinstallation electrical connector | 68A |
| X39/67 | Radio preinstallation electrical connector | 20A |
| Z28/1 | Left rear speaker connector sleeve (signal +) | 29G |
| Z28/2 | Left rear speaker connector sleeve | 30G |
| Z28/3 | Right rear speaker connector sleeve | 44G |
| Z28/4 | Right rear speaker connector sleeve | 45G |
| Z28/68 | Left cockpit speaker connector sleeve | 66G |
| Z28/69 | Left cockpit speaker connector sleeve | 67E |
| Z28/70 | Right cockpit speaker connector sleeve | 70E |
| Z28/71 | Right cockpit speaker connector sleeve | 71E |
| Z28/76 | Left sliding door speaker connector sleeve | 39G |
| Z28/77 | Left sliding door speaker connector sleeve | 41G |
| Z28/78 | Right sliding door speaker connector sleeve | 55G |
| Z28/79 | Right sliding door speaker connector sleeve | 56G |
| Z28/80 | Left sliding door/rear end speaker connector sleeve | 33E |
| Z28/81 | Left sliding door/rear end speaker connector sleeve | 34E |
| Z28/82 | Right sliding door/rear end speaker connector sleeve | 48E |
| Z28/83 | Right sliding door/rear end speaker connector sleeve | 49E |
| Z28/90 | Left front rear end speaker connector sleeve | 58G |
| Z28/91 | Left front rear end speaker connector sleeve | 59G |
| Z28/92 | Right front rear end speaker connector sleeve | 61G |
| Z28/93 | Right front rear end speaker connector sleeve | 63G |
| Z3/54 | Circuit 15R connector sleeve | 23E |
| Z61 | Vehicle speed signal connector sleeve | 10E |
| Z81/5 | Circuit 58d connector sleeve | 7E |
