| A1 |
Instrument cluster |
17L |
| A2/18 |
Antenna amplifier |
4L |

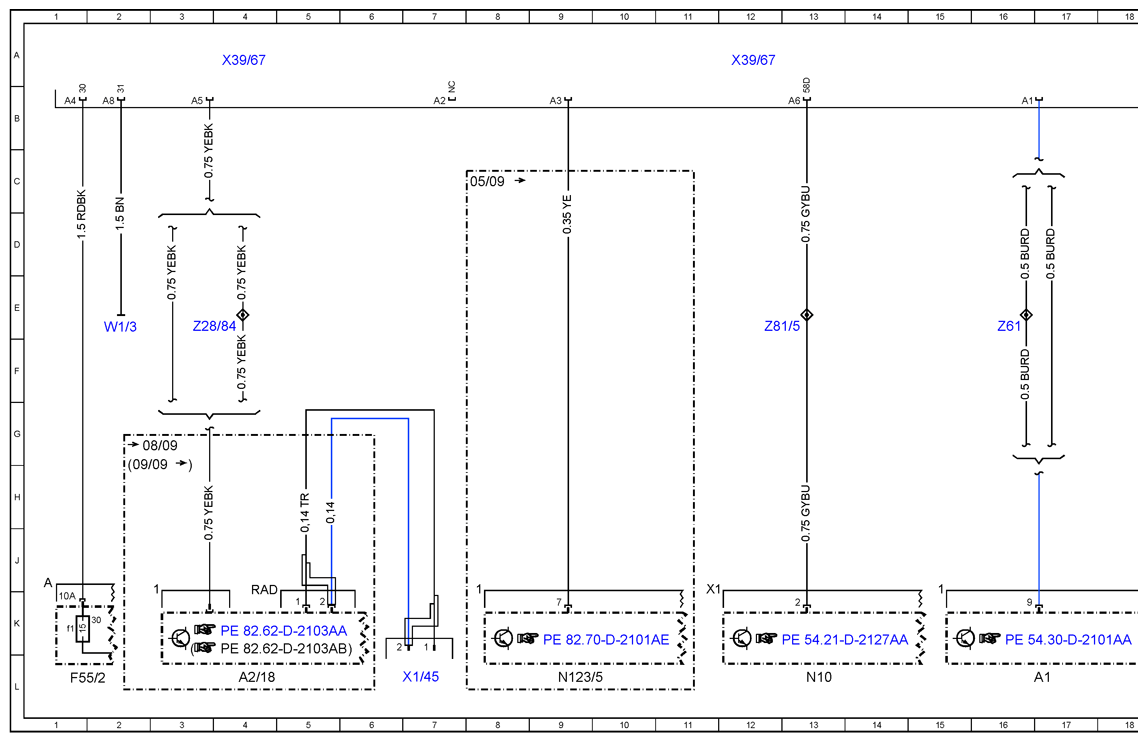

| F55/2 |
Fuse block (9 fuses) |
1L |
| F55/2f1 |
Fuse 10 (15/20 A), radio |
1K |
| K40/9 |
Fuse/relay box (SRB) |
21L |
| K40/9f13 |
Cigar lighter/radio fuse (15 A) |
22L |
| N10 |
SAM control unit |
13L |
| N123/5 |
Bluetooth hands-free system radio preinstallation |
9L |
| U70 |
Valid for USA, Canada |
19G |
| U72 |
Valid for all except USA, Canada |
19G |
| W1/3 |
CLS cockpit ground point 1 |
2E |
| X1/45 |
Antenna preinstallation connector |
7L |

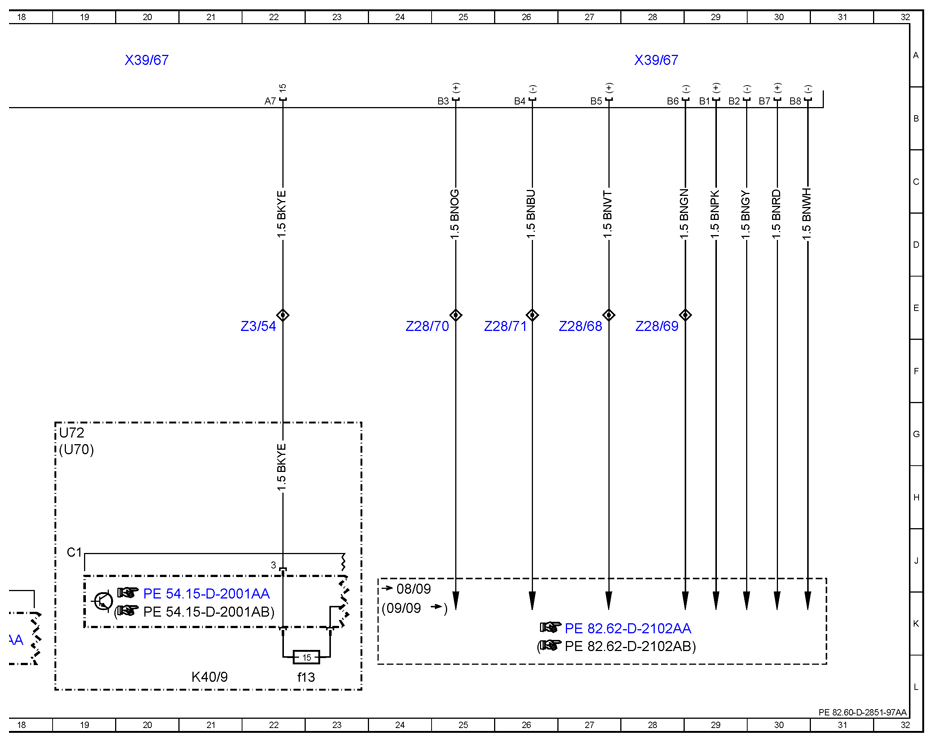

| X39/67 |
Radio preinstallation connector |
4A |
| X39/67 |
Radio preinstallation connector |
12A |
| X39/67 |
Radio preinstallation connector |
20A |
| X39/67 |
Radio preinstallation connector |
28A |
| Z28/68 |
Left cockpit speaker connector sleeve |
27E |
| Z28/69 |
Left cockpit speaker connector sleeve |
28E |
| Z28/70 |
Right cockpit speaker connector sleeve |
24E |
| Z28/71 |
Right cockpit speaker connector sleeve |
26E |
| Z28/84 |
Radio additional fan connector sleeve |
4E |
| Z3/54 |
Tml. 15R connector sleeve |
22E |
| Z61 |
Vehicle speed signal connector sleeve |
16E |
| Z81/5 |
Tml. 58d connector sleeve |
13E |
