| A0 |
Color code key |
72L |

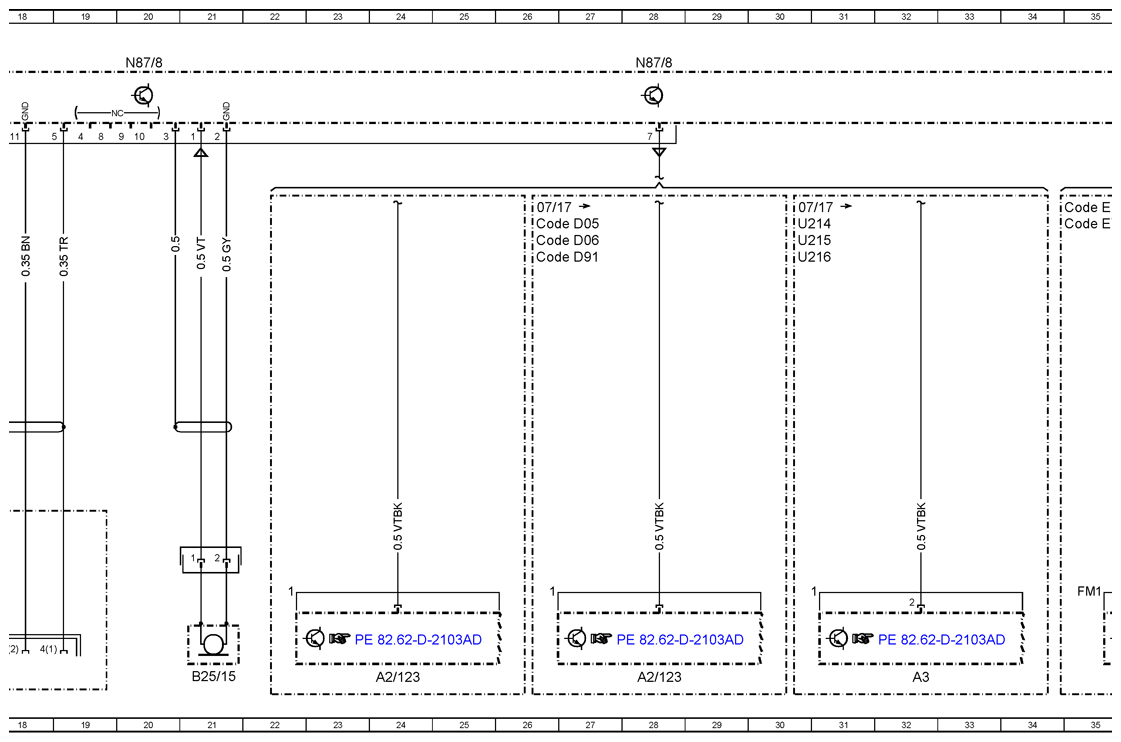

| A2/123 |
Antenna amplifier |
28L |
| A2/123 |
Antenna amplifier |
24L |
| A2/123 |
Antenna amplifier |
41L |
| A2/123 |
Antenna amplifier |
50L |
| A2/30 |
Cradle for Becker® MAP PILOT |
59L |
| A2/30 |
Cradle for Becker® MAP PILOT |
64L |

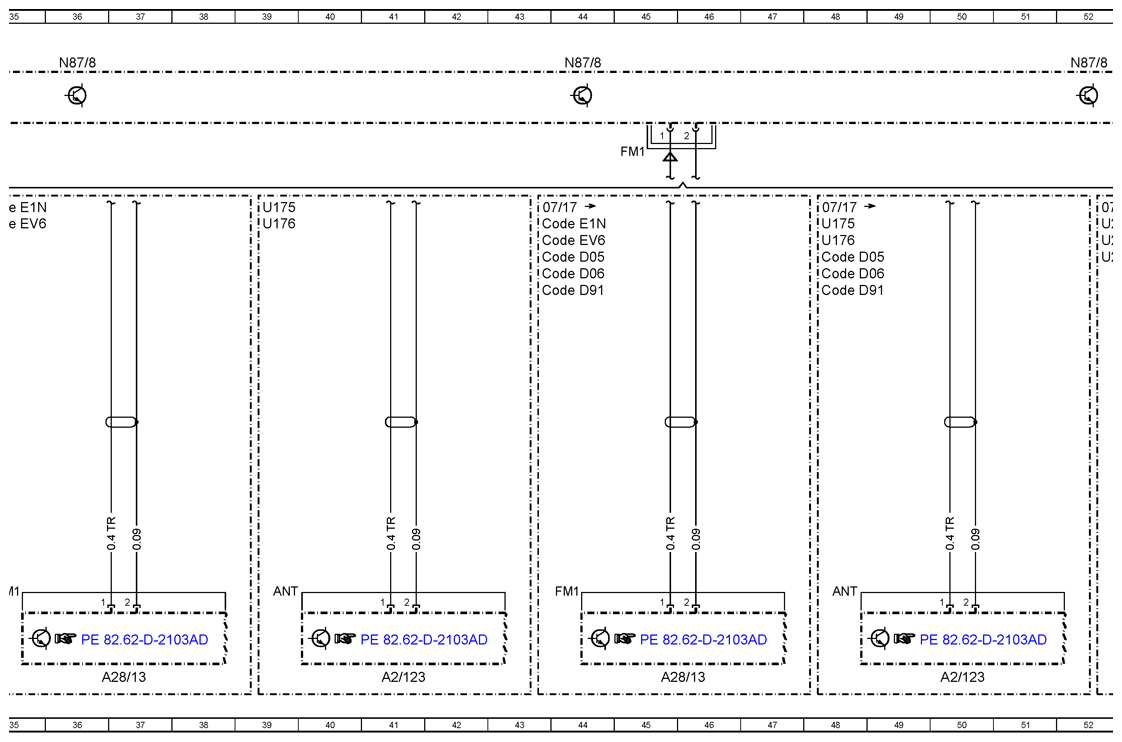

| A28/13 |
TMC antenna splitter |
37L |
| A28/13 |
TMC antenna splitter |
45L |
| A3 |
Antenna voltage converter |
32L |
| A3 |
Antenna voltage converter |
54L |
| A40/10 |
USB/AUX interface |
16L |
| B25/15 |
LHD hands-free system microphone |
21L |

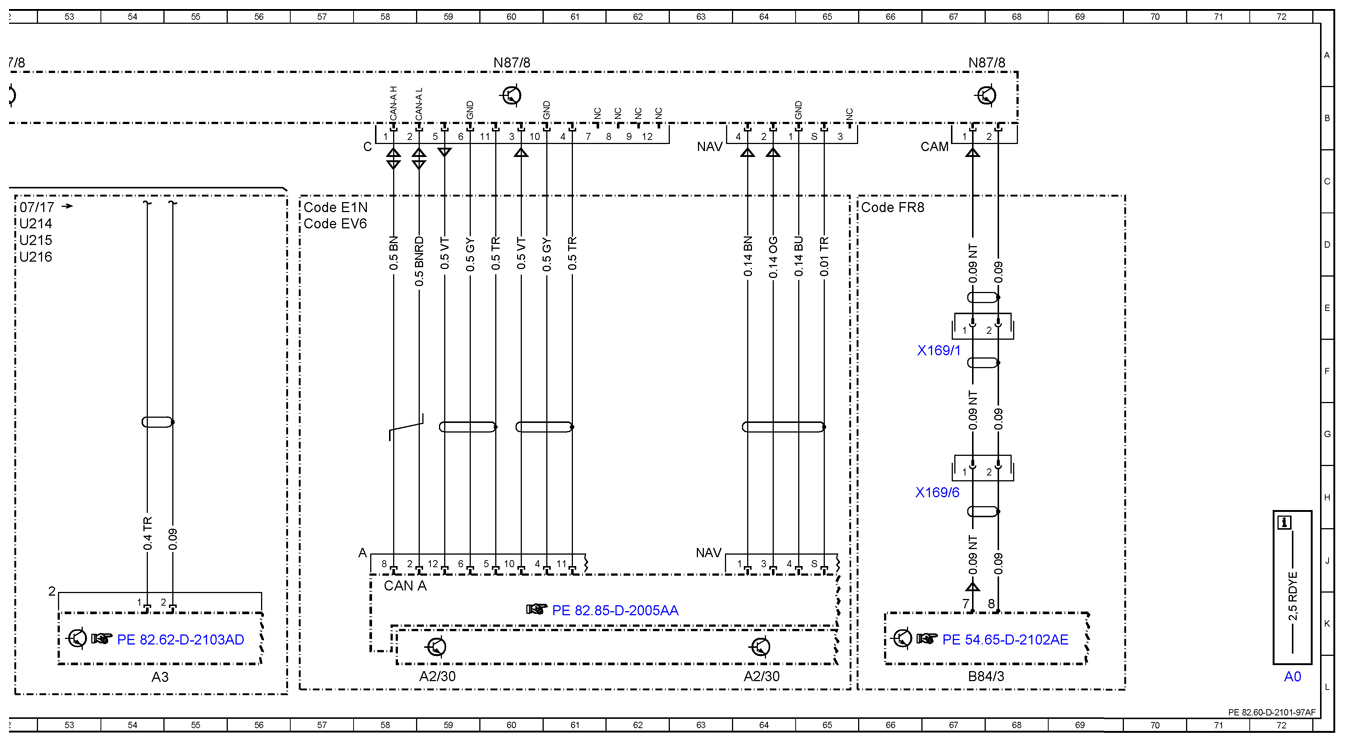

| B84/3 |
Backup camera |
67L |
| Code D05 |
Super-high roof |
26D |
| Code D05 |
Super-high roof |
43D |
| Code D05 |
Super-high roof |
48D |
| Code D06 |
Super-high roof painted in the vehicle color |
26D |
| Code D06 |
Super-high roof painted in the vehicle color |
43E |
| Code D06 |
Super-high roof painted in the vehicle color |
48E |
| Code D91 |
Roof omission |
26D |
| Code D91 |
Roof omission |
43E |
| Code D91 |
Roof omission |
48E |
| Code E1N |
Becker MAP Pilot |
57C |
| Code E1N |
Becker MAP Pilot |
35C |
| Code E1N |
Becker MAP Pilot |
43D |
| Code EV6 |
Becker MAP PILOT preinstallation |
57D |
| Code EV6 |
Becker MAP PILOT preinstallation |
35D |
| Code EV6 |
Becker MAP PILOT preinstallation |
43D |
| Code FR8 |
Backup camera |
66C |

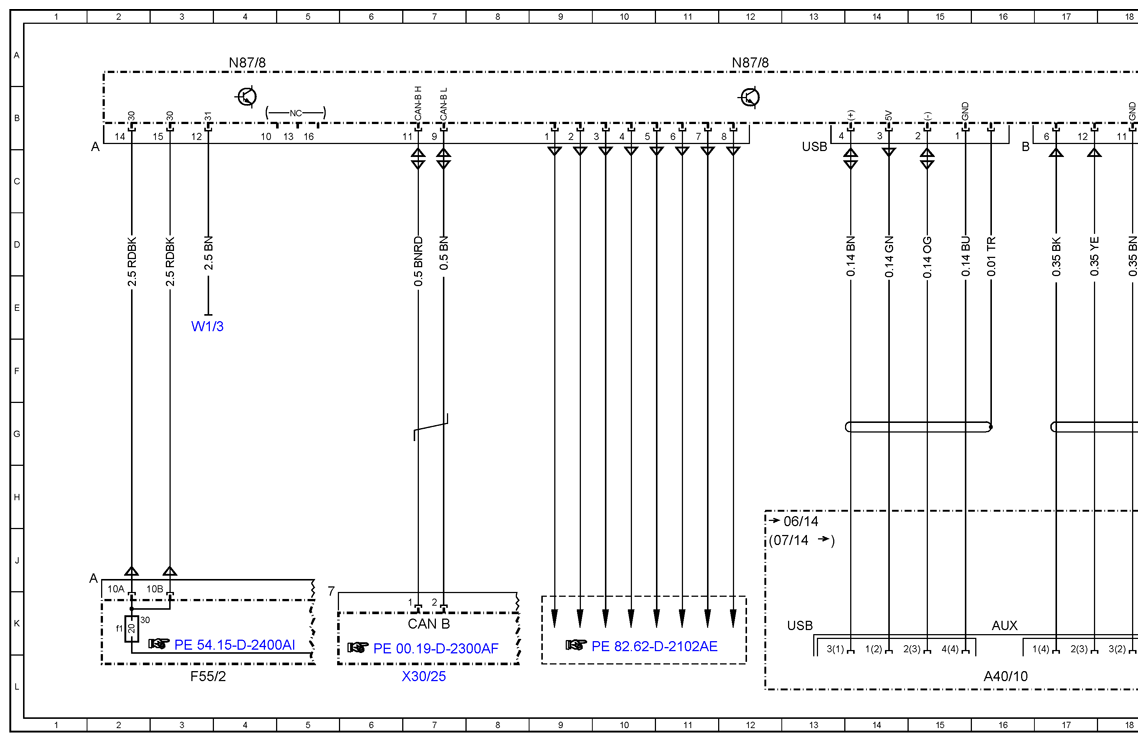

| F55/2 |
Fuse block 2 (9-pin) |
3L |
| F55/2f1 |
Radio fuse 10 |
2K |
| N87/8 |
Radio/radio with navigation |
4A |
| N87/8 |
Radio/radio with navigation |
12A |
| N87/8 |
Radio/radio with navigation |
20A |
| N87/8 |
Radio/radio with navigation |
28A |
| N87/8 |
Radio/radio with navigation |
36A |
| N87/8 |
Radio/radio with navigation |
44A |
| N87/8 |
Radio/radio with navigation |
52A |
| N87/8 |
Radio/radio with navigation |
60A |
| N87/8 |
Radio/radio with navigation |
67A |
| U175 |
Valid without code E1N (Becker MAP PILOT) |
39C |
| U175 |
Valid without code E1N (Becker MAP PILOT) |
48D |
| U176 |
Valid without code EV6 (Becker MAP PILOT preinstallation) |
39D |
| U176 |
Valid without code EV6 (Becker MAP PILOT preinstallation) |
48D |
| U214 |
Valid without code D05 (Super-high roof) |
30D |
| U214 |
Valid without code D05 (Super-high roof) |
52D |
| U215 |
Valid without code D06 (Super-high roof painted in the vehicle color) |
30D |
| U215 |
Valid without code D06 (Super-high roof painted in the vehicle color) |
52D |
| U216 |
Valid without code D91 (Roof omission) |
30D |
| U216 |
Valid without code D91 (Roof omission) |
52D |
| W1/3 |
CLS cockpit ground point 1 |
3E |
| X169/1 |
Cockpit/roof wiring harness reversing camera electrical connector |
67F |
| X169/6 |
Backup camera electrical connector |
67H |
| X30/25 |
Interior CAN electrical connector |
7L |
