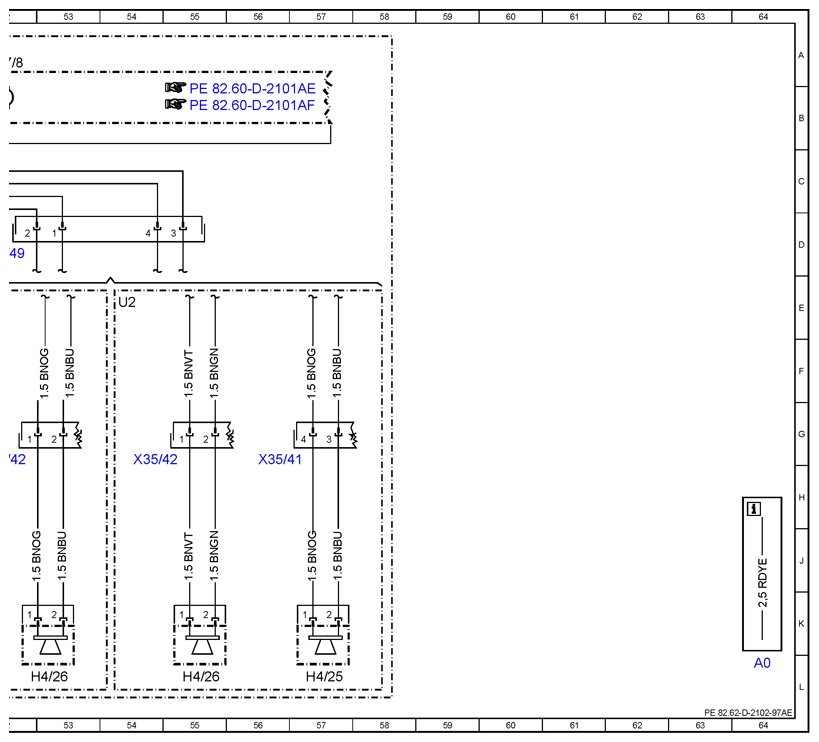

| A0 |
Color code key |
64L |
| Code EL8 |
Front 2-way speaker |
40A |

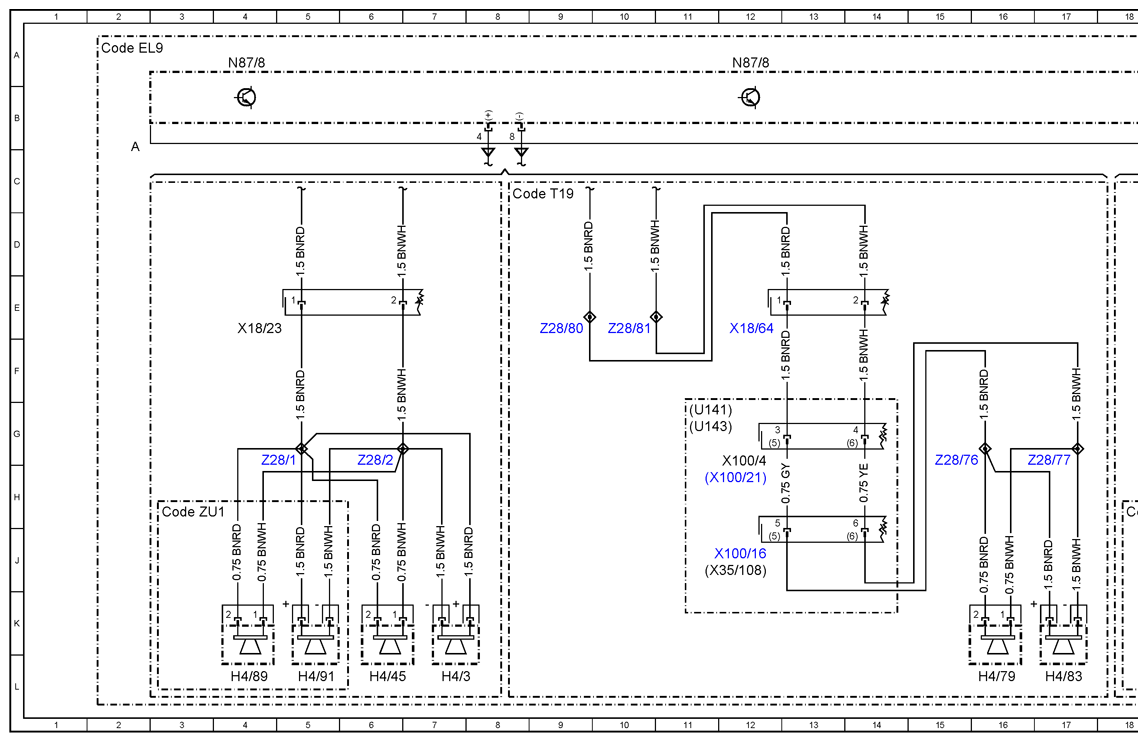

| Code EL9 |
|
2A |
| Code EL9 |
|
40A |

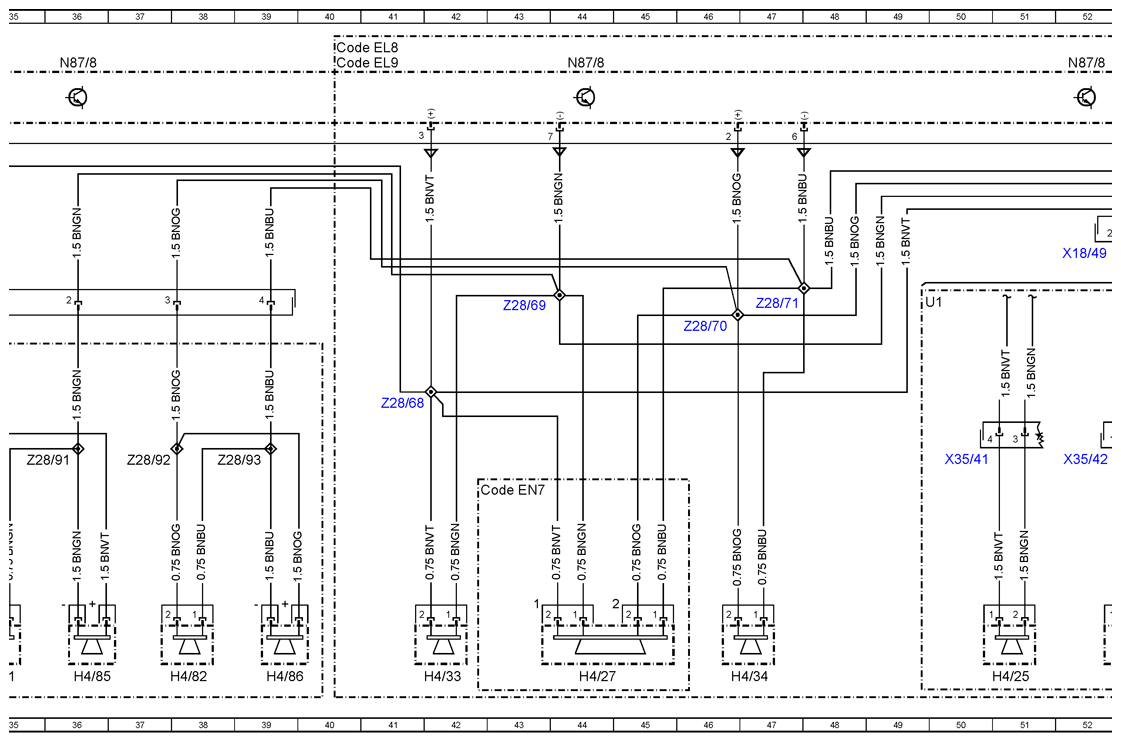

| Code EN7 |
Audio 15 |
42H |

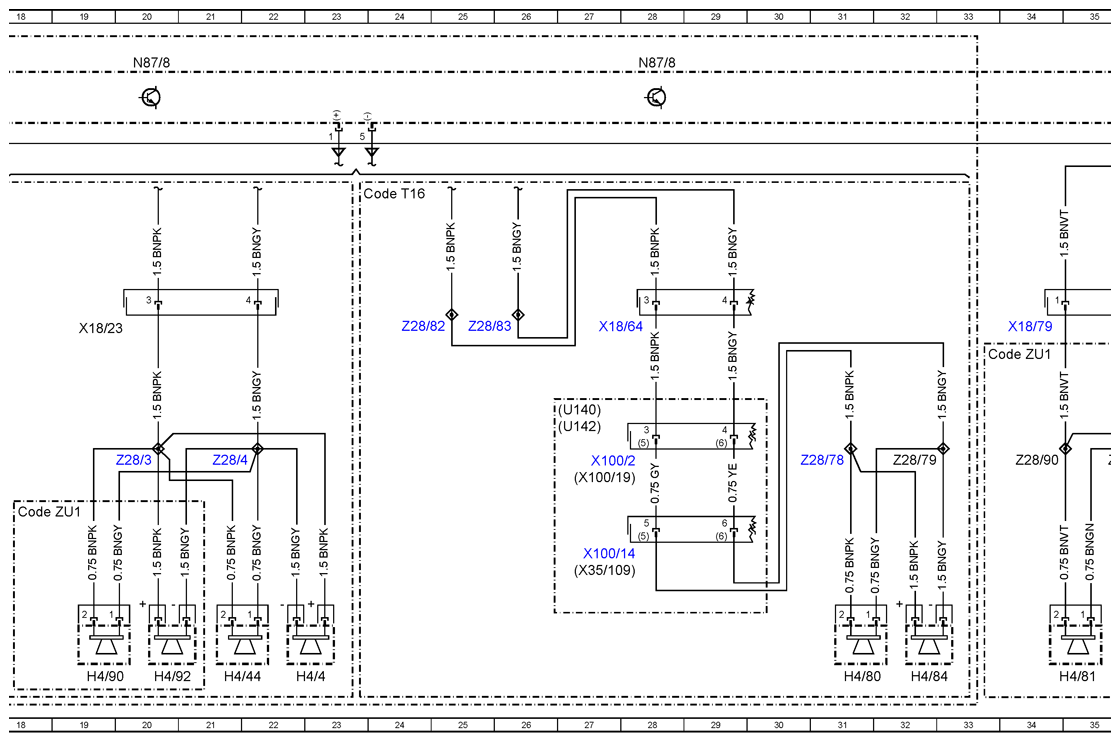

| Code T16 |
Right sliding door |
23C |
| Code T19 |
Left sliding door |
8C |
| Code ZU1 |
Minibus |
3H |
| Code ZU1 |
Minibus |
18H |
| Code ZU1 |
Minibus |
33F |
| H4/25 |
Left bass midrange speaker |
51L |
| H4/25 |
Left bass midrange speaker |
57L |
| H4/26 |
Right bass midrange speaker |
53L |
| H4/26 |
Right bass midrange speaker |
55L |
| H4/27 |
Center front speaker |
44L |
| H4/3 |
Left rear side wall speaker |
7L |
| H4/33 |
Left front door tweeter |
42L |
| H4/34 |
Right front door tweeter |
47L |
| H4/4 |
Right rear side wall speaker |
22L |
| H4/44 |
Right rear side wall tweeter |
21L |
| H4/45 |
Left rear side wall tweeter |
6L |
| H4/79 |
Left sliding door tweeter |
16L |
| H4/80 |
Right sliding door tweeter |
31L |
| H4/81 |
Left side wall tweeter |
35L |
| H4/82 |
Right side wall tweeter |
38L |
| H4/83 |
Left sliding door bass midrange speaker |
17L |
| H4/84 |
Right sliding door bass midrange speaker |
32L |
| H4/85 |
Left side wall bass midrange speaker |
36L |
| H4/86 |
Right side wall bass midrange speaker |
39L |
| H4/89 |
Left rear end tweeter |
4L |
| H4/90 |
Right rear end tweeter |
19L |
| H4/91 |
Left rear end bass and mid-range speaker |
5L |
| H4/92 |
Right rear end bass and mid-range speaker |
20L |
| N87/8 |
Radio/radio with navigation |
4A |
| N87/8 |
Radio/radio with navigation |
12A |
| N87/8 |
Radio/radio with navigation |
20A |
| N87/8 |
Radio/radio with navigation |
28A |
| N87/8 |
Radio/radio with navigation |
36A |
| N87/8 |
Radio/radio with navigation |
44A |
| N87/8 |
Radio/radio with navigation |
52A |
| U1 |
Valid for left-hand drive vehicles |
49E |
| U140 |
Valid without code T50 (Right sliding door electric closing assist) |
27G |
| U141 |
Valid without code T51 (Left sliding door electric closing assist) |
11G |
| U142 |
Valid without code T55 (Electric operation for right sliding door) |
27G |
| U143 |
Valid without code T56 (Electric operation for left sliding door) |
11G |
| U2 |
Valid for right-hand drive vehicles |
54E |
| X100/14 |
Right sliding door electrical connector |
27J |
| X100/16 |
Left sliding door electrical connector |
12J |
| X100/19 |
Right sliding door electrical connector (8-pin) |
27H |
| X100/2 |
MWH [HLS]/right sliding door electrical connector |
27H |
| X100/21 |
Left sliding door electrical connector (8-pin) |
12H |
| X100/4 |
MWH [HLS]/left sliding door electrical connector |
12H |
| X18/23 |
Cockpit and roof electrical connector |
4E |
| X18/23 |
Cockpit and roof electrical connector |
19E |
| X18/49 |
MWH [HLS]/cockpit electrical connector 2 |
52D |
| X18/64 |
MWH [HLS]/cockpit electrical connector 5 |
12E |
| X18/64 |
MWH [HLS]/cockpit electrical connector 5 |
28E |
| X18/79 |
Cockpit and roof electrical connector 7 |
34E |
| X35/108 |
Actuator/left sliding door central locking electrical connector (8-pin) |
12J |
| X35/109 |
Actuator/right sliding door central locking electrical connector (8-pin) |
27J |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
50G |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
56G |
| X35/42 |
Front passenger door electrical connector |
52G |
| X35/42 |
Front passenger door electrical connector |
54G |
| Z28/1 |
Left rear speaker connector sleeve (signal +) |
5G |
| Z28/2 |
Left rear speaker connector sleeve |
6G |
| Z28/3 |
Right rear speaker connector sleeve |
20G |
| Z28/4 |
Right rear speaker connector sleeve |
21G |
| Z28/68 |
Left cockpit speaker connector sleeve |
41G |
| Z28/69 |
Left cockpit speaker connector sleeve |
43E |
| Z28/70 |
Right cockpit speaker connector sleeve |
46E |
| Z28/71 |
Right cockpit speaker connector sleeve |
47E |
| Z28/76 |
Left sliding door speaker connector sleeve |
15G |
| Z28/77 |
Left sliding door speaker connector sleeve |
17G |
| Z28/78 |
Right sliding door speaker connector sleeve |
31G |
| Z28/79 |
Right sliding door speaker connector sleeve |
32G |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
9E |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
10E |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
24E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
25E |
| Z28/90 |
Left front rear end speaker connector sleeve |
34G |
| Z28/91 |
Left front rear end speaker connector sleeve |
36G |
| Z28/92 |
Right front rear end speaker connector sleeve |
37G |
| Z28/93 |
Right front rear end speaker connector sleeve |
39G |
