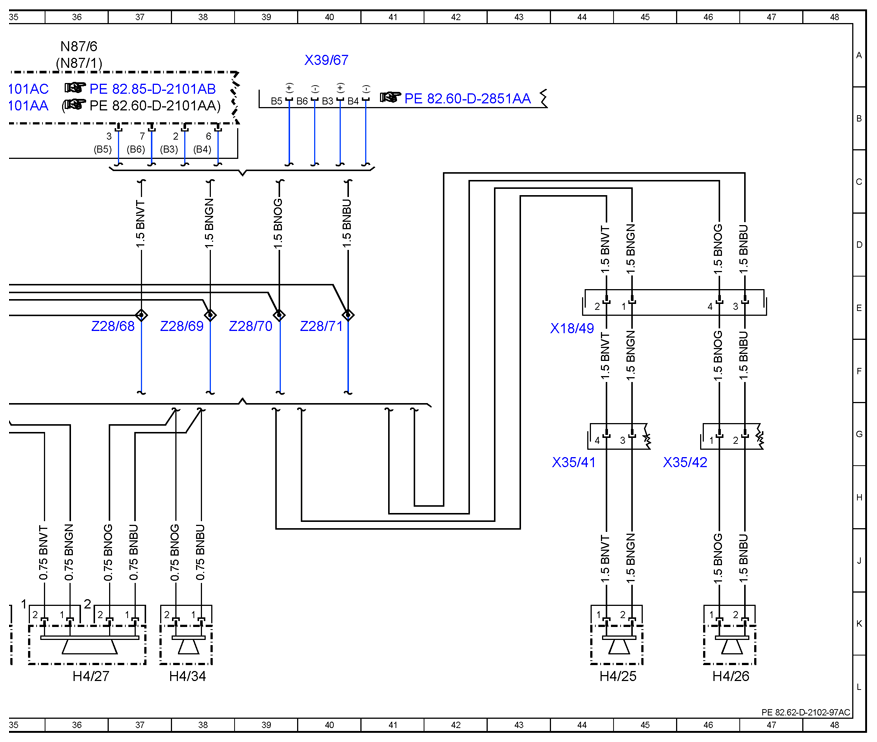

| H4/25 |
Bass midrange speaker |
44L |
| H4/26 |
Bass midrange speaker |
46L |
| H4/27 |
Center front speaker |
36L |
| H4/3 |
Left rear side wall speaker |
5L |
| H4/33 |
Left front door tweeter |
34L |
| H4/34 |
Right front door tweeter |
38L |
| H4/4 |
Right rear side wall speaker |
9L |
| H4/44 |
Right rear side wall tweeter |
8L |
| H4/45 |
Left rear side wall tweeter |
4L |
| H4/79 |
Left sliding door tweeter |
19L |
| H4/80 |
Right sliding door tweeter |
25L |
| H4/81 |
Left side wall tweeter |
28L |
| H4/82 |
Right side wall tweeter |
31L |
| H4/83 |
Left sliding door bass midrange speaker |
20L |
| H4/84 |
Right sliding door bass midrange speaker |
26L |
| H4/85 |
Left side wall bass midrange speaker |
30L |
| H4/86 |
Right side wall bass midrange speaker |
33L |
| H4/89 |
Left rear end tweeter |
2L |
| H4/90 |
Right rear end tweeter |
6L |
| H4/91 |
Left rear end bass and mid-range speaker |
3L |
| H4/92 |
Right rear end bass and mid-range speaker |
7L |
| N87/1 |
Radio/radio with navigation |
12A |
| N87/1 |
Radio/radio with navigation |
20A |
| N87/1 |
Radio/radio with navigation |
28A |
| N87/1 |
Radio/radio with navigation |
36A |
| N87/6 |
Radio/radio with navigation NG |
12A |
| N87/6 |
Radio/radio with navigation NG |
20A |
| N87/6 |
Radio/radio with navigation NG |
28A |
| N87/6 |
Radio/radio with navigation NG |
36A |
| U79 |
Valid for minibus |
1H |
| U79 |
Valid for minibus |
6H |
| U79 |
Valid for minibus |
27F |
| X100/14 |
Right sliding door connector |
21J |
| X100/16 |
Left sliding door connector |
15J |
| X100/19 |
Right sliding door connector (8-pin) |
21H |
| X100/2 |
HLS/right sliding door connector |
22H |
| X100/21 |
Left sliding door connector (8-pin) |
15H |
| X100/4 |
HLS/left sliding door connector |
16H |
| X18/23 |
COC/roof connector |
2E |
| X18/49 |
HLS/COC connector 2 |
44E |
| X18/64 |
HLS/COC connector 5 |
16E |
| X18/79 |
COC/roof connector 7 |
28E |
| X35/108 |
Left sliding door ZV actuator connector (8-pin) |
15J |
| X35/109 |
Right sliding door ZV actuator connector (8-pin) |
21J |
| X35/41 |
Driver door/MWH connector 2 |
44H |
| X35/42 |
Front passenger door connector |
46H |
| X39/67 |
Radio preinstallation connector |
7A |
| X39/67 |
Radio preinstallation connector |
40A |
| Z28/1 |
Left rear speaker connector sleeve |
2G |
| Z28/2 |
Left rear speaker connector sleeve |
4G |
| Z28/3 |
Right rear speaker connector sleeve |
7G |
| Z28/4 |
Right rear speaker connector sleeve |
8G |
| Z28/68 |
Left cockpit speaker connector sleeve |
37E |
| Z28/69 |
Left cockpit speaker connector sleeve |
38E |
| Z28/70 |
Right cockpit speaker connector sleeve |
39E |
| Z28/71 |
Right cockpit speaker connector sleeve |
40E |
| Z28/76 |
Left sliding door speaker connector sleeve |
19G |
| Z28/77 |
Left sliding door speaker connector sleeve |
20G |
| Z28/78 |
Right sliding door speaker connector sleeve |
25G |
| Z28/79 |
Right sliding door speaker connector sleeve |
26G |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
11E |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
12E |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
13E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
14E |
| Z28/90 |
Left front rear end speaker connector sleeve |
28G |
| Z28/91 |
Left front rear end speaker connector sleeve |
29G |
| Z28/92 |
Right front rear end speaker connector sleeve |
31G |
| Z28/93 |
Right front rear end speaker connector sleeve |
32G |
