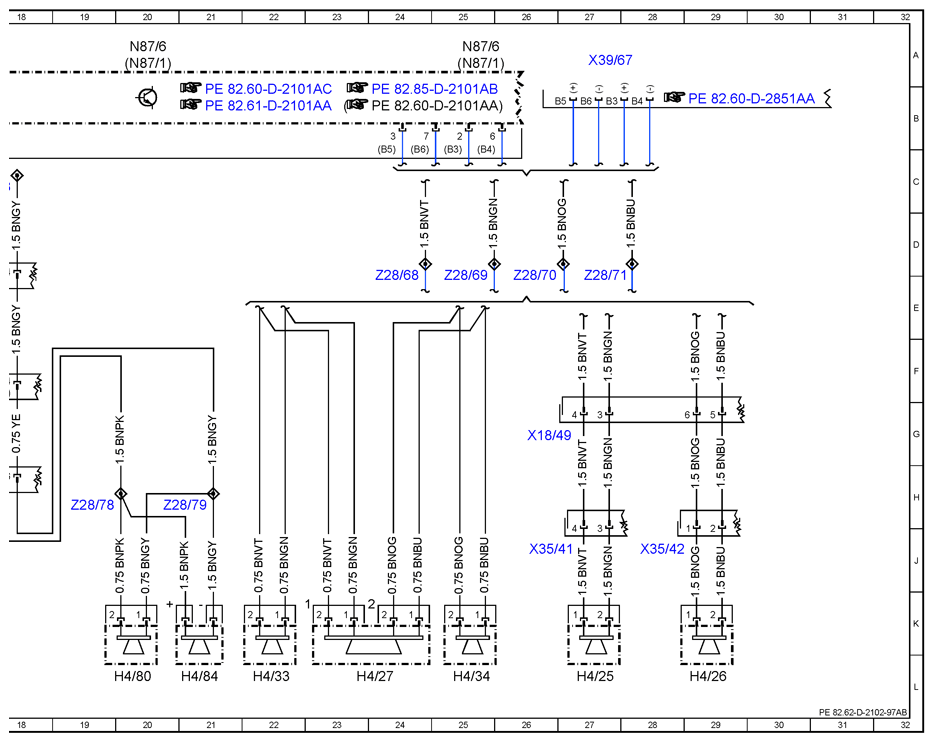

| H4/25 |
Bass midrange speaker |
27L |
| H4/26 |
Bass midrange speaker |
29L |
| H4/27 |
Center front speaker |
23L |
| H4/3 |
Left rear side wall speaker |
4L |
| H4/33 |
Left front door tweeter |
22L |
| H4/34 |
Right front door tweeter |
25L |
| H4/4 |
Right rear side wall speaker |
9L |
| H4/44 |
Right rear side wall tweeter |
8L |
| H4/45 |
Left rear side wall tweeter |
3L |
| H4/79 |
Left sliding door tweeter |
14L |
| H4/80 |
Right sliding door tweeter |
20L |
| H4/81 |
Left side wall tweeter |
1L |
| H4/82 |
Right side wall tweeter |
6L |
| H4/83 |
Left sliding door bass midrange speaker |
15L |
| H4/84 |
Right sliding door bass midrange speaker |
21L |
| H4/85 |
Left side wall bass midrange speaker |
2L |
| H4/86 |
Right side wall bass midrange speaker |
7L |
| N87/1 |
Radio/radio with navigation |
7A |
| N87/1 |
Radio/radio with navigation |
12A |
| N87/1 |
Radio/radio with navigation |
20A |
| N87/1 |
Radio/radio with navigation |
25A |
| N87/6 |
Radio/radio with navigation NG |
7A |
| N87/6 |
Radio/radio with navigation NG |
12A |
| N87/6 |
Radio/radio with navigation NG |
20A |
| N87/6 |
Radio/radio with navigation NG |
25A |
| X100/14 |
Right sliding door connector |
16H |
| X100/16 |
Left sliding door connector |
10H |
| X100/19 |
Right sliding door connector (8-pin) |
16G |
| X100/2 |
HLS/right sliding door connector |
16G |
| X100/21 |
Left sliding door connector (8-pin) |
10G |
| X100/4 |
HLS/left sliding door connector |
10G |
| X18/23 |
COC/roof connector |
2G |
| X18/49 |
HLS/COC connector 2 |
26G |
| X18/64 |
HLS/COC connector 5 |
10E |
| X35/108 |
Left sliding door ZV actuator connector (8-pin) |
10J |
| X35/109 |
Right sliding door ZV actuator connector (8-pin) |
16J |
| X35/41 |
Driver door/MWH connector 2 |
26J |
| X35/42 |
Front passenger door connector |
28J |
| X39/67 |
Radio preinstallation connector |
3A |
| X39/67 |
Radio preinstallation connector |
27A |
| Z28/1 |
Left rear speaker connector sleeve |
2H |
| Z28/2 |
Left rear speaker connector sleeve |
3H |
| Z28/3 |
Right rear speaker connector sleeve |
6H |
| Z28/4 |
Right rear speaker connector sleeve |
8H |
| Z28/68 |
Left cockpit speaker connector sleeve |
24E |
| Z28/69 |
Left cockpit speaker connector sleeve |
25E |
| Z28/70 |
Right cockpit speaker connector sleeve |
26E |
| Z28/71 |
Right cockpit speaker connector sleeve |
27E |
| Z28/76 |
Left sliding door speaker connector sleeve |
13H |
| Z28/77 |
Left sliding door speaker connector sleeve |
15H |
| Z28/78 |
Right sliding door speaker connector sleeve |
19H |
| Z28/79 |
Right sliding door speaker connector sleeve |
21H |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
4E |
| Z28/80 |
Left sliding door/rear end speaker connector sleeve |
10C |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
5E |
| Z28/81 |
Left sliding door/rear end speaker connector sleeve |
12C |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
16C |
| Z28/82 |
Right sliding door/rear end speaker connector sleeve |
6E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
7E |
| Z28/83 |
Right sliding door/rear end speaker connector sleeve |
18C |
