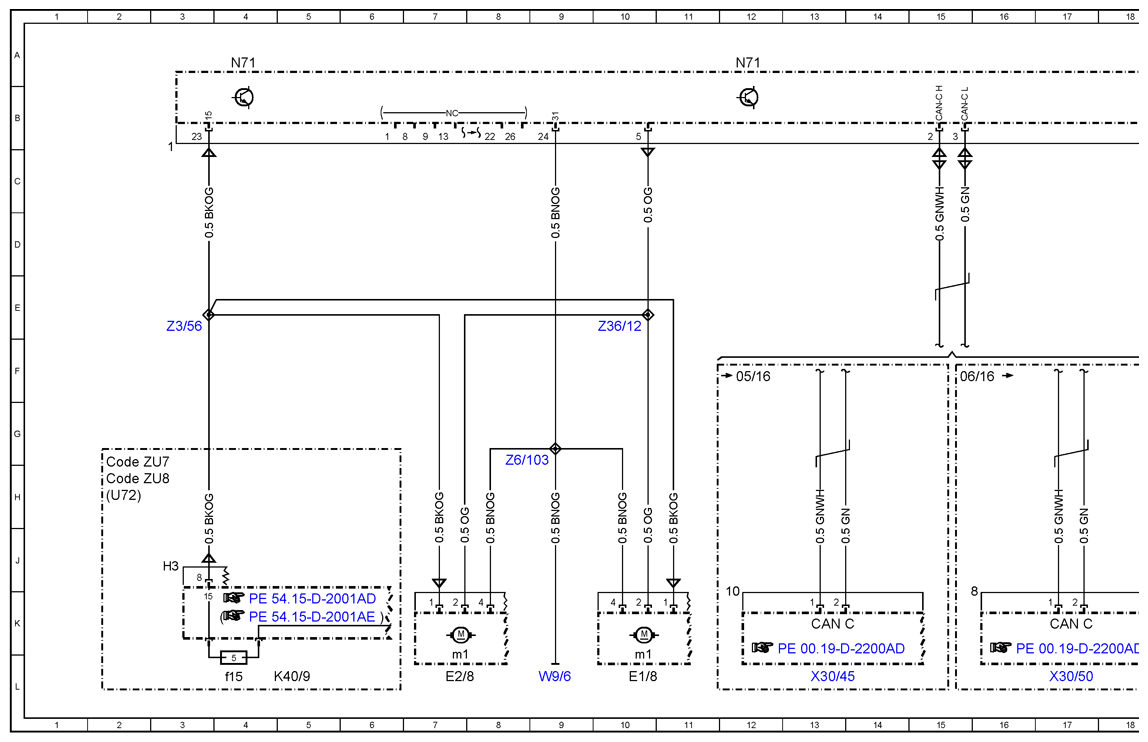

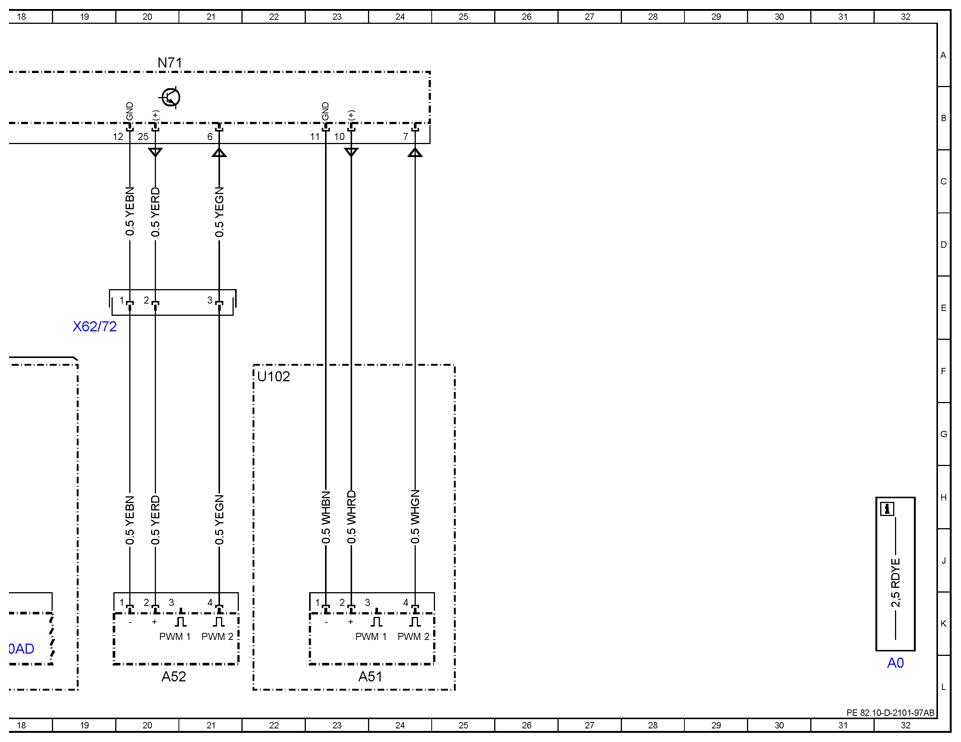

| A0 |
Color code key |
32L |
| A51 |
Rear axle headlamp range adjustment level sensor |
23L |
| A52 |
Front axle headlamp range adjustment level sensor |
20L |
| Code ZU7 |
Canada national version |
2H |
| Code ZU8 |
USA national version |
2H |
| E1/8 |
Left XENON lamp unit |
10L |
| E1/8m1 |
Headlamp range adjustment motor |
10L |
| E2/8 |
Right XENON lamp unit |
7L |
| E2/8m1 |
Headlamp range adjustment motor |
7L |
| K40/9 |
Fuse and relay module |
5L |
| K40/9f15 |
Headlamp range adjustment fuse |
4L |
| N71 |
Headlamp range adjustment (HRA [LWR]) control unit |
4A |
| N71 |
Headlamp range adjustment (HRA [LWR]) control unit |
12A |
| N71 |
Headlamp range adjustment (HRA [LWR]) control unit |
20A |
| U102 |
Valid without code CE2 (Rear air suspension) |
22F |
| U72 |
Valid for all except USA, Canada |
2H |
| W9/6 |
Left front lamp unit ground point |
9L |
| X30/45 |
Engine CAN electrical connector 2 |
13L |
| X30/50 |
Engine CAN electrical connector 3 |
17L |
| X62/72 |
Headlamp range controller level sensor electrical connector |
19E |
| Z3/56 |
Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve |
3E |
| Z36/12 |
Headlamp range adjustment (HRA [LWR]) control bus connector sleeve |
10E |
| Z6/103 |
Headlamp range adjustment (HRA [LWR]) ground connection connector sleeve |
8G |
