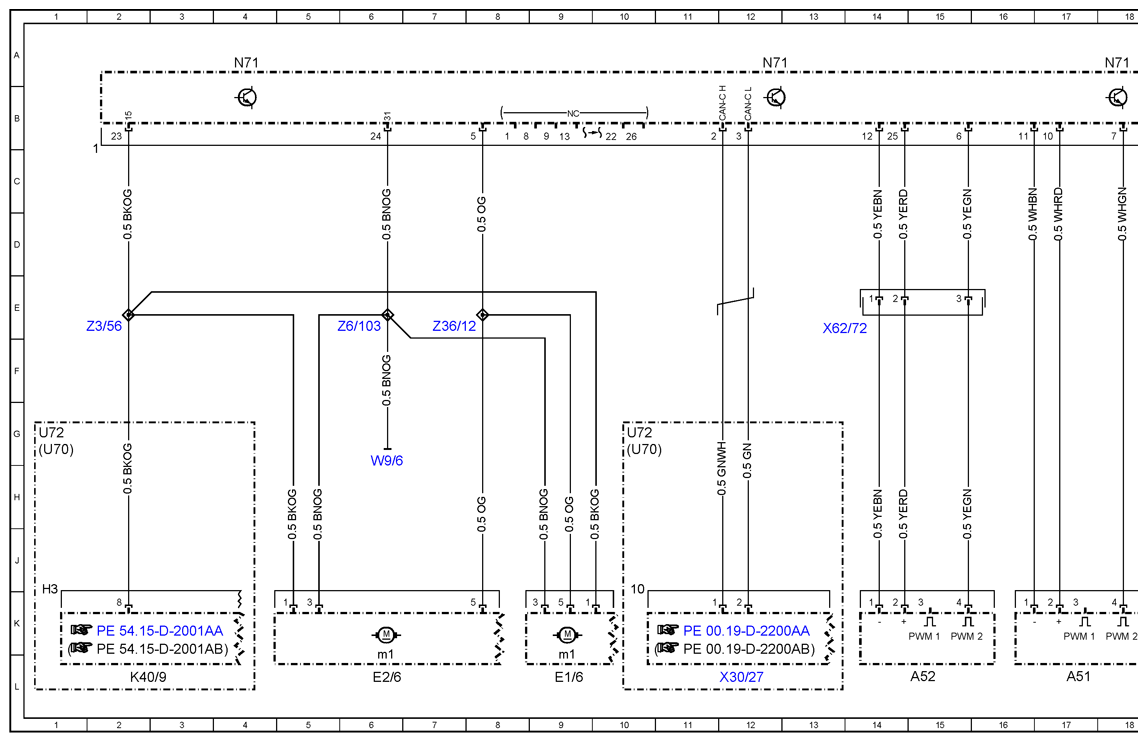

| A51 |
LWR rear axle sensor |
17L |
| A52 |
LWR front axle sensor |
15L |
| E1/6 |
Left XENON lamp unit |
9L |
| E1/6m1 |
Headlamp range adjustment motor |
9L |
| E2/6 |
Right XENON lamp unit |
6L |
| E2/6m1 |
Headlamp range adjustment motor |
6L |
| K40/9 |
Fuse/relay box (SRB) |
2L |
| N71 |
LWR control unit |
12A |
| N71 |
LWR control unit |
4A |
| N71 |
LWR control unit |
18A |
| U70 |
Valid for USA, Canada |
1G |
| U70 |
Valid for USA, Canada |
10G |
| U72 |
Valid for all except USA, Canada |
1G |
| U72 |
Valid for all except USA, Canada |
10G |
| W9/6 |
Left front lamp unit ground point |
6H |
| X30/27 |
Engine CAN bus connector |
12L |
| X62/72 |
LWR front axle sensor connector |
14E |
| Z3/56 |
Headlamp range adjustment tml. 15 connector sleeve |
2E |
| Z36/12 |
HRA [LWR] control bus connector sleeve |
7E |
| Z6/103 |
LWR ground connector sleeve |
6E |
