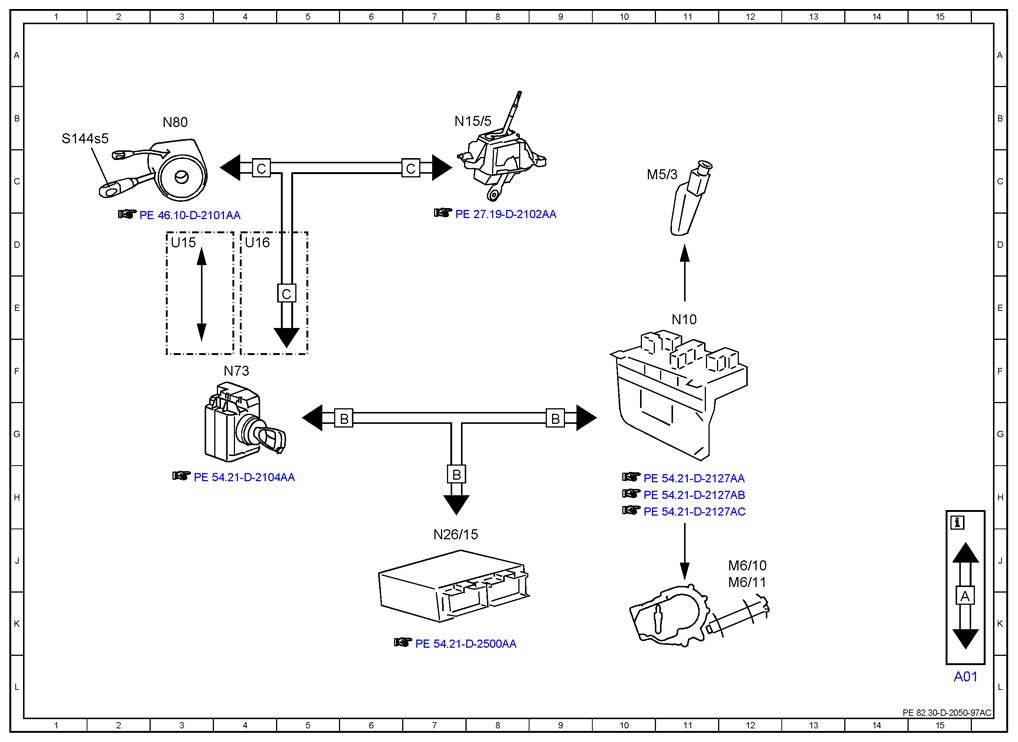

Electrical Function Schematic For Windshield Wipers - Pe82.30-D-2050-97AC
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| M5/3 | Rear end washer fluid pump | 10C |
| M6/10 | Left rear-end door wiper motor | 12J |
| M6/11 | Right rear-end door wiper motor | 12J |
| N10 | SAM control unit | 11E |
| N15/5 | EWM control unit | 7B |
| N26/15 | PSM control unit | 7J |
| N73 | EIS [EZS] control unit | 4F |
| N80 | MRM control unit | 3B |
| S144s5 | Rear wiper switch | 1B |
| U15 | Valid for vehicles without ESP | 3D |
| U16 | Valid for vehicles with ESP | 4D |
