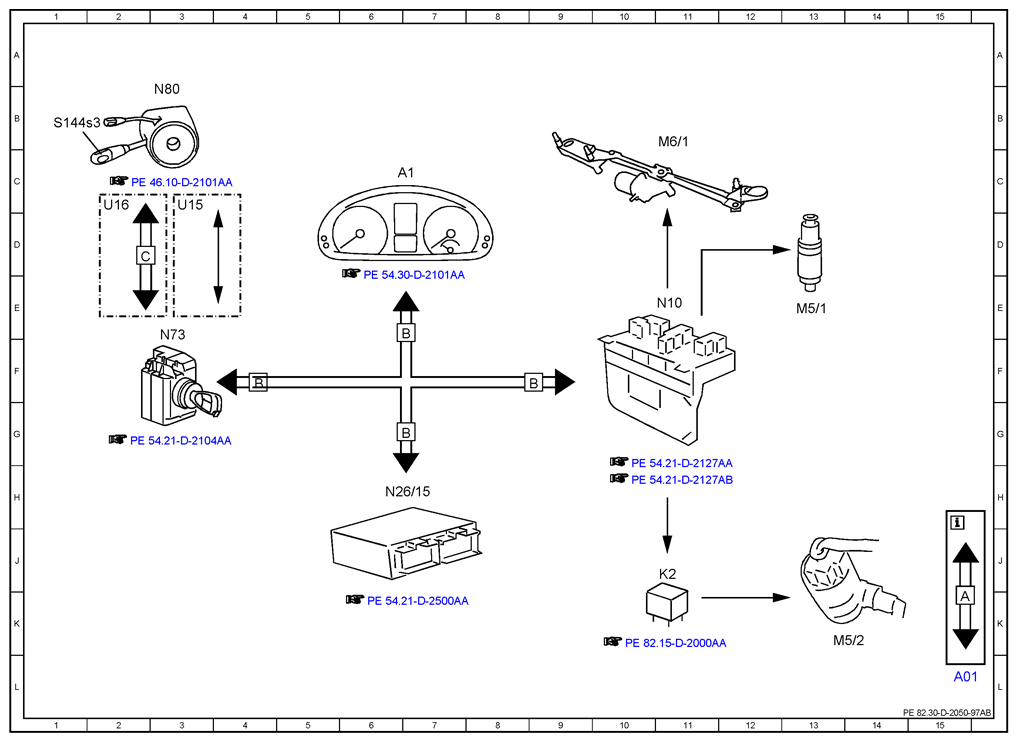

Electrical Function Schematic For Windshield Wipers - Pe82.30-D-2050-97AB
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| A1 | Instrument cluster | 6C |
| K2 | Headlamp cleaning system relay | 11J |
| M5/1 | Windshield washer fluid pump | 13E |
| M5/2 | Headlamp cleaning system pump | 13K |
| M6/1 | Windshield wiper motor | 11B |
| N10 | SAM control unit | 11E |
| N26/15 | PSM control unit | 6H |
| N73 | EIS [EZS] control unit | 3F |
| N80 | MRM control unit | 3B |
| S144s3 | Windshield washer system switch | 1B |
| U15 | Valid for vehicles without ESP | 3C |
| U16 | Valid for vehicles with ESP | 2C |
