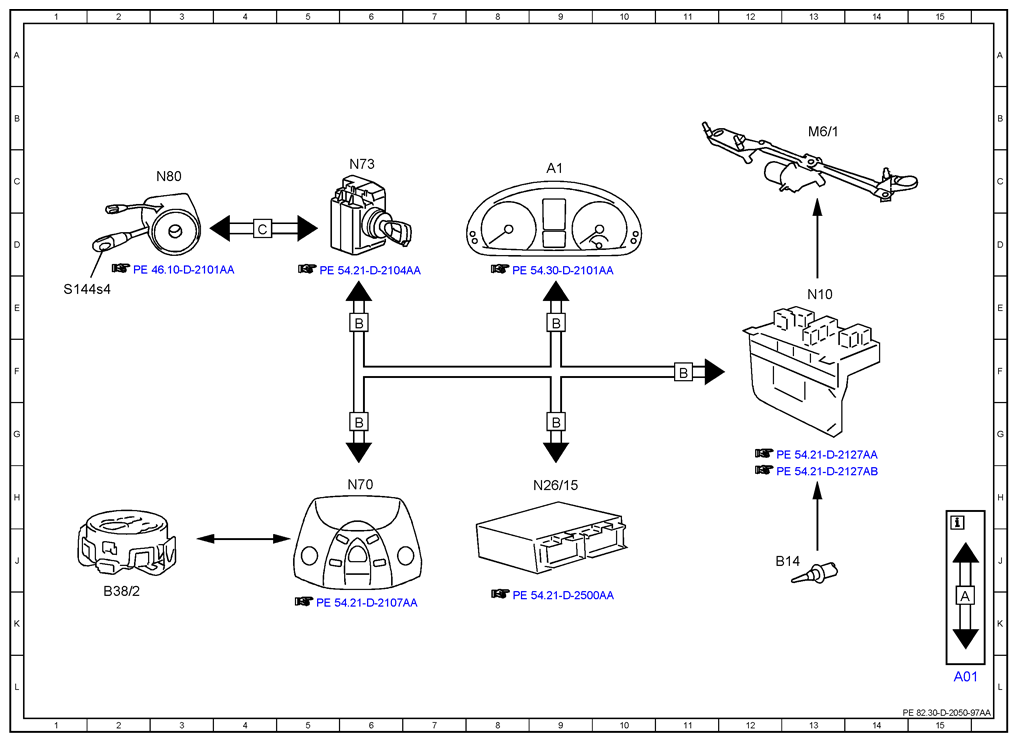

Electrical Function Schematic For Windshield Wipers - Pe82.30-D-2050-97AA
| Code: | Designation: | Position: |
|---|---|---|
| A01 | Explanation of CAN and LIN-Bus | 15L |
| A1 | Instrument cluster | 9C |
| B14 | Outside air temperature sensor | 13J |
| B38/2 | Rain/light sensor | 2K |
| M6/1 | Windshield wiper motor | 13B |
| N10 | SAM control unit | 13E |
| N26/15 | PSM control unit | 9H |
| N70 | DBE control unit | 6H |
| N73 | EIS [EZS] control unit | 6C |
| N80 | MRM control unit | 3C |
| S144s4 | Wipe switch | 1E |
