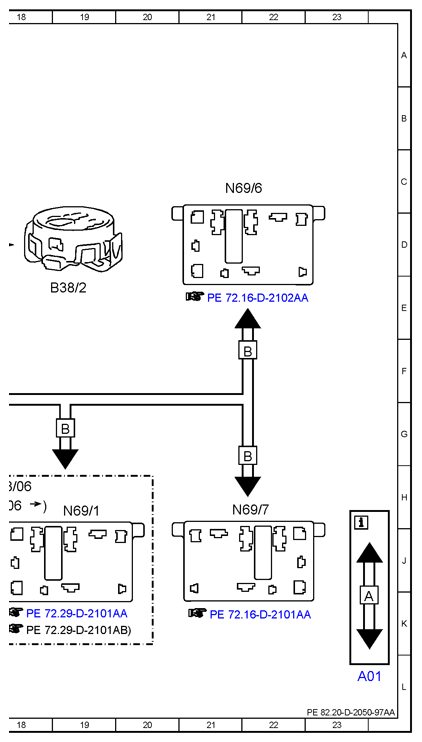

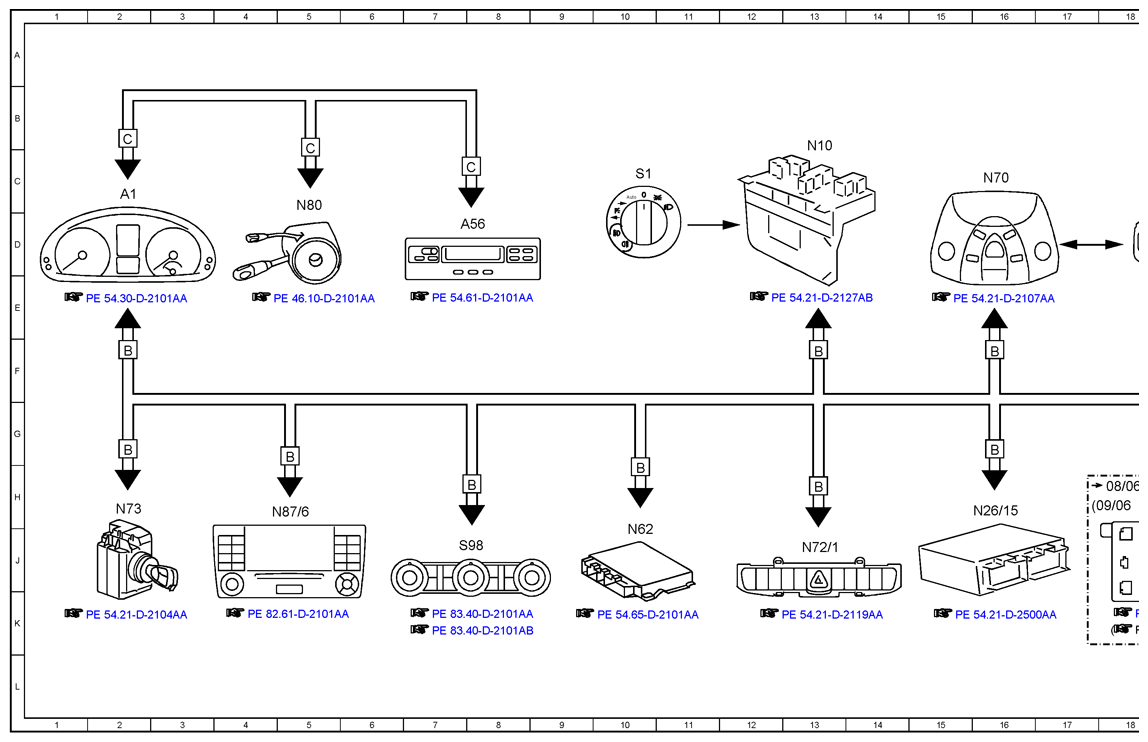

| A01 |
Explanation of CAN and LIN-Bus |
23L |
| A1 |
Instrument cluster |
2C |
| A56 |
Tachograph |
8D |
| B38/2 |
Rain/light sensor |
19E |
| N10 |
SAM control unit |
13C |
| N26/15 |
PSM control unit |
16H |
| N62 |
PTS control unit |
10J |
| N69/1 |
Driver door control unit |
19H |
| N69/6 |
Right sliding door control unit |
21C |
| N69/7 |
Left sliding door control unit |
21H |
| N70 |
DBE control unit |
16C |
| N72/1 |
OBF control unit |
13J |
| N73 |
EIS [EZS] control unit |
2H |
| N80 |
MRM control unit |
5C |
| N87/6 |
Radio/radio with navigation NG |
4H |
| S1 |
Rotary light switch |
10C |
| S98 |
AAC [KLA] control and operating unit |
7J |
