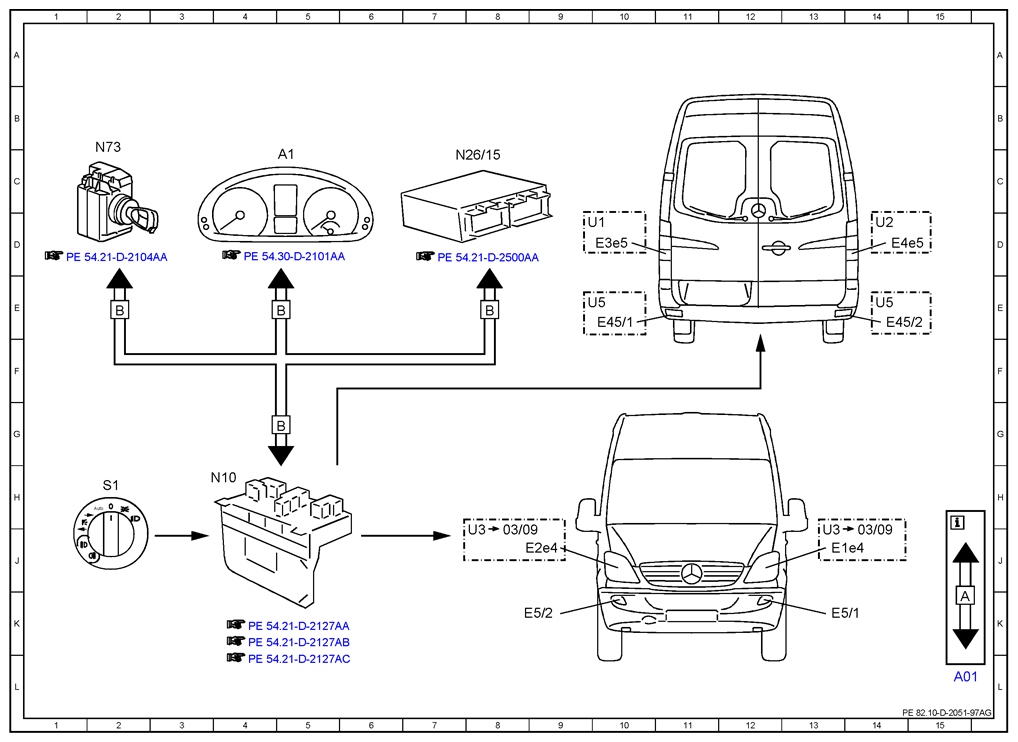

| A01 |
Explanation of CAN and LIN-Bus |
15L |
| A1 |
Instrument cluster |
5C |
| E1e4 |
Front fog lamp |
13J |
| E2e4 |
Front fog lamp |
8J |
| E3e5 |
Rear fog lamp |
10D |
| E45/1 |
Left rear fog lamp |
10E |
| E45/2 |
Right rear fog lamp |
14E |
| E4e5 |
Rear fog lamp |
14D |
| E5/1 |
Left fog lamp |
13K |
| E5/2 |
Right fog lamp |
8K |
| N10 |
SAM control unit |
3H |
| N26/15 |
PSM control unit |
7C |
| N73 |
EIS [EZS] control unit |
2C |
| S1 |
Rotary light switch |
2H |
| U1 |
Valid for left-hand drive vehicles |
9D |
| U2 |
Valid for right-hand drive vehicles |
14D |
| U3 |
Valid for vehicles with all-wheel drive |
8J |
| U3 |
Valid for vehicles with all-wheel drive |
13J |
| U5 |
Valid for vehicles with all-wheel drive or super single tires |
9E |
| U5 |
Valid for vehicles with all-wheel drive or super single tires |
14E |
