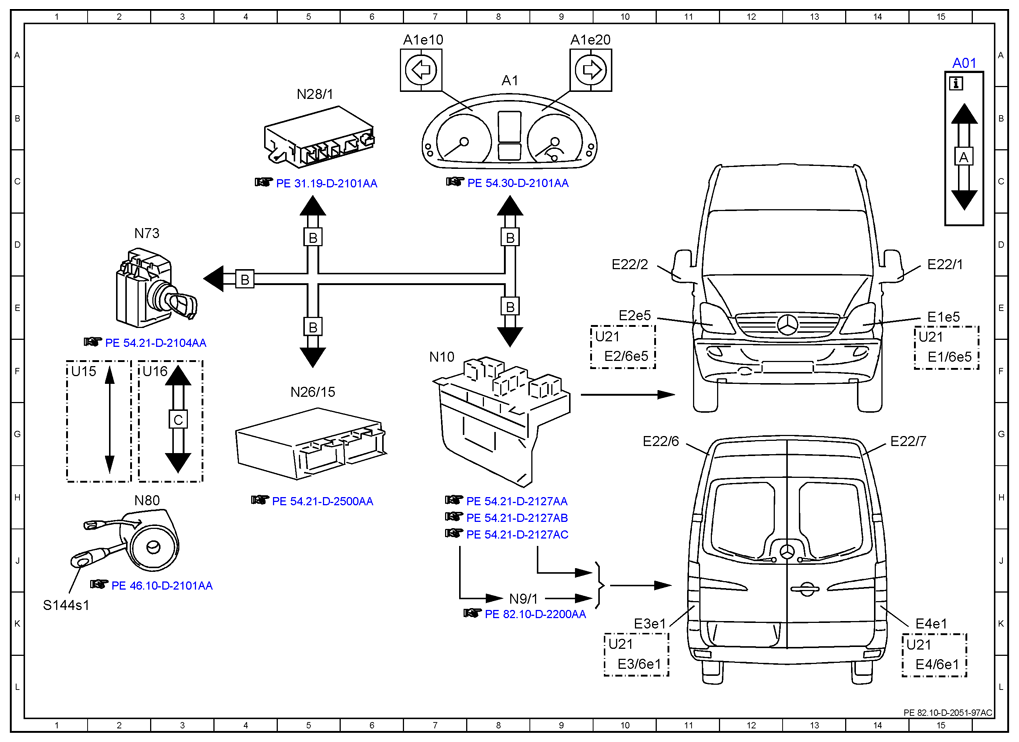

| A01 |
Explanation of CAN and LIN-Bus |
15A |
| A1 |
Instrument cluster |
8A |
| A1e10 |
Left tern signal indicator lamp |
7A |
| A1e20 |
Right turn signal indicator lamp |
9A |
| E1/6e5 |
Turn signal lamp |
15F |
| E1e5 |
Turn signal lamp |
15E |
| E2/6e5 |
Turn signal lamp |
10F |
| E22/1 |
Left additional turn signal lamp |
15D |
| E22/2 |
Right additional turn signal lamp |
10D |
| E22/6 |
Left roof additional turn signal lamp |
10G |
| E22/7 |
Right roof additional turn signal lamp |
14G |
| E2e5 |
Turn signal lamp |
10E |
| E3/6e1 |
Turn signal lamp |
10L |
| E3e1 |
Turn signal lamp |
10K |
| E4/6e1 |
Turn signal lamp |
15L |
| E4e1 |
Turn signal lamp |
15K |
| N10 |
SAM control unit |
7F |
| N26/15 |
PSM control unit |
5F |
| N28/1 |
Trailer connection unit [AAG] control unit |
5B |
| N73 |
EIS [EZS] control unit |
2D |
| N80 |
MRM control unit |
2H |
| N9/1 |
Additional turn signal module |
8K |
| S144s1 |
Left and right turn signal switch |
1K |
| U15 |
Valid for vehicles without ESP |
1F |
| U16 |
Valid for vehicles with ESP |
2F |
| U21 |
Valid for vehicles with XENON lamp unit |
10K |
| U21 |
Valid for vehicles with XENON lamp unit |
14K |
| U21 |
Valid for vehicles with XENON lamp unit |
10F |
| U21 |
Valid for vehicles with XENON lamp unit |
15F |
