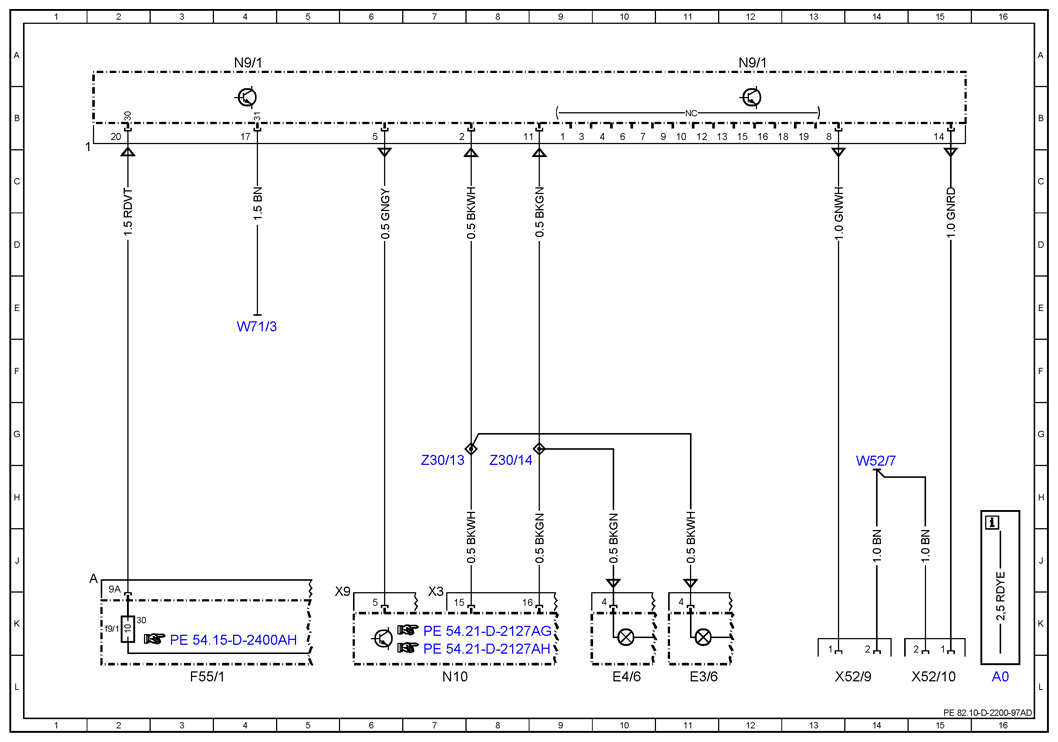

| A0 |
Color code key |
16L |
| E3/6 |
Left taillamp |
11L |
| E4/6 |
Right taillamp |
10L |
| F55/1 |
Fuse block (1, 9-pin) |
3L |
| F55/1f9/1 |
Additional turn signal module fuse 9 |
2K |
| N10 |
SAM control unit |
7L |
| N9/1 |
Additional turn signal module |
4A |
| N9/1 |
Additional turn signal module |
12A |
| W52/7 |
Left rear crossmember ground point |
14H |
| W71/3 |
Driver seat frame ground point 3 |
4E |
| X52/10 |
Right rear additional turn signal lamp electrical connector |
15L |
| X52/9 |
Left rear additional turn signal lamp electrical connector |
13L |
| Z30/13 |
Left turn signal lamp connector sleeve |
7G |
| Z30/14 |
Right turn signal lamp connector sleeve |
8G |
