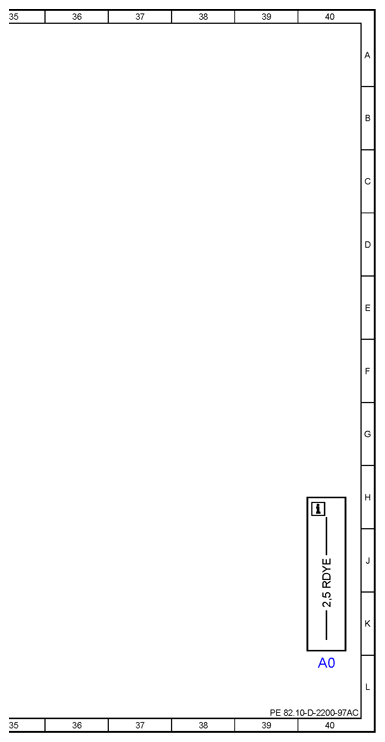

| A0 |
Color code key |
40L |
| Code CV1 |
Winter service vehicle preinstallation |
31C |
| Code L77 |
Electr. equipment for additional turn signal lamps |
16C |
| Code L77 |
Electr. equipment for additional turn signal lamps |
27C |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
23C |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
9C |

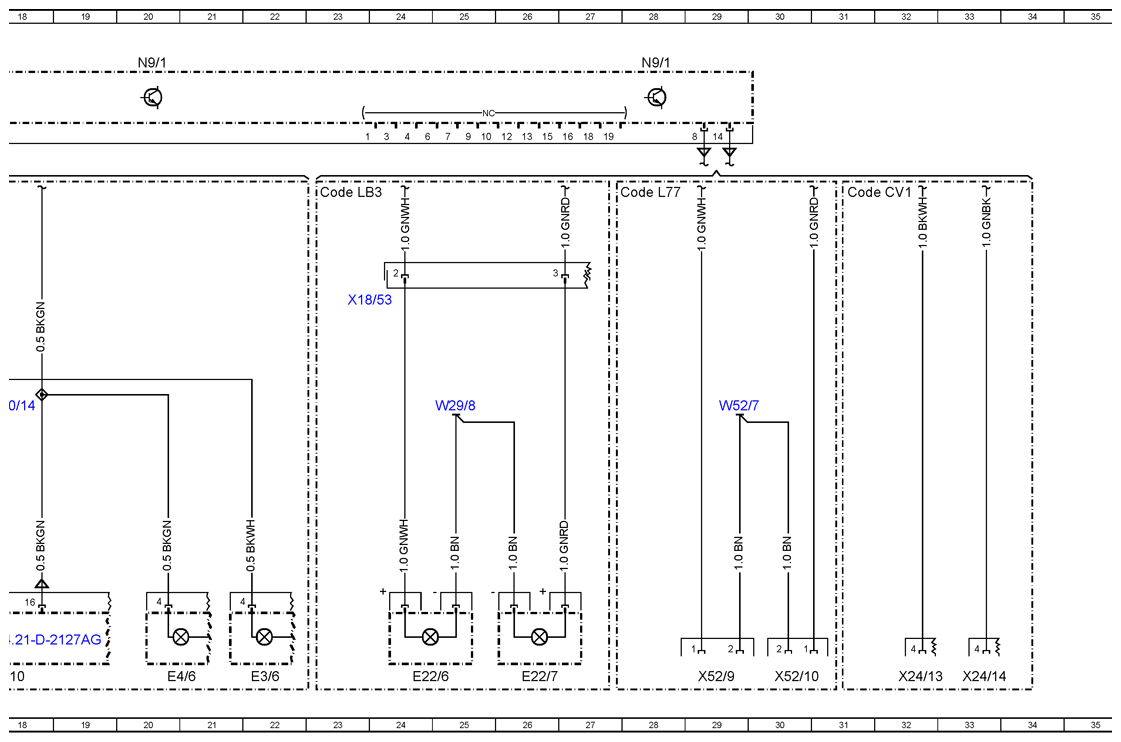

| E22/6 |
Left roof additional turn signal lamp |
24L |
| E22/7 |
Right roof additional turn signal lamp |
26L |
| E3 |
Left taillamp |
11L |
| E3/6 |
Left taillamp |
22L |
| E4 |
Right taillamp |
10L |
| E4/6 |
Right taillamp |
20L |
| F55/1 |
Fuse block (1, 9-pin) |
3L |
| F55/1f9/1 |
Additional turn signal module fuse 9 |
2K |
| N10 |
SAM control unit |
14L |
| N10 |
SAM control unit |
18L |
| N10 |
SAM control unit |
7L |

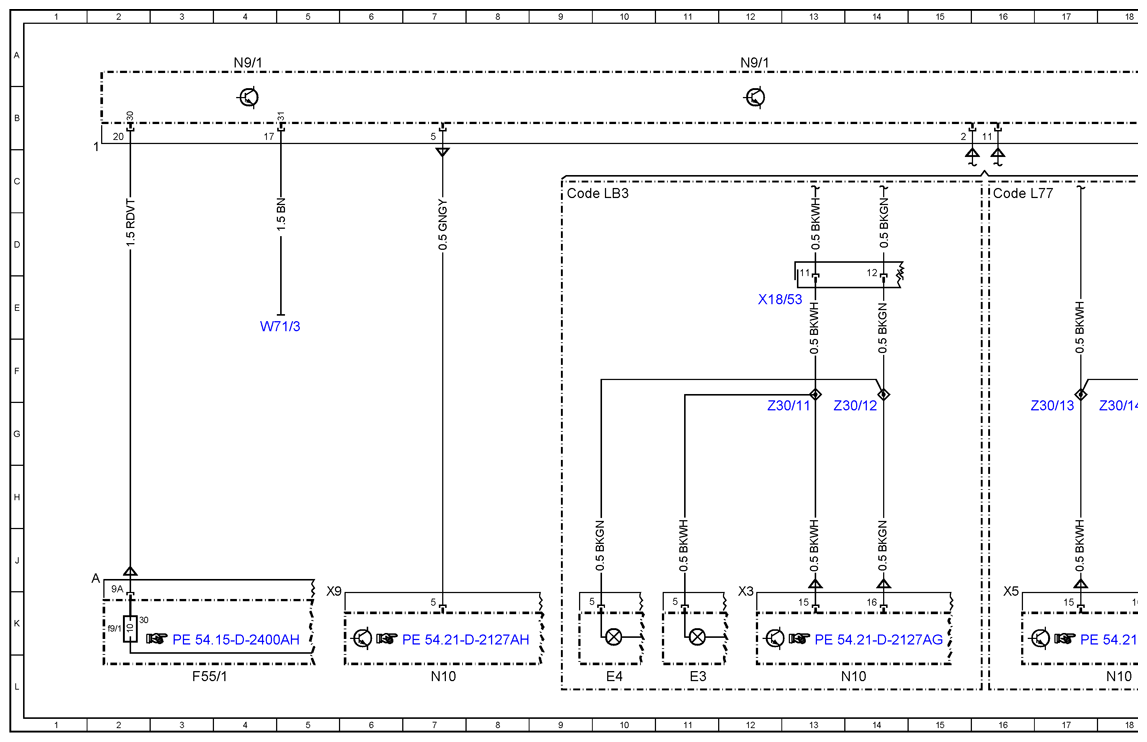

| N9/1 |
Additional turn signal module |
4A |
| N9/1 |
Additional turn signal module |
12A |
| N9/1 |
Additional turn signal module |
20A |
| N9/1 |
Additional turn signal module |
28A |
| W29/8 |
Left D-pillar ground point |
25G |
| W52/7 |
Left rear crossmember ground point |
29G |
| W71/3 |
Driver seat frame ground point 3 |
4E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
13E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
24E |
| X24/13 |
Left additional headlamp electrical connector |
32L |
| X24/14 |
Right additional headlamp electrical connector |
33L |
| X52/10 |
Right rear additional turn signal lamp electrical connector |
30L |
| X52/9 |
Left rear additional turn signal lamp electrical connector |
29L |
| Z30/11 |
Left turn signal lamp connector sleeve |
13G |
| Z30/12 |
Right turn signal lamp connector sleeve |
14G |
| Z30/13 |
Left turn signal lamp connector sleeve |
17G |
| Z30/14 |
Right turn signal lamp connector sleeve |
18G |
