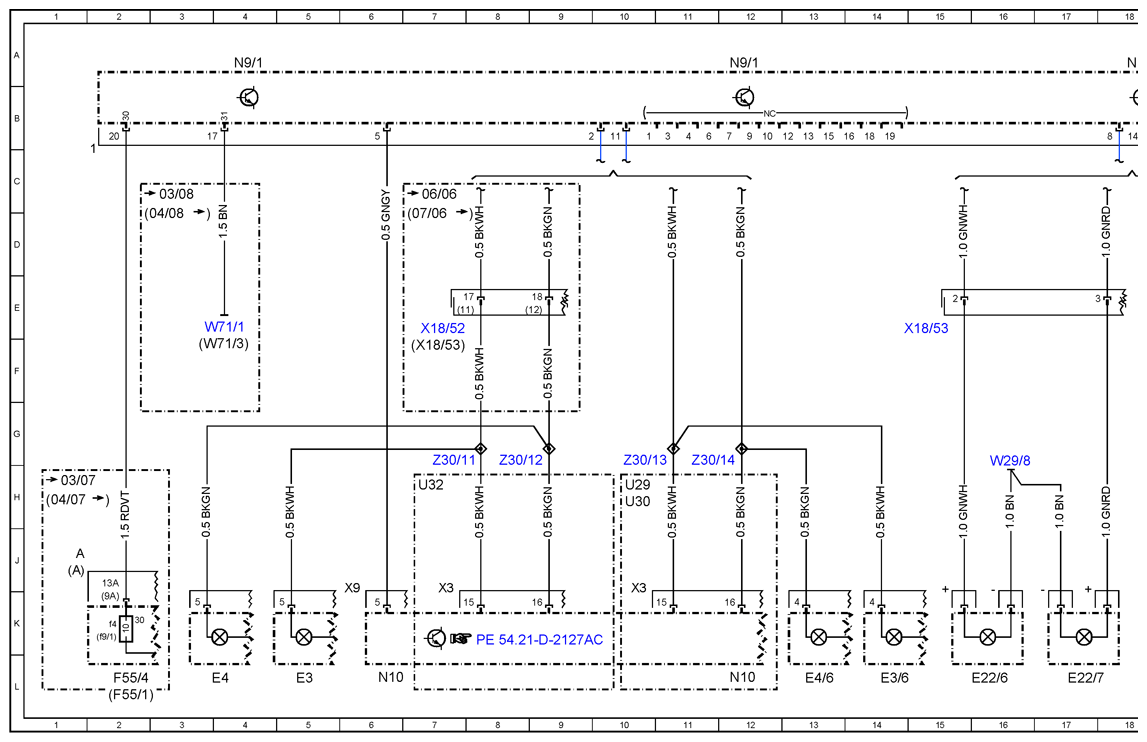

| E22/6 |
Left roof additional turn signal lamp |
16L |
| E22/7 |
Right roof additional turn signal lamp |
17L |
| E3 |
Left taillamp |
5L |
| E3/6 |
Left taillamp |
14L |
| E4 |
Right taillamp |
4L |
| E4/6 |
Right taillamp |
13L |
| F55/1 |
Fuse block (9 fuses) |
2L |
| F55/1f9/1 |
Fuse 9 (10 A), additional turn signal module |
2K |
| F55/4 |
Fuse block (9 fuses) |
2L |
| F55/4f4 |
Fuse 13 (10 A), additional turn signal module |
2K |
| N10 |
SAM control unit |
6L |
| N10 |
SAM control unit |
12L |

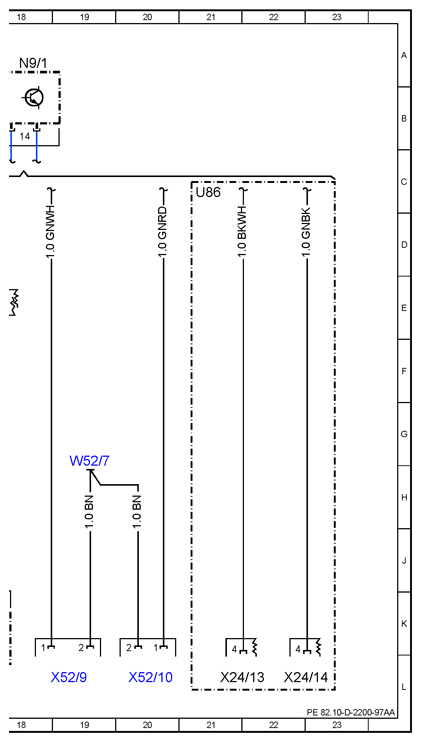

| N9/1 |
Additional turn signal module |
4A |
| N9/1 |
Additional turn signal module |
12A |
| N9/1 |
Additional turn signal module |
18A |
| U29 |
Valid for short cab version |
10H |
| U30 |
Valid for long cab version |
10H |
| U32 |
Valid for MPV version |
7H |
| U86 |
Valid for snowplow |
21C |
| W29/8 |
Left D-pillar ground point |
16H |
| W52/7 |
Left rear crossmember ground point |
19H |
| W71/1 |
Driver seat frame ground point 1 |
4E |
| W71/3 |
Driver seat frame ground point 3 |
3F |
| X18/52 |
HLS/roof connector |
7E |
| X18/53 |
HLS/roof connector 2 |
7F |
| X18/53 |
HLS/roof connector 2 |
15E |
| X24/13 |
Left additional headlamp connector |
22L |
| X24/14 |
Right additional headlamp connector |
23L |
| X52/10 |
Right rear additional turn signal lamps connector |
20L |
| X52/9 |
Left rear additional turn signal lamps connector |
19L |
| Z30/11 |
Left turn signal indicator connector sleeve |
7G |
| Z30/12 |
Right turn signal indicator connector sleeve |
8G |
| Z30/13 |
Left turn signal indicator connector sleeve |
10G |
| Z30/14 |
Right turn signal indicator connector sleeve |
11G |
