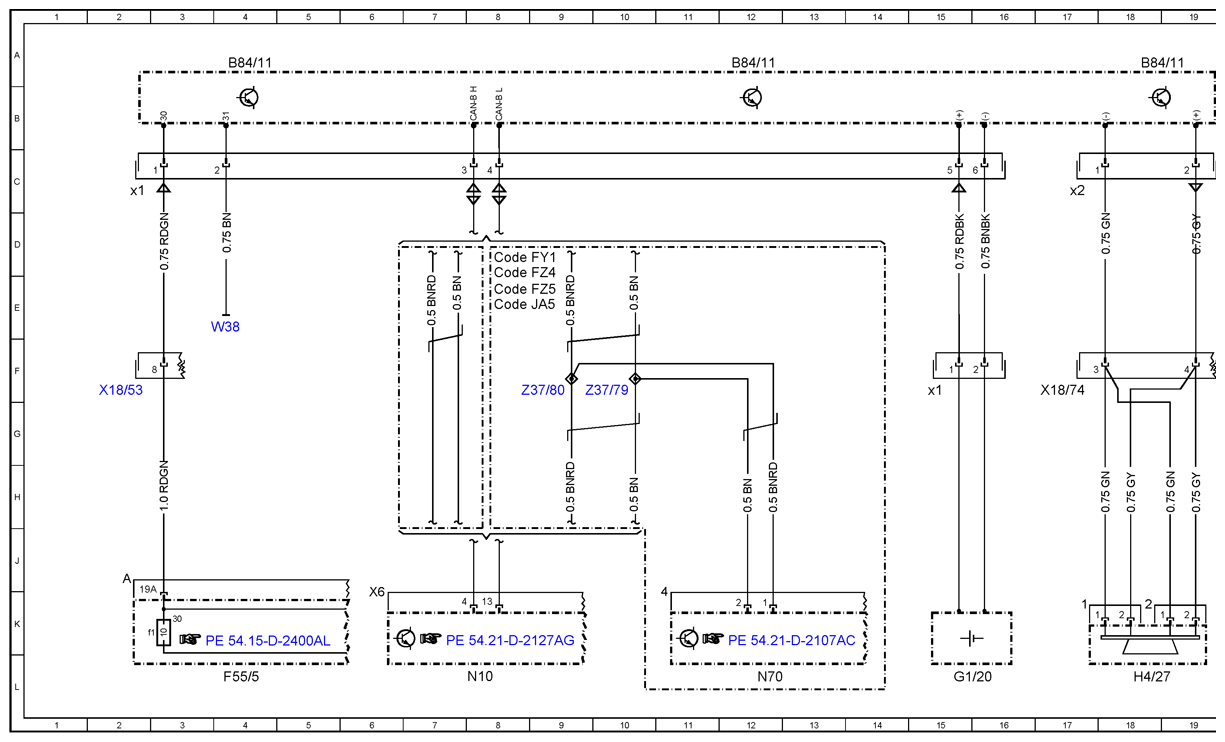

ECALL Control Unit Wiring Diagram, RUSSIA (GLONASS) - Pe82.95-D-2102-97AA
| Code: yt5 |
Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| B84/11 | ERA-Glonass control unit | 4A |
| B84/11 | ERA-Glonass control unit | 12A |
| B84/11 | ERA-Glonass control unit | 18A |
| B84/11x1 | ERA-Glonass control unit electrical connector | 2C |
| B84/11x2 | ERA-Glonass speaker electrical connector | 17C |
| Code FY1 | Theft protection package | 8D |
| Code FZ4 | Anti-theft alarm system with interior protection and tow-away protection | 8E |
| Code FZ5 | Anti-theft alarm system | 8E |
| Code JA5 | Light/rain sensor | 8E |
| F55/5 | Fuse block 5 (9-pin) | 4L |
| F55/5f1 | Overhead control panel (OCP [DBE]) fuse 19 | 2K |
| G1/20 | Buffer battery | 15L |
| G1/20x1 | Buffer battery electrical connector | 15F |
| H4/27 | Center front speaker | 18L |
| N10 | SAM control unit | 8L |
| N70 | Overhead control panel (OCP [DBE]) control unit | 12L |
| W38 | Roof ground point | 4E |
| X18/53 | MWH [HLS]/roof electrical connector 2 | 2F |
| X18/74 | Cockpit and roof electrical connector 4 | 17F |
| Z37/79 | ERA-Glonass CAN bus (low) connector sleeve | 10F |
| Z37/80 | ERA-Glonass CAN bus (high) connector sleeve | 9F |
