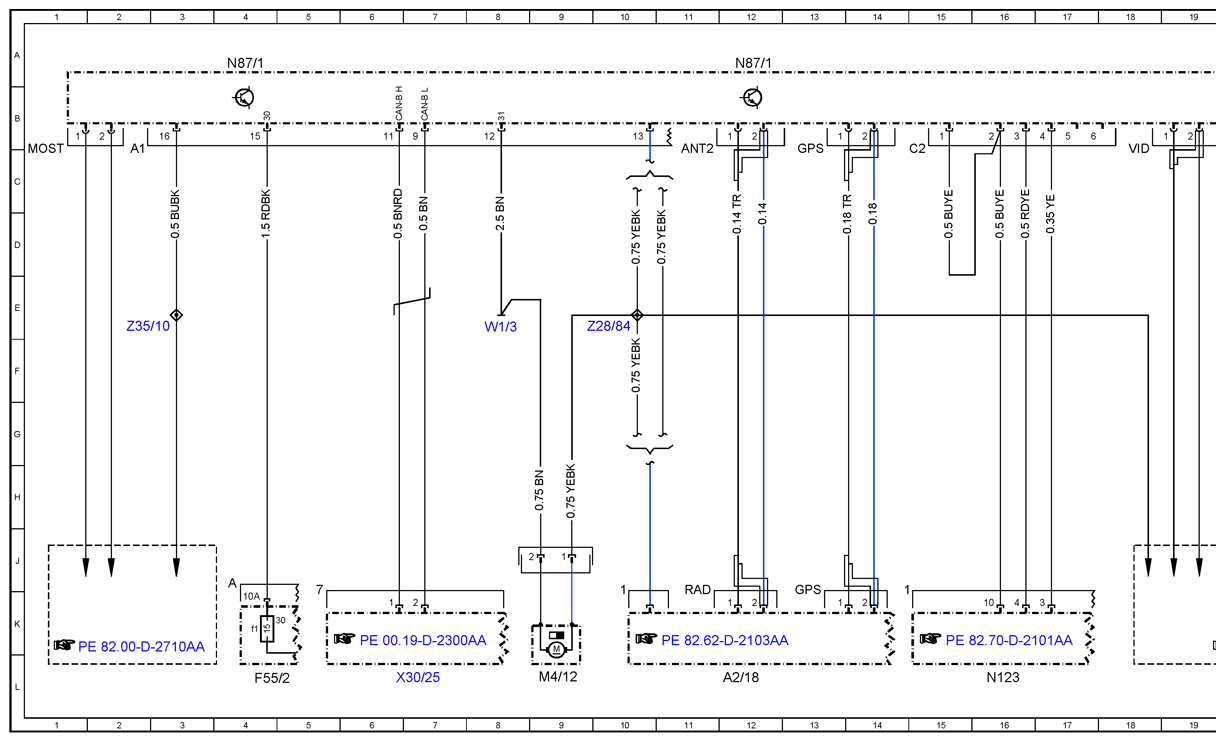

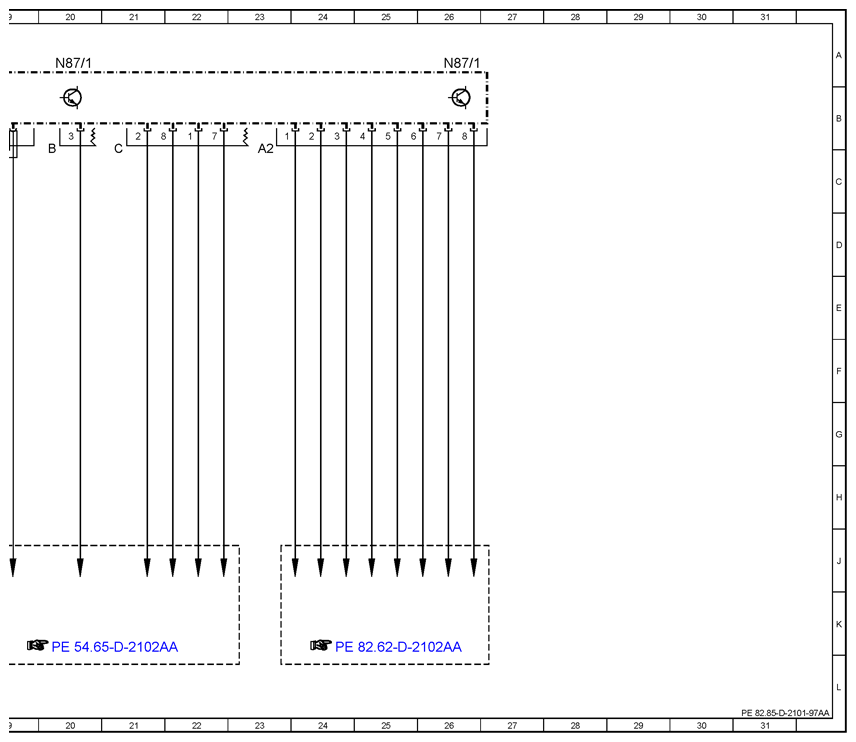

Cockpit Management And Data System (COMAND) Control Unit Wiring Diagram - Pe82.85-D-2101-97AA
| Code: | Designation: | Position: |
|---|---|---|
| A2/18 | Antenna amplifier | 12L |
| F55/2 | Fuse block (9 fuses) | 4L |
| F55/2f1 | Fuse 10 (15/20 A), radio | 4K |
| M4/12 | Radio additional fan | 9L |
| N123 | Telephone control unit | 16L |
| N87/1 | Radio/radio with navigation | 4A |
| N87/1 | Radio/radio with navigation | 12A |
| N87/1 | Radio/radio with navigation | 20A |
| N87/1 | Radio/radio with navigation | 26A |
| W1/3 | CLS cockpit ground point 1 | 8E |
| X30/25 | Interior CAN bus connector | 7L |
| Z28/84 | Radio additional fan connector sleeve | 10E |
| Z35/10 | D2B/MOST wake-up connector sleeve | 2E |
