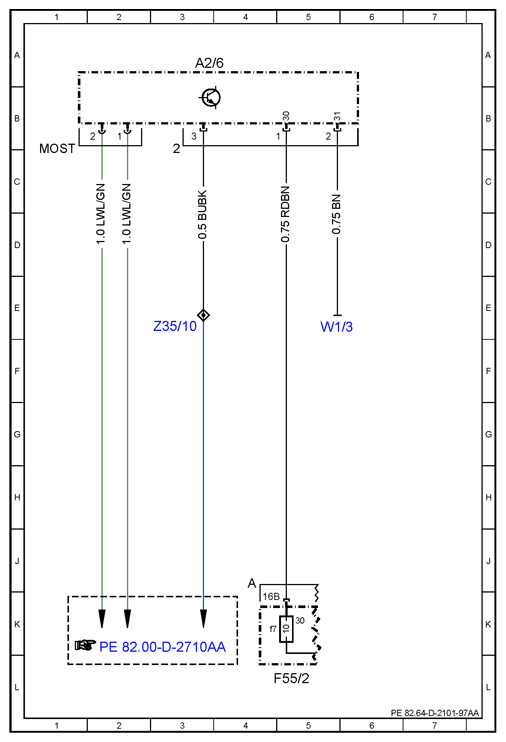

Cd Changer (CDC (CDW)) Control Unit Wiring Diagram - Pe82.64-D-2101-97AA

Code: Designation: Position:
A2/6 CD changer 3A
F55/2 Fuse block (9 fuses) 5L
F55/2f7 Fuse 16 (10 A), front climate control, CD changer 4K
W1/3 CLS cockpit ground point 1 5E
Z35/10 D2B/MOST wake-up connector sleeve 3E
G13442436Courtesy of MERCEDES-BENZ USA
