| AO |
Color code key |
32L |
| Code H15 |
Seat heater for front passenger |
14A |
| Code H16 |
Seat heater for driver |
14A |
| Code ZU7 |
Canada national version |
2H |
| Code ZU8 |
USA national version |
2H |
| F55/2 |
Fuse block 2 (9-pin) |
16L |
| F55/2f5 |
Seat heater fuse 14 |
15K |
| K40/9 |
Fuse and relay module |
5L |
| K40/9f4 |
Circuit 30 rotary light switch, upper control panel fuse |
4L |

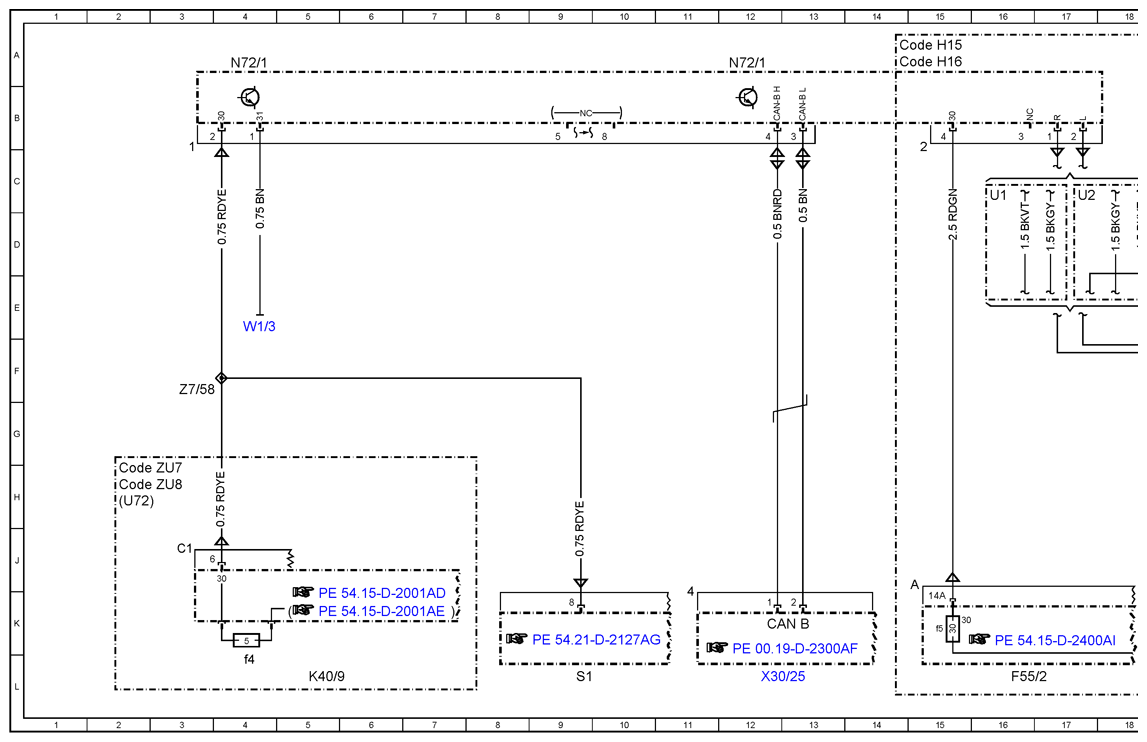

| N72/1 |
Upper control panel (UCP [OBF]) control unit |
4A |
| N72/1 |
Upper control panel (UCP [OBF]) control unit |
12A |

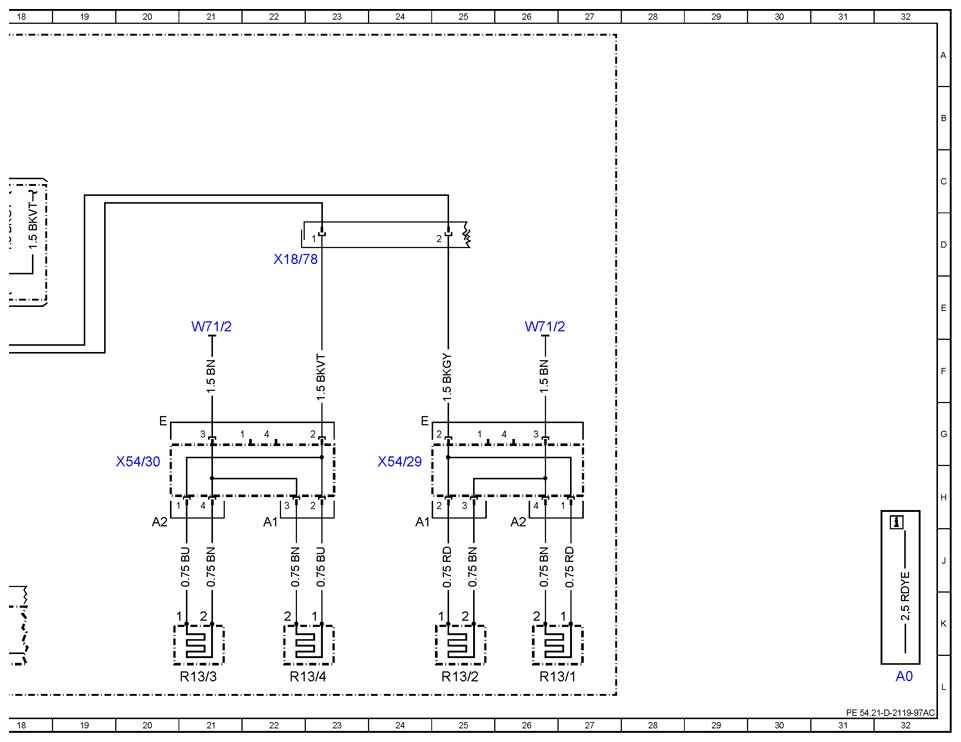

| R13/1 |
Left front seat sitting surface heated cushion |
26L |
| R13/2 |
Left front backrest heated cushion |
25L |
| R13/3 |
Right front seat sitting surface heated cushion |
21L |
| R13/4 |
Right front backrest heated cushion |
22L |
| S1 |
Light switch |
9L |
| U1 |
Valid for left-hand drive vehicles |
16C |
| U2 |
Valid for right-hand drive vehicles |
17C |
| U72 |
Valid for all except USA, Canada |
2H |
| W1/3 |
CLS cockpit ground point 1 |
4E |
| W71/2 |
Driver seat frame ground point 2 |
21E |
| W71/2 |
Driver seat frame ground point 2 |
26E |
| X18/78 |
MWH [HLS]/cockpit electrical connector 7 |
22D |
| X30/25 |
Interior CAN electrical connector |
12L |
| X54/29 |
Driver seat heater electrical connector |
24H |
| X54/30 |
Front passenger seat heater electrical connector |
20H |
| Z7/58 |
Tml. 30 connector sleeve |
3F |
