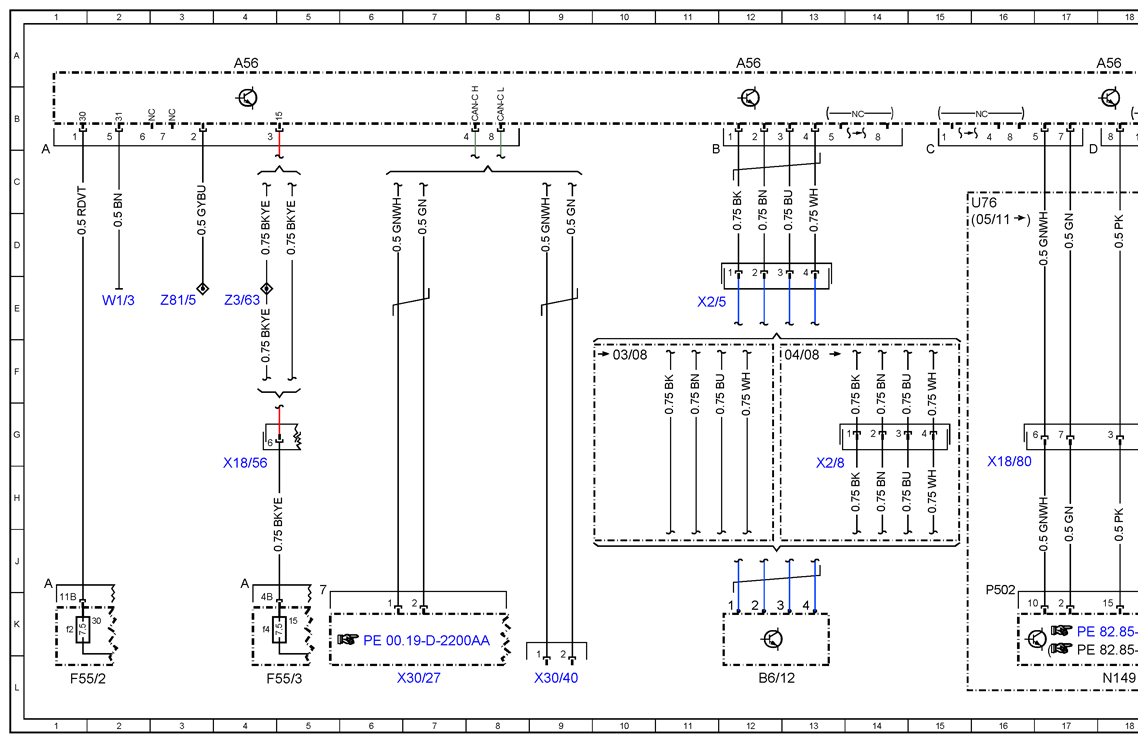

| A56 |
Tachograph |
4A |
| A56 |
Tachograph |
12A |
| A56 |
Tachograph |
18A |
| B6/12 |
Speed sensor |
12L |
| F55/2 |
Fuse block (9 fuses) |
1L |
| F55/2f2 |
Fuse 11 (7.5 A), mobile phone, tachograph |
1K |
| F55/3 |
Fuse block (9 fuses) |
4L |
| F55/3f4 |
Fuse 4 (7. 5 A), A AG, tachograph, ADR |
4K |
| N149 |
FleetBoard control unit |
18L |
| U76 |
Valid for FleetBoard |
16C |
| W1/3 |
CLS cockpit ground point 1 |
2E |
| X18/56 |
HLS/COC connector |
4H |
| X18/80 |
COC/roof connector 8 |
16H |
| X2/5 |
Tachograph connector |
11E |
| X2/8 |
Tachograph connector 2 |
13H |
| X30/27 |
Engine CAN bus connector |
7L |
| X30/40 |
Tachograph CAN-C preinstallation connector |
9L |
| Z3/63 |
ADR tml. 15 connector sleeve |
4E |
| Z81/5 |
Tml. 58d connector sleeve |
3E |
