| AO |
Color code key |
48L |

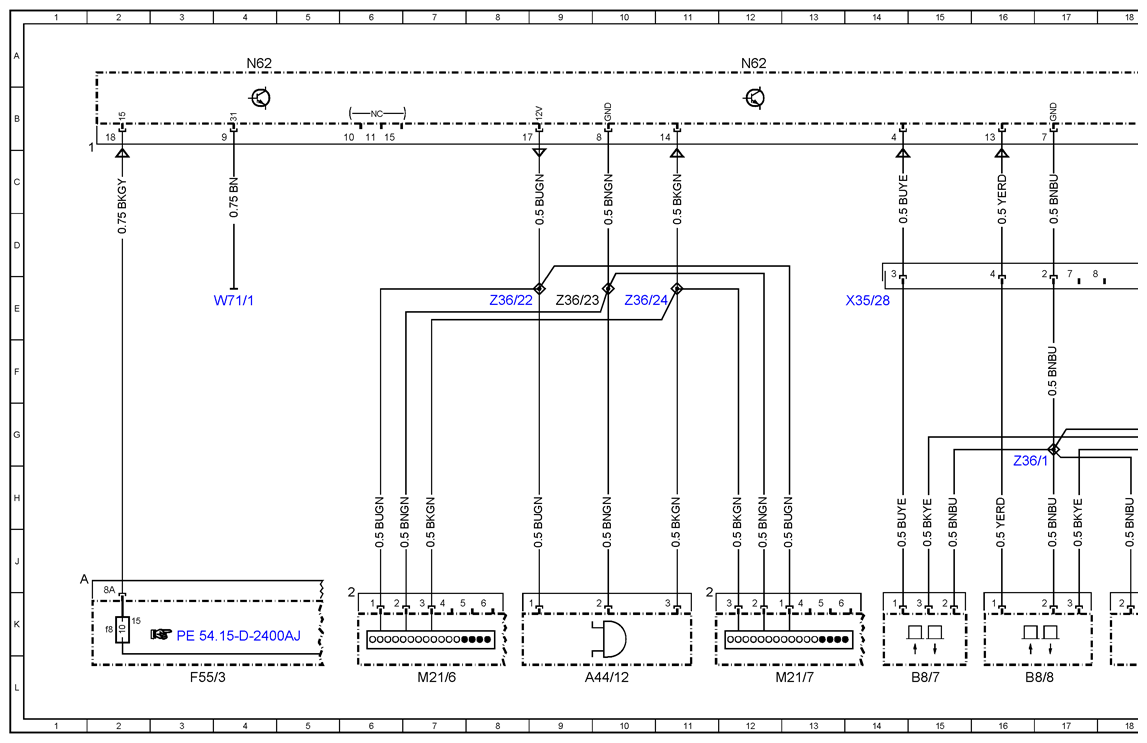

| A44/12 |
PARKTRONIC warning buzzer |
10L |

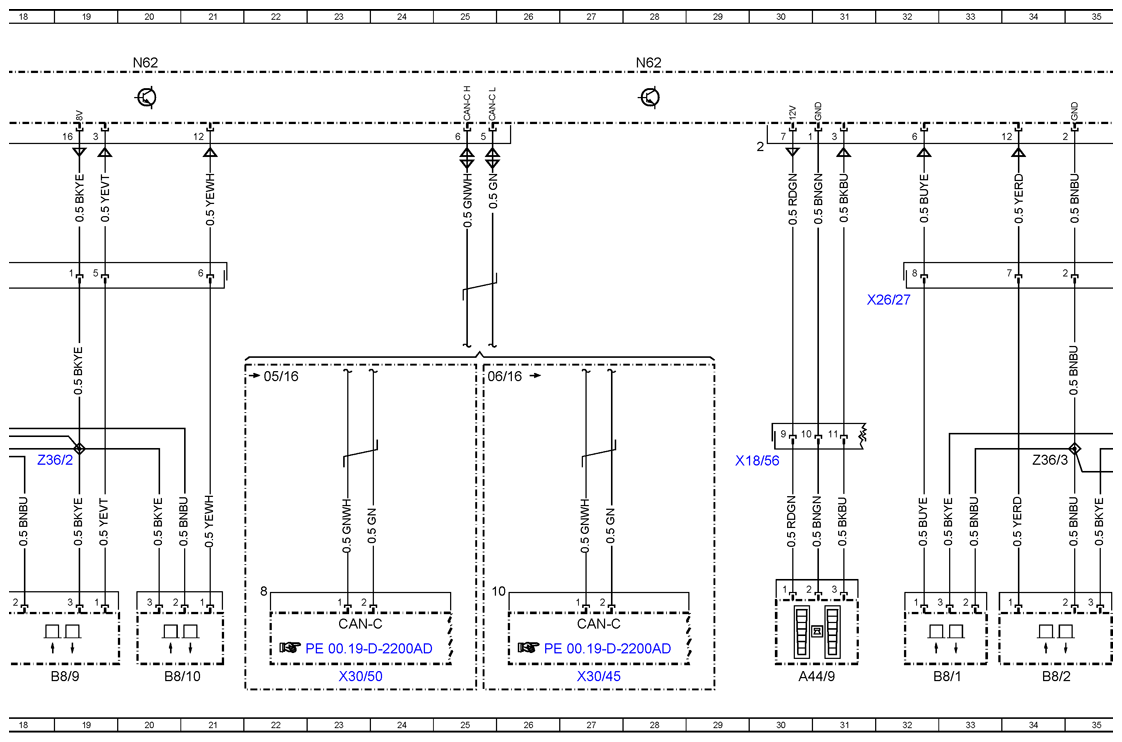

| A44/9 |
Center front PARKTRONIC warning element |
30L |
| B8/1 |
Parktronic sensor, outer left front |
33L |
| B8/10 |
Parktronic sensor, outer left rear |
20L |
| B8/2 |
Center left front Parktronic sensor |
34L |

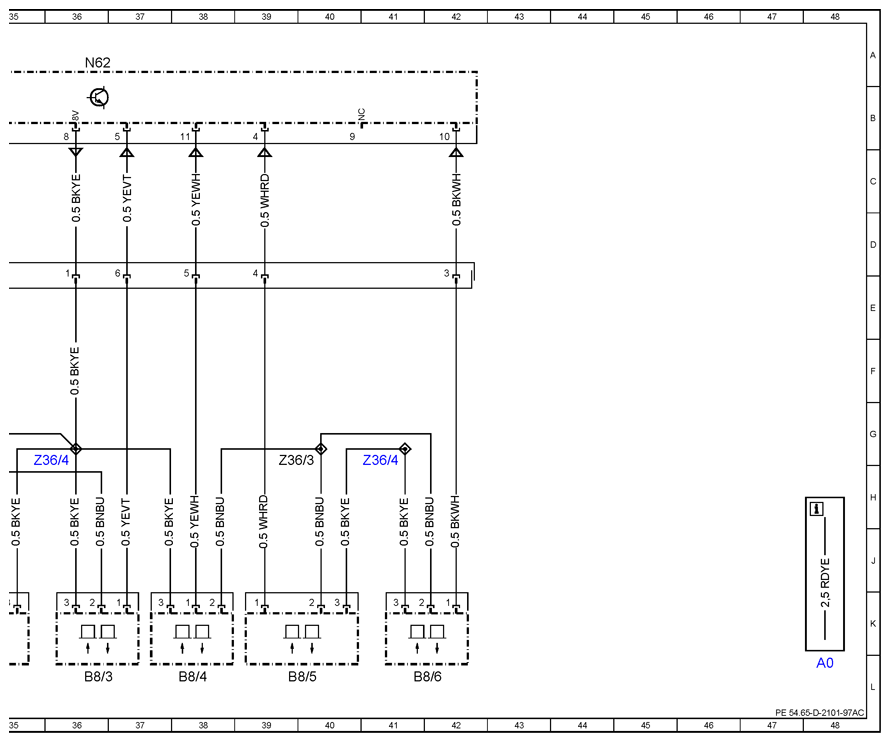

| B8/3 |
Parktronic sensor, inner left front |
36L |
| B8/4 |
Parktronic sensor, inner right front |
38L |
| B8/5 |
Center right front Parktronic sensor |
39L |
| B8/6 |
Parktronic sensor, outer right front |
41L |
| B8/7 |
Parktronic sensor, outer right rear |
15L |
| B8/8 |
Parktronic sensor, inner right rear |
16L |
| B8/9 |
Parktronic sensor, inner left rear |
19L |
| F55/3 |
Fuse block 3 (9-pin) |
3L |
| F55/3f8 |
Terminal 15 dumper vehicle/cargo Iiftgate/PARKTRONIC electrical fuse 8 |
2K |
| M21/6 |
Driver-side outside mirror |
7L |
| M21/7 |
Passenger-side outside mirror |
13L |
| N62 |
PARKTRONIC control unit |
4A |
| N62 |
PARKTRONIC control unit |
12A |
| N62 |
PARKTRONIC control unit |
20A |
| N62 |
PARKTRONIC control unit |
28A |
| N62 |
PARKTRONIC control unit |
36A |
| W71/1 |
Driver seat frame ground point 1 |
4E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
30H |
| X26/27 |
Front bumper PARKTRONIC electrical connector |
32E |
| X30/45 |
Engine CAN electrical connector 2 |
27L |
| X30/50 |
Engine CAN electrical connector 3 |
23L |
| X35/28 |
Rear bumper PARKTRONIC electrical connector |
14E |
| Z36/1 |
Rear sensors ground connection connector sleeve |
16G |
| Z36/2 |
Rear sensors power supply connector sleeve |
19G |
| Z36/22 |
Rear PARKTRONIC warning element power supply connector sleeve |
8E |
| Z36/23 |
Rear PARKTRONIC warning element ground connection connector sleeve |
9E |
| Z36/24 |
Rear PARKTRONIC warning element signal connector sleeve |
10E |
| Z36/3 |
Front sensors ground connection connector sleeve |
34G |
| Z36/3 |
Front sensors ground connection connector sleeve |
39G |
| Z36/4 |
Front sensors power supply connector sleeve |
36G |
| Z36/4 |
Front sensors power supply connector sleeve |
41G |
