| AO |
Color code key |
80L |
| A56 |
Tachograph |
74L |
| Code ED8 |
Electrical system preinstal1ation, parameterizable special module |
11D |
| Code JD4 |
EU digital tachograph, download-capable |
68F |
| Code M53 |
Constant rpm control |
13B |
| Code M53 |
Constant rpm control |
34A |
| Code MT4 |
Variable electronic rpm regulator |
13B |
| Code MT4 |
Variable electronic rpm regulator |
34A |

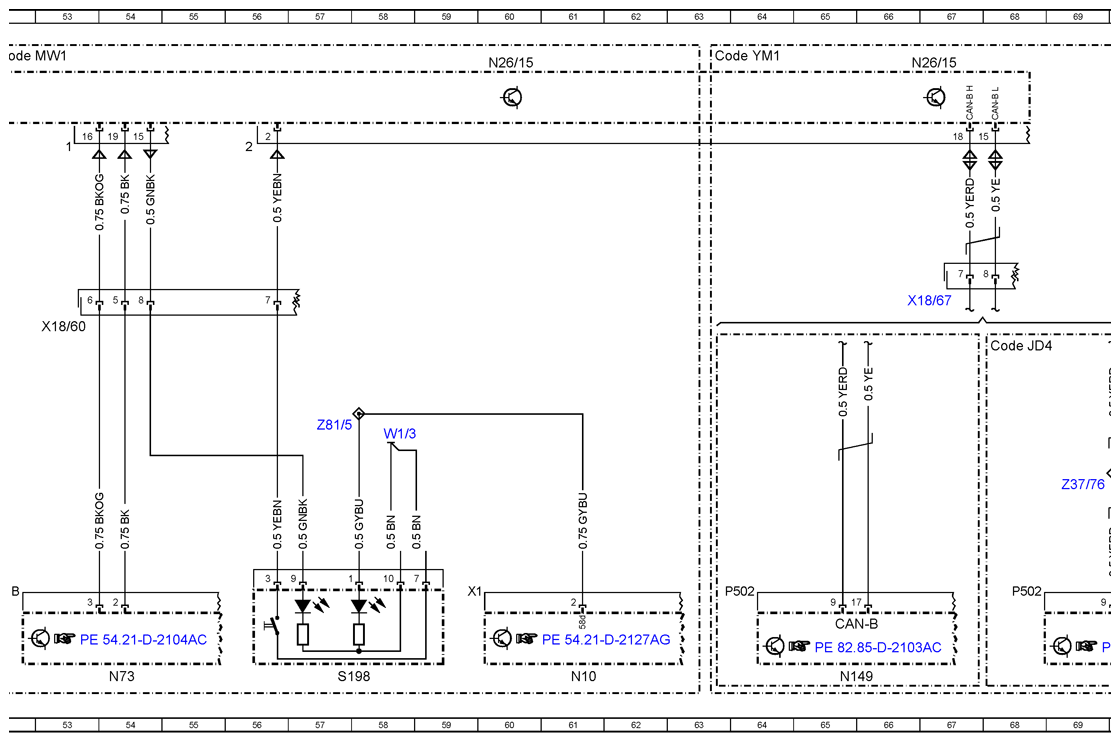

| Code MW1 |
Engine run-on control (MWS) |
52A |
| Code N05 |
Countershaft power take-off (2c) without flange |
13A |
| Code N05 |
Countershaft power take-off (2c) without flange |
18A |
| Code N07 |
Countershaft power take-off (2b) with flange |
13A |
| Code N07 |
Countershaft power take-off (2b) with flange |
18A |
| Code YM1 |
FleetBoard vehicle computer |
63A |
| F55/3 |
Fuse block 3 (9-pin) |
49L |
| F55/3 |
Fuse block 3 (9-pin) |
30L |
| F55/3f4 |
AAG/tachograph/ADR fuse 4 |
48K |
| F55/3f4 |
AAG/tachograph/ADR fuse 4 |
29K |
| F55/4 |
Fuse block 4 (9-pin) |
4L |
| F55/4f8 |
Parameterizable special module (PSM) fuse 17 |
2K |
| F55/4f9 |
Parameterizable special module (PSM) fuse 18 |
3K |
| N10 |
SAM control unit |
27L |
| N10 |
SAM control unit |
46L |
| N10 |
SAM control unit |
61L |

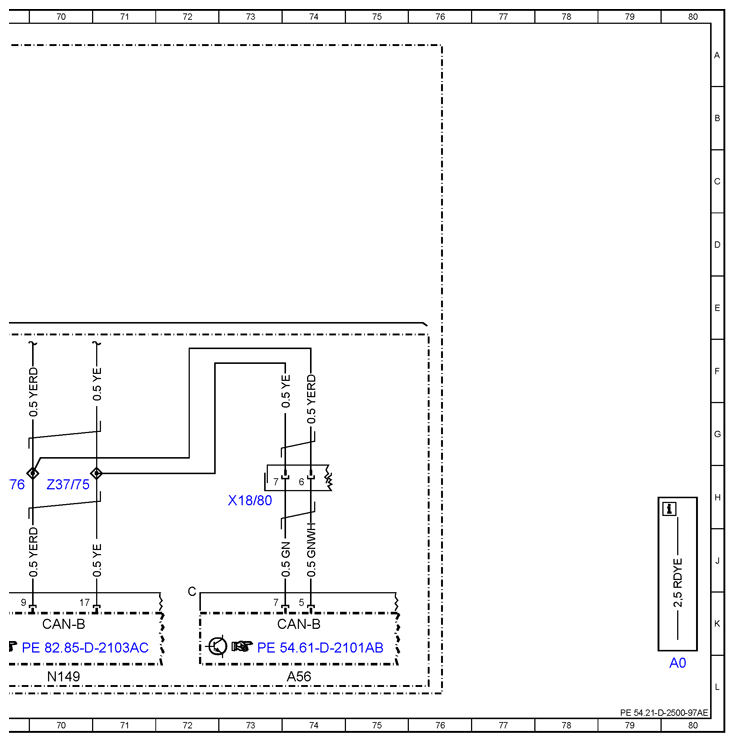

| N149 |
FleetBoard control unit |
65L |
| N149 |
FleetBoard control unit |
70L |

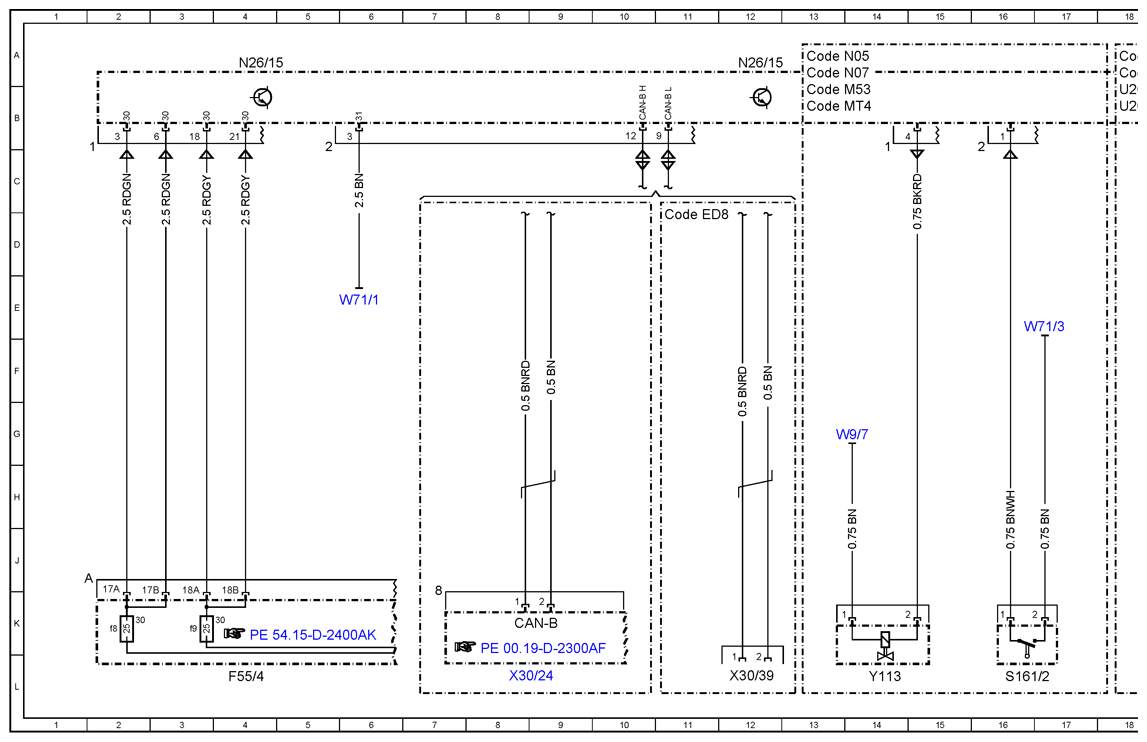

| N26/15 |
Parameterizable special module (PSM) control unit |
4A |
| N26/15 |
Parameterizable special module (PSM) control unit |
12A |
| N26/15 |
Parameterizable special module (PSM) control unit |
28A |
| N26/15 |
Parameterizable special module (PSM) control unit |
36A |
| N26/15 |
Parameterizable special module (PSM) control unit |
44A |
| N26/15 |
Parameterizable special module (PSM) control unit |
51A |
| N26/15 |
Parameterizable special module (PSM) control unit |
60A |
| N26/15 |
Parameterizable special module (PSM) control unit |
67A |
| N26/15 |
Parameterizable special module (PSM) control unit |
20A |
| N73 |
Electronic ignition lock (EZS) control unit |
54L |

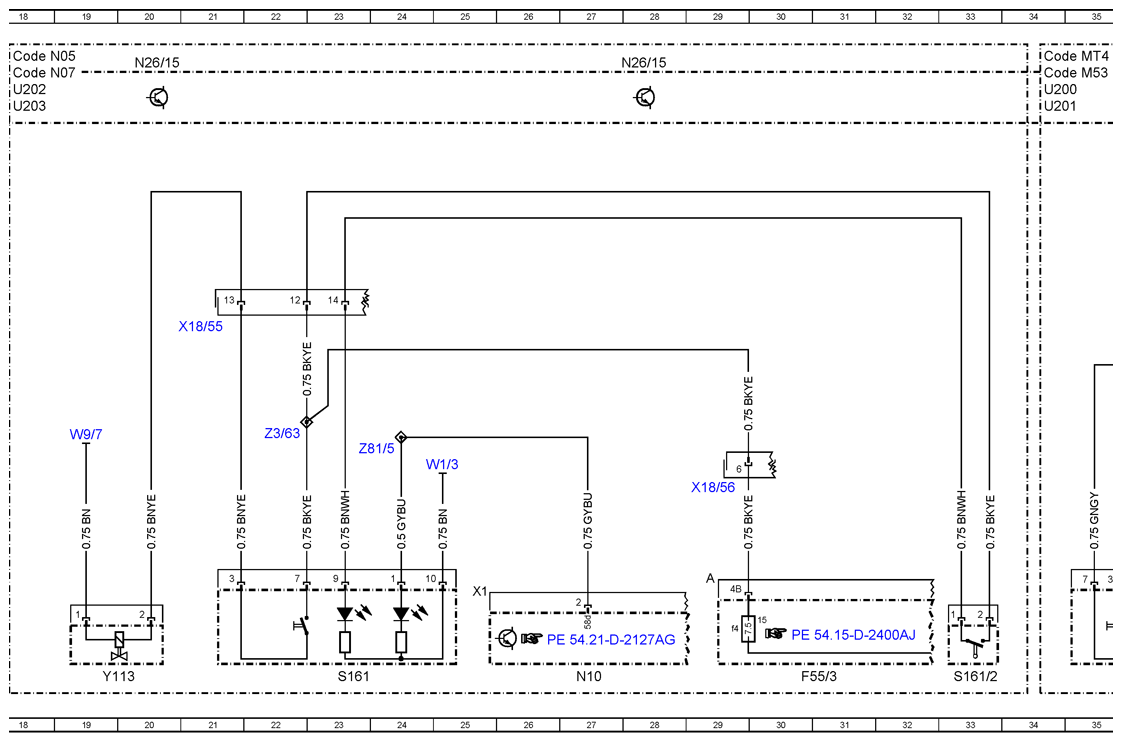

| S161 |
Power take-off switch |
23L |
| S161/1 |
Working speed control ON switch |
42L |
| S161/2 |
Power take-off limit switch |
33L |
| S161/2 |
Power take-off limit switch |
16L |

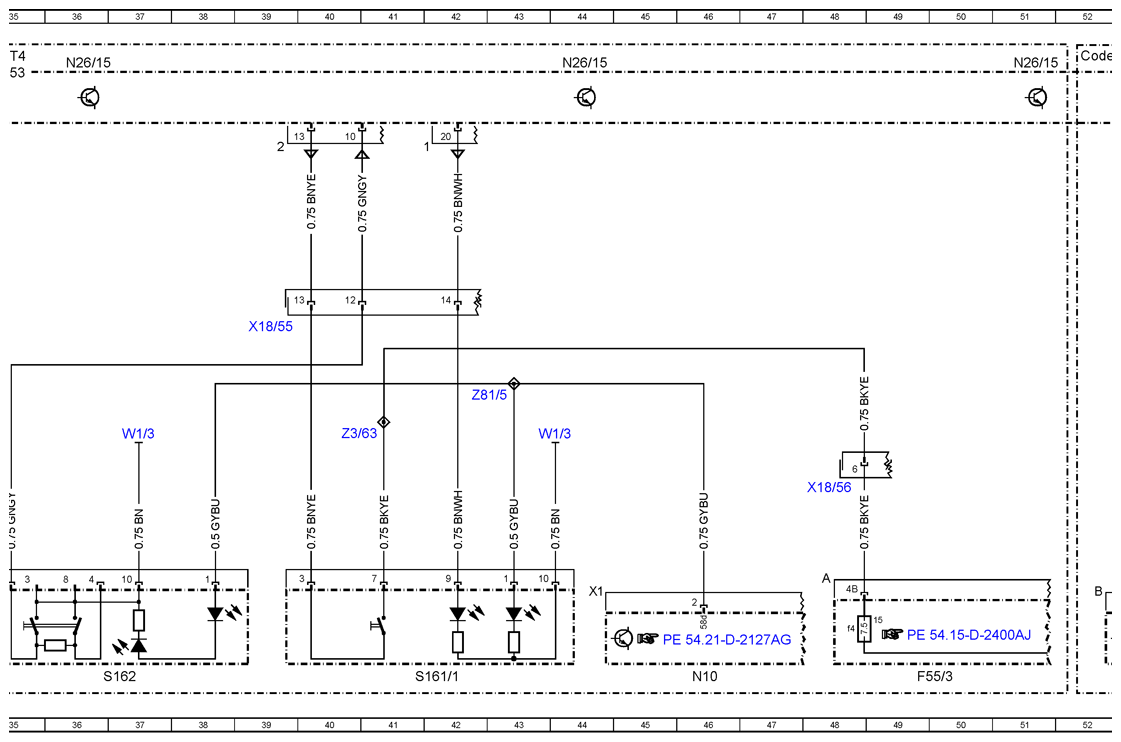

| S162 |
Working speed control button |
37L |
| S198 |
Engine run-on button |
57L |
| U200 |
Valid without code N05 (Countershaft power take-off (2c) without flange) |
34B |
| U201 |
Valid without code N07 (Countershaft power take-off (2b) with flange) |
34B |
| U202 |
Valid without code M53 (Constant rpm control) |
18B |
| U203 |
Valid without code MT4 (Variable electronic rpm regulator) |
18B |
| W1/3 |
CLS cockpit ground point 1 |
58G |
| W1/3 |
CLS cockpit ground point 1 |
25H |
| W1/3 |
CLS cockpit ground point 1 |
37G |
| W1/3 |
CLS cockpit ground point 1 |
43G |
| W71/1 |
Driver seat frame ground point 1 |
6E |
| W71/3 |
Driver seat frame ground point 3 |
17E |
| W9/7 |
Left front ground point 2 |
14G |
| W9/7 |
Left front ground point 2 |
19G |
| X18/55 |
MWH [HLS]/cockpit electrical connector 3 |
21E |
| X18/55 |
MWH [HLS]/cockpit electrical connector 3 |
39E |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
48H |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
29H |
| X18/60 |
MWH [HLS]/cockpit electrical connector 4 |
53E |
| X18/67 |
MWH [HLS]/roof electrical connector 4 |
67E |
| X18/80 |
Cockpit and roof electrical connector 8 |
73H |
| X30/24 |
Interior CAN electrical connector |
8L |
| X30/39 |
CAN-B preinstallation/parameterizable special module (PSM) control unit electrical connector |
12L |
| Y113 |
Power take-off solenoid valve |
14L |
| Y113 |
Power take-off solenoid valve |
19L |
| Z3/63 |
Working speed control (ADR) circuit 15 connector sleeve |
22G |
| Z3/63 |
Working speed control (ADR) circuit 15 connector sleeve |
40G |
| Z37/75 |
Fleet management system CAN bus (LOW) connector sleeve |
70H |
| Z37/76 |
Fleet management system CAN bus (HIGH) connector sleeve |
69H |
| Z81/5 |
Circuit 58d connector sleeve |
57G |
| Z81/5 |
Circuit 58d connector sleeve |
24G |
| Z81/5 |
Circuit 58d connector sleeve |
43F |
