| F55/4 |
Fuse block (9 fuses) |
2L |
| F55/4f8 |
Fuse 17 (25 A), PSM |
1K |
| F55/4f9 |
Fuse 18 (25 A), PSM |
2K |

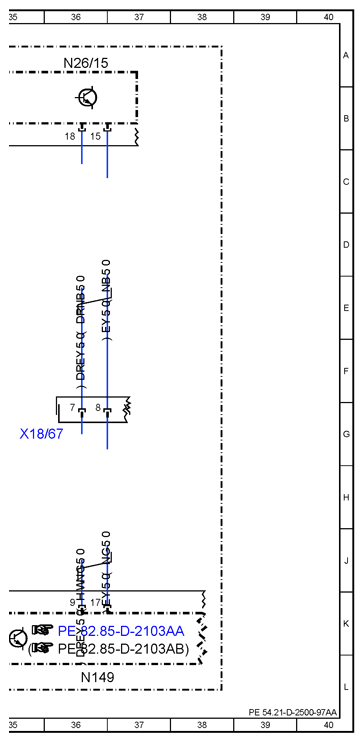

| N149 |
FleetBoard control unit |
36L |
| N26/15 |
PSM control unit |
4A |
| N26/15 |
PSM control unit |
12A |
| N26/15 |
PSM control unit |
20A |
| N26/15 |
PSM control unit |
28A |
| N26/15 |
PSM control unit |
36A |

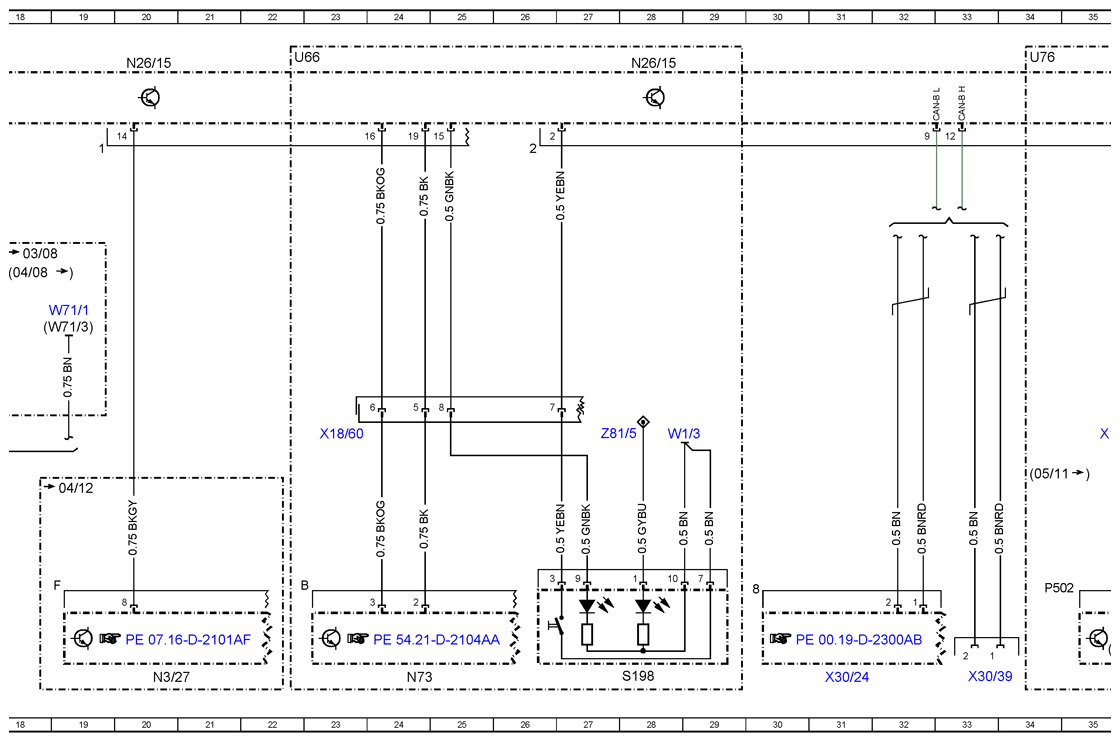

| N3/27 |
CDI control unit |
20L |
| N73 |
EIS [EZS] control unit |
24L |
| S161 |
PTO switch |
11L |
| S161/1 |
ADR ON switch |
15L |
| S161/2 |
Power take-off limit switch |
17L |
| S162 |
ADR button |
7L |
| S198 |
Engine run-on button |
28L |
| U66 |
Valid for continuous engine operation feature |
22A |
| U76 |
Valid for FleetBoard |
34A |
| W1/3 |
CLS cockpit ground point 1 |
8G |
| W1/3 |
CLS cockpit ground point 1 |
15G |
| W1/3 |
CLS cockpit ground point 1 |
28G |
| W71/1 |
Driver seat frame ground point 1 |
4G |
| W71/1 |
Driver seat frame ground point 1 |
4E |
| W71/1 |
Driver seat frame ground point 1 |
19E |
| W71/3 |
Driver seat frame ground point 3 |
19E |
| W9/7 |
Left front ground point 2 |
4G |
| X18/55 |
HLS/COC connector 3 |
10E |
| X18/60 |
HLS/COC connector 4 |
23G |
| X18/67 |
HLS/roof connector 4 |
35G |
| X30/24 |
Interior CAN bus connector |
31L |
| X30/39 |
PSM control unit CAN-B preinstallation connector |
33L |
| Y113 |
PTO solenoid valve |
4L |
| Z3/63 |
ADR tml. 15 connector sleeve |
12G |
| Z81/5 |
Tml. 58d connector sleeve |
14G |
| Z81/5 |
Tml. 58d connector sleeve |
9G |
| Z81/5 |
Tml. 58d connector sleeve |
27G |
