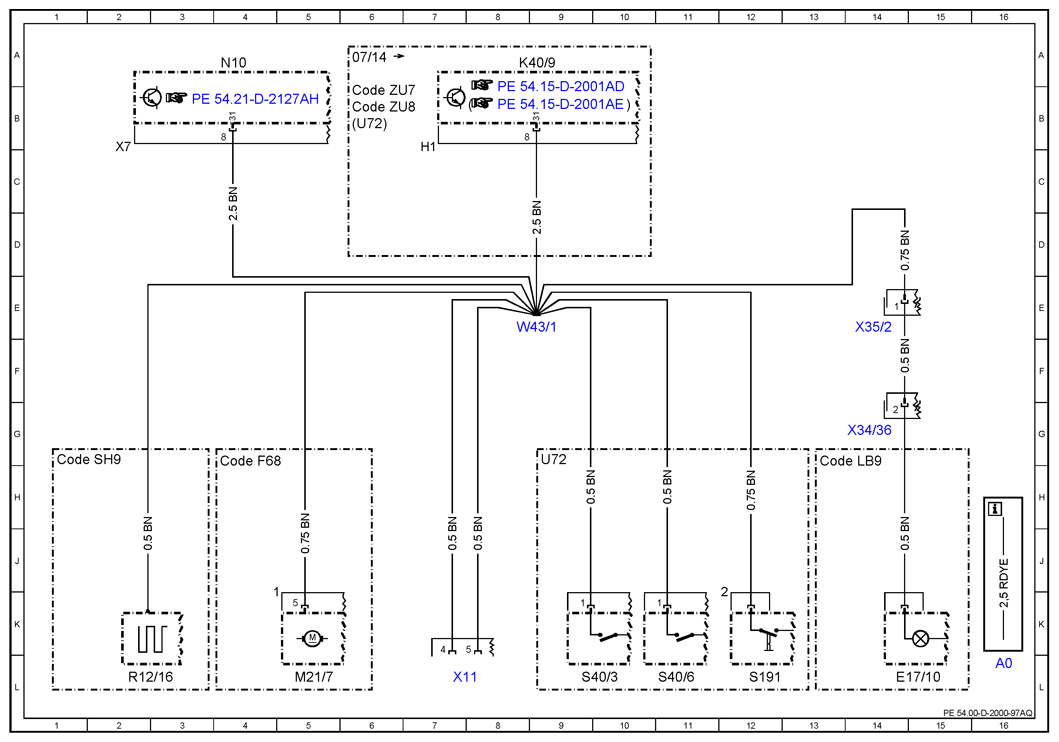

| A0 |
Color code key |
16L |
| Code F68 |
Electrically adjustable and heated outside mirror |
4H |
| Code LB9 |
11luminated exits |
13H |
| Code SH9 |
Windowbags for driver and front passenger |
1G |
| Code ZU7 |
Canada national version |
6B |
| Code ZU8 |
USA national version |
6B |
| El 7/10 |
Front passenger exit lamp |
14L |
| K40/9 |
Fuse and relay module |
8A |
| M21/7 |
Passenger-side outside mirror |
5L |
| N10 |
SAM control unit |
4A |
| R12/16 |
Left windowbag squib |
2L |
| S191 |
Retarder switch |
12L |
| S40/3 |
Clutch pedal switch |
9L |
| S40/6 |
Clutch pedal switch |
11L |
| U72 |
Valid for all except USA, Canada |
9G |
| U72 |
Valid for all except USA, Canada |
6B |
| W43/1 |
Left firewall ground point |
8E |
| X11 |
Diagnostic connector (16-pin) |
7L |
| X34/36 |
Front passenger exit lamp electrical connector |
14G |
| X35/2 |
Front passenger door electrical connector |
14E |
