| A0 |
Color code key |
88L |
| A1 |
Instrument cluster |
41A |
| A2/30 |
Cradle for Becker® MAP PILOT |
19A |

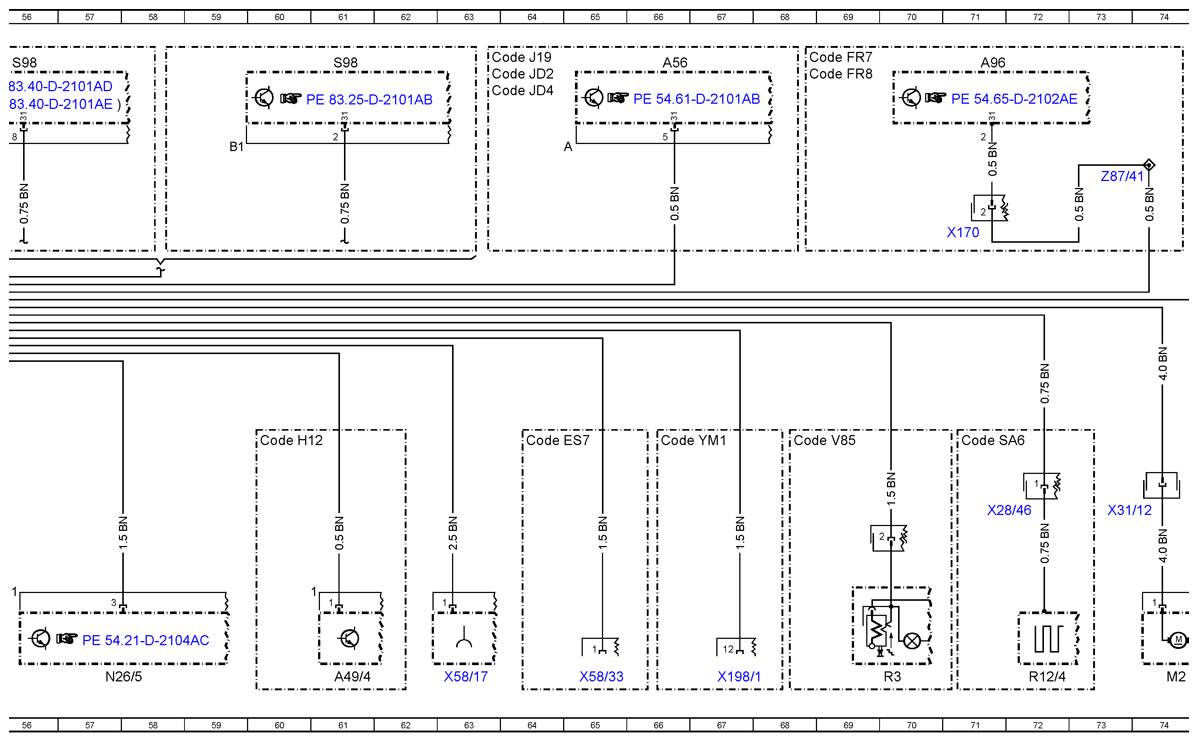

| A49/4 |
Stationary heater Telestart receiver |
61L |
| A56 |
Tachograph |
66A |
| A96 |
Backup camera monitor |
71A |
| Code BR9 |
|
53G |
| Code E1N |
Becker MAP Pi lot |
16A |
| Code EN6 |
Audio 10 |
43A |
| Code EN7 |
Audio 15 |
43A |
| Code ER0 |
Radio preinstallation |
48A |
| Code ES7 |
|
64G |
| Code EV3 |
|
46G |
| Code EV6 |
Becker MAP PILOT preinstallation |
16A |
| Code F66 |
|
51G |
| Code FR7 |
Backup Assist electrical system preinstallation |
68A |
| Code FR8 |
Backup camera |
68A |
| Code FY9 |
|
48G |
| Code G40 |
Automatic transmission |
22A |
| Code G42 |
7G-TR0NIC PLUS |
22A |
| Code H12 |
Auxi Ii ary water heater |
20G |
| Code H12 |
Auxi Ii ary water heater |
60G |
| Code H72 |
Electric roof ventilator |
41G |
| Code HH9 |
Semi-automatic air conditioning, TEMPMATIC |
53A |
| Code HZ9 |
Heater booster |
18G |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
63A |
| Code JD2 |
EC digital tachograph with rpm+additional recorder |
63A |
| Code JD4 |
EU digital tachograph, download-capable |
63B |
| Code JV7 |
|
24G |
| Code JW0 |
Backup warning system |
10G |
| Code JW3 |
Shutoff for backup warning system |
10G |
| Code L72 |
|
28G |
| Code LD4 |
Load/passenger compartment comfort illumination |
15G |
| Code LV1 |
|
24G |
| Code MT4 |
Variable electronic rpm regulator |
38H |
| Code MW1 |
Engine run-on control (MWS) |
7G |
| Code MZ2 |
Natural gas engine M271 |
5G |
| Code N05 |
Countershaft power take-off (2c) without flange |
30G |
| Code N07 |
Countershaft power take-off (2b) with flange |
30G |
| Code P57 |
|
44G |
| Code SA6 |
Front passenger airbag |
71G |
| Code SH9 |
Windowbags for driver and front passenger |
81G |
| Code V85 |
Smoker"s package |
68G |
| Code YM1 |
FleetBoard vehicle computer |
66G |
| Code ZG1 |
All-wheel drive, engageable |
1G |
| Code ZG3 |
Engageable all-wheel drive with gear reduction |
1G |
| Code ZU7 |
Canada national version |
78B |
| Code ZU8 |
USA national version |
78B |

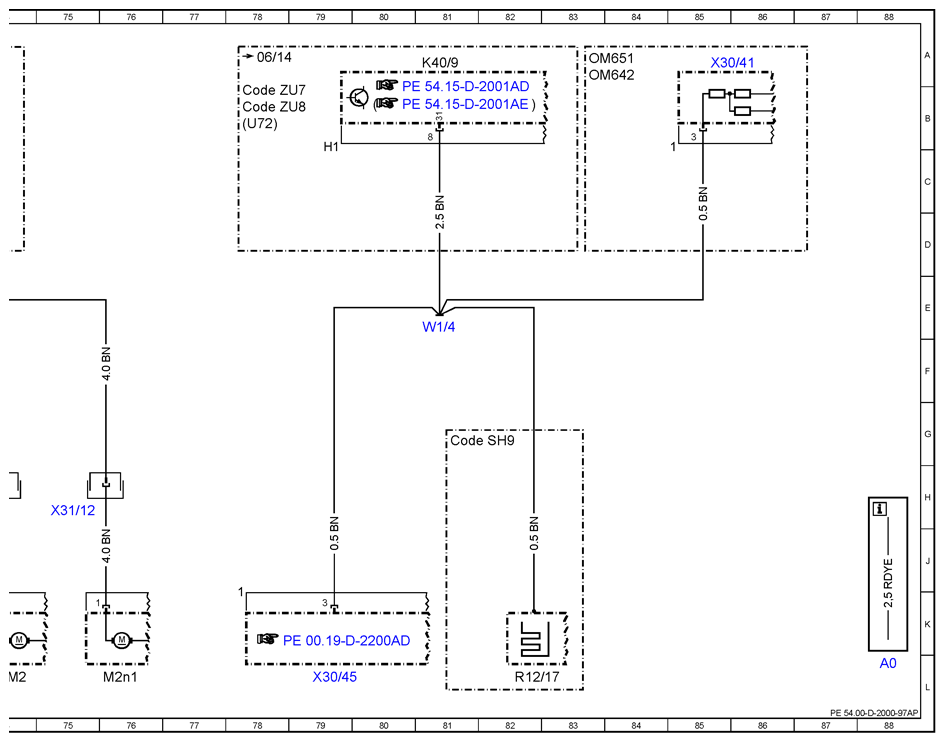

| E13/1 |
Glove box lamp |
52L |
| El 6/11 |
Retarder indicator lamp |
54L |
| K40/9 |
Fuse and relay module |
81A |
| M2 |
Blower motor |
74L |
| M2n1 |
Blower regulator |
76L |

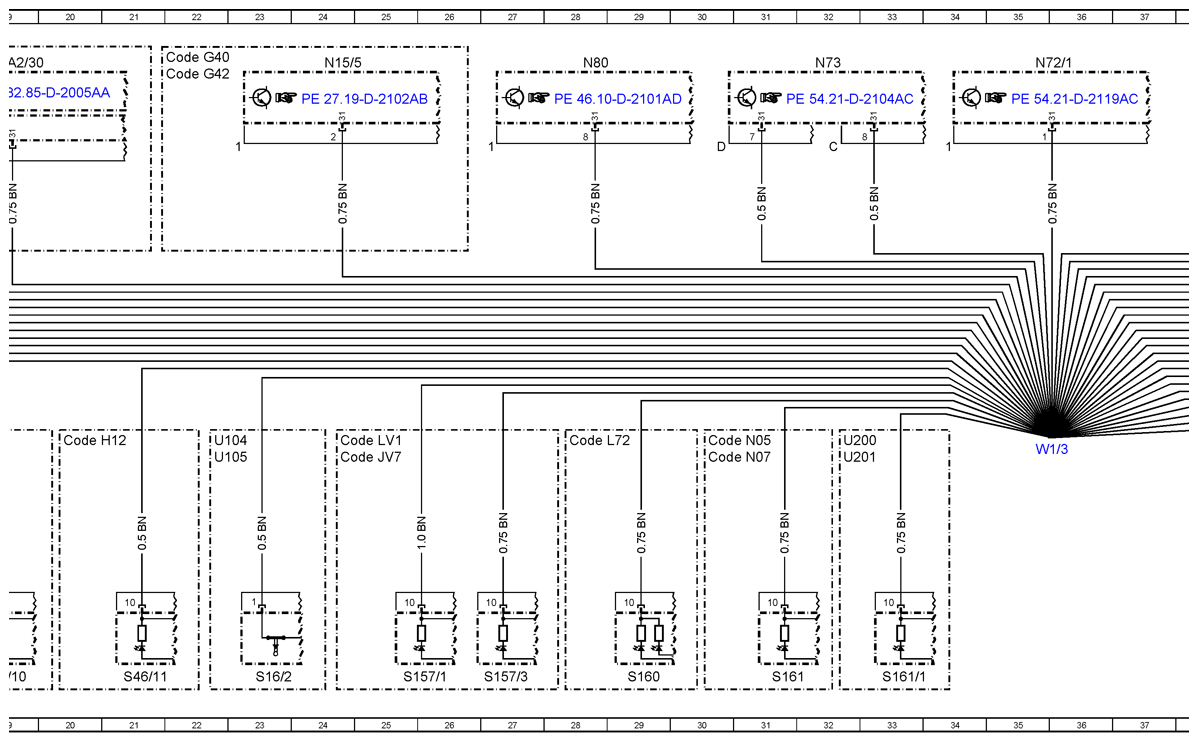

| N15/5 |
Electronic selector lever module control unit |
24A |
| N26/5 |
Electric steering lock control unit |
57L |
| N72/1 |
Upper control panel (UCP [OBF]) control unit |
35A |
| N73 |
Electronic ignition lock (EZS) control unit |
32A |
| N80 |
Steering column tube module (MRM) control unit |
28A |

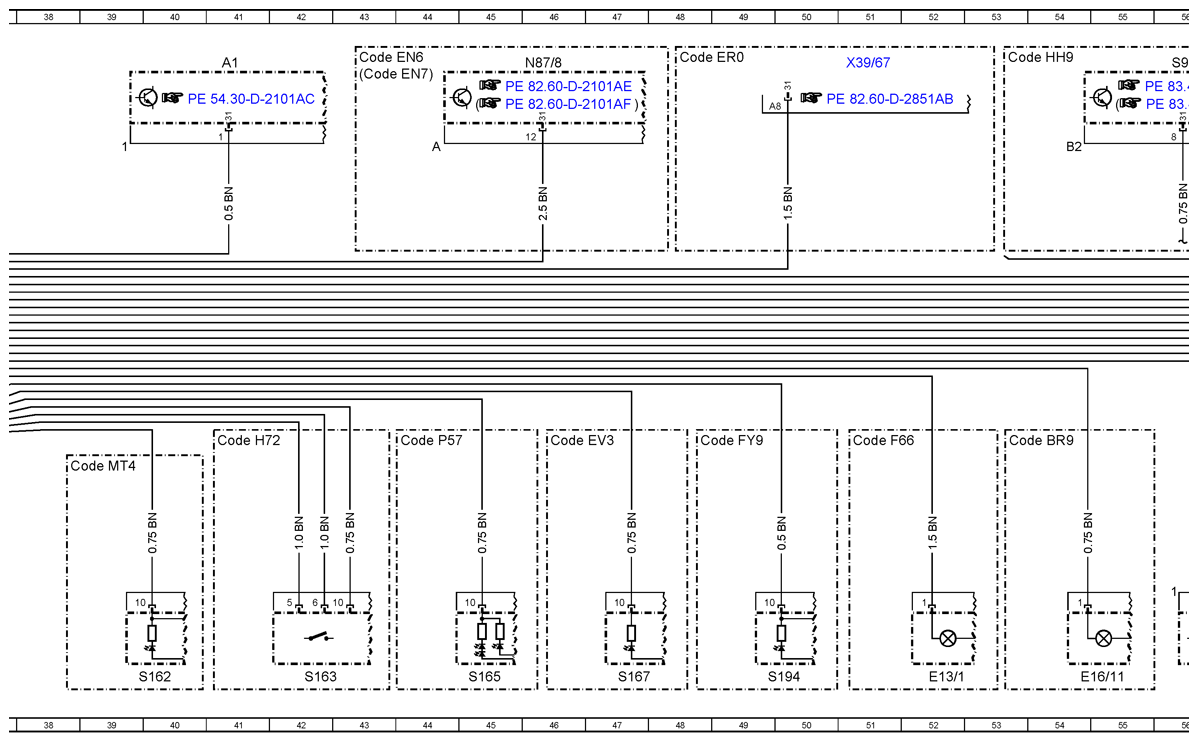

| N87/8 |
Radio/radio with navigation |
46A |
| R12/17 |
Right windowbag squib |
82L |
| R12/4 |
Front passenger airbag squib |
72L |
| R3 |
Illuminated cigar lighter |
70L |
| S1/1 |
Headlamp range controller |
14L |
| S157/1 |
Rotating beacon switch |
25L |
| S157/3 |
Rotating beacon with tone sequence switch |
27L |
| S16/2 |
Backup lamp switch |
23L |
| S160 |
Body manufacturer electrical system switch |
29L |
| S161 |
Power take-off switch |
31L |
| SI 61/1 |
Working speed control ON switch |
33L |
| S162 |
Working speed control button |
40L |
| S163 |
Roof ventilator switch |
42L |
| S165 |
Dumper vehicle switch |
45L |
| S167 |
Cargo lift gate switch |
47L |
| S18/1 |
Rear dome lamp switch |
16L |
| S193 |
Gas/gasoline selection switch |
6L |
| S194 |
KEYLESS-ENTRY & SLIDE button |
50L |
| S198 |
Engine run-on button |
9L |
| S199 |
Backup warning system OFF button |
12L |
| S46/10 |
Heater booster button |
19L |
| S46/11 |
Heater booster/stationary heater button |
21L |

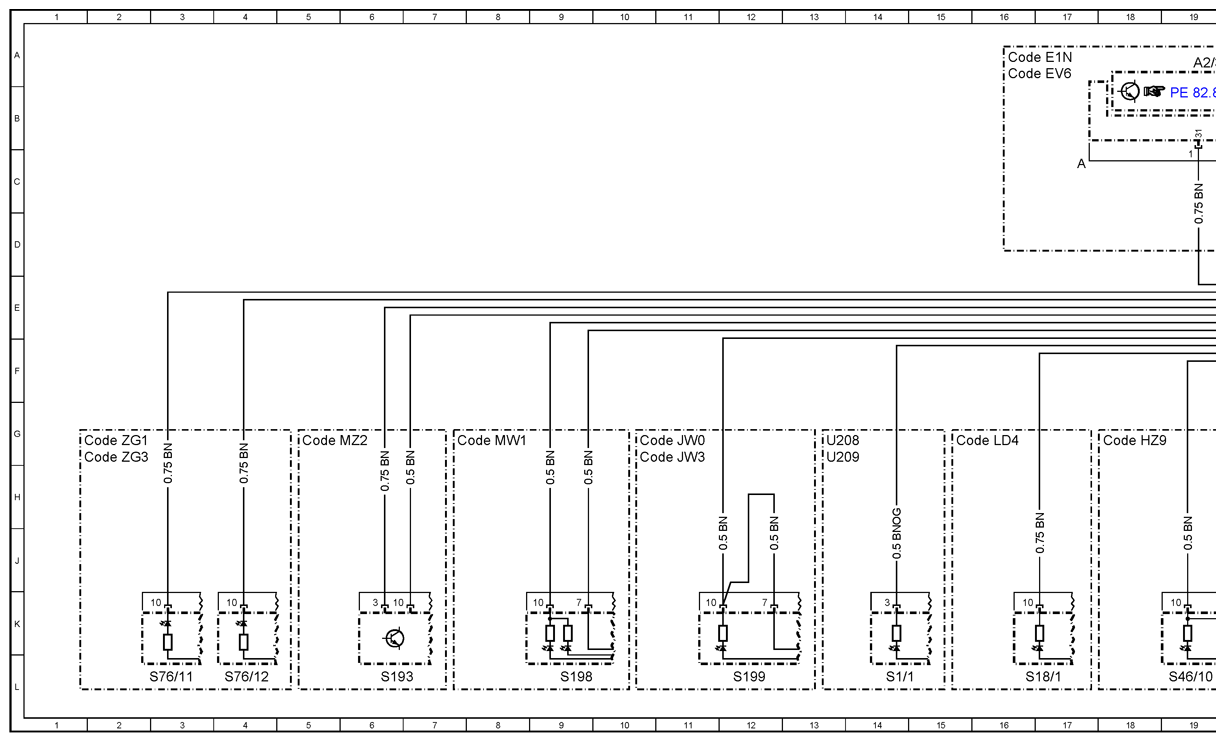

| S76/11 |
All-wheel drive engagement button |
3L |
| S76/12 |
All-wheel drive gear ratio button |
4L |
| S98 |
AC control and operating unit |
56A |
| S98 |
AC control and operating unit |
61A |
| U104 |
Valid without code G40 (Automatic transmission) |
22G |
| U105 |
Valid without code G42 (7G-TR0NIC PLUS) |
22G |
| U200 |
Valid without code N05 (Countershaft power take-off (2c) without flange) |
32G |
| U201 |
Valid without code N07 (Countershaft power take-off (2b) with flange) |
32G |
| U208 |
|
13G |
| U209 |
|
13G |
| U72 |
Valid for all except USA, Canada |
78B |
| W1/3 |
CLS cockpit ground point 1 |
35G |
| W1/4 |
HLS cockpit ground point |
81E |
| X170 |
Reversing camera monitor electrical connector |
71D |
| X198/1 |
Fleetboard electrical connector |
67L |
| X28/46 |
Front passenger airbag electrical connector |
72H |
| X30/41 |
Drive train sensor CAN potential distributor electrical connector |
85A |
| X30/45 |
Engine CAN electrical connector 2 |
79L |
| X31/12 |
Circuit 31 blower electrical connector |
75H |
| X31/12 |
Circuit 31 blower electrical connector |
73H |
| X39/67 |
Radio preinstallation electrical connector |
51A |
| X58/17 |
Front vehicle interior power outlet |
63L |
| X58/33 |
Cockpit socket |
65L |
| Z87/41 |
Backup monitor microphone connector sleeve |
73C |
