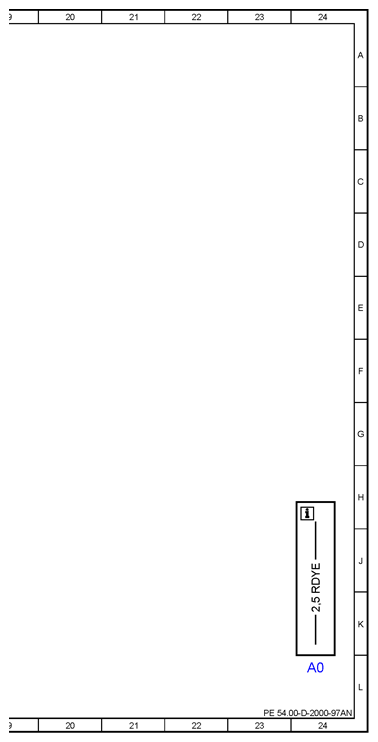

| A0 |
Color code key |

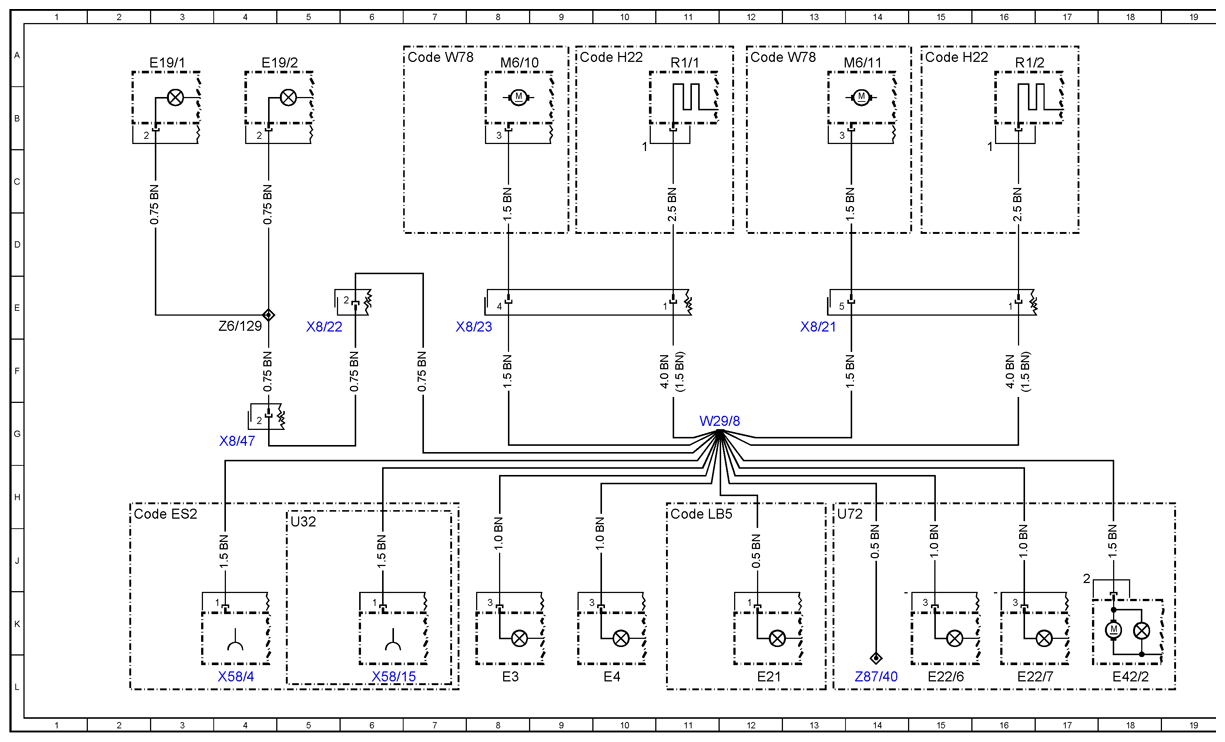

24L |
| Code ES2 |
Trunk/load compartment 12 V socket |
2H |
| Code H22 |
Heated rear window |
9A |
| Code H22 |
Heated rear window |
15A |
| Code LB5 |
Center high-mounted stop lamp |
11H |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
7A |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
12A |
| E19/1 |
Left license plate lamp |
3A |
| E19/2 |
Right license plate lamp |
4A |
| E21 |
Center stop lamp |
12L |
| E22/6 |
Left roof additional turn signal lamp |
15L |
| E22/7 |
Right roof additional turn signal lamp |
16L |
| E3 |
Left tail lamp |
8L |
| E4 |
Right tail lamp |
10L |
| E42/2 |
Right rear rotating beacon |
18L |
| M6/10 |
Left rear-end door wiper motor |
8A |
| M6/11 |
Right rear-end door wiper motor |
14A |
| R1/1 |
Left heated rear window |
IIA |
| R1/2 |
Right heated rear window |
16A |
| U32 |
Val id for MPV version |
5H |
| U72 |
Valid for all except USA, Canada |
13H |
| W29/8 |
Left D-pillar ground point |
11G |
| X58/15 |
Load compartment socket |
6L |
| X58/4 |
Load compartment socket |
4L |
| X8/21 |
Right roof/rear-end door electrical connector |
13E |
| X8/22 |
Left roof/rear-end door electrical connector |
5E |
| X8/23 |
Left roof/rear-end door electrical connector |
8E |
| X8/47 |
License plate lamp electrical connector |
4G |
| Z6/129 |
License plate lamp ground connection connector sleeve |
4E |
| Z87/40 |
Backup camera microphone connector sleeve |
14L |
