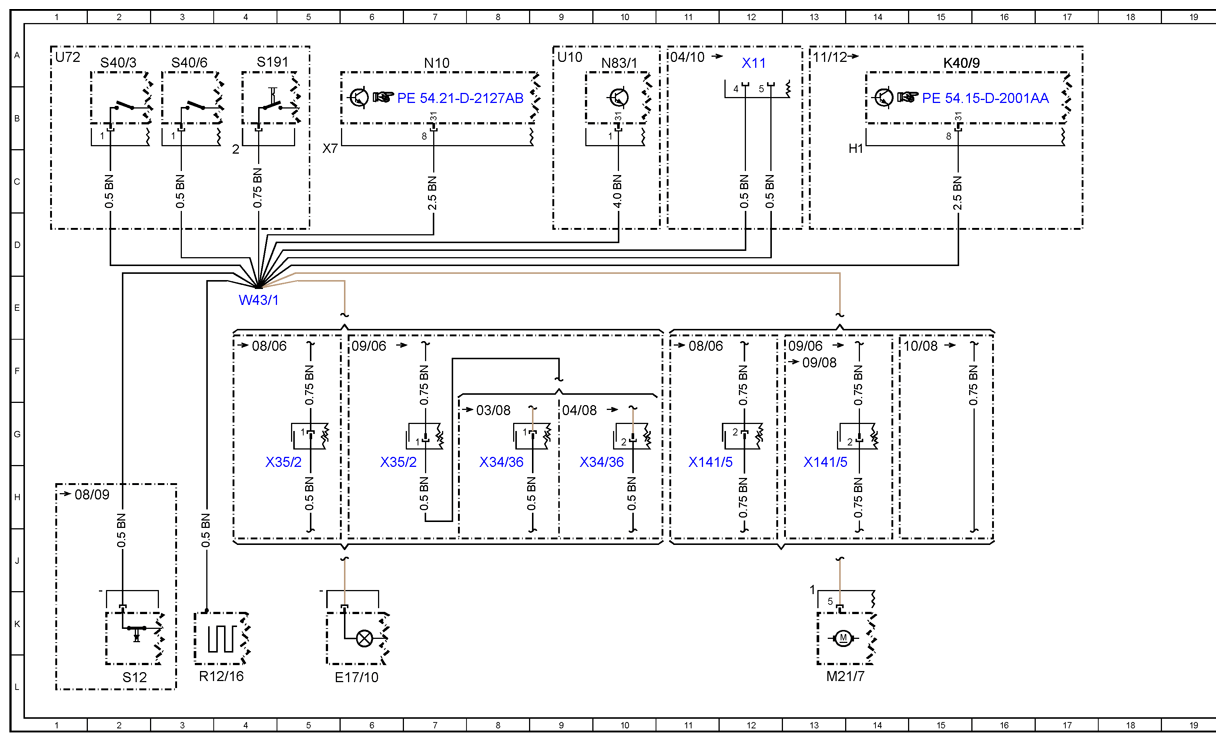

| El 7/10 |
Front passenger entrance/exit lamp |
6L |
| K40/9 |
Fuse/relay box (SRB) |
15A |
| M21/7 |
Passenger-side outside mirror |
13L |
| N10 |
SAM control unit |
7A |
| N83/1 |
DC/DC converter control unit |
10A |
| R12/16 |
Left windowbag squib |
3L |
| S12 |
Parking brake indicator switch |
2L |
| S191 |
Retarder switch |
4A |
| S40/3 |
Clutch pedal switch |
2A |
| S40/6 |
Clutch pedal switch |
3A |
| U10 |
Valid for engine start/stop (MSS) |
9A |
| U72 |
Valid for all except USA, Canada |
1A |
| W43/1 |
Left firewall ground point |
4E |
| X11 |
Diagnostic socket (16-pin) |
12A |
| X141/5 |
Passenger-side outside mirror connector |
11H |
| X141/5 |
Passenger-side outside mirror connector |
13H |
| X34/36 |
Front passenger entrance/exit lamp connector |
8H |
| X34/36 |
Front passenger entrance/exit lamp connector |
10H |
| X35/2 |
Front passenger door connector |
5H |
| X35/2 |
Front passenger door connector |
6H |
