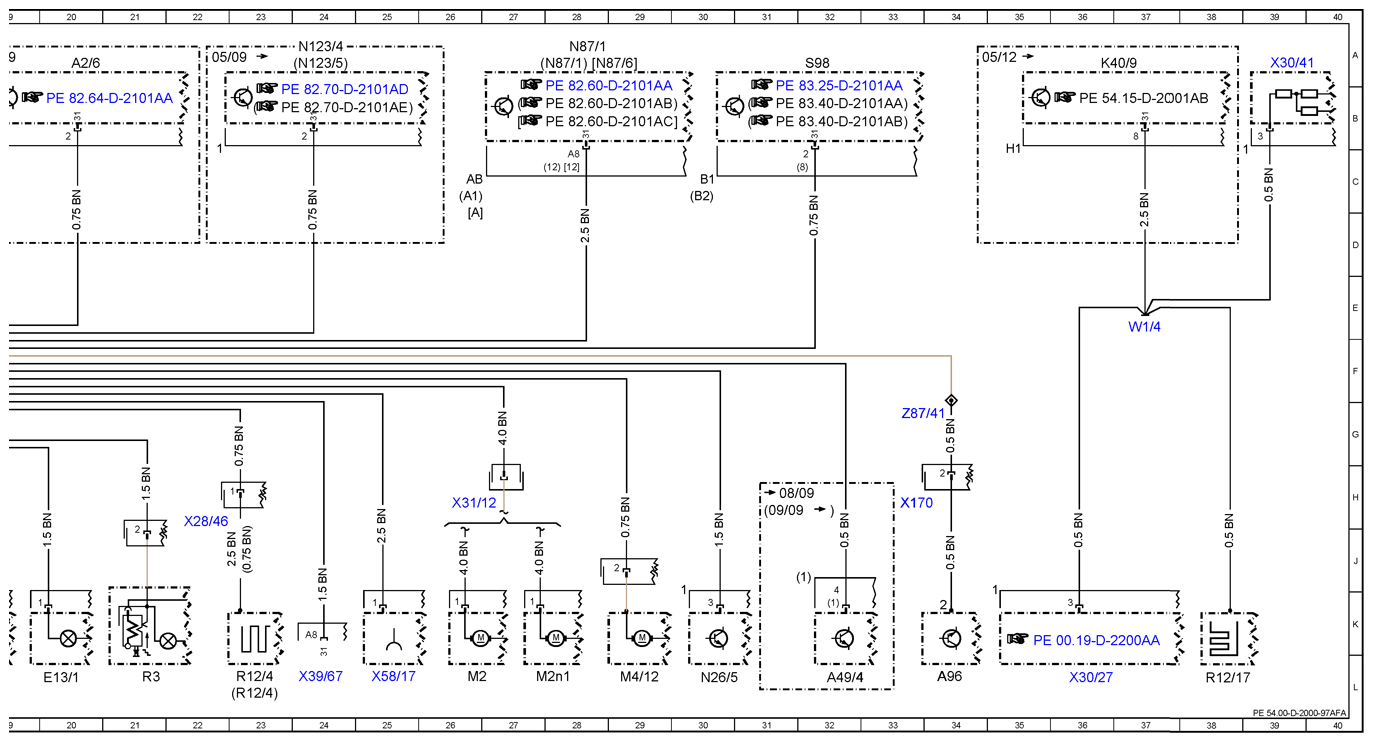

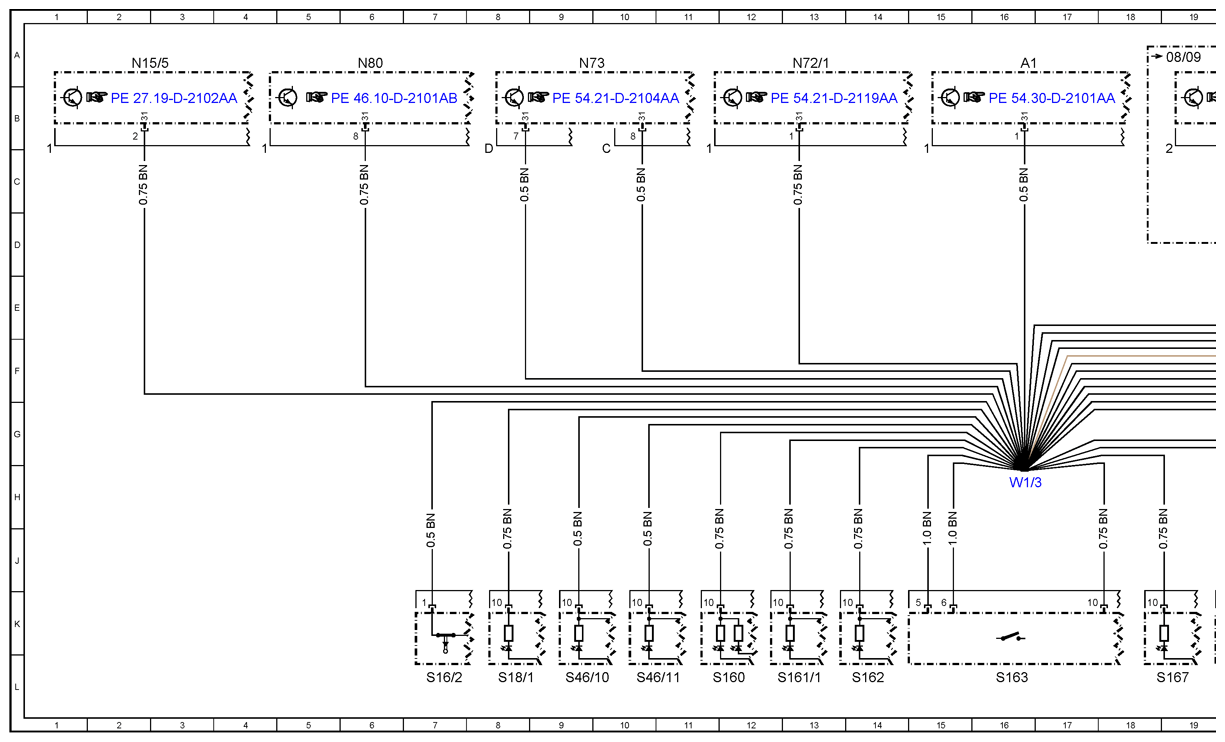

| A1 |
Instrument cluster |
16A |
| A2/6 |
CD changer |
20A |
| A49/4 |
Stationary heater radio signal receiver |
32L |
| A96 |
Backup camera monitor |
34L |
| E13/1 |
Glove compartment lamp |
20L |
| K40/9 |
Fuse/relay box (SRB) |
36A |
| M2 |
Blower motor |
26L |
| M2n1 |
Blower regulator |
28L |
| M4/12 |
Radio additional fan |
29L |
| N123/4 |
Bluetooth hands-free system |
24A |
| N123/5 |
Bluetooth hands-free system radio preinstallation |
24A |
| N15/5 |
EWM control unit |
2A |
| N26/5 |
ELV control unit |
30L |
| N72/1 |
OBF control unit |
13A |
| N73 |
EIS [EZS] control unit |
9A |
| N80 |
MRM control unit |
6A |
| N87/1 |
Radio/radio with navigation |
28A |
| N87/1 |
Radio/radio with navigation |
28A |
| N87/6 |
Radio/radio with navigation NG |
28A |
| R12/17 |
Right windowbag squib |
38L |
| R12/4 |
Front passenger airbag squib |
23L |
| R12/4 |
Front passenger airbag squib |
23L |
| R3 |
Illuminated cigar lighter |
21L |
| S16/2 |
Backup lamp switch |
7L |
| S160 |
Body manufacturer electrical system switch |
12L |
| SI 61/1 |
ADR ON switch |
13L |
| S162 |
ADR button |
14L |
| S163 |
Roof ventilator switch |
16L |
| S167 |
Cargo lift gate switch |
19L |
| S18/1 |
Rear dome lamp switch |
8L |
| S46/10 |
Heater booster button |
9L |
| S46/11 |
Heater booster/stationary heater button |
10L |
| S98 |
AAC [KLA] control and operating unit |
32A |
| W1/3 |
CLS cockpit ground point 1 |
16H |
| W1/4 |
HLS cockpit ground point |
37E |
| X170 |
Backup camera monitor connector |
33H |
| X28/46 |
Front passenger airbag connector |
22H |
| X30/27 |
Engine CAN bus connector |
36L |
| X30/41 |
Drive train sensor CAN voltage distributor connector |
39A |
| X31/12 |
Tml. 31 blower connector |
26H |
| X39/67 |
Radio preinstallation connector |
24L |
| X58/17 |
Front interior socket |
25L |
| Z87/41 |
Backup monitor microphone connector sleeve |
33G |
