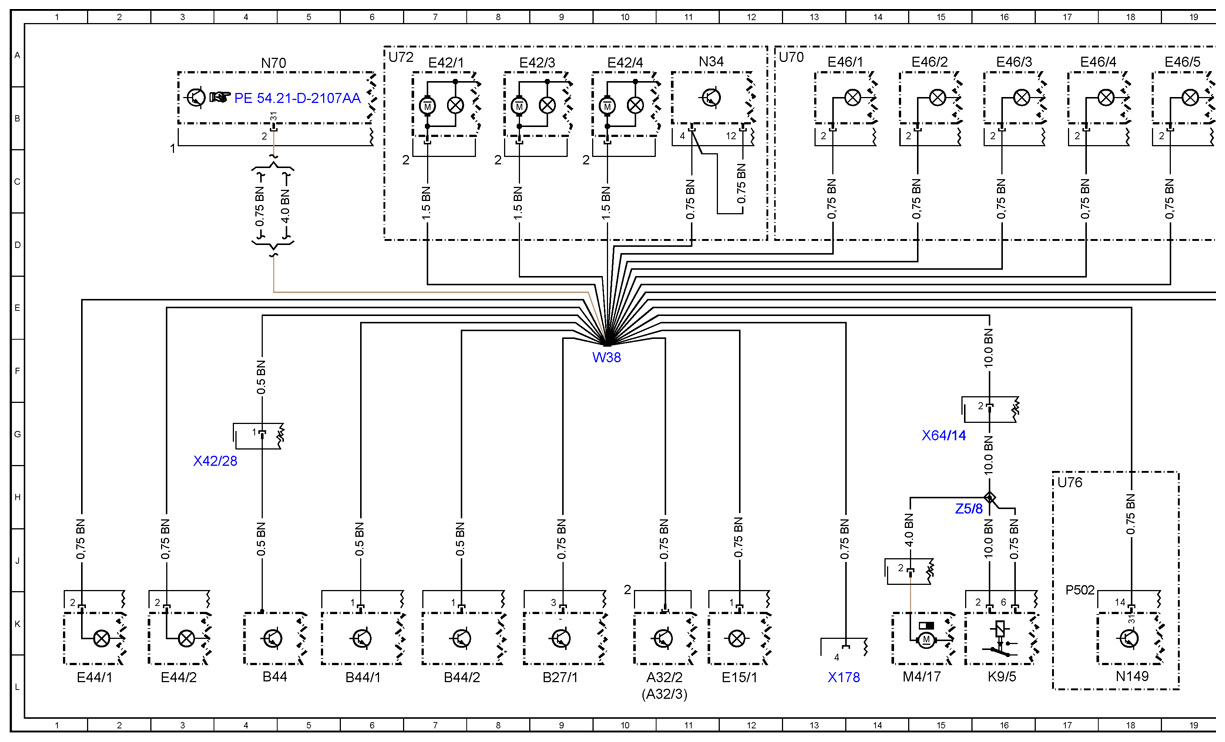

| A32/2 |
Rear automatic air conditioning recirculation unit |
10L |
| A32/3 |
Rear heavy duty automatic air conditioning recirculation unit |
10L |
| B27/1 |
Motion sensor |
9L |
| B44 |
Front interior protection sensor |
4L |
| B44/1 |
Center interior protection sensor |
6L |
| B44/2 |
Rear interior protection sensor |
7L |
| E15/1 |
Front dome lamp with switch |
12L |
| E42/1 |
Left front rotating beacon |
7A |
| E42/3 |
Blue left front rotating beacon |
8A |
| E42/4 |
Blue right front rotating beacon |
10A |
| E44/1 |
Right front clearance lamp |
IL |
| E44/2 |
Left front clearance lamp |
3L |
| E46/1 |
Right front identification lamp |
13A |
| E46/2 |
Center front identification lamp |
15A |
| E46/3 |
Left front identification lamp |
16A |
| E46/4 |
Outer left front identification lamp |
17A |
| E46/5 |
Outer right front identification lamp |
19A |
| K9/5 |
Roof additional fan relay |
16L |
| M4/17 |
Roof air conditioner 2 additional fan |
15L |
| N149 |
FleetBoard control unit |
18L |
| N34 |
Heater timer |
IIA |
| N70 |
DBE control unit |
4A |

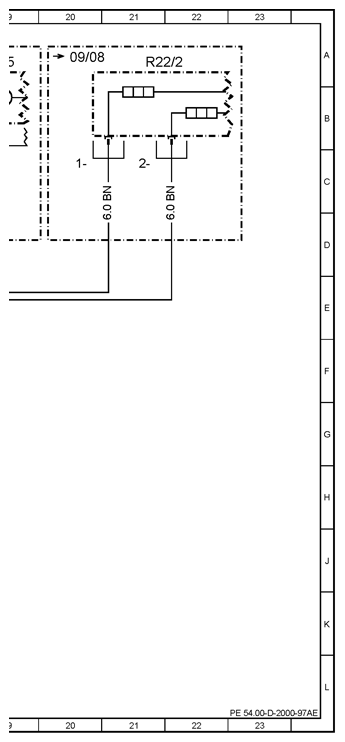

| R22/2 |
Heated windshield |
21A |
| U70 |
Val id for USA, Canada |
12A |
| U72 |
Valid for all except USA, Canada |
6A |
| U76 |
Val id for FleetBoard |
17H |
| W38 |
Roof ground point |
10F |
| X178 |
Front roof connector |
14L |
| X42/28 |
EDW connector |
4H |
| X64/14 |
Roof double auxiliary fan connector |
15G |
| Z5/8 |
Roof AC fan tml. 31 connector sleeve |
15H |
