| E2 |
Right lamp unit |
5L |
| E2/6 |
Right XENON lamp unit |
7L |
| E22/2 |
Right additional turn signal lamp |
10L |
| E5/2 |
Right fog lamp |
8L |
| H3/1 |
Battery-operated horn |
9A |
| K9 |
Additional fan relay |
21L |
| K9/2 |
Additional fan relay (mono) |
18L |
| M4/13 |
Air conditioner 1 additional fan |
16L |
| M4/13 |
Air conditioner 1 additional fan |
22L |
| M89/2 |
Front AdBlue®, delivery pump |
15L |
| N3/28 |
CDI control unit |
IIA |
| N30/4 |
ESP control unit |
5A |
| R15 |
AC mono fan resistor |
19L |
| R51/2 |
Front AdBlue®, tank fill heating element |
13L |
| R52/2 |
Front AdBlue®, injection line heating element |
12L |
| U2 |
Valid for right-hand drive vehicles |
3A |
| U67 |
Val id for AC mono fan |
16F |
| U68 |
Val id for AC duo fan |
20F |
| U72 |
Valid for all except USA, Canada |
9F |
| U72 |
Valid for all except USA, Canada |
3A |
| U74 |
Valid for front AdBlue®, tank |
11F |
| U86 |
Val id for snowp low |
1F |

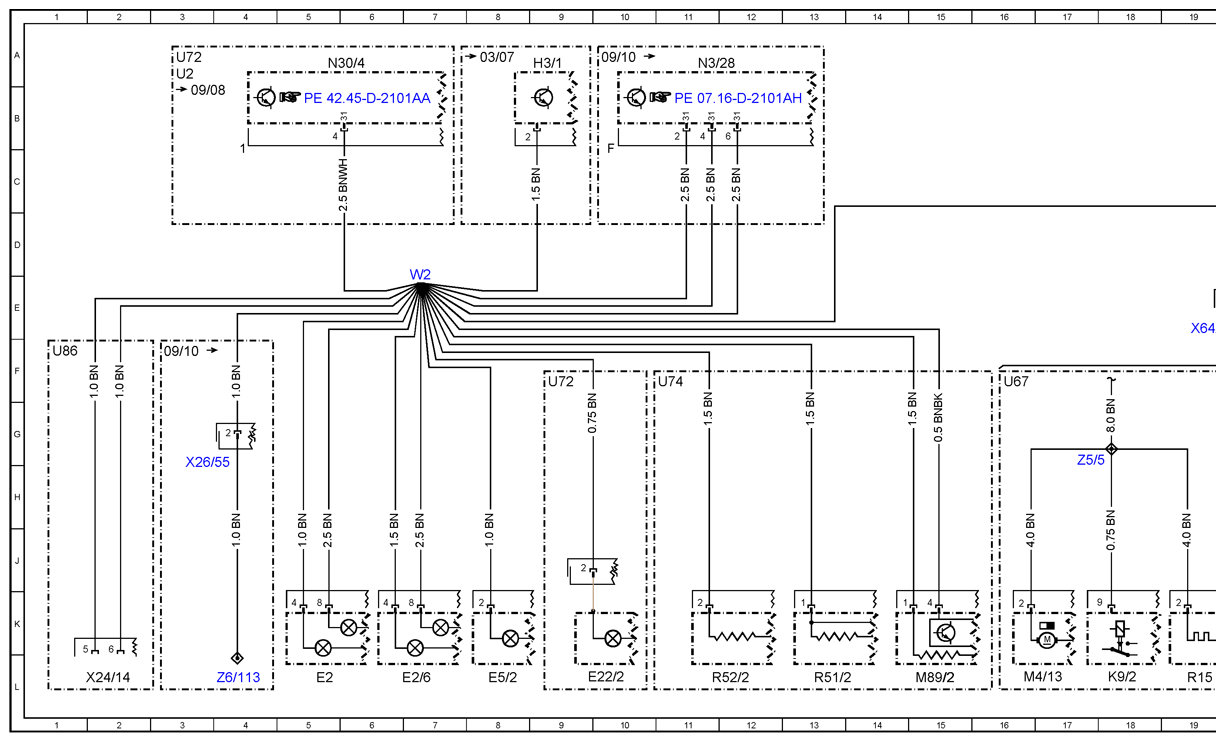

| W2 |
Right front lamp unit ground point |
7E |
| X24/14 |
Right additional headlamp connector |
2L |
| X26/55 |
Engine wiring harness connector 1 |
3H |
| X64/13 |
Double auxiliary fan connector |
19E |
| Z5/5 |
AC fan circuit 31 connector sleeve |
20G |
| Z5/5 |
AC fan circuit 31 connector sleeve |
17G |
| Z6/113 |
Ground connector sleeve |
4L |
