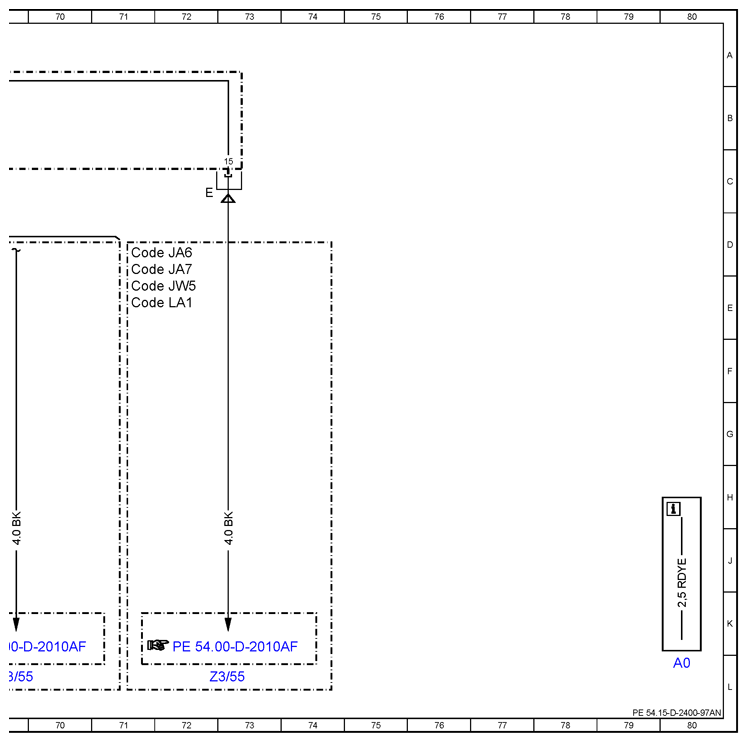

| A0 |
Color code key |
80L |
| A32/2 |
Rear automatic air conditioning air recirculation unit |
29L |
| A32/2a1 |
Blower regulator |
29L |
| A32/2m1 |
Blower motor |
29L |

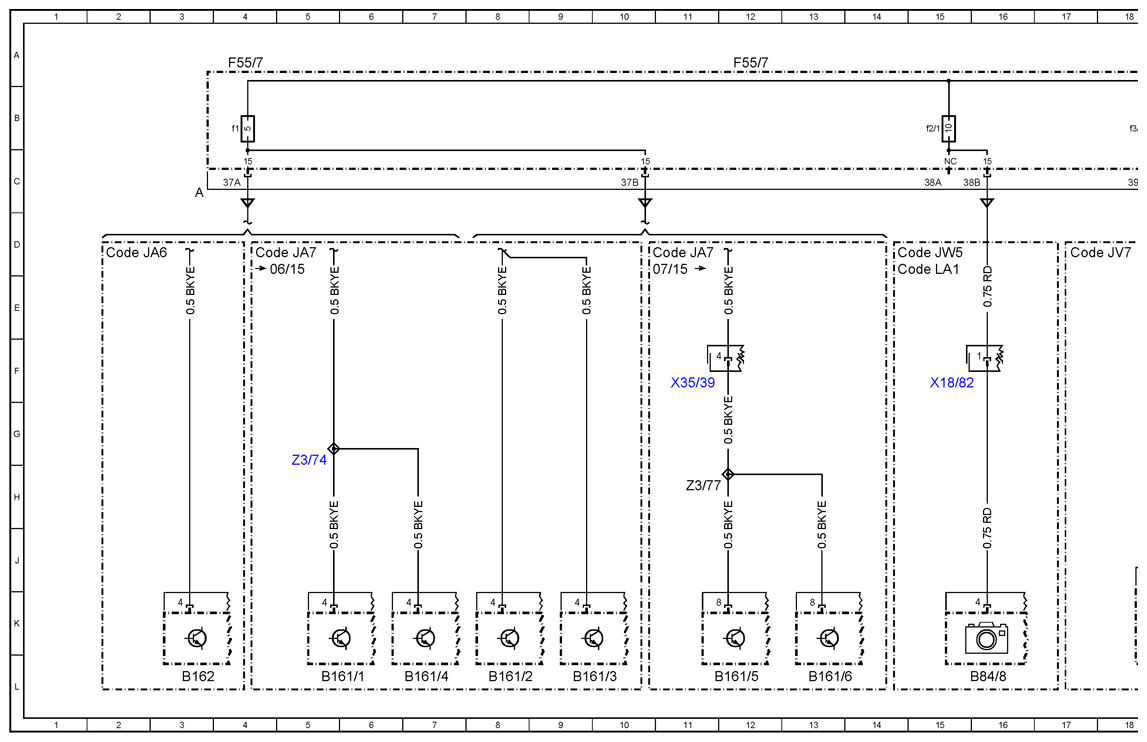

| B161/1 |
Right rear radar sensor |
5L |
| B161/2 |
Left side radar sensor |
8L |
| B161/3 |
Right side radar sensor |
9L |
| B161/4 |
Left rear radar sensor |
7L |
| B161/5 |
Left rear radar sensor |
12L |
| B161/6 |
Right rear radar sensor |
13L |
| B162 |
COLLISION PREVENTION ASSIST control unit |
3L |
| B84/8 |
Multifunction camera |
16L |
| Code E34 |
Buffer battery for starting procedure |
24D |
| Code E34 |
Buffer battery for starting procedure |
56D |
| Code H08 |
Uprated roof air conditioner |
28D |
| Code H08 |
Uprated roof air conditioner |
52D |
| Code H72 |
Electric roof ventilator |
20D |
| Code H72 |
Electric roof ventilator |
58D |
| Code HH5 |
|
28D |
| Code HH5 |
|
52D |
| Code HH7 |
|
52E |
| Code HH7 |
|
28E |
| Code JA6 |
COLLISION PREVENTION ASSIST |
2D |
| Code JA6 |
COLLISION PREVENTION ASSIST |
71D |
| Code JA7 |
Blind spot assist |
10D |
| Code JA7 |
Blind spot assist |
4D |
| Code JA7 |
Blind spot assist |
71D |
| Code JV7 |
|
17D |
| Code JV7 |
|
68D |
| Code JW5 |
Lane Keeping Assist |
14D |
| Code JW5 |
Lane Keeping Assist |
71E |
| Code LA1 |
High Beam Assist |
14D |
| Code LA1 |
High Beam Assist |
71E |
| Code T57 |
Right load compartment sliding door electric step |
30D |
| Code T57 |
Right load compartment sliding door electric step |
40D |
| Code T57 |
Right load compartment sliding door electric step |
45D |

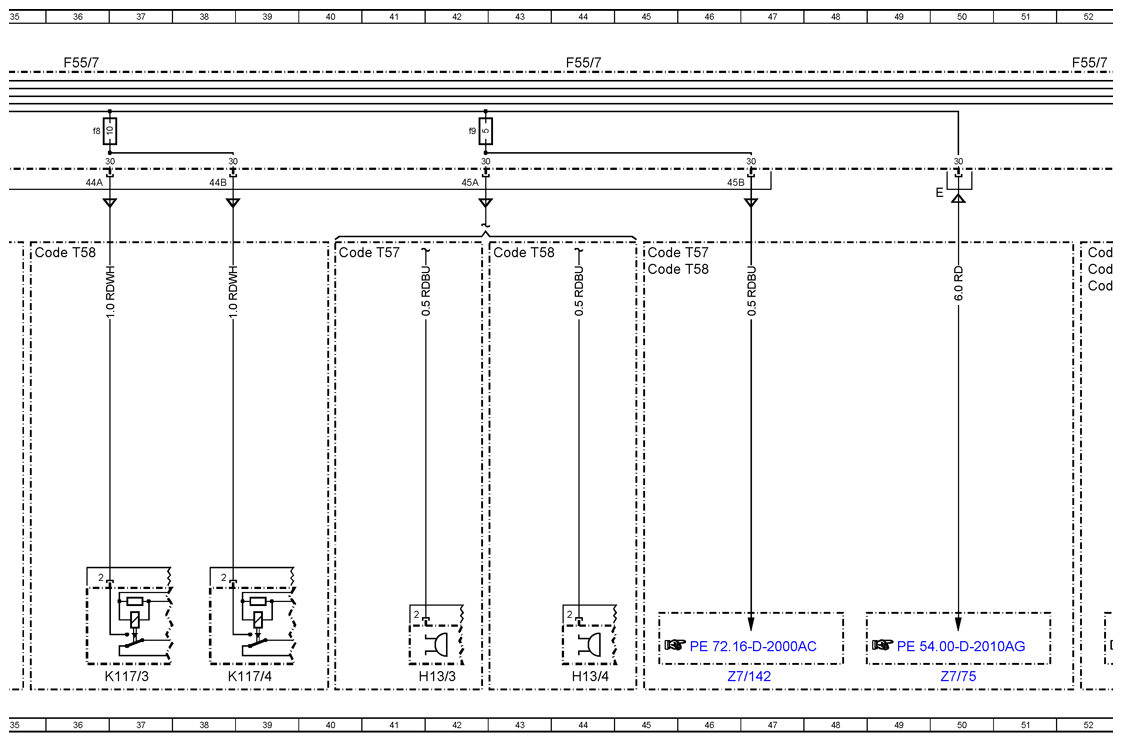

| Code T58 |
Left load compartment sliding door electric step |
35D |
| Code T58 |
Left load compartment sliding door electric step |
43D |
| Code T58 |
Left load compartment sliding door electric step |
45D |
| F55/7 |
Fuse block 7 (9-pin) |
4A |
| F55/7 |
Fuse block 7 (9-pin) |
12A |
| F55/7 |
Fuse block 7 (9-pin) |
20A |
| F55/7 |
Fuse block 7 (9-pin) |
28A |
| F55/7 |
Fuse block 7 (9-pin) |
36A |
| F55/7 |
Fuse block 7 (9-pin) |
60A |
| F55/7 |
Fuse block 7 (9-pin) |
44A |
| F55/7 |
Fuse block 7 (9-pin) |
52A |
| F55/7 |
Fuse block 7 (9-pin) |
68A |
| F55/7f1 |
Radar sensors fuse 37 |
4B |
| F55/7f2/1 |
Electrical fuse 38, multifunction camera |
15B |
| F55/7f3/1 |
Siren/roof ventilator fuse 39 |
18B |
| F55/7f4 |
Backup battery charging current fuse 40 |
25B |
| F55/7f5 |
Backup battery reference voltage SAM fuse 41 |
26B |
| F55/7f6 |
Rear air conditioning fuse 42 |
29B |
| F55/7f7 |
Right electric step fuse 43 |
32B |
| F55/7f8 |
Left electric step fuse 44 |
36B |
| F55/7f9 |
Electric step control system fuse 45 |
42B |
| H13/3 |
Right step warning buzzer |
42L |
| H13/4 |
Left step warning buzzer |
44L |
| K117/1 |
Right step relay 1 |
32L |
| K117/2 |
Right step relay 2 |
34L |
| K117/3 |
Left step relay 1 |
37L |
| K117/4 |
Left step relay 2 |
39L |

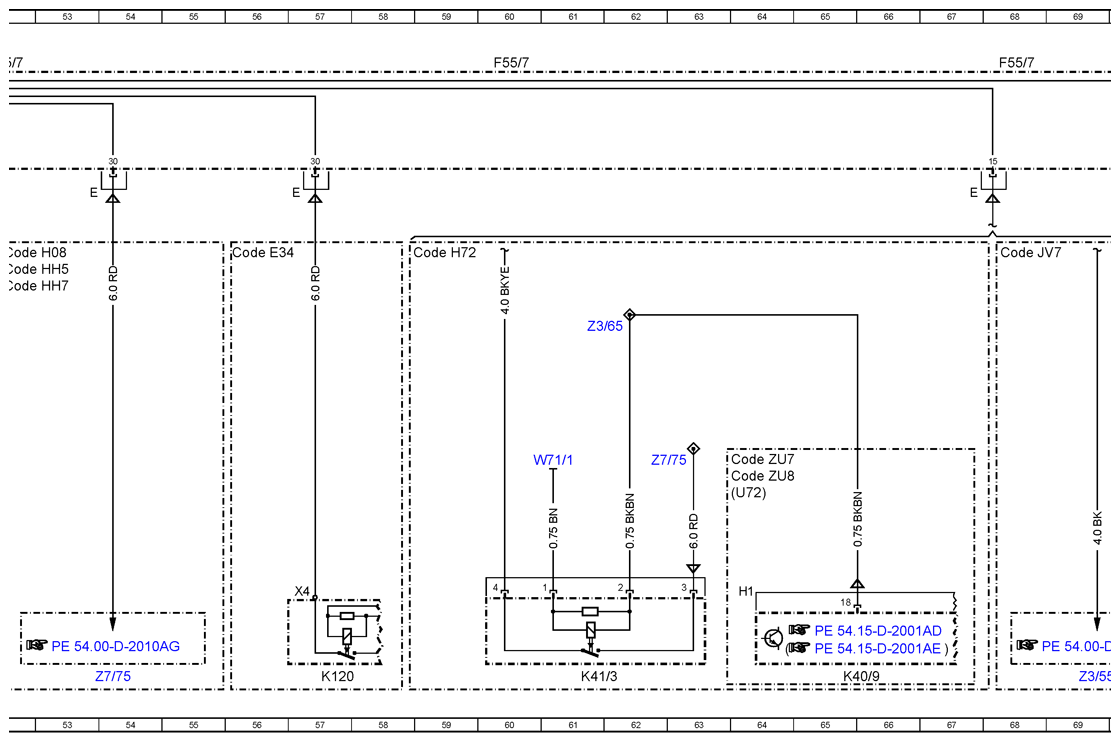

| K120 |
On-board electrical system backup battery relay |
57L |

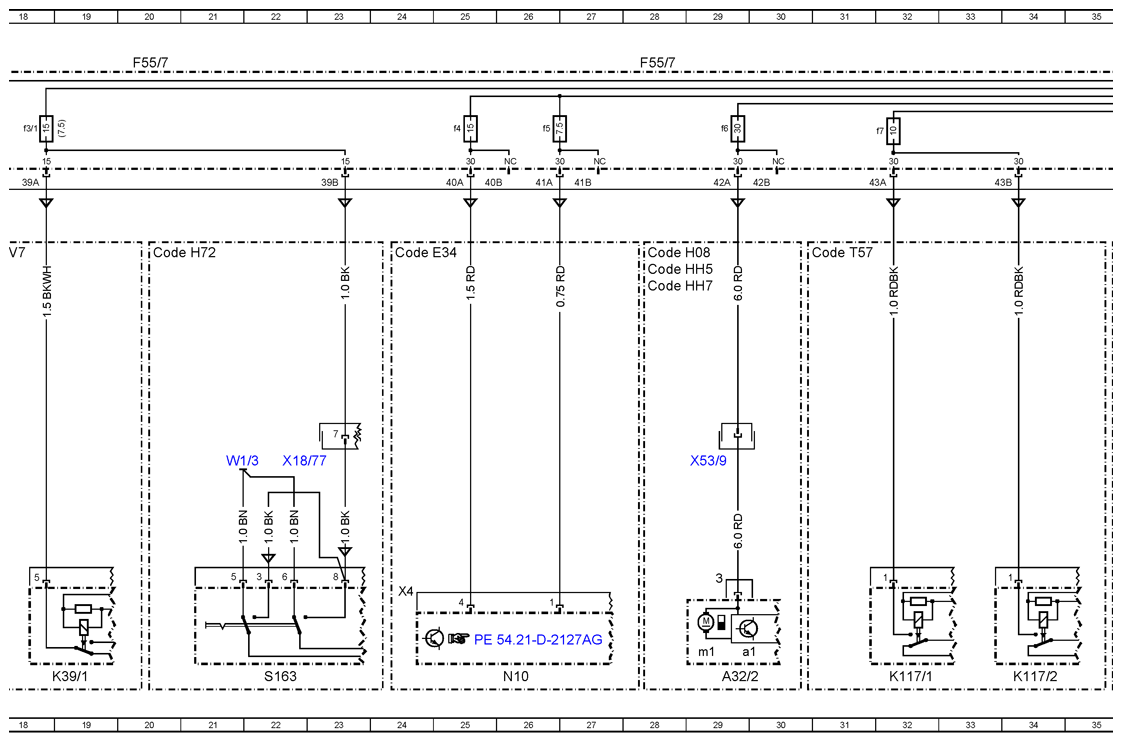

| K39/1 |
Tone sequence relay |
19L |
| K40/9 |
Fuse and relay module |
65L |
| K41/3 |
Circuit 15 relief relay 2 |
61L |
| N10 |
SAM control unit |
26L |
| S163 |
Roof ventilator switch |
22L |
| U72 |
Valid for all except USA, Canada |
64H |
| W1/3 |
CLS cockpit ground point 1 |
21H |
| W71/1 |
Driver seat frame ground point 1 |
61G |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
22H |
| X18/82 |
MWH [HLS]/roof electrical connector 8 |
15F |
| X35/39 |
Blind Spot Assist electrical connector |
11F |
| X53/9 |
Roof air conditioning electrical connector |
29H |
| Z3/55 |
Tml. 15 connector sleeve |
73L |
| Z3/55 |
Tml. 15 connector sleeve |
69L |
| Z3/65 |
Tml. 15 connector sleeve |
62E |
| Z3/74 |
Rear radar sensors circuit 15 connector sleeve |
5G |
| Z3/77 |
Rear radar sensors circuit 15 connector sleeve |
11H |
| Z7/142 |
Circuit 30 connector sleeve, left step |
46L |
| Z7/75 |
Tml. 30 connector sleeve |
63G |
| Z7/75 |
Tml. 30 connector sleeve |
50L |
| Z7/75 |
Tml. 30 connector sleeve |
54L |
