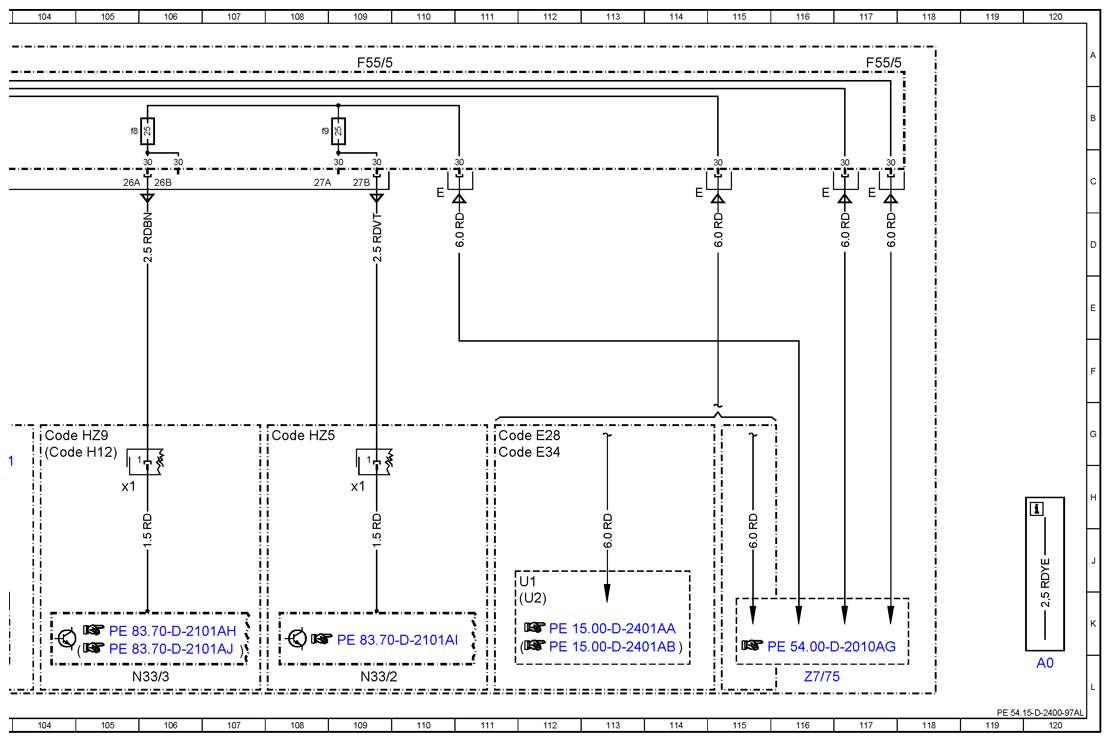

| A0 |
Color code key |
120L |

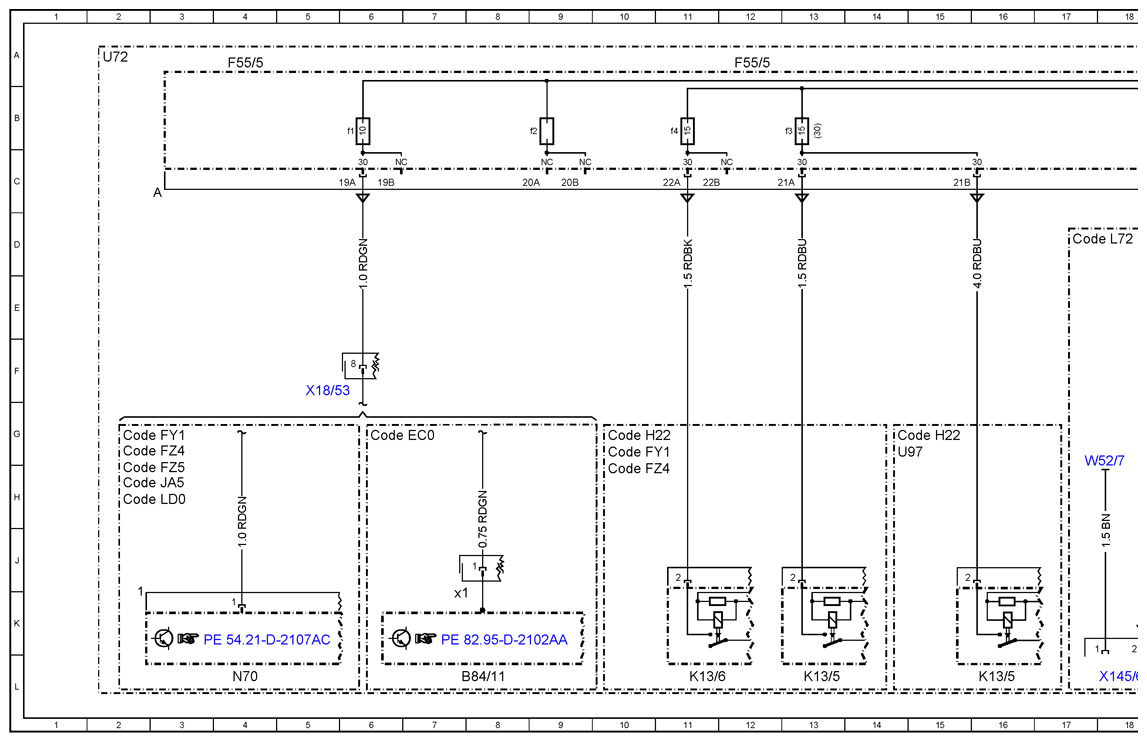

| B84/11 |
ERA-Glonass control unit |
8L |
| B84/11x1 |
ERA-Glonass control unit electrical connector |
7K |
| Code E28 |
Additional battery for retrofitted consumers |
49G |
| Code E28 |
Additional battery for retrofitted consumers |
111G |
| Code E34 |
Buffer battery for starting procedure |
111G |
| Code E46 |
|
32G |
| Code E46 |
|
101G |
| Code EC0 |
eCall Russia (ERA-GLONASS) incl. camera |
6G |

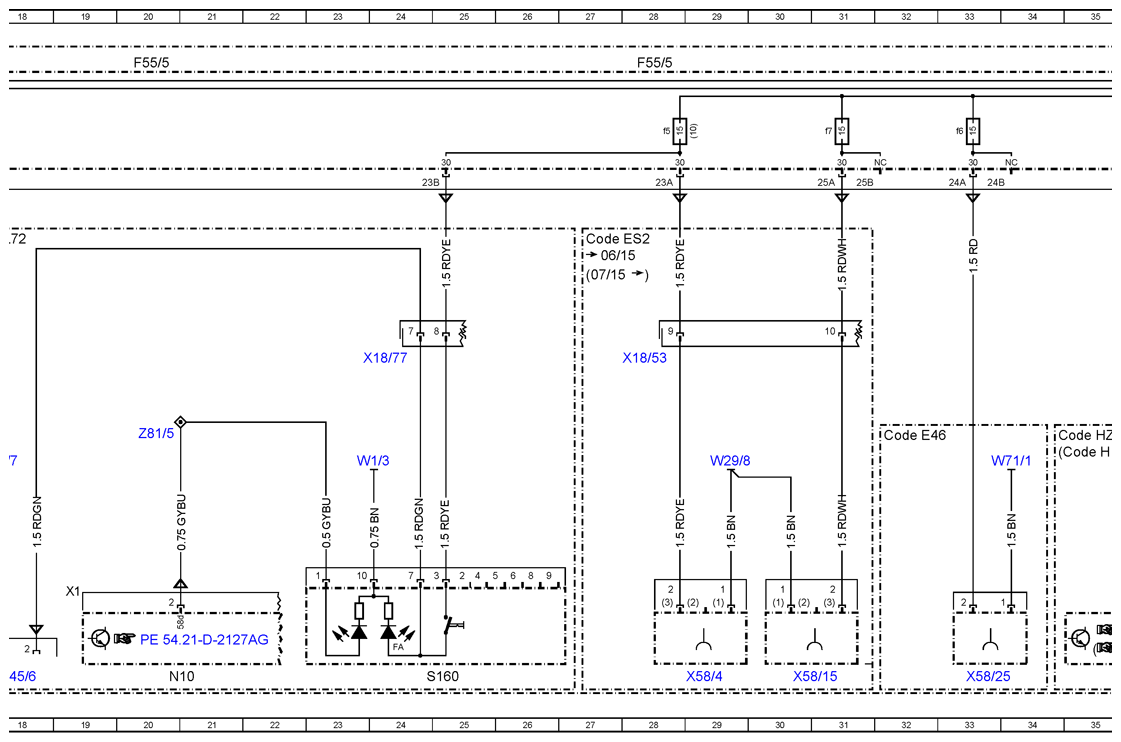

| Code ES2 |
Trunk/load compartment 12 V socket |
27D |

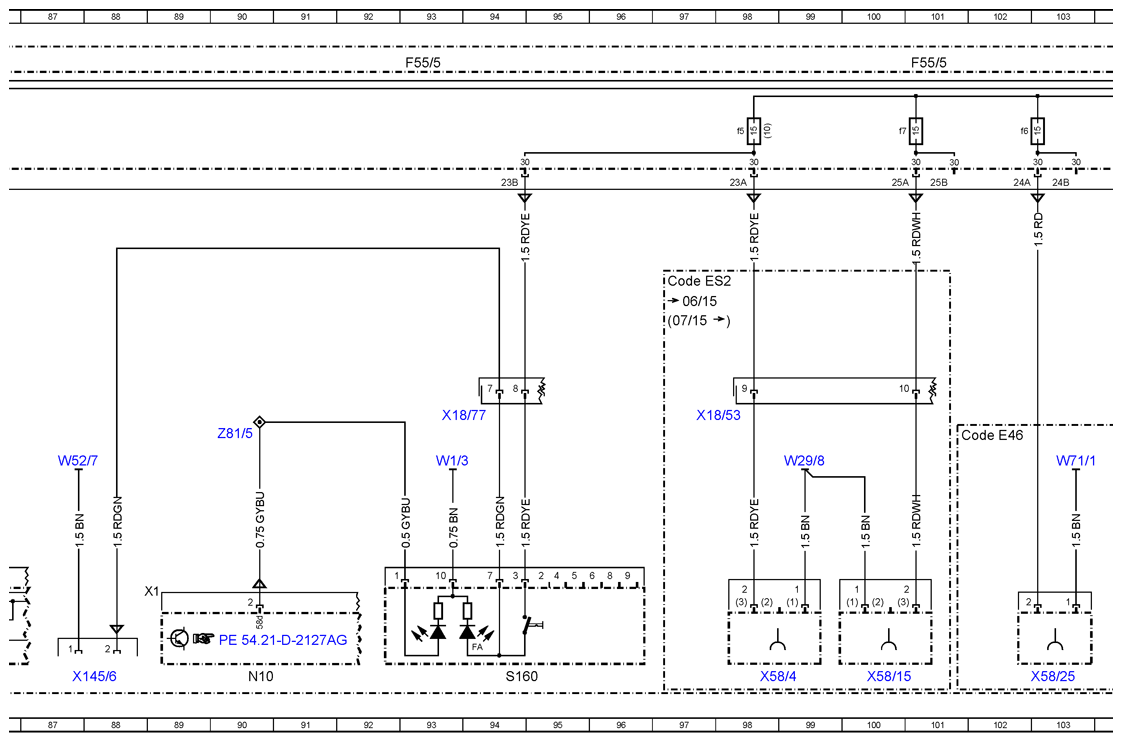

| Code ES2 |
Trunk/load compartment 12 V socket |
97E |
| Code FY1 |
Theft protection package |
2G |
| Code FY1 |
Theft protection package |
10G |
| Code FY1 |
Theft protection package |
75E |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
2G |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
10H |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
75E |
| Code FZ5 |
Anti-theft alarm system |
2H |

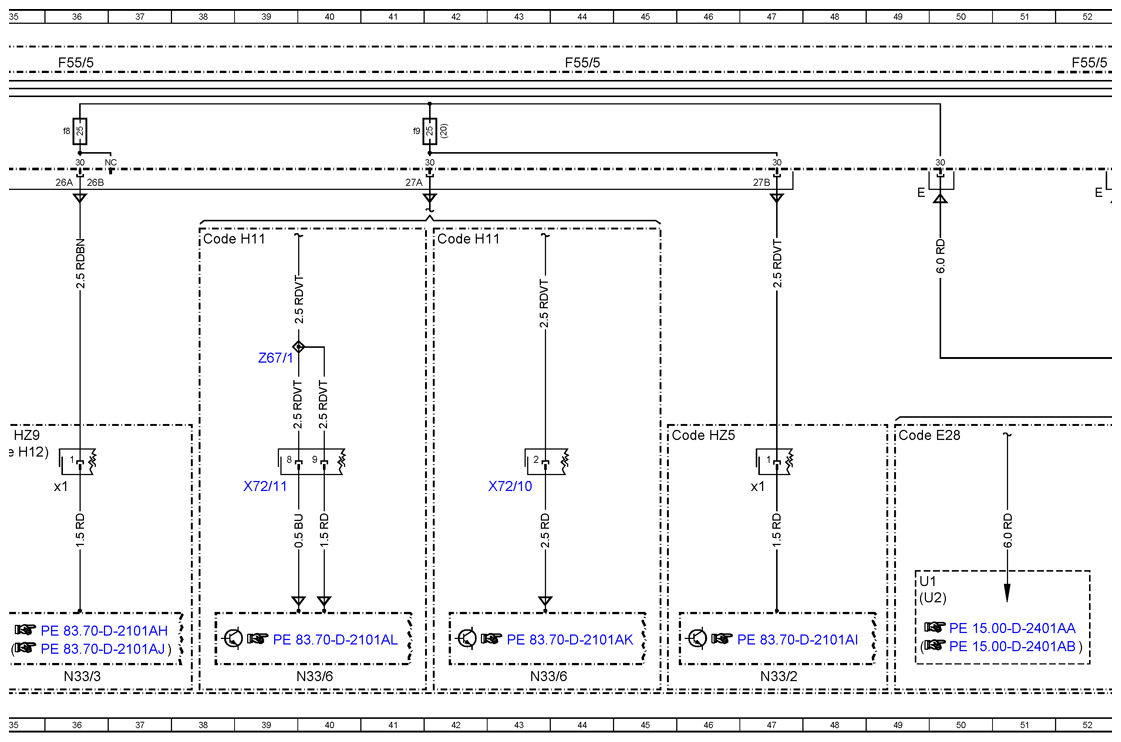

| Code H11 |
Warm air auxiliary heater |
38D |
| Code H11 |
Warm air auxiliary heater |
42D |
| Code H12 |
Auxiliary water heater |
34G |
| Code H12 |
Auxiliary water heater |
104G |

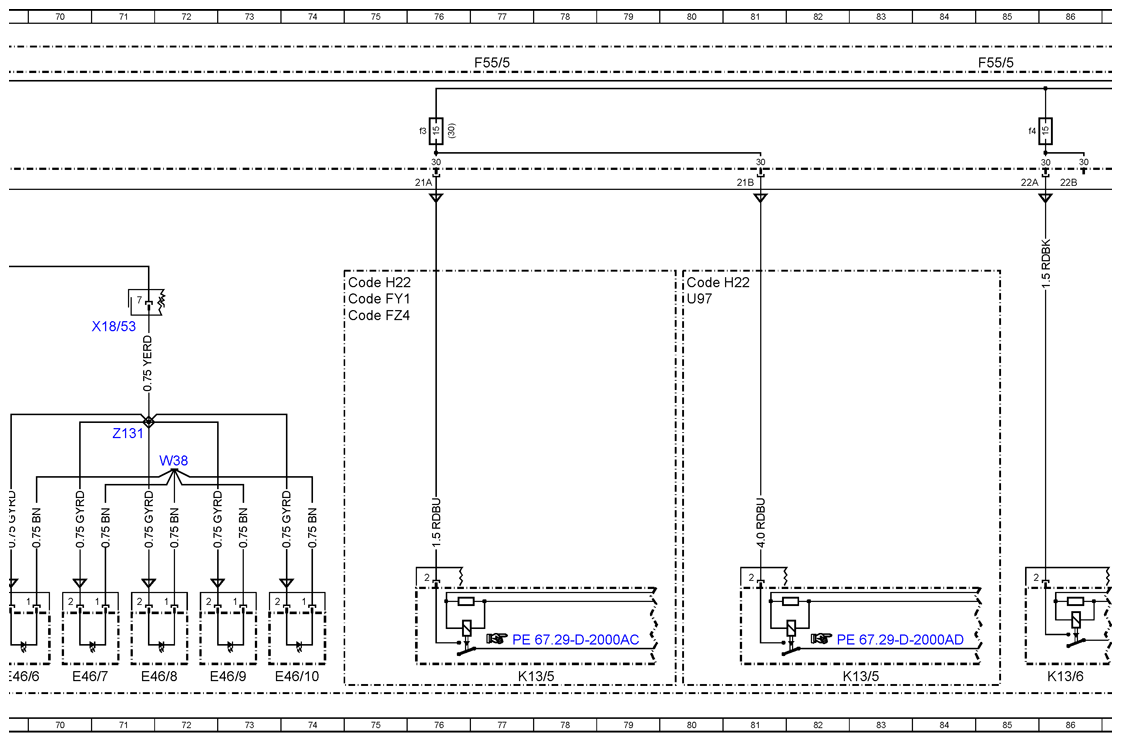

| Code H22 |
Heated rear window |
75E |
| Code H22 |
Heated rear window |
80E |
| Code H22 |
Heated rear window |
10G |
| Code H22 |
Heated rear window |
14G |
| Code HZ5 |
10 kW auxiliary water heater with timer |
45G |
| Code HZ5 |
10 kW auxi liary water heater with timer |
108G |
| Code HZ9 |
Heater booster |
34G |
| Code HZ9 |
Heater booster |
104G |
| Code JA5 |
Light/rain sensor |
2H |
| Code L72 |
|
17D |
| Code LD0 |
Overhead control panel with two reading lamps |
2H |

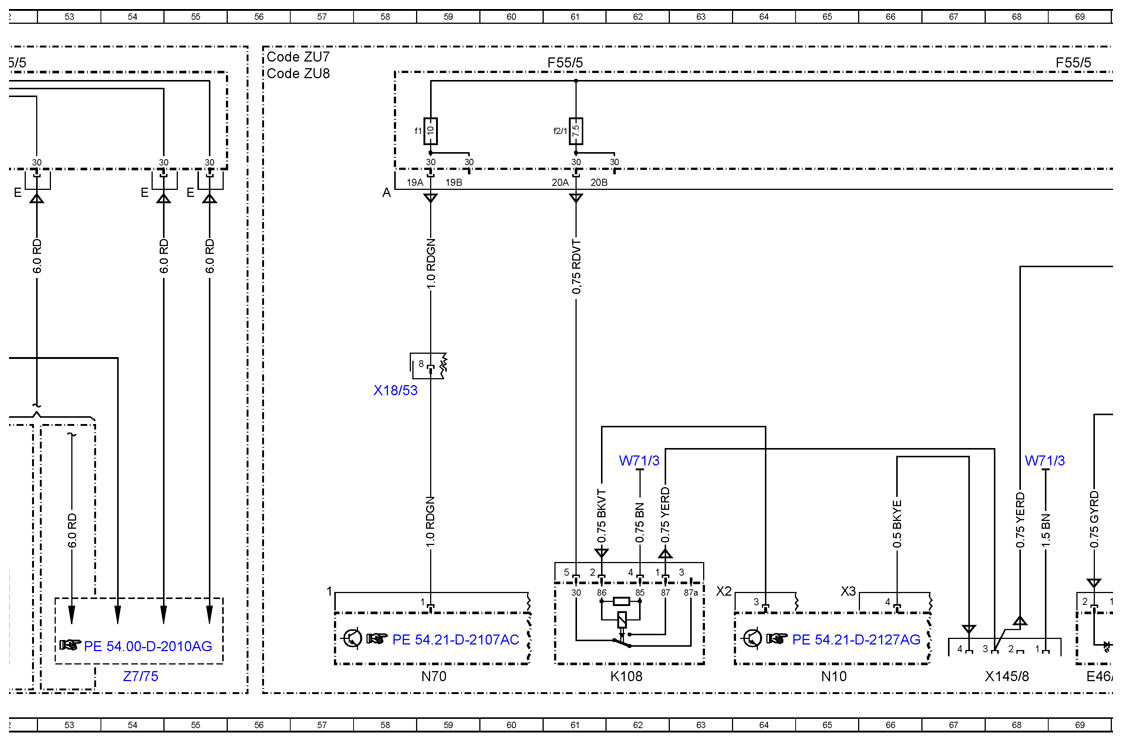

| Code ZU7 |
Canada national version |
56A |
| Code ZU8 |
USA national version |
56A |
| E46/10 |
Outer right front identification lamp |
74L |
| E46/6 |
Right front identification lamp |
69L |
| E46/7 |
Center front identification lamp |
70L |
| E46/8 |
Left front identification lamp |
71L |
| E46/9 |
Outer left front identification lamp |
73L |
| F55/5 |
Fuse block 5 (9-pin) |
77A |
| F55/5 |
Fuse block 5 (9-pin) |
4A |
| F55/5 |
Fuse block 5 (9-pin) |
12A |
| F55/5 |
Fuse block 5 (9-pin) |
20A |
| F55/5 |
Fuse block 5 (9-pin) |
28A |
| F55/5 |
Fuse block 5 (9-pin) |
36A |
| F55/5 |
Fuse block 5 (9-pin) |
44A |
| F55/5 |
Fuse block 5 (9-pin) |
52A |
| F55/5 |
Fuse block 5 (9-pin) |
61A |
| F55/5 |
Fuse block 5 (9-pin) |
69A |
| F55/5 |
Fuse block 5 (9-pin) |
85A |
| F55/5 |
Fuse block 5 (9-pin) |
93A |
| F55/5 |
Fuse block 5 (9-pin) |
101A |
| F55/5 |
Fuse block 5 (9-pin) |
109A |
| F55/5 |
Fuse block 5 (9-pin) |
117A |
| F55/5f1 |
Overhead control panel (OCP [DBE]) fuse 19 |
6B |
| F55/5f1 |
Overhead control panel (OCP [DBE]) fuse 19 |
58B |
| F55/5f2/1 |
Clearance lamps fuse 20 |
61B |
| F55/5f3 |
Rear window heater fuse 21 |
13B |
| F55/5f3 |
Rear window heater fuse 21 |
76B |
| F55/5f4 |
Rear window heater/electric step fuse 22 |
IIB |
| F55/5f4 |
Rear window heater/electric step fuse 22 |
85B |
| F55/5f5 |
Other make body electrical system/left rear socket fuse 23 |
28B |
| F55/5f5 |
Other make body electrical system/left rear socket fuse 23 |
98B |
| F55/5f6 |
Driver seat base socket fuse 24 |
33B |
| F55/5f6 |
Driver seat base socket fuse 24 |
102B |
| F55/5f7 |
Right rear socket fuse 25 |
31B |
| F55/5f7 |
Right rear socket fuse 25 |
100B |
| F55/5f8 |
Auxiliary water heater fuse 26 |
36B |
| F55/5f8 |
Auxiliary water heater fuse 26 |
105B |
| F55/5f9 |
Heater booster/warm air auxiliary heater fuse 27 |
41B |
| F55/5f9 |
Heater booster/warm air auxiliary heater fuse 27 |
108B |
| K108 |
Clearance/identification lamps relay |
62L |
| K13/5 |
Heated rear window relay 1 |
13L |
| K13/5 |
Heated rear window relay 1 |
83L |
| K13/5 |
Heated rear window relay 1 |
77L |
| K13/5 |
Heated rear window relay 1 |
16L |
| K13/6 |
Heated rear window with anti-theft alarm system relay 2 |
11L |
| K13/6 |
Heated rear window with anti-theft alarm system relay 2 |
86L |
| N10 |
SAM control unit |
65L |
| N10 |
SAM control unit |
20L |
| N10 |
SAM control unit |
90L |
| N33/2 |
Control unit 2, auxiliary water heater |
47L |
| N33/2 |
Control unit 2, auxiliary water heater |
109L |
| N33/2x1 |
Electrical connector 2, auxiliary water heater (8-pin) |
47H |
| N33/2x1 |
Electrical connector 2, auxiliary water heater (8-pin) |
109H |
| N33/3 |
Auxiliary water heater control unit |
36L |
| N33/3 |
Auxiliary water heater control unit |
106L |
| N33/3x1 |
Electrical connector, auxiliary water heater (8-pin) |
36H |
| N33/3x1 |
Electrical connector, auxiliary water heater (8-pin) |
105H |
| N33/6 |
Auxiliary air heater control unit |
40L |
| N33/6 |
Auxiliary air heater control unit |
43L |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
59L |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
4L |
| S160 |
Body manufacturer electrical system switch |
25L |
| S160 |
Body manufacturer electrical system switch |
94L |
| U1 |
Valid for left-hand drive vehicles |
49J |
| U1 |
Valid for left-hand drive vehicles |
112J |
| U2 |
Valid for right-hand drive vehicles |
49K |
| U2 |
Valid for right-hand drive vehicles |
112K |
| U72 |
Valid for all except USA, Canada |
2A |
| U97 |
Valid for vehicles without anti-theft alarm system |
14G |
| U97 |
Valid for vehicles without anti-theft alarm system |
80E |
| W1/3 |
CLS cockpit ground point 1 |
23H |
| W1/3 |
CLS cockpit ground point 1 |
93H |
| W29/8 |
Left D-pillar ground point |
29H |
| W29/8 |
Left D-pillar ground point |
99H |
| W38 |
Roof ground point |
72H |
| W52/7 |
Left rear crossmember ground point |
17H |
| W52/7 |
Left rear crossmember ground point |
87H |
| W71/1 |
Driver seat frame ground point 1 |
34H |
| W71/1 |
Driver seat frame ground point 1 |
103H |
| W71/3 |
Driver seat frame ground point 3 |
62H |
| W71/3 |
Driver seat frame ground point 3 |
68H |
| X145/6 |
Body manufacturer electrical connector |
18L |
| X145/6 |
Body manufacturer electrical connector |
87L |
| X145/8 |
Body manufacturer illumination electrical connector |
68L |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
58F |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
28F |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
71E |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
98G |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
24F |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
94G |
| X58/15 |
Load compartment socket |
30L |
| X58/15 |
Load compartment socket |
100L |
| X58/25 |
Left inner seat frame socket |
33L |
| X58/25 |
Left inner seat frame socket |
103L |
| X58/4 |
Load compartment socket |
29L |
| X58/4 |
Load compartment socket |
98L |
| X72/10 |
Stationary heater electrical connector |
43H |
| X72/11 |
Stationary heater electrical connector |
39H |
| Z131 |
Identification lamp connector sleeve |
71G |
| Z67/1 |
Auxiliary heater connector sleeve |
39F |
| Z7/75 |
Tml. 30 connector sleeve |
54L |
| Z7/75 |
Tml. 30 connector sleeve |
116L |
| Z81/5 |
Circuit 58d connector sleeve |
20G |
| Z81/5 |
Circuit 58d connector sleeve |
90G |
