| A0 |
Color code key |
88L |
| A56 |
Tachograph |
27L |
| Code EV3 |
|
56D |
| Code EZ8 |
PARKTRONIC |
52D |
| Code F68 |
Electrically adjustable and heated outside mirror |
1D |
| Code FZ1 |
Central locking with radio remote control |
5E |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
5E |
| Code G40 |
Automatic transmission |
29D |
| Code G40 |
Automatic transmission |
48D |
| Code G42 |
7G-TR0NIC PLUS |
33D |
| Code G42 |
7G-TR0NIC PLUS |
41D |
| Code G42 |
7G-TR0NIC PLUS |
48E |
| Code H22 |
Heated rear window |
5D |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
25G |
| Code JD2 |
EC digital tachograph with rpm+additional recorder |
25G |
| Code JD4 |
EU digital tachograph, download-capable |
25G |
| Code JW3 |
Shutoff for backup warning system |
66E |
| Code M53 |
Constant rpm control |
21G |
| Code MJ8 |
ECO start/stop function |
41E |
| Code MT4 |
Variable electronic rpm regulator |
21G |
| Code N05 |
Countershaft power take-off (2c) without flange |
21G |
| Code N07 |
Countershaft power take-off (2b) with flange |
21H |
| Code N81 |
|
62D |
| Code P57 |
|
58D |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
10D |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
82D |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
74D |
| Code ZG1 |
All-wheel drive, engageable |
37E |
| Code ZG3 |
Engageable all-wheel drive with gear reduction |
37E |
| Code ZJ8 |
Mercedes-Benz Minibus (MBM) scope of supply |
74E |
| Code ZU7 |
Canada national version |
17D |
| Code ZU7 |
Canada national version |
76H |
| Code ZU8 |
USA national version |
76J |
| Code ZU8 |
USA national version |
17E |

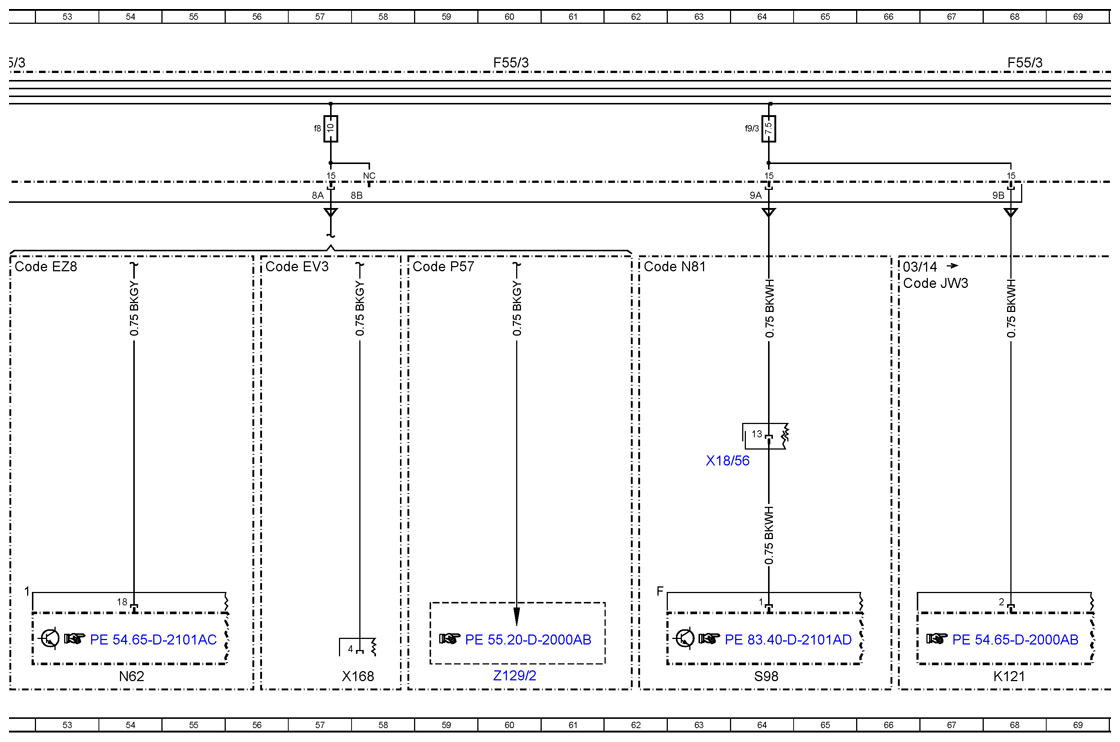

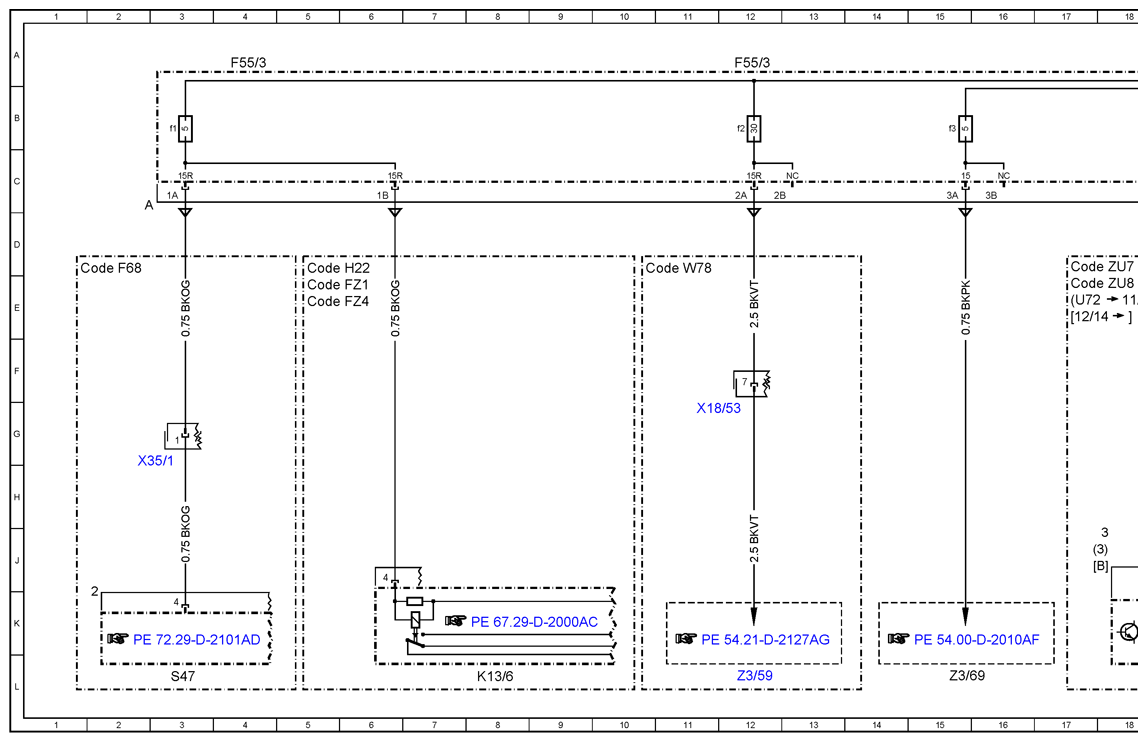

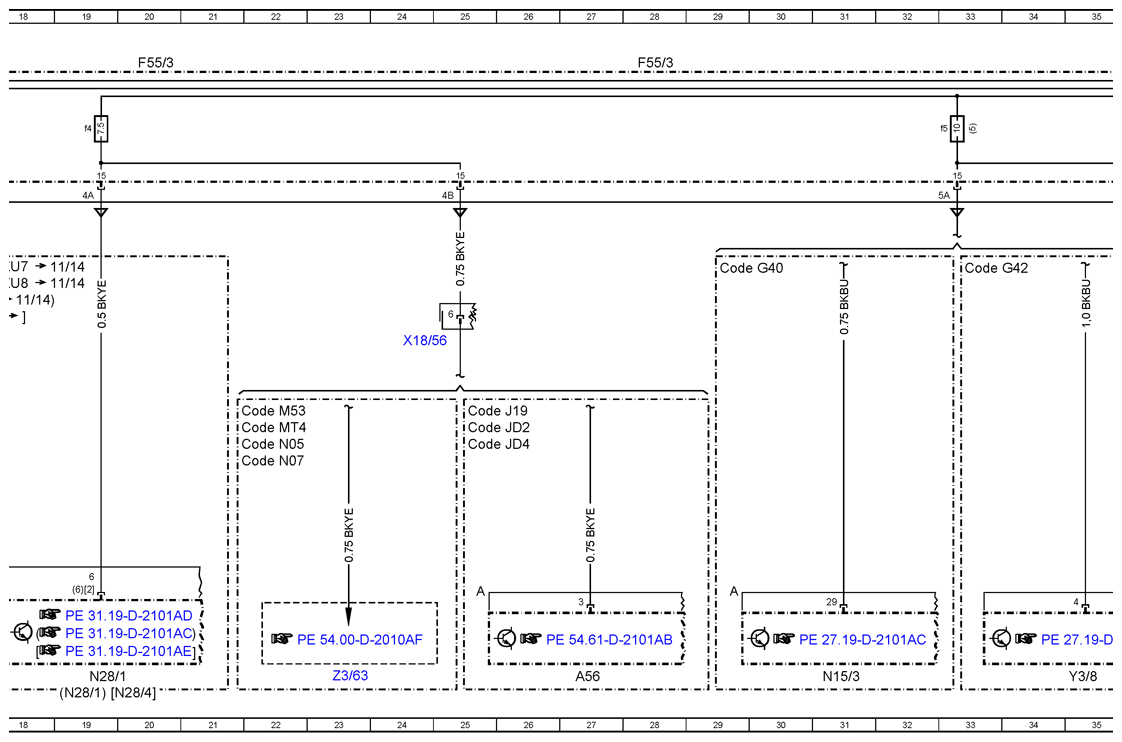

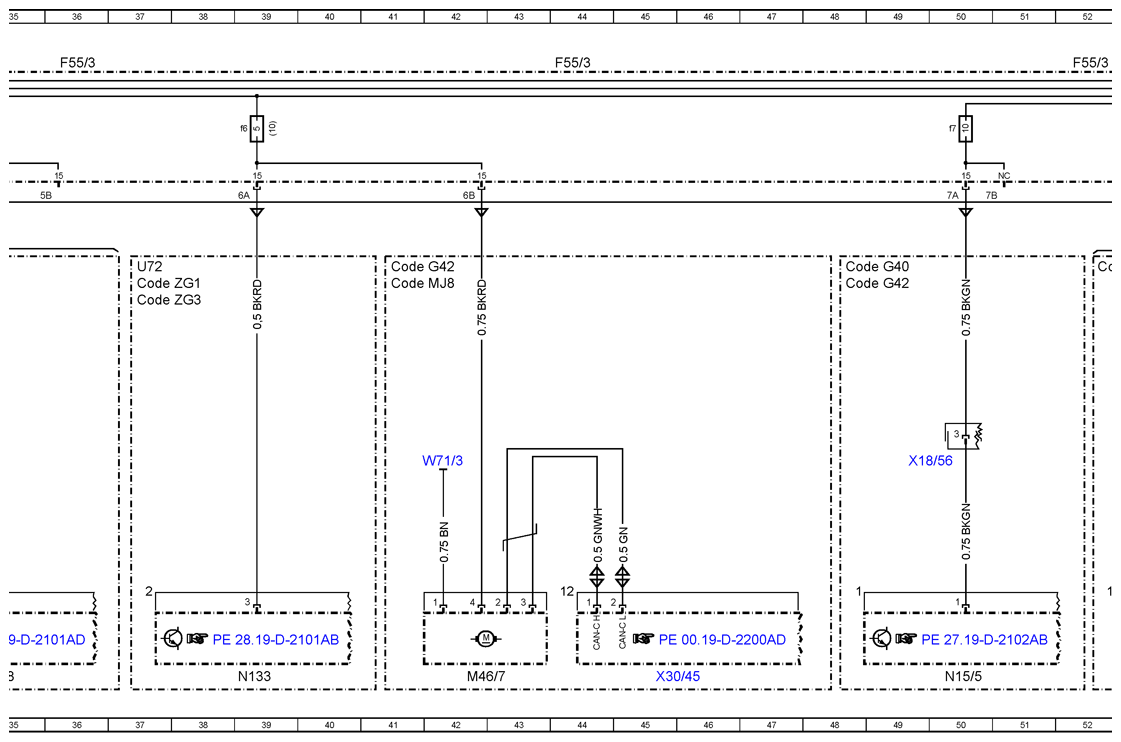

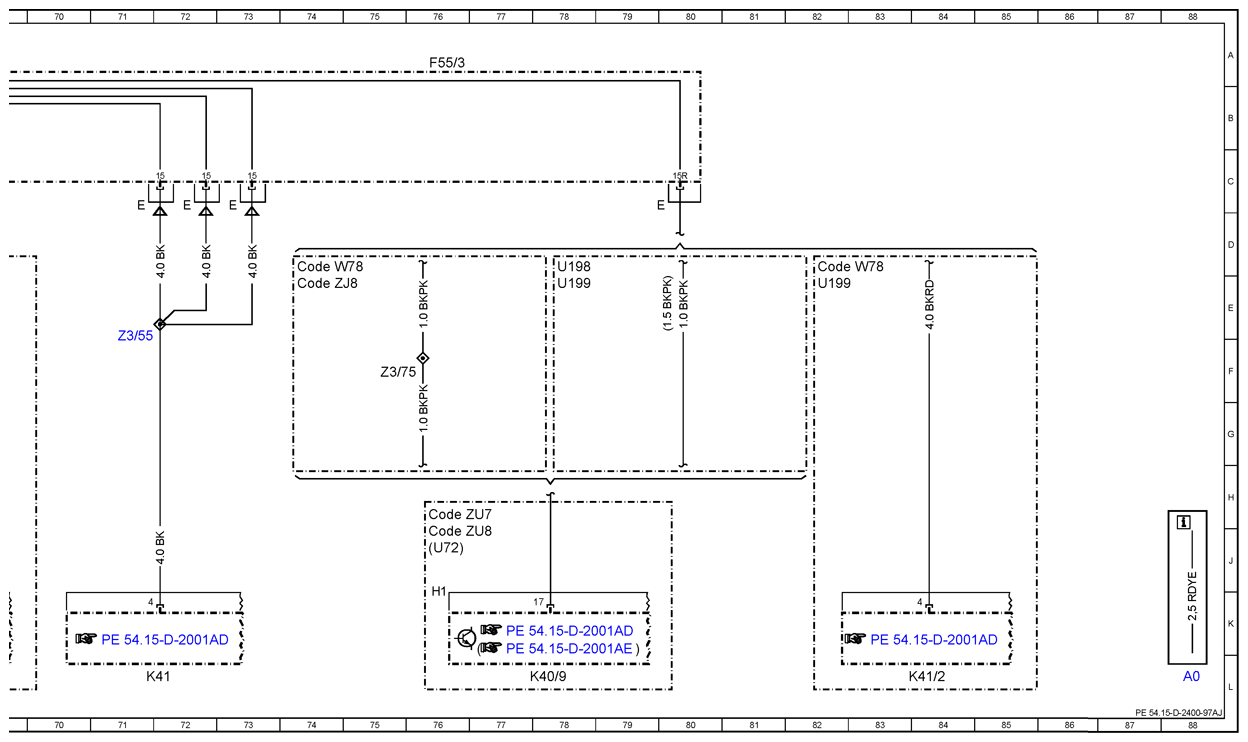

| F55/3 |
Fuse block 3 (9-pin) |
4A |
| F55/3 |
Fuse block 3 (9-pin) |
12A |
| F55/3 |
Fuse block 3 (9-pin) |
20A |
| F55/3 |
Fuse block 3 (9-pin) |
28A |
| F55/3 |
Fuse block 3 (9-pin) |
36A |
| F55/3 |
Fuse block 3 (9-pin) |
44A |
| F55/3 |
Fuse block 3 (9-pin) |
52A |
| F55/3 |
Fuse block 3 (9-pin) |
60A |
| F55/3 |
Fuse block 3 (9-pin) |
68A |
| F55/3 |
Fuse block 3 (9-pin) |
76A |
| F55/3f1 |
Mirror adjustment/heated rear window relay fuse 1 |
3B |
| F55/3f2 |
Rear window wiper fuse 2 |
12B |
| F55/3f3 |
Start-off assist, heater timer, reversing camera, telephone fuse 3 |
15B |
| F55/3f4 |
AAG/tachograph/ADR fuse 4 |
19B |
| F55/3f5 |
Circuit 87 EGS fuse 5 |
33B |
| F55/3f6 |
All-wheel drive/automatic transmission auxiliary oil pump electrical fuse 6 |
39B |
| F55/3f7 |
Electronic selector lever module fuse 7 |
50B |
| F55/3f8 |
Terminal 15 dumper vehicle/cargo liftgate/PARKTRONIC electrical fuse 8 |
57B |
| F55/3f9/3 |
Refrigerant compressor magnetic clutch fuse 9 |
64B |
| K121 |
Backup warning system OFF relay |
68L |
| K13/6 |
Heated rear window with anti-theft alarm system relay 2 |
8L |
| K40/9 |
Fuse and relay module |
78L |
| K41 |
Circuit 15 relief relay |
71L |
| K41/2 |
Circuit 15R relief relay |
84L |
| M46/7 |
Automatic transmission auxiliary oil pump |
42L |
| N133 |
All-wheel drive control unit |
39L |
| N15/3 |
ETC [EGS] control unit |
31L |
| N15/5 |
Electronic selector lever module control unit |
50L |
| N28/1 |
Trailer connection unit [AAG] control unit |
19L |
| N28/1 |
Trailer connection unit [AAG] control unit |
19L |
| N28/4 |
Trailer recognition control unit |
20L |
| N62 |
PARKTRONIC control unit |
54L |
| S47 |
Driver door control panel |
3L |
| S98 |
AC control and operating unit |
64L |
| U198 |
Valid without code W78 (Window in liftgate or hinged rear door with wipe/wash system) |
78D |
| U199 |
Valid without code ZJ8 (Mercedes-Benz Minibus (MBM) scope of supply) |
82E |
| U199 |
Valid without code ZJ8 (Mercedes-Benz Minibus (MBM) scope of supply) |
78E |
| U72 |
Valid for all except USA, Canada |
17E |
| U72 |
Valid for all except USA, Canada |
37D |
| U72 |
Valid for all except USA, Canada |
76J |
| W71/3 |
Driver seat frame ground point 3 |
42H |
| X168 |
Cargo liftgate electrical connector |
57L |
| X18/53 |
MWH [HLS]/roof electrical connector 2 |
12G |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
24F |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
50H |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
63H |
| X30/45 |
Engine CAN electrical connector 2 |
45L |
| X35/1 |
Driver door/MWH [HLS] electrical connector 1 |
3H |
| Y3/8 |
Electric control unit |
35L |
| Z129/2 |
Dumper vehicle connector sleeve |
60L |
| Z3/55 |
Tml. 15 connector sleeve |
71F |
| Z3/59 |
Circuit 15 connector sleeve, rear-end door wiper motor |
12L |
| Z3/63 |
Working speed control (ADR) circuit 15 connector sleeve |
23L |
| Z3/69 |
Tml. 15 connector sleeve |
15L |
| Z3/75 |
|
75F |
