| A0 |
Color code key |
88L |
| A2/30 |
Cradle for Becker® MAP PILOT |
12L |
| A49/4 |
Stationary heater Telestart receiver |
47L |
| A56 |
Tachograph |
16L |
| B27/1 |
Motion detector |
63L |
| Code BB9 |
|
74E |
| Code BB9 |
|
41E |
| Code E1N |
Becker MAP Pi lot |
10E |
| Code EN6 |
Audio 10 |
6D |
| Code EN7 |
Audio 15 |
6E |
| Code EN7 |
Audio 15 |
10D |
| Code ER0 |
Radio preinstallation |
2D |
| Code EV6 |
Becker MAP PILOT preinstallation |
10E |
| Code H08 |
Uprated roof air conditioner |
22J |
| Code H08 |
Uprated roof air conditioner |
37E |
| Code H08 |
Uprated roof air conditioner |
33D |
| Code H08 |
Uprated roof air conditioner |
78E |
| Code H11 |
Warm air auxiliary heater |
56H |
| Code H12 |
Auxiliary water heater |
26G |
| Code H12 |
Auxiliary water heater |
45D |
| Code H13 |
Additional heat exchanger in passenger/load compartment |
33E |
| Code H15 |
Seat heater for front passenger |
70D |
| Code H16 |
Seat heater for driver |
70E |
| Code H18 |
|
22K |
| Code HH5 |
|
37E |
| Code HH5 |
|
78E |
| Code HH9 |
Semi-automatic air conditioning, TEMPMATIC |
22G |
| Code HY1 |
Radio remote control for auxiliary water heater |
45E |
| Code HZ5 |
10 kW auxiliary water heater with timer |
26G |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
14D |
| Code JD2 |
EC digital tachograph with rpm+additional recorder |
14E |
| Code JD4 |
EU digital tachograph, download-capable |
14E |
| Code JV6 |
Tachograph preinstallation |
14E |
| Code L71 |
Cargo area illumination via motion detector |
61D |
| Code LD4 |
Load/passenger compartment comfort illumination |
68D |
| Code YM1 |
FleetBoard vehicle computer |
50D |

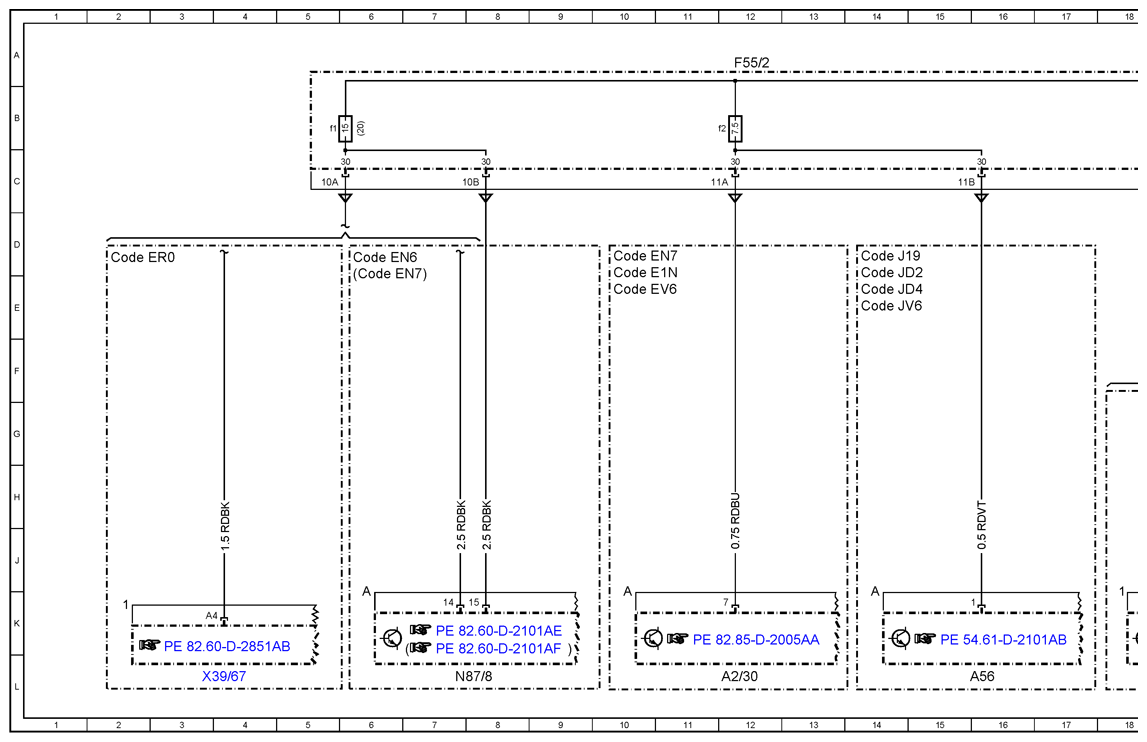

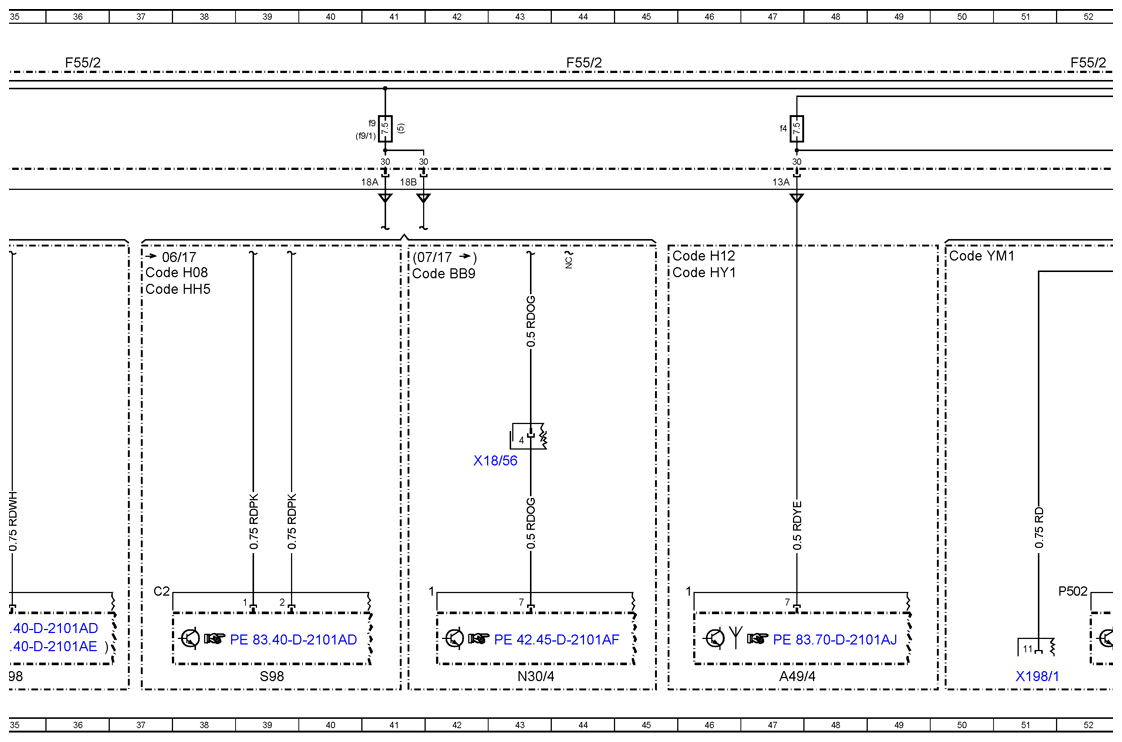

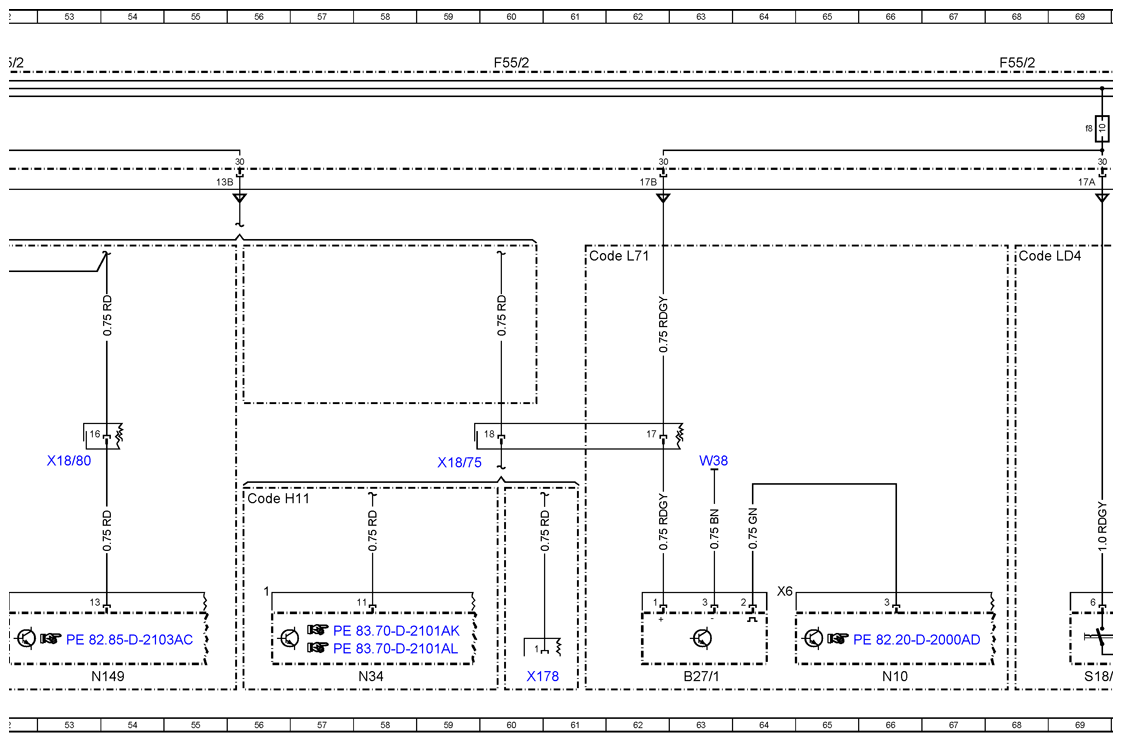

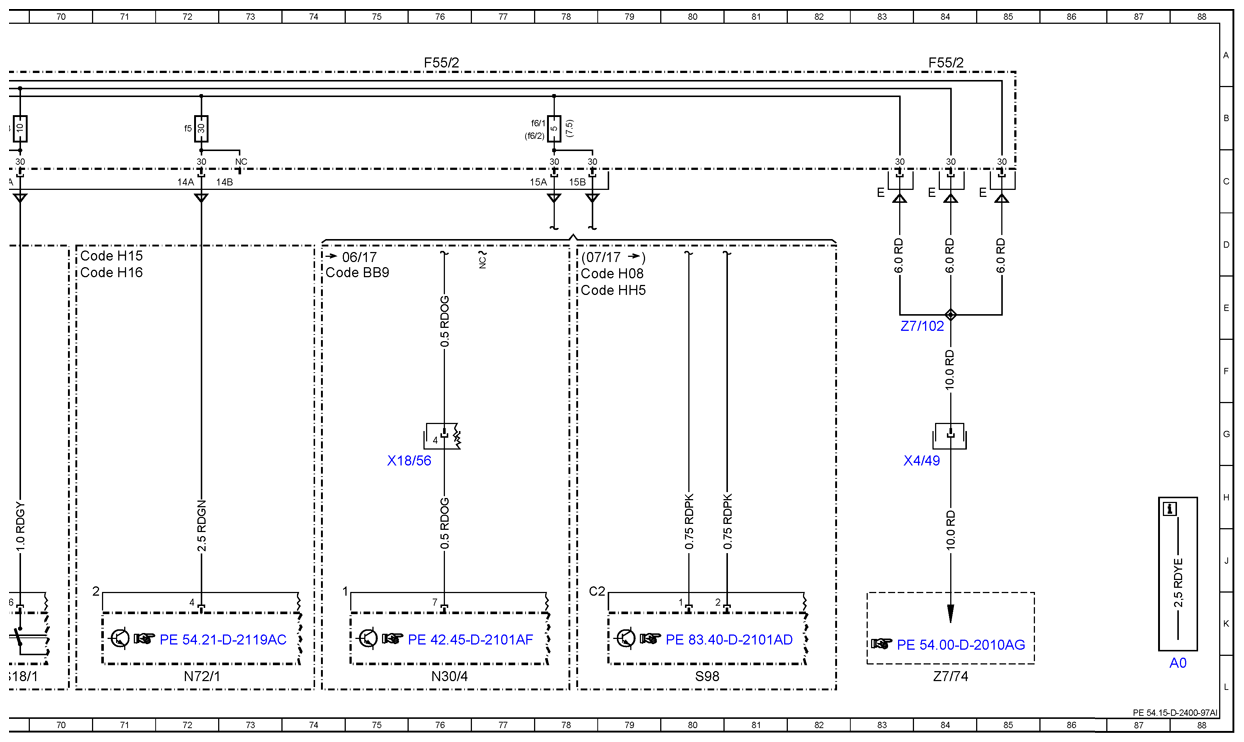

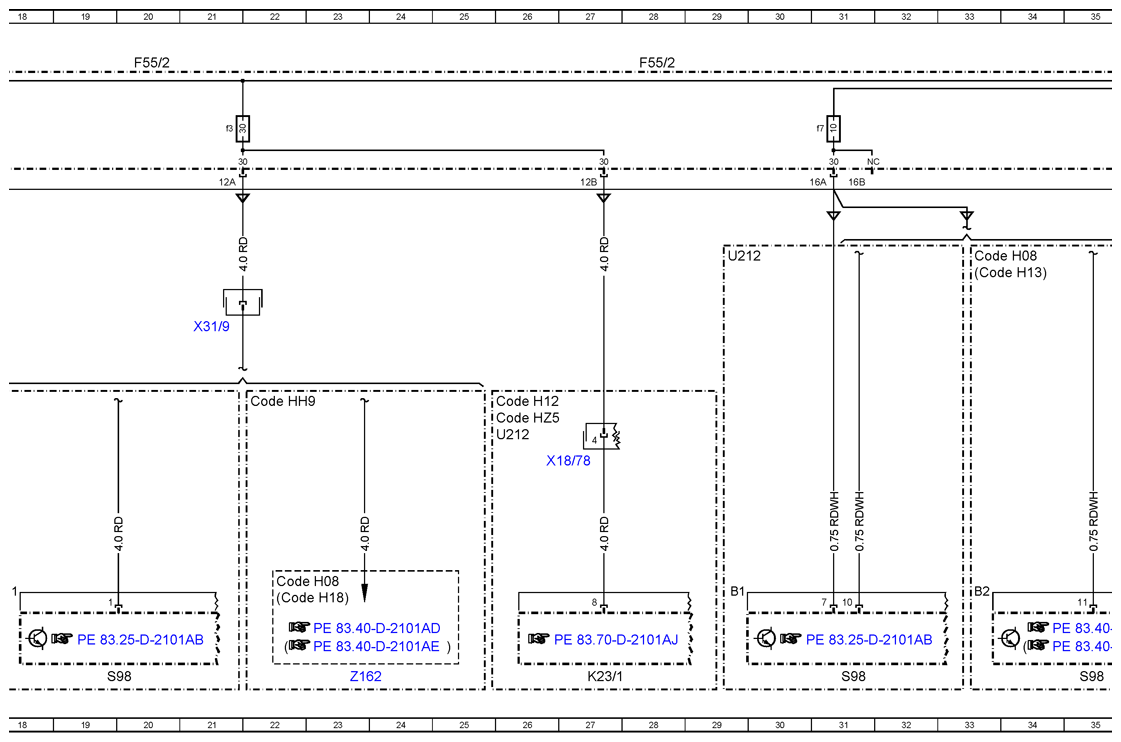

| F55/2 |
Fuse block 2 (9-pin) |
12A |
| F55/2 |
Fuse block 2 (9-pin) |
20A |
| F55/2 |
Fuse block 2 (9-pin) |
28A |
| F55/2 |
Fuse block 2 (9-pin) |
36A |
| F55/2 |
Fuse block 2 (9-pin) |
44A |
| F55/2 |
Fuse block 2 (9-pin) |
52A |
| F55/2 |
Fuse block 2 (9-pin) |
60A |
| F55/2 |
Fuse block 2 (9-pin) |
68A |
| F55/2 |
Fuse block 2 (9-pin) |
76A |
| F55/2 |
Fuse block 2 (9-pin) |
84A |
| F55/2f1 |
Radio fuse 10 |
5B |
| F55/2f2 |
Mobile phone, tachograph fuse 11 |
12B |
| F55/2f3 |
Front blower motor fuse 12 |
21B |
| F55/2f4 |
Air heater timer/FleetBoard fuse 13 |
47B |
| F55/2f5 |
Seat heater fuse 14 |
72B |
| F55/2f6/1 |
Brake system fuse 15 |
77B |
| F55/2f6/2 |
Electrical fuse 15, rear passenger compartment climate control |
77B |
| F55/2f7 |
CD changer/front climate control fuse 16 |
31B |
| F55/2f8 |
Motion detector/comfort illumination fuse 17 |
69B |
| F55/2f9 |
Rear climate control fuse 18 |
41B |
| F55/2f9/1 |
Electrical fuse 18, brake system |
40B |
| K23/1 |
Blower stage 1 fan relay |
27L |
| N10 |
SAM control unit |
66L |
| N149 |
FleetBoard control unit |
53L |
| N30/4 |
ESP® control unit |
76L |
| N30/4 |
ESP® control unit |
43L |
| N34 |
Heater timer |
58L |
| N72/1 |
Upper control panel (UCP [OBF]) control unit |
72L |
| N87/8 |
Radio/radio with navigation |
7L |
| S18/1 |
Rear dome lamp switch |
69L |
| S98 |
AC control and operating unit |
19L |
| S98 |
AC control and operating unit |
39L |
| S98 |
AC control and operating unit |
31L |
| S98 |
AC control and operating unit |
35L |
| S98 |
AC control and operating unit |
80L |
| U212 |
|
29D |
| U212 |
|
26G |
| W38 |
Roof ground point |
63H |
| X178 |
Front roof electrical connector |
60L |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
76H |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
43H |
| X18/75 |
Cockpit and roof electrical connector 5 |
59H |
| X18/78 |
MWH [HLS]/cockpit electrical connector 7 |
27H |
| X18/80 |
Cockpit and roof electrical connector 8 |
53H |
| X198/1 |
Fleetboard electrical connector |
51L |
| X31/9 |
Blower switch electrical connector |
21E |
| X39/67 |
Radio preinstallation electrical connector |
4L |
| X4/49 |
Circuit 30 electrical connector |
84H |
| Z162 |
Blower motor connector sleeve |
23L |
| Z7/102 |
Tml. 30 connector sleeve |
84E |
| Z7/74 |
Tml. 30 connector sleeve |
84L |
