| A0 |
Color code key |
72L |
| Code BB9 |
|
8E |
| Code E34 |
Buffer battery for starting procedure |
67G |
| Code F46 |
Headlamp cleaning system |
12E |
| Code FY1 |
Theft protection package |
27E |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
16E |
| Code FZ5 |
Anti-theft alarm system |
16E |
| Code JV7 |
|
29D |
| Code L77 |
Electr. equipment for additional turn signal lamps |
32E |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
32E |
| Code LV1 |
|
29D |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
36E |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
36G |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
36G |
| Code MH3 |
Low-emission engine EPA 13/CARB |
44F |
| Code MH3 |
Low-emission engine EPA 13/CARB |
48F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
40E |
| Code MH5 |
Low-emission engine EPA 14/CARB |
44F |
| Code MH5 |
Low-emission engine EPA 14/CARB |
48F |
| Code MH7 |
Low-emission engine EPA 16/CARB |
44G |
| Code MH7 |
Low-emission engine EPA 16/CARB |
48G |
| Code MJ8 |
ECO start/stop function |
67H |
| Code MP6 |
Euro VI engine version |
36F |
| Code MP6 |
Euro VI engine version |
44J |
| Code MP6 |
Euro VI engine version |
48J |
| Code MZ2 |
Natural gas engine M271 |
59E |
| Code MZ2 |
Natural gas engine M271 |
56F |
| Code MZ2 |
Natural gas engine M271 |
52F |
| Code ZU7 |
Canada national version |
63G |
| Code ZU7 |
Canada national version |
40F |
| Code ZU7 |
Canada national version |
44F |
| Code ZU7 |
Canada national version |
44H |
| Code ZU7 |
Canada national version |
48F |
| Code ZU7 |
Canada national version |
48H |
| Code ZU8 |
USA national version |
63H |
| Code ZU8 |
USA national version |
40F |
| Code ZU8 |
USA national version |
44F |
| Code ZU8 |
USA national version |
44H |
| Code ZU8 |
USA national version |
48F |
| Code ZU8 |
USA national version |
48H |

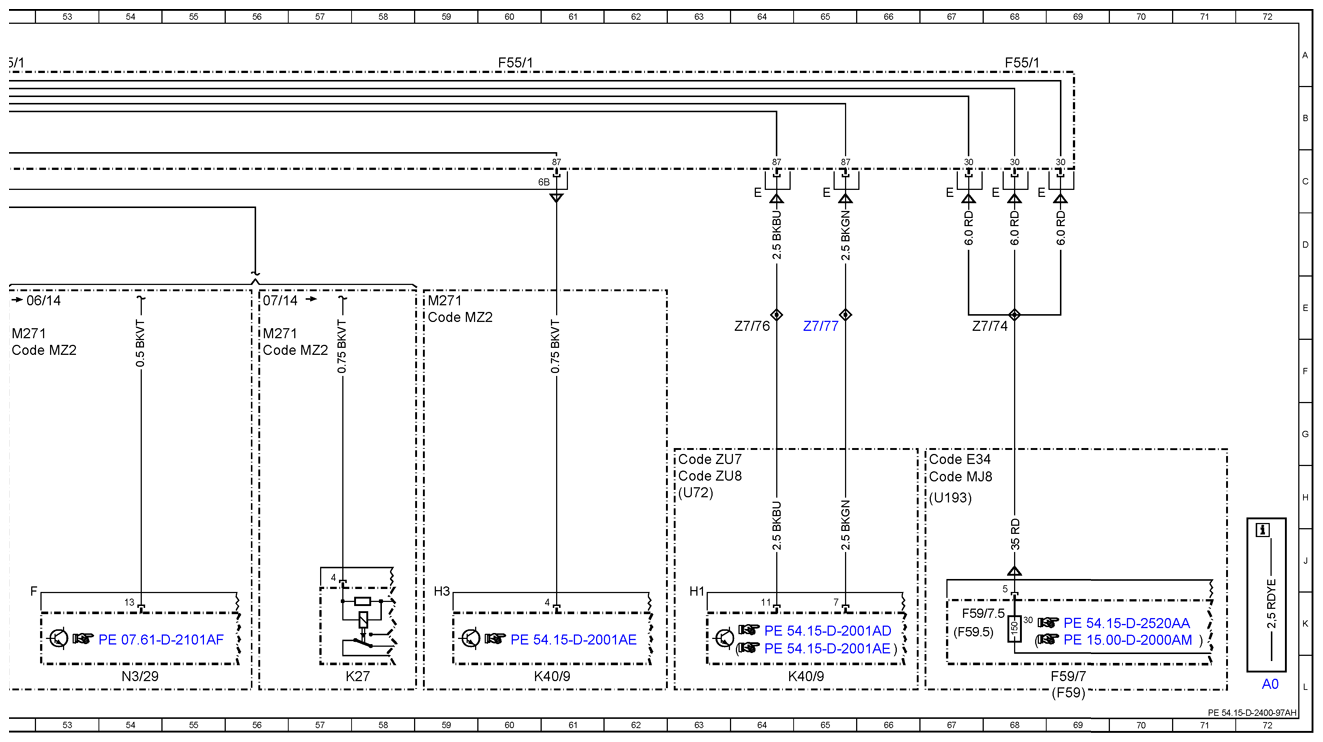

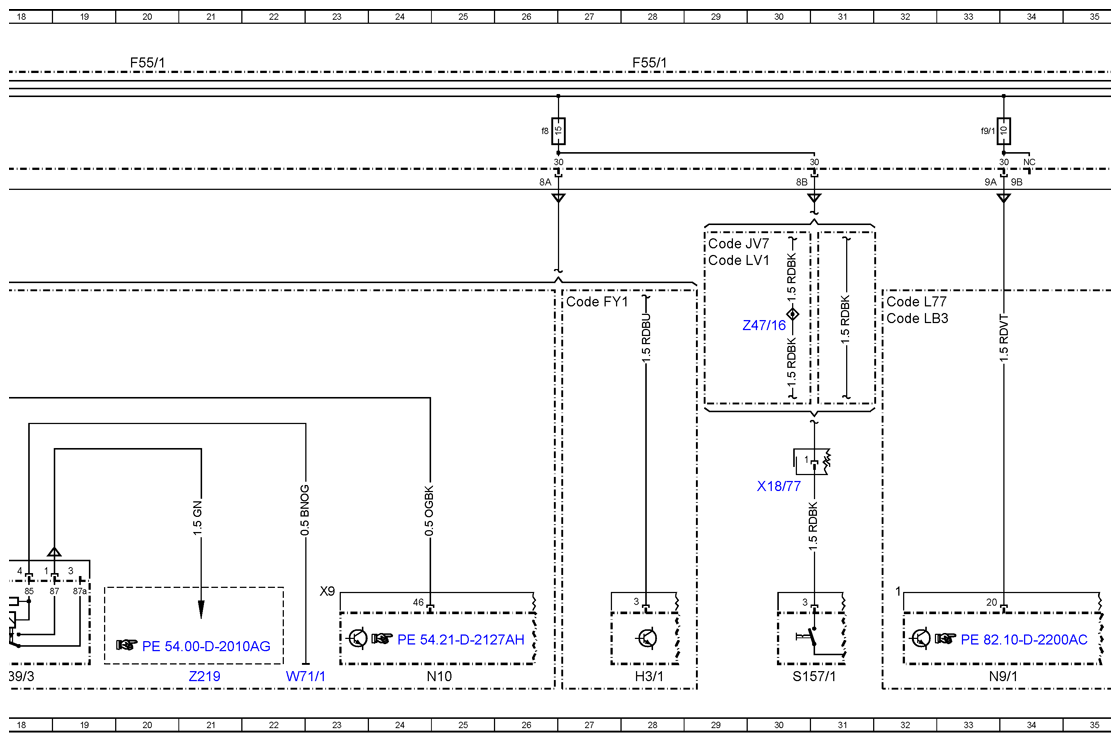

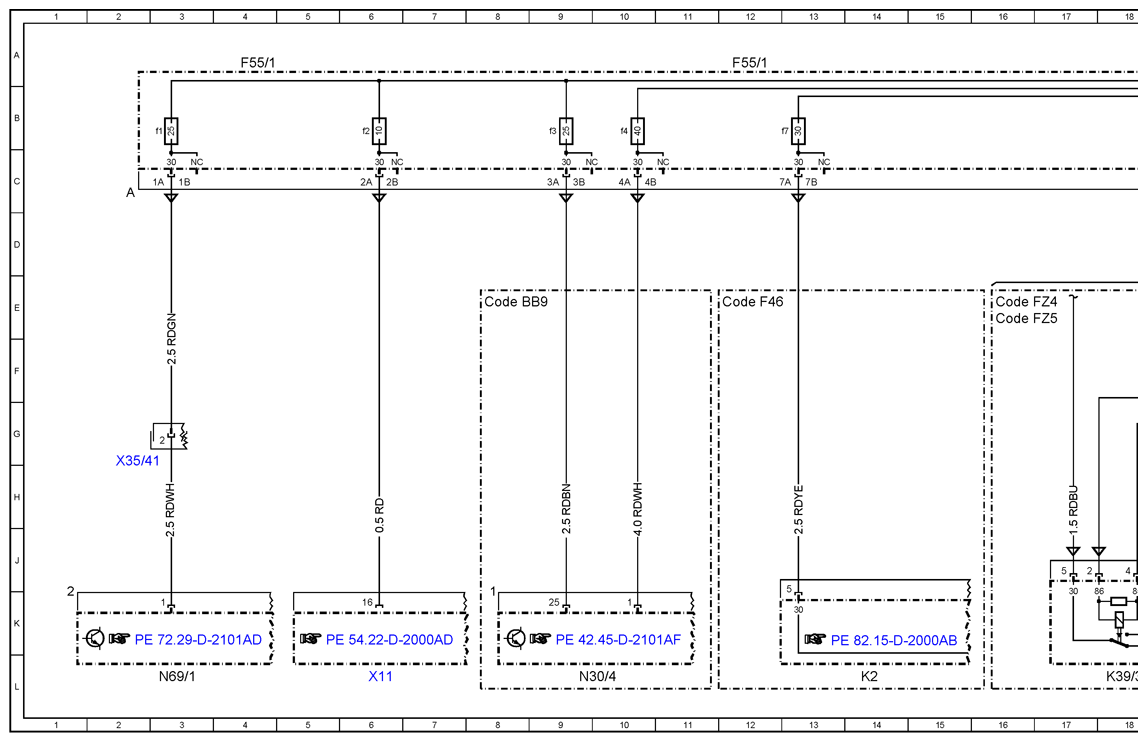

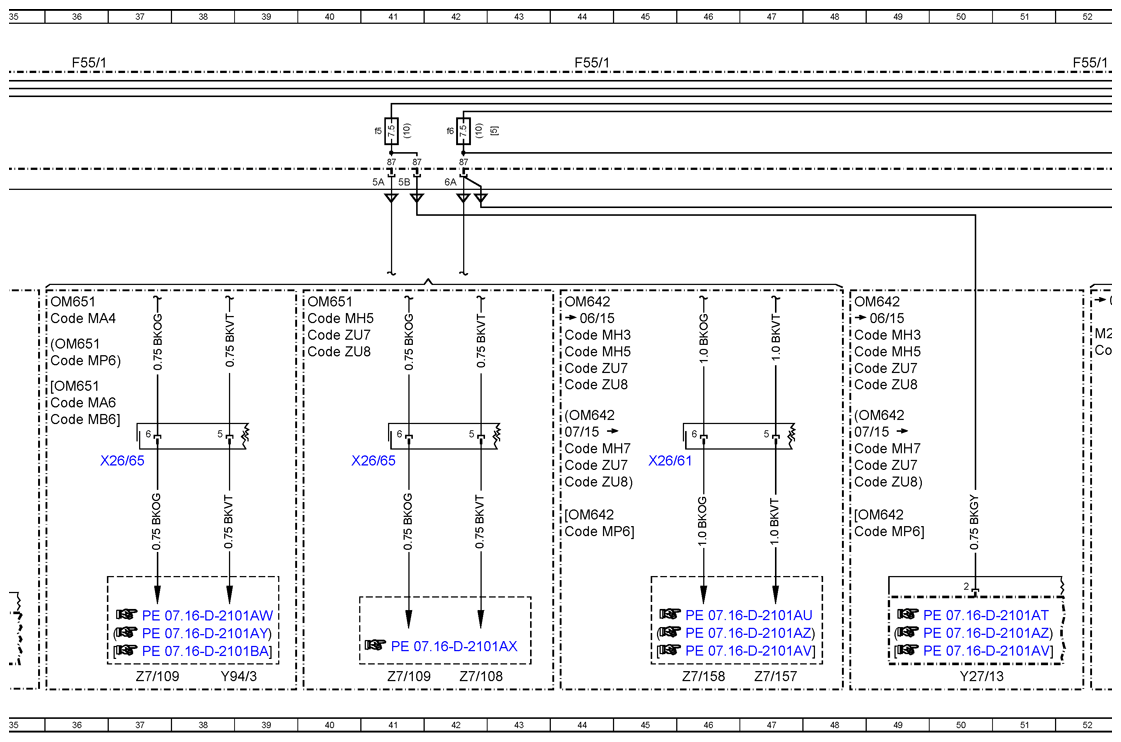

| F55/1 |
Fuse block (1, 9-pin) |
4A |
| F55/1 |
Fuse block (1, 9-pin) |
20A |
| F55/1 |
Fuse block (1, 9-pin) |
60A |
| F55/1 |
Fuse block (1, 9-pin) |
12A |
| F55/1 |
Fuse block (1, 9-pin) |
28A |
| F55/1 |
Fuse block (1, 9-pin) |
36A |
| F55/1 |
Fuse block (1, 9-pin) |
44A |
| F55/1 |
Fuse block (1, 9-pin) |
52A |
| F55/1 |
Fuse block (1, 9-pin) |
68A |
| F55/1f1 |
Driver control unit fuse 1 |
3B |
| F55/1f2 |
Diagnostic connector fuse 2 |
6B |
| F55/1f3 |
Brake system (valves) fuse 3 |
9B |
| F55/1f4 |
Brake system (delivery pump) fuse 4 |
10B |
| F55/1f5 |
Motors terminal 87 (5) fuse 5 |
41B |
| F55/1f6 |
Motors terminal 87 (6) fuse 6 |
42B |
| F55/1f7 |
Headlamp cleaning system fuse 7 |
12B |
| F55/1f8 |
ATA rotating beacon/tone sequence fuse 8 |
26B |
| F55/1f9/1 |
Additional turn signal module fuse 9 |
33B |
| F59 |
Fuse box |
69L |
| F59.5 |
Fuse, circuit 30 SAM/fuse and relay module |
67K |
| F59/7 |
Fuse box |
69L |
| F59/7.5 |
Fuse, circuit 30 |
67K |
| H3/1 |
Battery-operated horn |
28L |
| K2 |
Headlamp cleaning system relay |
14L |
| K27 |
Fuel pump relay |
58L |
| K39/3 |
Anti-theft alarm system horn relay |
18L |
| K40/9 |
Fuse and relay module |
61L |
| K40/9 |
Fuse and relay module |
65L |
| N10 |
SAM control unit |
25L |
| N3/29 |
ME-SFI [ME] control unit |
54L |
| N30/4 |
ESP® control unit |
9L |
| N69/1 |
Driver door control unit |
3L |
| N9/1 |
Additional turn signal module |
33L |
| S157/1 |
Rotating beacon switch |
30L |
| U193 |
Valid without code E34 (Buffer battery for starting procedure) |
67H |
| U72 |
Valid for all except USA, Canada |
63H |
| W71/1 |
Driver seat frame ground point 1 |
22L |
| X11 |
Diagnostic connector (16-pin) |
6L |
| X18/77 |
MWH [HLS]/cockpit electrical connector 6 |
30H |
| X26/61 |
Engine wiring harness electrical connector |
45H |
| X26/65 |
Engine wiring harness electrical connector 4 |
37H |
| X26/65 |
Engine wiring harness electrical connector 4 |
41H |
| X35/41 |
Driver door/MWH [HLS] electrical connector 2 |
2H |
| Y27/13 |
Exhaust gas recirculation cooling solenoid valve |
50L |
| Y94/3 |
Quantity control valve |
38L |
| Z219 |
Signaling horn actuation connector sleeve |
21L |
| Z47/16 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
30E |
| Z7/108 |
Circuit 87 connector sleeve |
42L |
| Z7/109 |
Circuit 87 connector sleeve |
37L |
| Z7/109 |
Circuit 87 connector sleeve |
41L |
| Z7/157 |
Circuit 87 (1) connector sleeve |
47L |
| Z7/158 |
Circuit 87 (2) connector sleeve |
46L |
| Z7/74 |
Tml. 30 connector sleeve |
68E |
| Z7/76 |
Circuit 87 connector sleeve |
64E |
| 11111 |
Circuit 87 connector sleeve |
65E |
