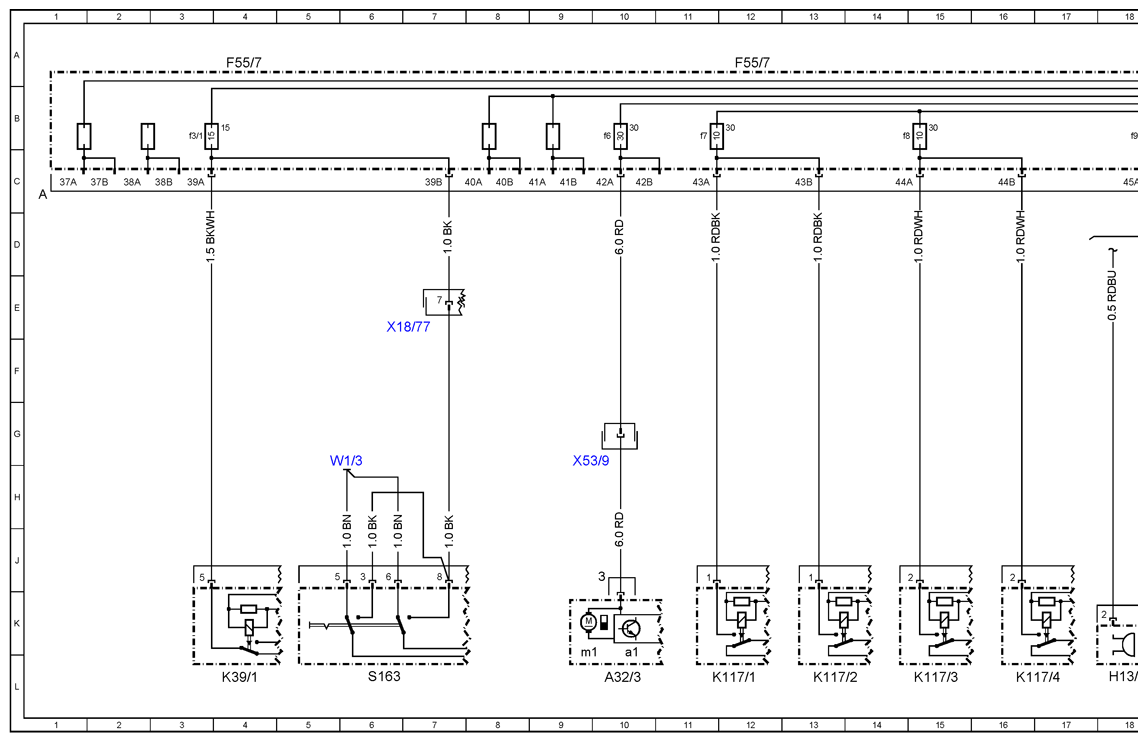

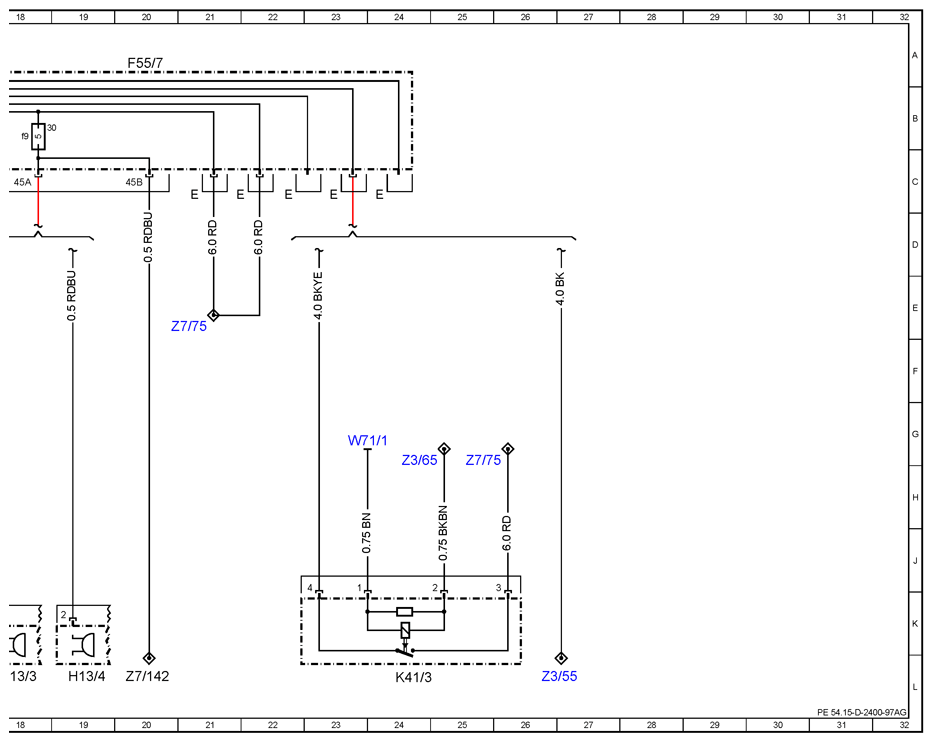

| A32/3 |
Rear heavy duty automatic air conditioning recirculation unit |
10L |
| A32/3a1 |
Blower regulator |
10L |
| A32/3m1 |
Blower motor |
9L |
| F55/7 |
Fuse block (9 fuses) |
4A |
| F55/7 |
Fuse block (9 fuses) |
12A |
| F55/7 |
Fuse block (9 fuses) |
20A |
| F55/7f3/1 |
Fuse 39 (15 A), siren/roof ventilator |
3B |
| F55/7f6 |
Fuse 42 (30 A), rear air conditioning |
10B |
| F55/7f7 |
Fuse 43 (10 A), right electric step |
IIB |
| F55/7f8 |
Fuse 44 (10 A), left electric step |
14B |
| F55/7f9 |
Fuse 45 (5 A), electric step control |
18B |
| H13/3 |
Right step warning buzzer |
18L |
| H13/4 |
Left step warning buzzer |
19L |
| K117/1 |
Right step relay 1 |
12L |
| K117/2 |
Right step relay 2 |
13L |
| K117/3 |
Left step relay 1 |
15L |
| K117/4 |
Left step relay 2 |
16L |
| K39/1 |
Tone sequence relay |
4L |
| K41/3 |
Tml. 15 relief relay 2 |
24L |
| S163 |
Roof ventilator switch |
6L |
| W1/3 |
CLS cockpit ground point 1 |
5H |
| W71/1 |
Driver seat frame ground point 1 |
23G |
| X18/77 |
HLS/COC connector 6 |
7E |
| X53/9 |
Roof air conditioning connector |
9H |
| Z3/55 |
Tml. 15 connector sleeve |
26L |
| Z3/65 |
Tml. 15 connector sleeve |
24G |
| Z7/142 |
Left step tml. 30 connector sleeve |
20L |
| Z7/75 |
Tml. 30 connector sleeve |
25G |
| Z7/75 |
Tml. 30 connector sleeve |
21E |
