| F55/5 |
Fuse block (9 fuses) |
4A |
| F55/5 |
Fuse block (9 fuses) |
12A |
| F55/5 |
Fuse block (9 fuses) |
20A |
| F55/5 |
Fuse block (9 fuses) |
28A |

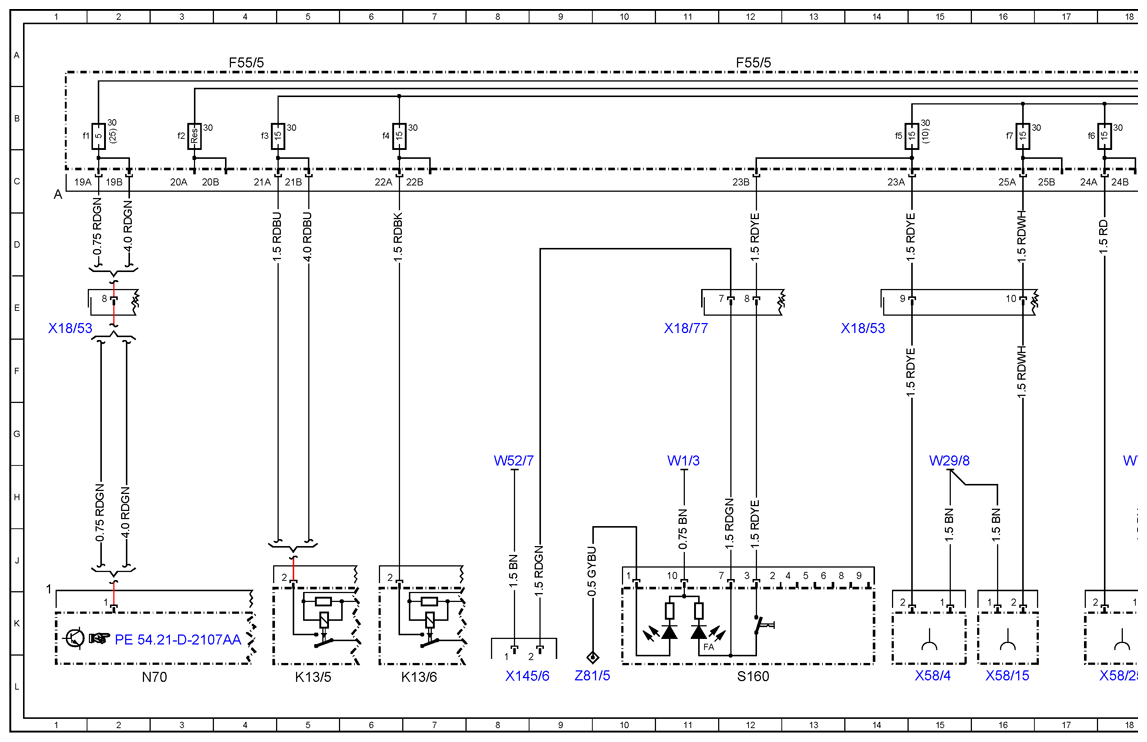

| F55/5f1 |
Fuse 19 (5/25 A), OCP [DBE]/tilting/sliding roof |
1B |
| F55/5f2 |
Fuse 20, spare |
3B |
| F55/5f3 |
Fuse 21 (15 A), rear window heater |
4B |
| F55/5f4 |
Fuse 22 (15/10 A), rear window heater/electric step |
6B |
| F55/5f5 |
Fuse 23 (10/15 A) electrical components, other make body/left rear socket |
14B |
| F55/5f6 |
Fuse 24 (15 A), driver seat frame socket |
17B |
| F55/5f7 |
Fuse 25 (15 A), right rear socket |
16B |

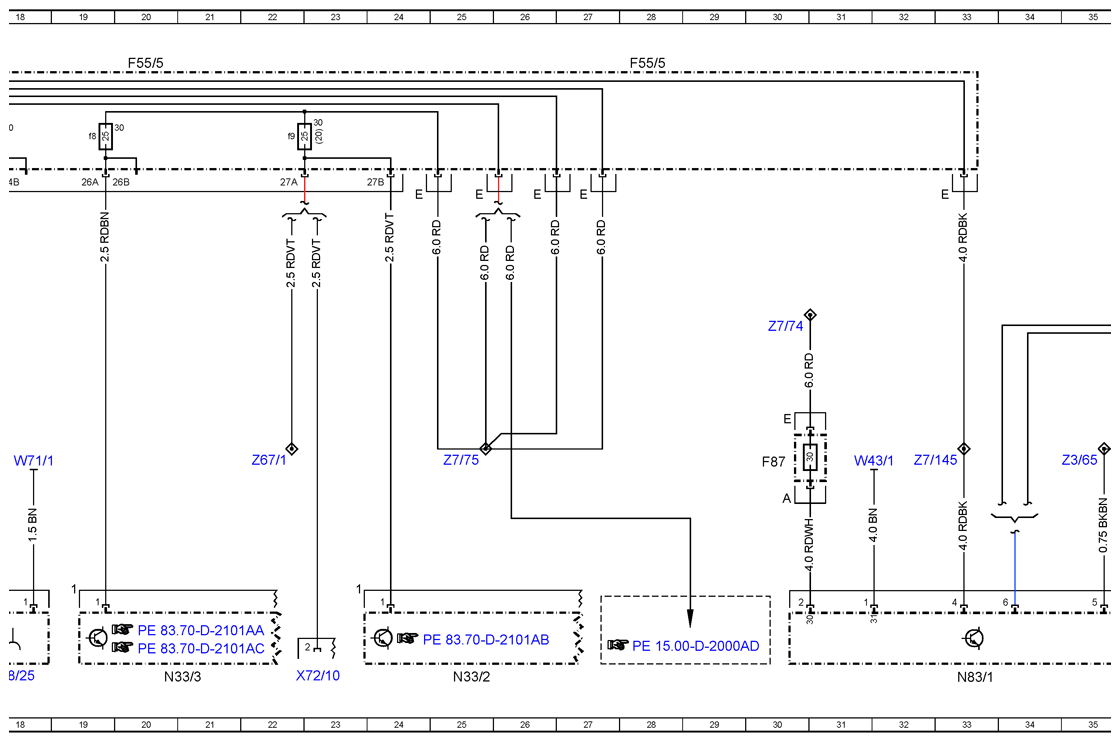

| F55/5f8 |
Fuse 26 (25 A), warm water auxiliary heater |
19B |
| F55/5f9 |
Fuse 27 (25/20 A), heater booster/warm air auxiliary heater |
22B |
| F87 |
DC/DC converter fuse (30 A) |
30H |
| K13/5 |
Heated rear window relay 1 |
5L |
| K13/6 |
Heated rear window with EDW relay 2 |
7L |

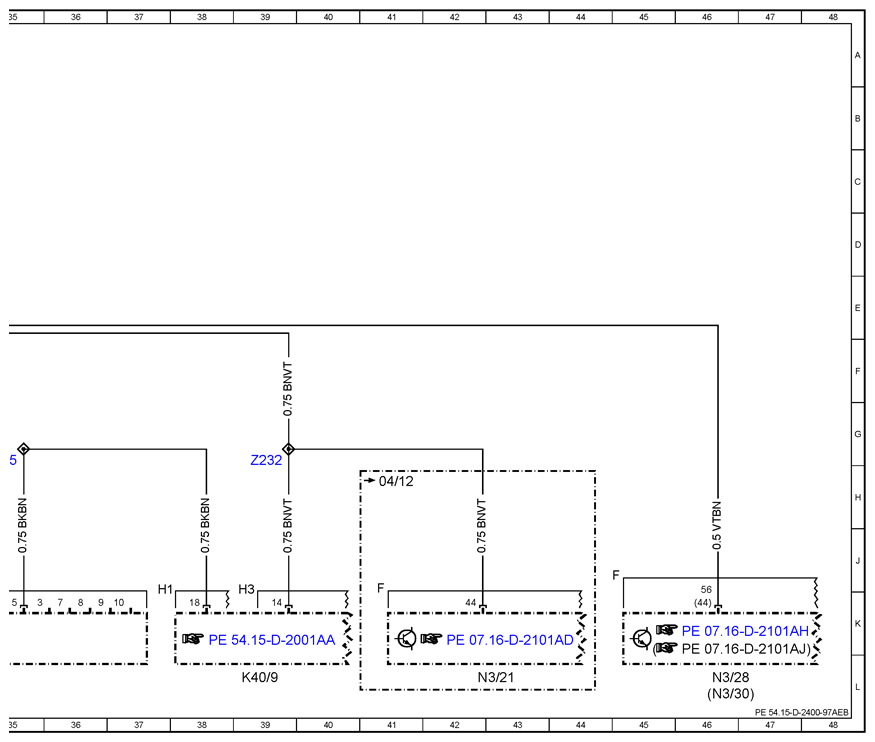

| K40/9 |
Fuse/relay box (SRB) |
39L |
| N3/21 |
CDI control unit |
43L |
| N3/28 |
CDI control unit |
46L |
| N3/30 |
CDI control unit |
46L |
| N33/2 |
Warm water auxiliary heater 2 control unit |
25L |
| N33/3 |
Hot water auxiliary heating control unit |
20L |
| N70 |
DBE control unit |
2L |
| N83/1 |
DC/DC converter control unit |
33L |
| S160 |
Body manufacturer electrical system switch |
12L |
| W1/3 |
CLS cockpit ground point 1 |
11H |
| W29/8 |
Left D-pillar ground point |
15H |
| W43/1 |
Left firewall ground point |
31H |
| W52/7 |
Left rear crossmember ground point |
8H |
| W71/1 |
Driver seat frame ground point 1 |
18H |
| X145/6 |
Body manufacturer connector |
8L |
| X18/53 |
HLS/roof connector 2 |
1E |
| X18/53 |
HLS/roof connector 2 |
14E |
| X18/77 |
HLS/COC connector 6 |
11E |
| X58/15 |
Load compartment socket |
16L |
| X58/25 |
Left inner seat frame socket |
18L |
| X58/4 |
Load compartment socket |
15L |
| X72/10 |
Stationary heater connector |
23L |
| Z232 |
Tml. 85 starter relay connector sleeve |
39G |
| Z3/65 |
Tml. 15 connector sleeve |
35G |
| Z67/1 |
Auxiliary heater connector sleeve |
22G |
| Z7/145 |
Tml. 30 connector sleeve, shielded |
33G |
| Z7/74 |
Tml. 30 connector sleeve |
30E |
| Z7/75 |
Tml. 30 connector sleeve |
25G |
| Z81/5 |
Tml. 58d connector sleeve |
9L |
