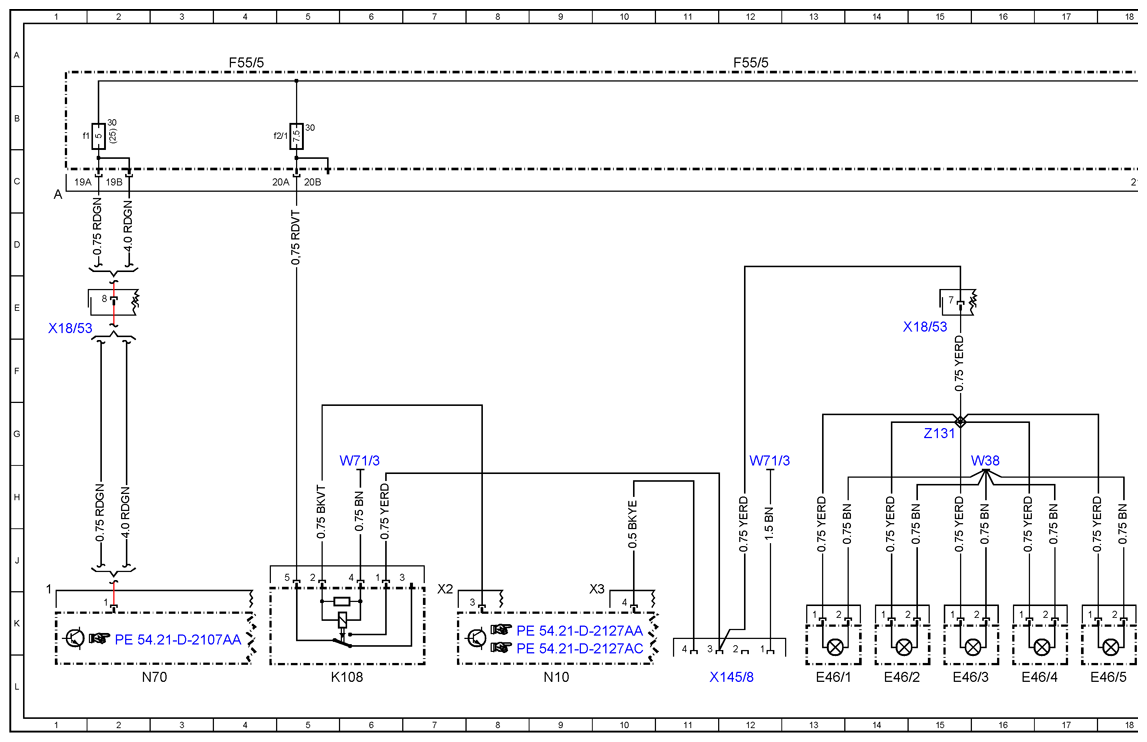

| E46/1 |
Right front identification lamp |
13L |
| E46/2 |
Center front identification lamp |
14L |
| E46/3 |
Left front identification lamp |
15L |
| E46/4 |
Outer left front identification lamp |
16L |
| E46/5 |
Outer right front identification lamp |
18L |
| F55/5 |
Fuse block (9 fuses) |
4A |
| F55/5 |
Fuse block (9 fuses) |
12A |
| F55/5 |
Fuse block (9 fuses) |
20A |
| F55/5 |
Fuse block (9 fuses) |
28A |
| F55/5 |
Fuse block (9 fuses) |
36A |

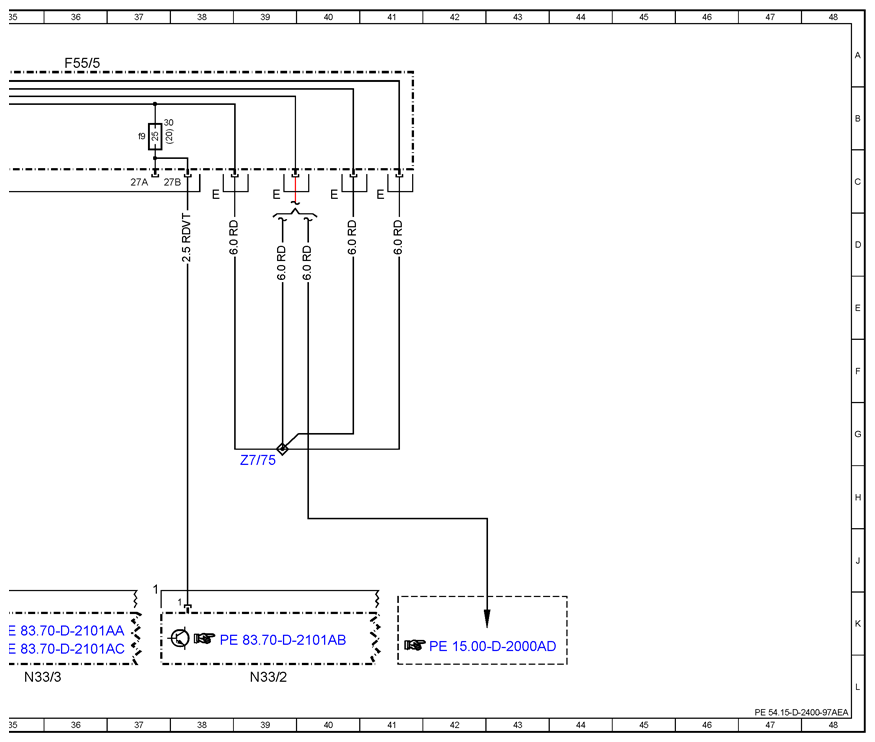

| F55/5f1 |
Fuse 19 (5/25 A), OCP [DBE]/tilting/sliding roof |
1B |

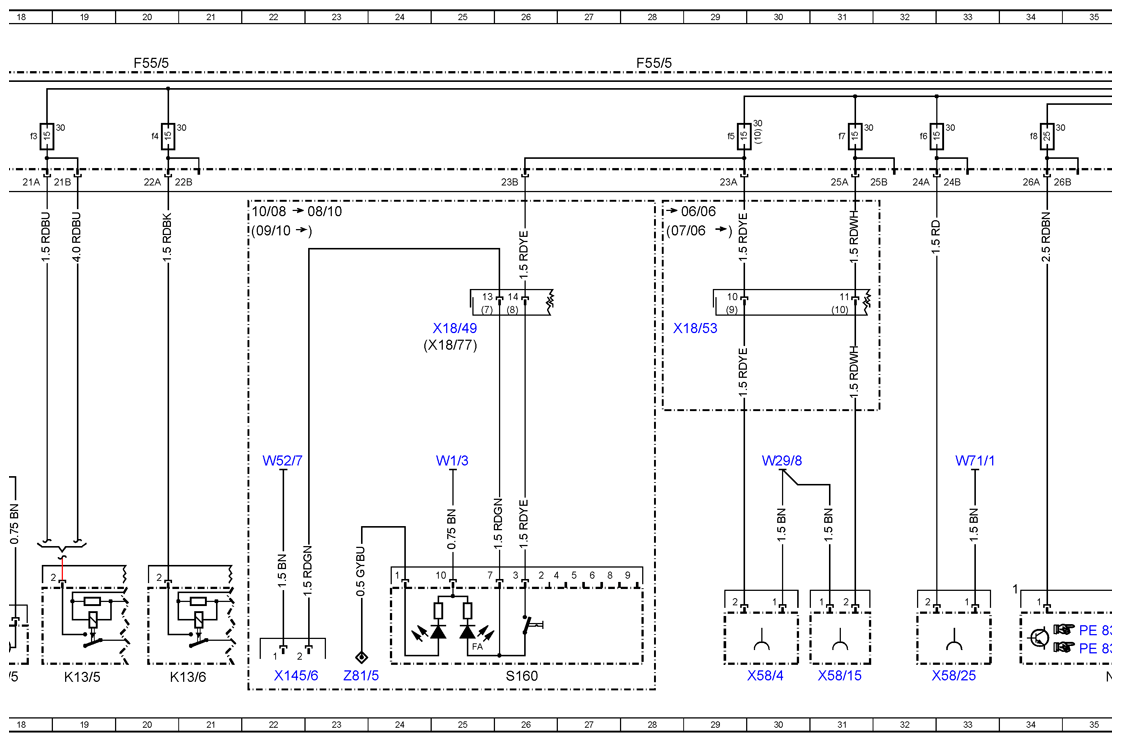

| F55/5f2/1 |
Fuse 20 (7.5 A), clearance lamps |
4B |
| F55/5f3 |
Fuse 21 (15 A), rear window heater |
18B |
| F55/5f4 |
Fuse 22 (15/10 A), rear window heater/electric step |
20B |
| F55/5f5 |
Fuse 23 (10/15 A) electrical components, other make body/left rear socket |
29B |
| F55/5f6 |
Fuse 24 (15 A), driver seat frame socket |
32B |
| F55/5f7 |
Fuse 25 (15 A), right rear socket |
31B |
| F55/5f8 |
Fuse 26 (25 A), warm water auxiliary heater |
34B |
| F55/5f9 |
Fuse 27 (25/20 A), heater booster/warm air auxiliary heater |
37B |
| K108 |
Clearance/identification lamps relay |
6L |
| K13/5 |
Heated rear window relay 1 |
19L |
| K13/6 |
Heated rear window with EDW relay 2 |
21L |
| N10 |
SAM control unit |
9L |
| N33/2 |
Warm water auxiliary heater 2 control unit |
39L |
| N33/3 |
Hot water auxiliary heating control unit |
35L |
| N70 |
DBE control unit |
2L |
| S160 |
Body manufacturer electrical system switch |
26L |
| W1/3 |
CLS cockpit ground point 1 |
25H |
| W29/8 |
Left D-pillar ground point |
30H |
| W38 |
Roof ground point |
16H |
| W52/7 |
Left rear crossmember ground point |
22H |
| W71/1 |
Driver seat frame ground point 1 |
33H |
| W71/3 |
Driver seat frame ground point 3 |
6H |
| W71/3 |
Driver seat frame ground point 3 |
12H |
| X145/6 |
Body manufacturer connector |
22L |
| X145/8 |
Body manufacturer illumination connector |
12L |
| X18/49 |
HLS/COC connector 2 |
25E |
| X18/53 |
HLS/roof connector 2 |
IE |
| X18/53 |
HLS/roof connector 2 |
15E |
| X18/53 |
HLS/roof connector 2 |
29E |
| X18/77 |
HLS/COC connector 6 |
25F |
| X58/15 |
Load compartment socket |
31L |
| X58/25 |
Left inner seat frame socket |
33L |
| X58/4 |
Load compartment socket |
30L |
| Z131 |
Identification lamp connector sleeve |
15G |
| Z7/75 |
Tml. 30 connector sleeve |
39G |
| Z81/5 |
Tml. 58d connector sleeve |
23L |
