| A34/18 |
Mobile phone bracket with Bluetooth module |
11L |
| A49/4 |
Stationary heater radio signal receiver |
31L |
| A56 |

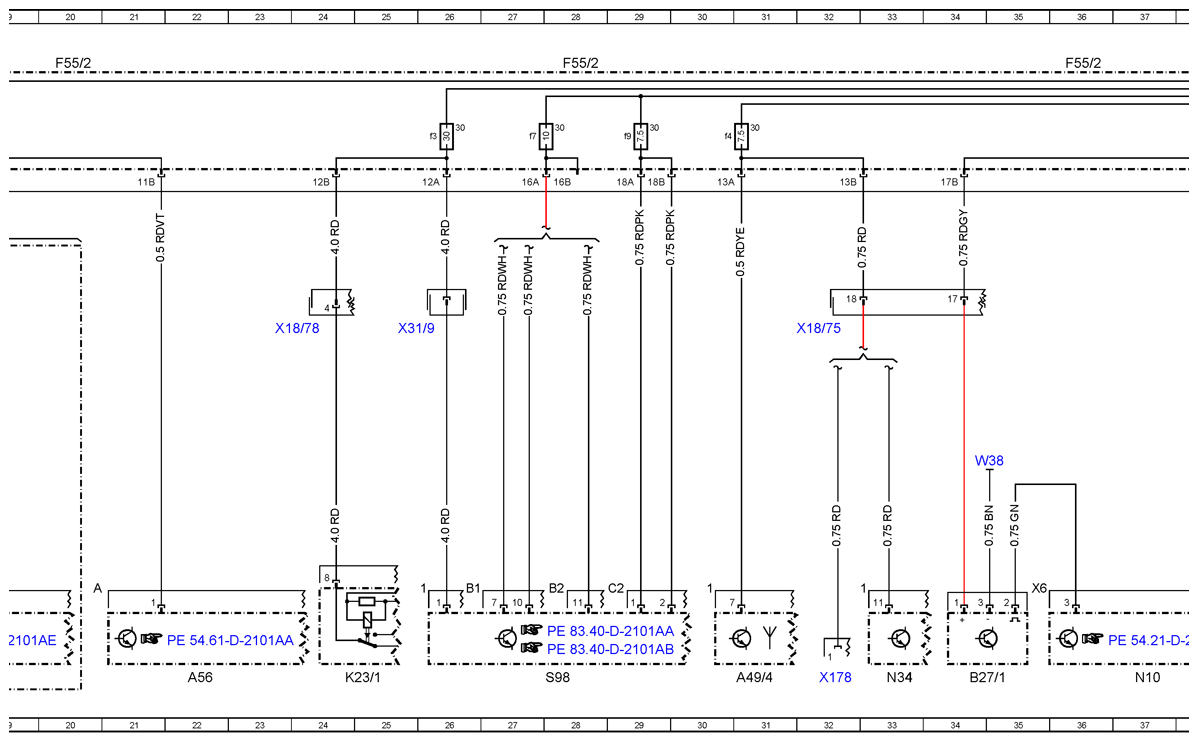

Tachograph |
22L |
| B27/1 |
Motion sensor |
34L |

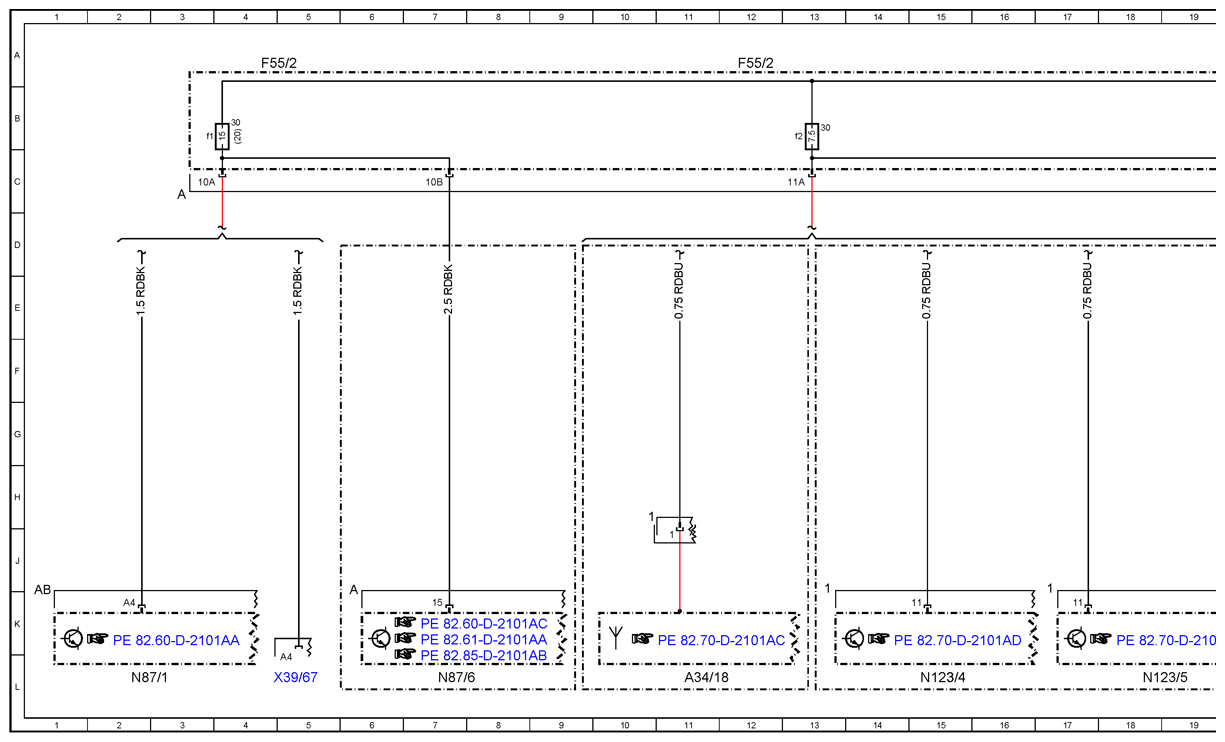

| F55/2 |
Fuse block (9 fuses) |
12A |
| F55/2 |
Fuse block (9 fuses) |
4A |
| F55/2 |
Fuse block (9 fuses) |
20A |
| F55/2 |
Fuse block (9 fuses) |
28A |
| F55/2 |
Fuse block (9 fuses) |
36A |
| F55/2 |
Fuse block (9 fuses) |
44A |
| F55/2f1 |
Fuse 10 (15/20 A), radio |
3B |
| F55/2f2 |
Fuse 11 (7.5 A), mobile phone, tachograph |
13B |
| F55/2f3 |
Fuse 12 (30 A), front blower |
26B |
| F55/2f4 |
Fuse 13 (7.5 A), warm air heater timer/FleetBoard |
30B |
| F55/2f5 |
Fuse 14 (30 A), heated seats |
40B |
| F55/2f6 |
Fuse 15 (10 A), non-MB body electrical system |
42B |
| F55/2f7 |
Fuse 16 (10 A), front climate control, CD changer |
27B |
| F55/2f8 |
Fuse 17 (7.5/10 A), motion detector/comfort illumination |
39B |
| F55/2f9 |
Fuse 18 (7.5 A) rear climate control |
29B |
| F87 |
DC/DC converter fuse (30 A) |
46H |
| K23/1 |
Blower stage 1 fan relay |
24L |
| K40/9 |
Fuse/relay box (SRB) |
55L |
| N10 |
SAM control unit |
37L |
| N123/4 |
Bluetooth hands-free system |
15L |
| N123/5 |
Bluetooth hands-free system radio preinstallation |
18L |

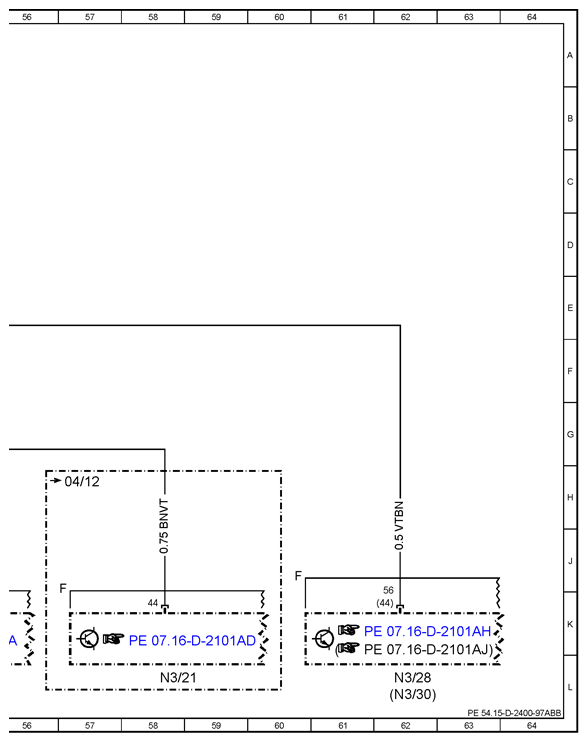

| N3/21 |
CDI control unit |
58L |
| N3/28 |
CDI control unit |
62L |
| N3/30 |
CDI control unit |
62L |
| N34 |
Heater timer |
33L |
| N72/1 |
0BF control unit |
42L |

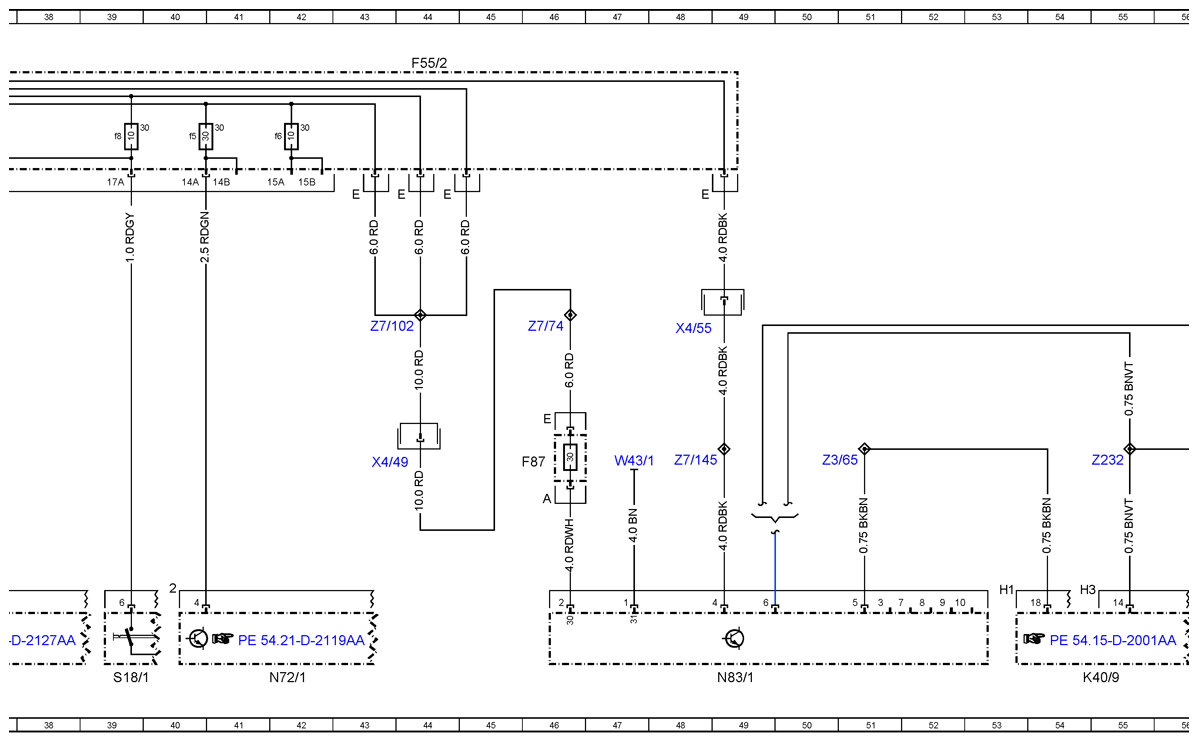

| N83/1 |
DC/DC converter control unit |
49L |
| N87/1 |
Radio/radio with navigation |
2L |
| N87/6 |
Radio/radio with navigation NG |
7L |
| S18/1 |
Rear dome lamp switch |
39L |
| S98 |
AAC [KLA] control and operating unit |
28L |
| W38 |
Roof ground point |
34H |
| W43/1 |
Left firewall ground point |
47H |
| X178 |
Front roof connector |
32L |
| X18/75 |
COC/roof connector 5 |
32E |
| X18/78 |
HLS/COC connector 7 |
24E |
| X31/9 |
Blower switch connector |
25E |
| X39/67 |
Radio preinstallation connector |
5L |
| X4/49 |
Tml. 30 connector |
43H |
| X4/55 |
Tml. 30 connector |
48E |
| Z232 |
Tml. 85 starter relay connector sleeve |
55G |
| Z3/65 |
Tml. 15 connector sleeve |
51G |
| Z7/102 |
Tml. 30 connector sleeve |
43E |
| Z7/145 |
Tml. 30 connector sleeve, shielded |
48G |
| Z7/74 |
Tml. 30 connector sleeve |
46E |
