| A0 |
Color code key |
208L |
| A1 |
Instrument cluster |
129L |
| B24/15 |
Yaw rate, lateral and longitudinal acceleration sensor |
117L |
| B85/5 |
Oxygen sensor |
23L |
| B85/5x1 |
Oxygen sensor electrical connector |
23J |
| Code BB3 |
Electronic Stability Program (ESP®) |
115F |
| Code BB9 |
|
112F |
| Code CV1 |
Winter service vehicle preinstallation |
171F |
| Code E34 |
Buffer battery for starting procedure |
96F |
| Code E34 |
Buffer battery for starting procedure |
193F |
| Code E34 |
Buffer battery for starting procedure |
89F |
| Code ES7 |
|
147H |
| Code EV3 |
|
149H |
| Code F66 |
|
137H |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
4F |
| Code FZ5 |
Anti-theft alarm system |
4F |
| Code J58 |
Seat belt warning system for driver seat |
189F |
| Code J58 |
Seat belt warning system for driver seat |
189G |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
38F |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
103J |
| Code MA4 |
Low-emission vehicle Euro 5b+ Gr. III |
98J |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
38H |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
103K |
| Code MA6 |
Low-emission vehicle, Euro 6 Gr. III |
98K |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
38H |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
103K |
| Code MB6 |
Low-emission vehicle, Euro 6 Gr. 1 |
98K |
| Code MP6 |
Euro VI engine version |
31F |
| Code MP6 |
Euro VI engine version |
38G |
| Code MP6 |
Euro VI engine version |
103J |
| Code MP6 |
Euro VI engine version |
103K |
| Code MP6 |
Euro VI engine version |
98J |
| Code MP6 |
Euro VI engine version |
98K |
| Code MZ2 |
Natural gas engine M271 |
81F |
| Code MZ2 |
Natural gas engine M271 |
45F |
| Code MZ2 |
Natural gas engine M271 |
62F |
| Code MZ2 |
Natural gas engine M271 |
72F |
| Code MZ2 |
Natural gas engine M271 |
108F |
| Code SA5 |
Driver airbag |
189F |
| Code SA6 |
Front passenger airbag |
189G |
| Code SH6 |
Driver thorax sidebag (in backrest) |
189G |
| Code SH7 |
Driver and front passenger thorax sidebag (in backrest) |
189H |
| Code SH9 |
Windowbags for driver and front passenger |
189H |
| Code V85 |
Smoker"s package |
140H |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
179F |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
176F |
| Code YM1 |
FleetBoard vehicle computer |
153G |
| Code ZJ8 |
Mercedes-Benz Minibus (MBM) scope of supply |
176F |
| E13/1 |
Glove box lamp |
139L |
| F55/1 |
Fuse block (1, 9-pin) |
48L |
| F55/1f6 |
Motors terminal 87 (6) fuse 6 |
46K |
| F55/3 |
Fuse block 3 (9-pin) |
180L |
| F55/3f1 |
Mirror adjustment/heated rear window relay fuse 1 |
178K |
| F55/3f2 |
Rear window wiper fuse 2 |
179K |
| F55/6 |
Fuse block 6 (9-pin) |
93L |
| F55/6f1/3 |
Starter relay electrical fuse 28 |
92K |
| F59 |
Fuse box |
90L |
| F59 |
Fuse box |
97L |
| F59. 2 |
Fuse, circuit 30 air conditioning additional fan |
90K |
| F59. 3 |
Fuse, circuit 30z SAM/fuse and relay module |
97K |
| F59/7 |
Fuse box |
97L |
| F59/7.2 |
Fuse, circuit 30 SAM/fuse and relay module |
96K |
| G1/12 |
On-board electrical system backup battery |
194L |
| H1/4 |
Signaling horn |
6L |
| K40/9 |
Fuse and relay module |
19A |
| K40/9 |
Fuse and relay module |
2A |
| K40/9 |
Fuse and relay module |
9A |
| K40/9 |
Fuse and relay module |
26A |
| K40/9 |
Fuse and relay module |
34A |
| K40/9 |
Fuse and relay module |
42A |
| K40/9 |
Fuse and relay module |
50A |
| K40/9 |
Fuse and relay module |
58A |
| K40/9 |
Fuse and relay module |
66A |
| K40/9 |
Fuse and relay module |
74A |
| K40/9 |
Fuse and relay module |
82A |
| K40/9 |
Fuse and relay module |
90A |
| K40/9 |
Fuse and relay module |
98A |
| K40/9 |
Fuse and relay module |
106A |
| K40/9 |
Fuse and relay module |
114A |
| K40/9 |
Fuse and relay module |
122A |
| K40/9 |
Fuse and relay module |
130A |
| K40/9 |
Fuse and relay module |
138A |
| K40/9 |
Fuse and relay module |
146A |
| K40/9 |
Fuse and relay module |
154A |
| K40/9 |
Fuse and relay module |
162A |
| K40/9 |
Fuse and relay module |
171A |
| K40/9 |
Fuse and relay module |
186A |
| K40/9 |
Fuse and relay module |
194A |
| K40/9 |
Fuse and relay module |
179A |

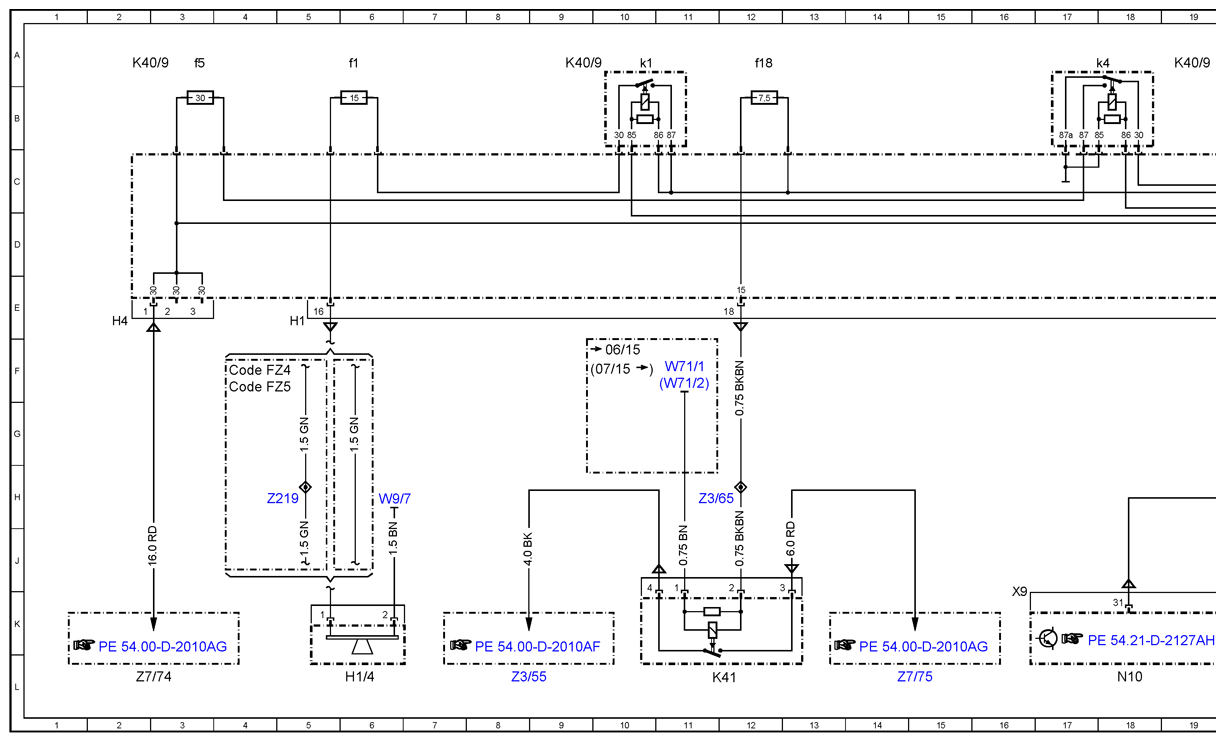

| K40/9f1 |
Horn fuse |
6A |
| K40/9f10 |
Circuit 87 (4) engine control fuse |
25A |
| K40/9f11 |
Circuit 15R fuse |
178A |
| K40/9f12 |
Circuit 15R airbag fuse |
191A |
| K40/9f13 |
Radio/cigar lighter fuse |
142A |
| K40/9f14 |
Circuit 15 LDS, instrument cluster, diagnostic connector fuse |
164A |
| K40/9f15 |
Headlamp range adjustment fuse |
170A |
| K40/9f16/1 |
Circuit 87 (3) engine control fuse |
|

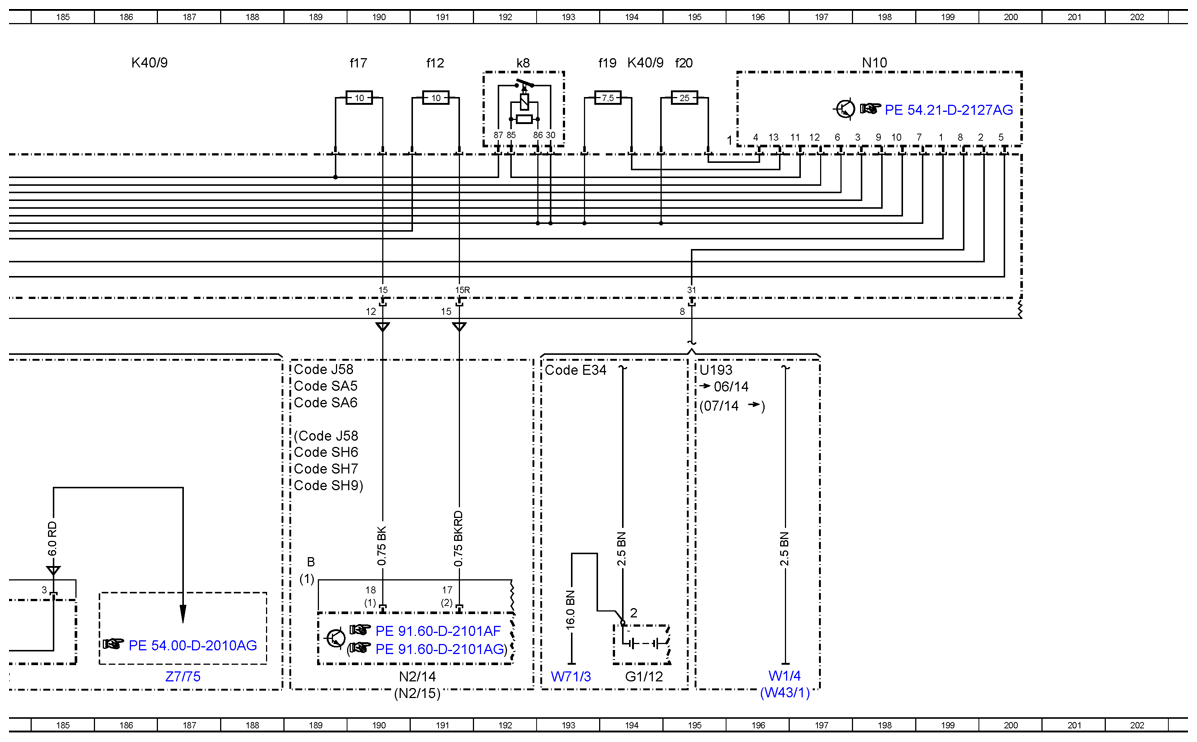

| K40/9f17 |
Airbag fuse |
190A |
| K40/9f18 |
Circuit 15 fuse |
12A |
| K40/9f19 |
Circuit 30 interior lights fuse |
194A |

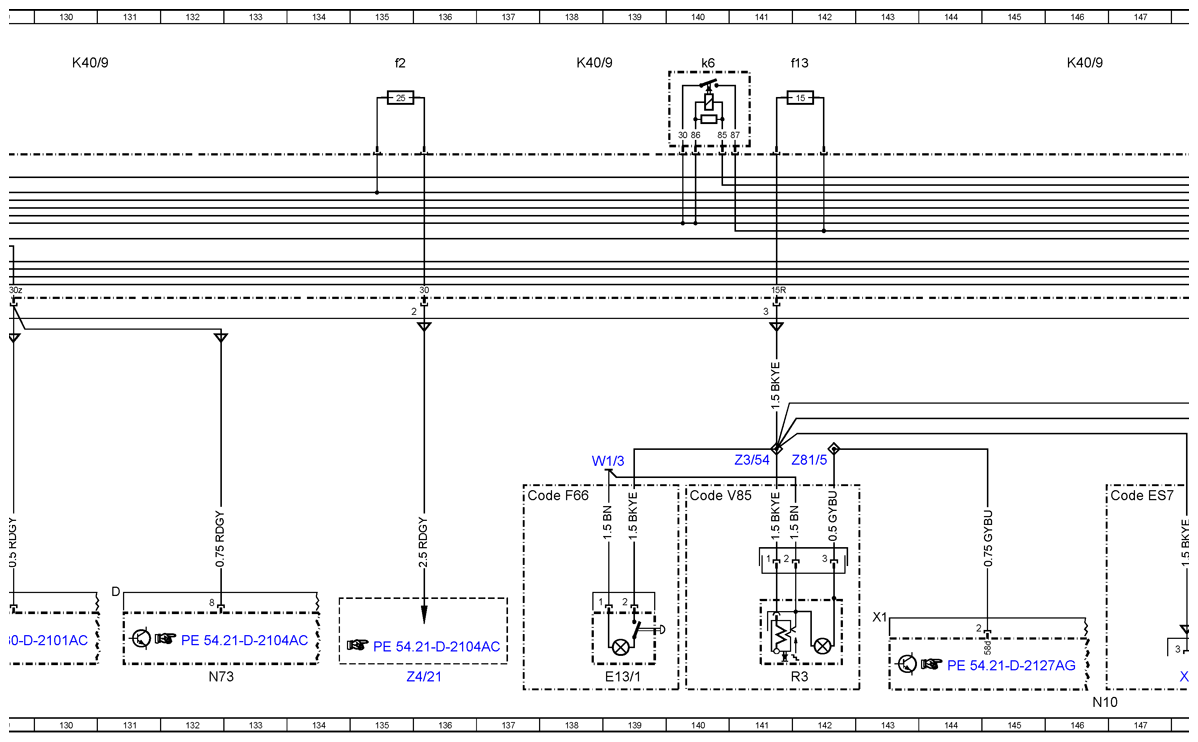

| K40/9f2 |
ELV/electronic ignition lock fuse |
135A |
| K40/9f20 |
Circuit 30 fuse |
195A |
| K40/9f21 |
Circuit 15 engine control unit fuse |
107A |

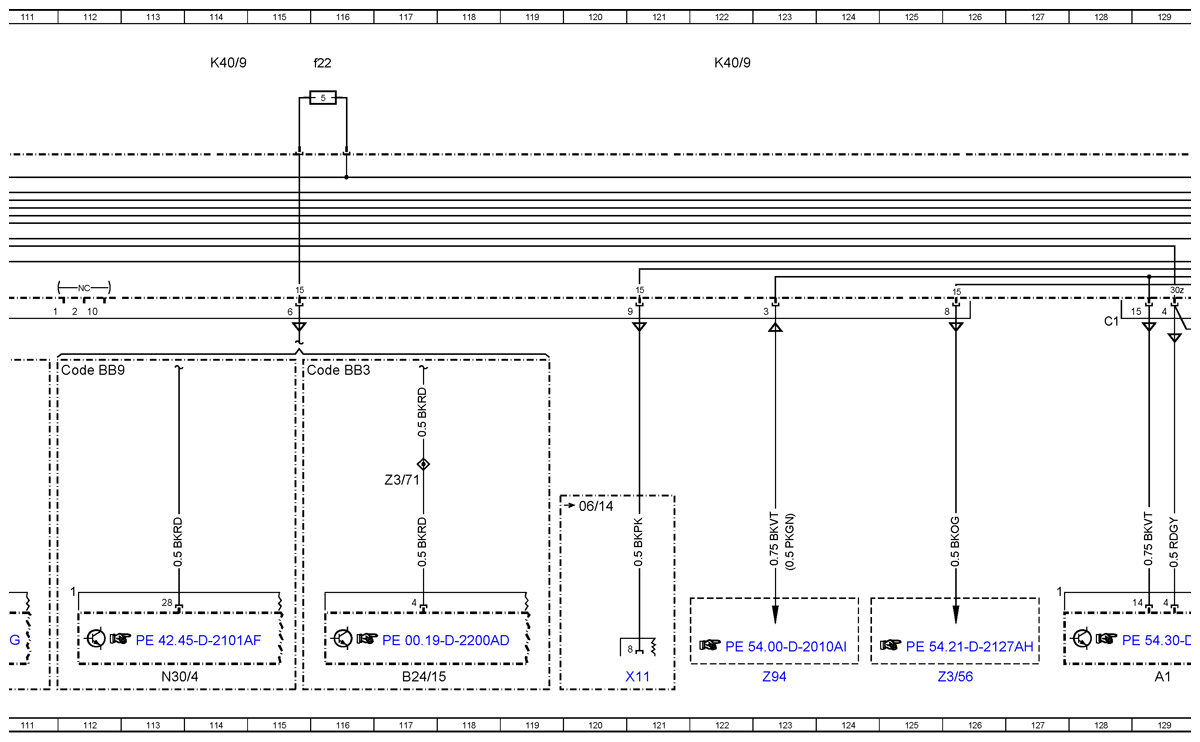

| K40/9f22 |
Circuit 15 ESP® fuse |
116A |
| K40/9f23/1 |
Terminal 87 engine control system fuse (6) |
|

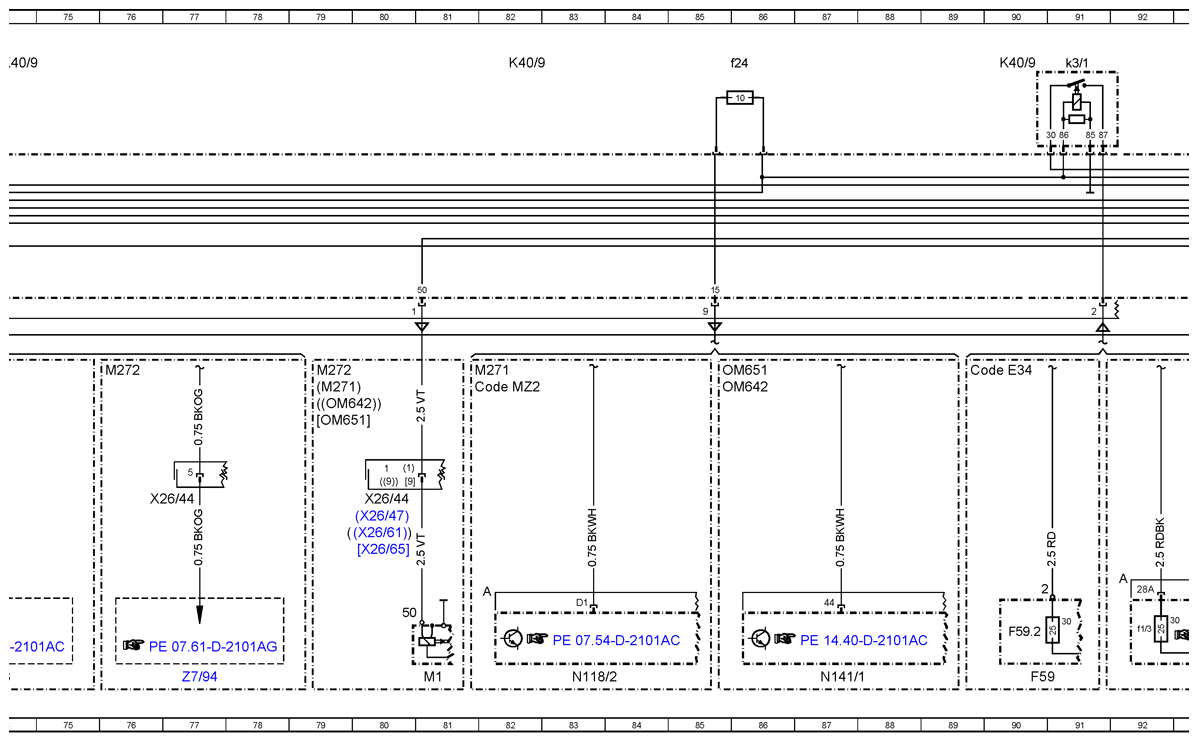

| K40/9f24 |
Terminal 15 engine components fuse |
86A |

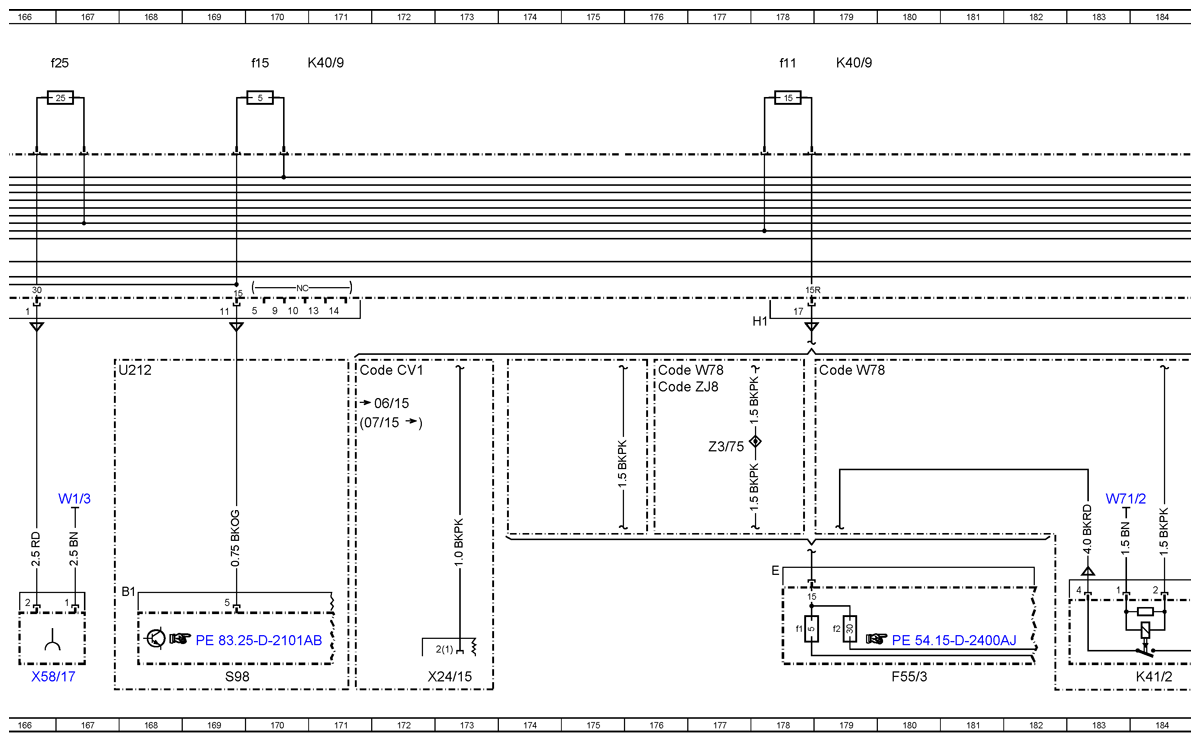

| K40/9f25 |
Instrument panel socket fuse |
166A |

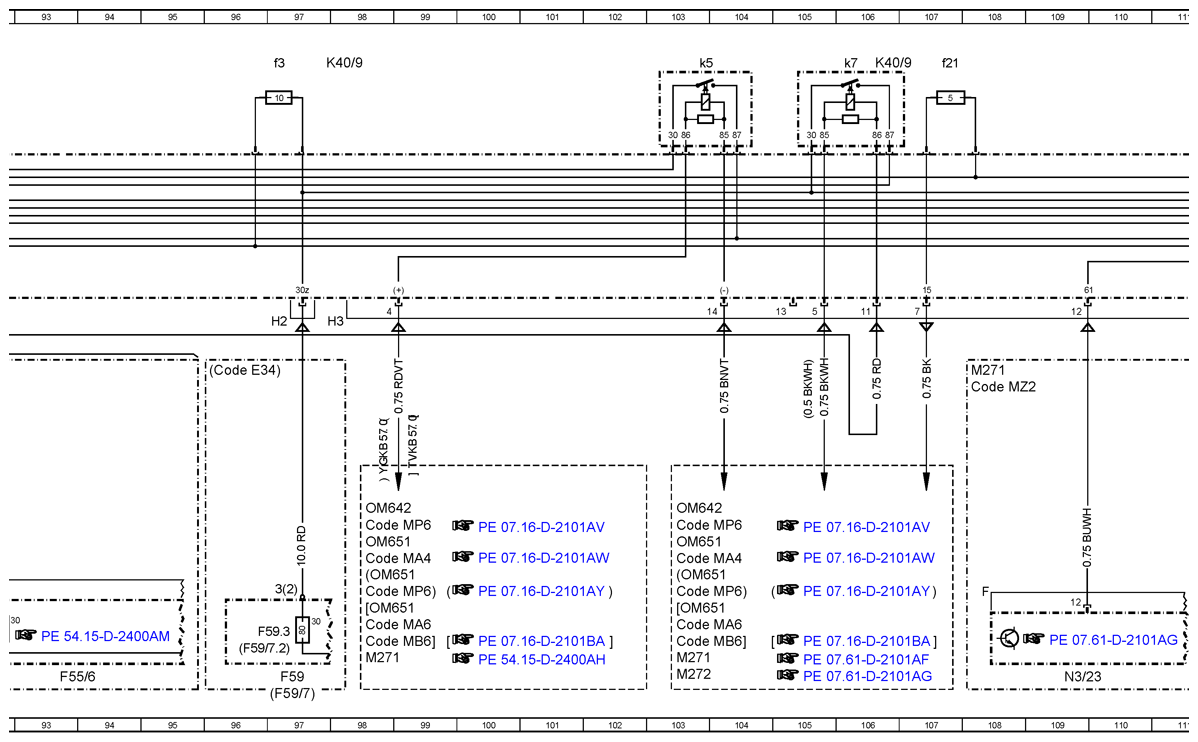

| K40/9f3 |
Circuit 30z gasoline engine fuse, electronic ignition lock, instrument cluster |
97A |
| K40/9f4 |
Circuit 30 rotary light switch, upper control panel fuse |
161A |
| K40/9f5 |
Windshield wiper fuse |
3A |

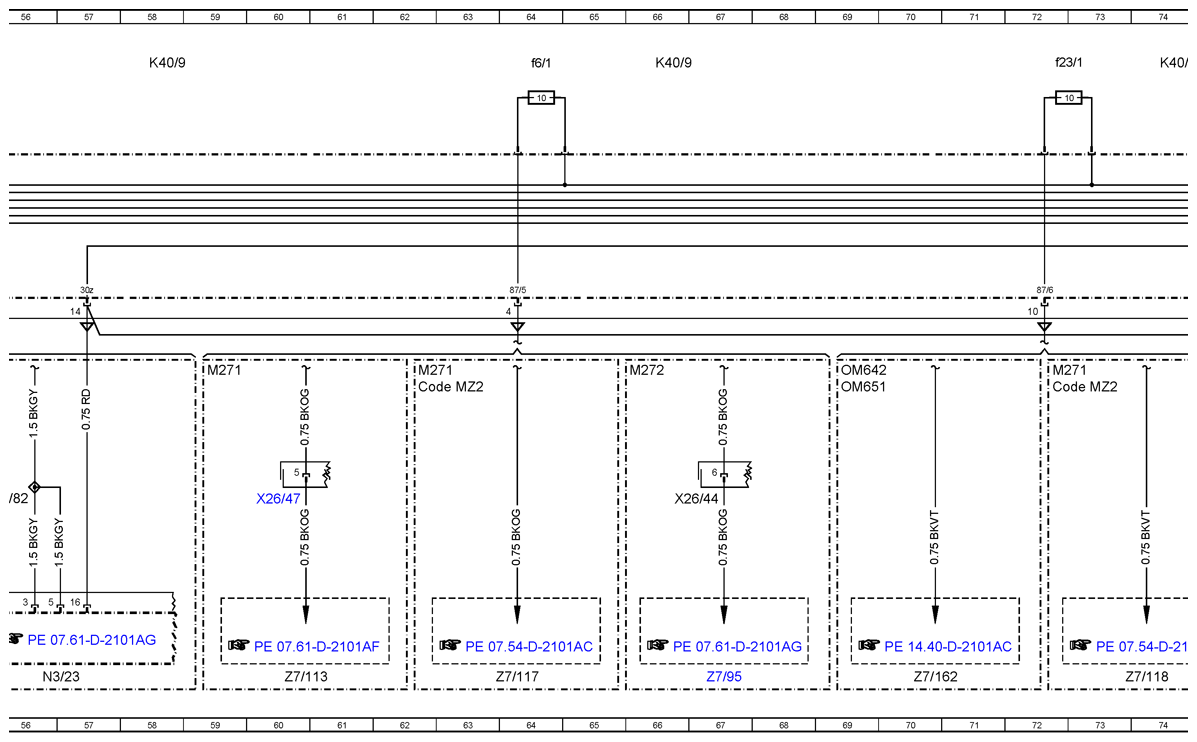

| K40/9f6/1 |
Terminal 87 engine control system fuse (5) |
64A |

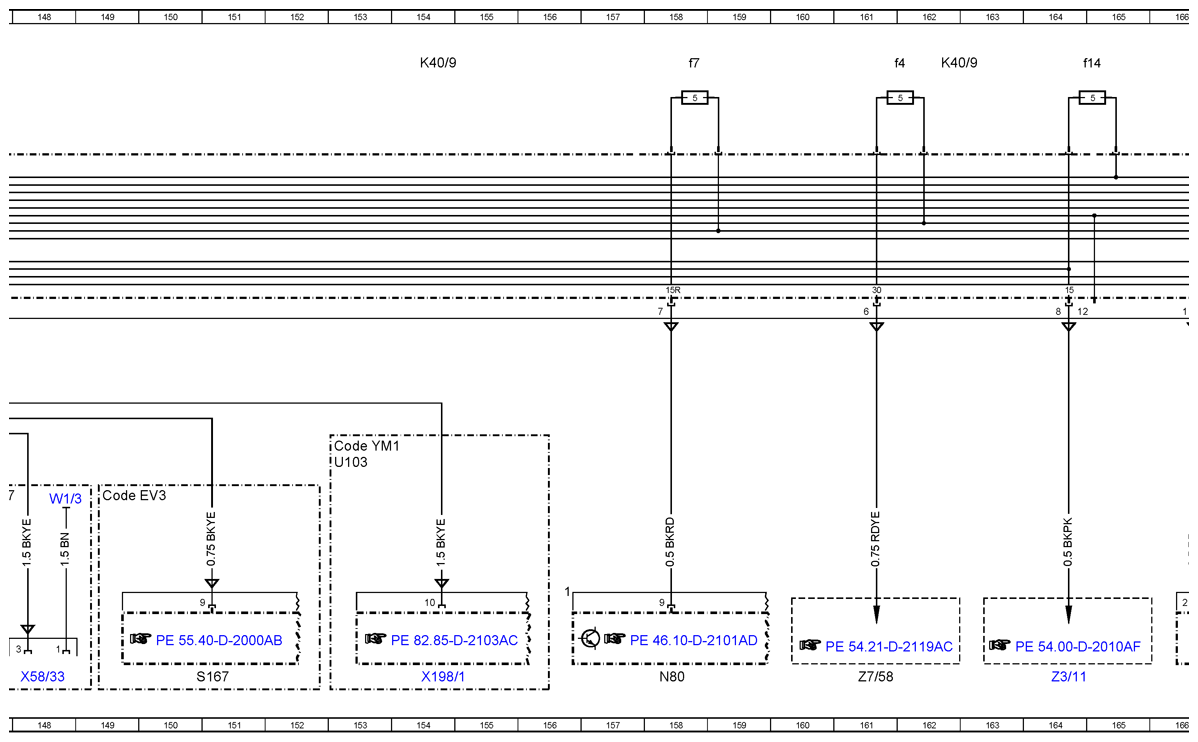

| K40/9f7 |
MRM fuse |
158A |
| K40/9f8 |
Circuit 87 (2) engine control fuse |
30A |

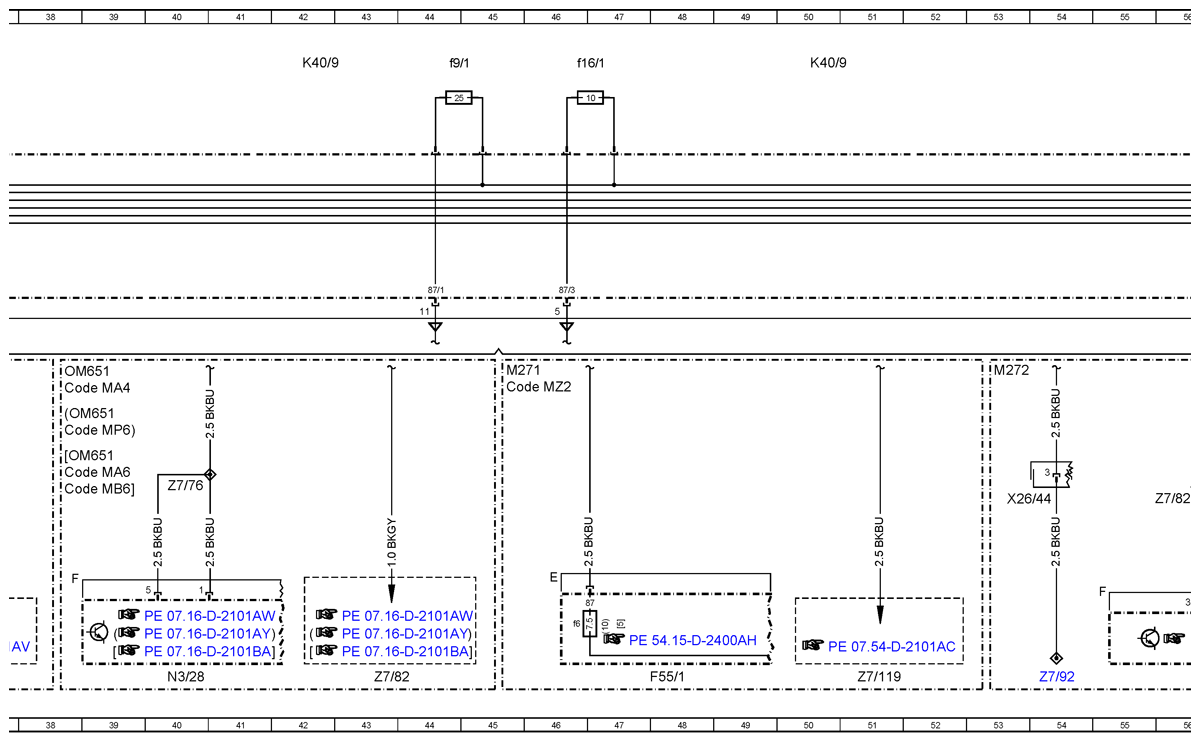

| K40/9f9/1 |
Circuit 87 (1) engine control fuse |
44A |
| K40/9k1 |
Horn relay |
10A |

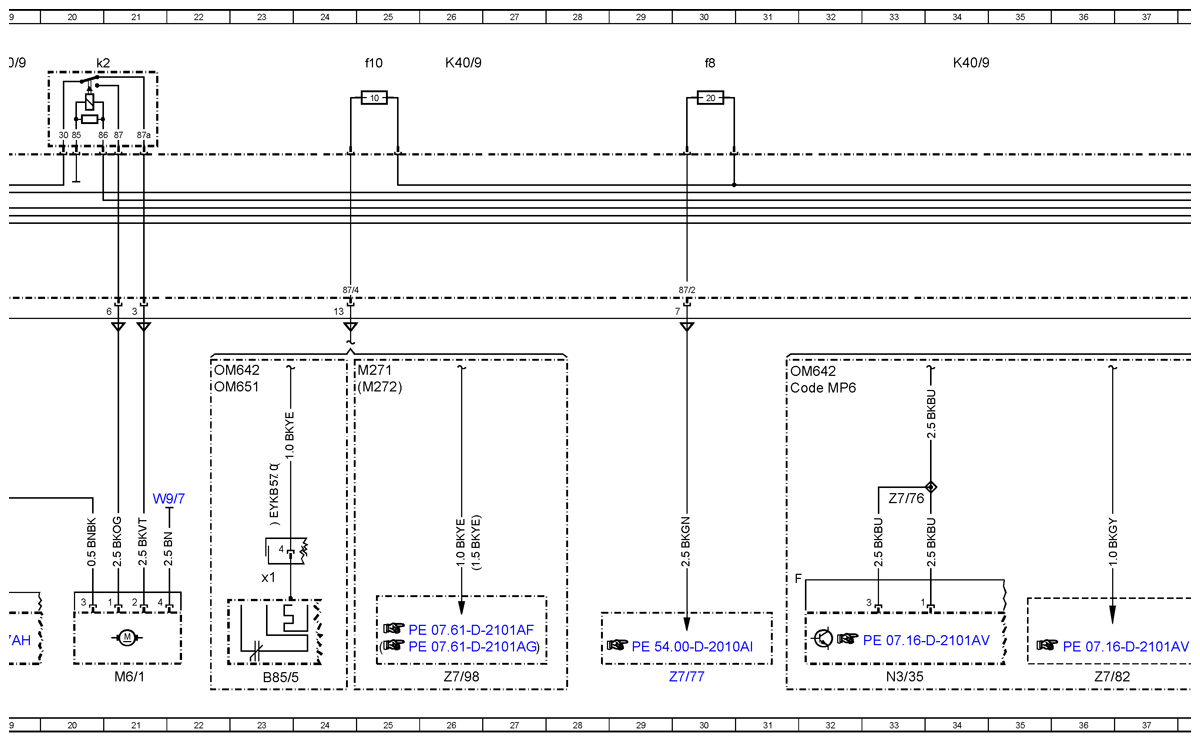

| K40/9k2 |
Stage 2 front windshield wiper relay |
20A |
| K40/9k3/1 |
Circuit 15 starter relay |
91A |
| K40/9k4 |
Stage 1 front windshield wiper relay |
18A |
| K40/9k5 |
Circuit 50 starter relay |
103A |
| K40/9k6 |
Circuit 15R relay |
140A |
| K40/9k7 |
Circuit 87 engine control relay |
106A |
| K40/9k8 |
Circuit 15 relay |
192A |
| K41 |
Circuit 15 relief relay |
11L |
| K41/2 |
Circuit 15R relief relay |
184L |
| M1 |
Starter |
81L |
| M6/1 |
Wiper motor |
21L |
| N10 |
SAM control unit |
198A |
| N10 |
SAM control unit |
146L |
| N10 |
SAM control unit |
18L |
| N118/2 |
CNG interface control unit |
83L |
| N141/1 |
AdBlue® control unit |
87L |
| N2/14 |
Lowline airbag control unit |
190L |
| N2/15 |
Highline airbag control unit |
190L |
| N3/23 |
ME-SFI [ME] control unit |
56L |
| N3/23 |
ME-SFI [ME] control unit |
109L |
| N3/28 |
CDI control unit |
40L |
| N3/35 |
CDI control unit |
33L |
| N30/4 |
ESP® control unit |
113L |
| N73 |
Electronic ignition lock (EZS) control unit |
132L |
| N80 |
Steering column tube module (MRM) control unit |
158L |
| R3 |
Illuminated cigar lighter |
142L |
| S167 |
Cargo lift gate switch |
151L |
| S98 |
AC control and operating unit |
169L |
| U103 |
Valid without code FY8 (Theft protection with vehicle tracking) |
153H |
| U193 |
Valid without code E34 (Buffer battery for starting procedure) |
195F |
| U212 |
|
167F |
| W1/3 |
CLS cockpit ground point 1 |
148H |
| W1/3 |
CLS cockpit ground point 1 |
138H |
| W1/3 |
CLS cockpit ground point 1 |
167H |
| W1/4 |
HLS cockpit ground point |
196L |
| W43/1 |
Left firewall ground point |
196L |
| W71/1 |
Driver seat frame ground point 1 |
11F |
| W71/2 |
Driver seat frame ground point 2 |
11F |
| W71/2 |
Driver seat frame ground point 2 |
183H |
| W71/3 |
Driver seat frame ground point 3 |
193L |
| W9/7 |
Left front ground point 2 |
21H |
| W9/7 |
Left front ground point 2 |
6H |
| X11 |
Diagnostic connector (16-pin) |
121L |
| X198/1 |
Fleetboard electrical connector |
154L |
| X24/15 |
Additional marker lamps electrical connector |
173L |
| X26/44 |
Engine wiring harness electrical connector |
54H |
| X26/44 |
Engine wiring harness electrical connector |
80H |
| X26/44 |
Engine wiring harness electrical connector |
67H |
| X26/44 |
Engine wiring harness electrical connector |
77H |
| X26/47 |
Engine wiring harness electrical connector |
80H |
| X26/47 |
Engine wiring harness electrical connector |
60H |
| X26/61 |
Engine wiring harness electrical connector |
80J |
| X26/65 |
Engine wiring harness electrical connector 4 |
80J |
| X58/17 |
Front vehicle interior power outlet |
166L |
| X58/33 |
Cockpit socket |
148L |
| Z219 |
Signaling horn actuation connector sleeve |
5H |
| Z3/11 |
Circuit 15 (fused) connector sleeve |
164L |
| Z3/54 |
Circuit 15R connector sleeve |
141G |
| Z3/55 |
Tml. 15 connector sleeve |
8L |
| Z3/56 |
Headlamp range adjustment (HRA [LWR]) circuit 15 connector sleeve |
126L |
| Z3/65 |
Tml. 15 connector sleeve |
11H |
| Z3/71 |
Brake system circuit 15 connector sleeve |
117H |
| Z3/75 |
|
177G |
| Z4/21 |
Electronic ignition lock (EZS) circuit 30 connector sleeve |
136L |
| Z7/113 |
Circuit 87 connector sleeve, injection valves |
60L |
| Z7/117 |
Circuit 87 connector sleeve |
64L |
| Z7/118 |
Circuit 87 connector sleeve |
74L |
| Z7/119 |
Circuit 87 connector sleeve |
51L |
| Z7/162 |
Circuit 87 (6) connector sleeve |
70L |
| Z7/58 |
Tml. 30 connector sleeve |
161L |
| Z7/74 |
Tml. 30 connector sleeve |
2L |
| Z7/75 |
Tml. 30 connector sleeve |
14L |
| Z7/75 |
Tml. 30 connector sleeve |
187L |
| Z7/76 |
Circuit 87 connector sleeve |
33H |
| Z7/76 |
Circuit 87 connector sleeve |
40H |
| Z7/77 |
Circuit 87 connector sleeve |
30L |
| Z7/82 |
Circuit 87 connector sleeve |
56H |
| Z7/82 |
Circuit 87 connector sleeve |
36L |
| Z7/82 |
Circuit 87 connector sleeve |
43L |
| Z7/92 |
Circuit 87 connector sleeve |
54L |
| Z7/94 |
Circuit 87 connector sleeve |
77L |
| Z7/95 |
Circuit 87 connector sleeve |
67L |
| Z7.-98 |
Circuit 87 connector sleeve |
26L |
| Z81/5 |
Circuit 58d connector sleeve |
142G |
| Z94 |
Stop lamp switch connector sleeve |
123L |
