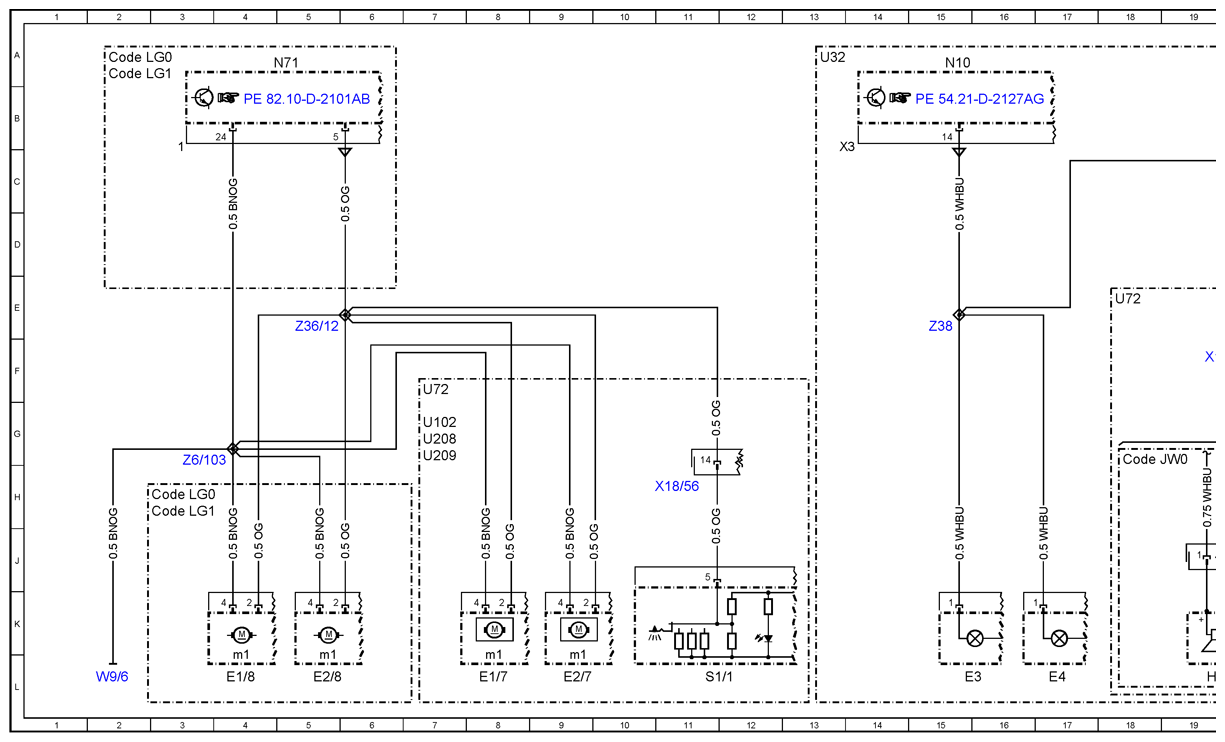

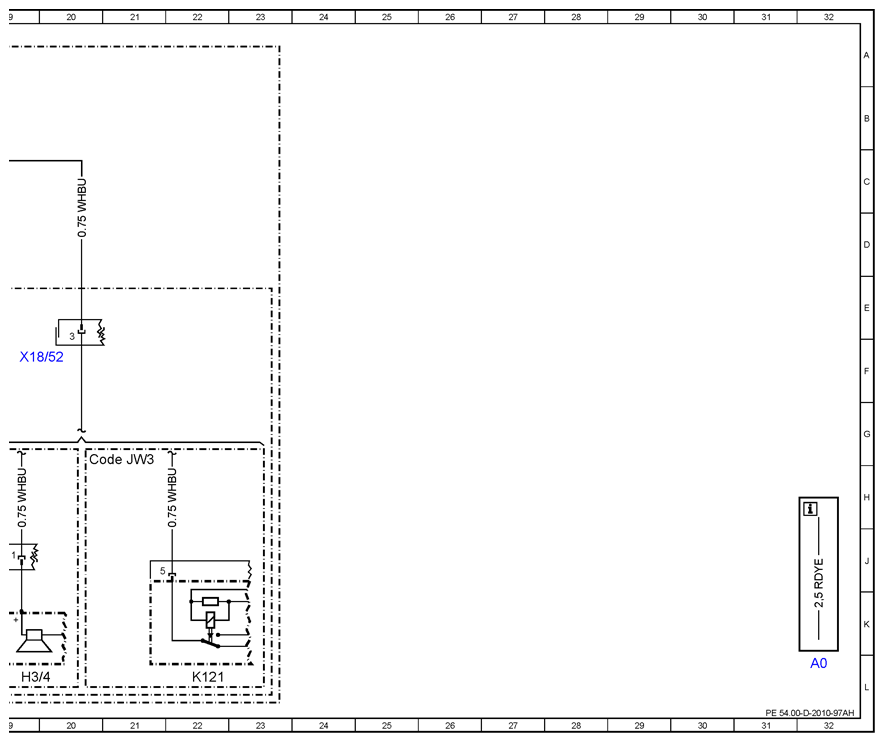

| A0 |
Color code key |
32L |
| Code JW0 |
Backup warning system |
18G |
| Code JW3 |
Shutoff for backup warning system |
20G |
| Code LG0 |
Bi-xenon headlamps |
2A |
| Code LG0 |
Bi-xenon headlamps |
3H |
| Code LG1 |
Bi-xenon headlamps with cornering lights |
2A |
| Code LG1 |
Bi-xenon headlamps with cornering lights |
3H |
| E1/7 |
Left lamp unit |
8L |
| E1/7m1 |
Headlamp range adjustment motor |
8L |
| E1/8 |
Left XENON lamp unit |
4L |
| E1/8m1 |
Headlamp range adjustment motor |
4L |
| E2/7 |
Right lamp unit |
9L |
| E2/7m1 |
Headlamp range adjustment motor |
9L |
| E2/8 |
Right XENON lamp unit |
5L |
| E2/8m1 |
Headlamp range adjustment motor |
5L |
| E3 |
Left tail lamp |
15L |
| E4 |
Right tail lamp |
17L |
| H3/4 |
Backup warning system horn |
19L |
| K121 |
Backup warning system OFF relay |
22L |
| N10 |
SAM control unit |
15A |
| N71 |
Headlamp range adjustment (HRA [LWR]) control unit |
5A |
| S1/1 |
Headlamp range controller |
11L |
| U102 |
Valid without code CE2 (Rear air suspension) |
7G |
| U208 |
|
7G |
| U209 |
|
7G |
| U32 |
Val id for MPV version |
13A |
| U72 |
Valid for all except USA, Canada |
7F |
| U72 |
Valid for all except USA, Canada |
18E |
| W9/6 |
Left front lamp unit ground point |
2L |
| X18/52 |
MWH [HLS]/roof electrical connector |
20F |
| X18/56 |
MWH [HLS]/cockpit electrical connector |
11H |
| Z36/12 |
Headlamp range adjustment (HRA [LWR]) control bus connector sleeve |
5E |
| Z38 |
Backup lamp connector sleeve |
15E |
| Z6/103 |
Headlamp range adjustment (HRA [LWR]) ground connection connector sleeve |
3G |
