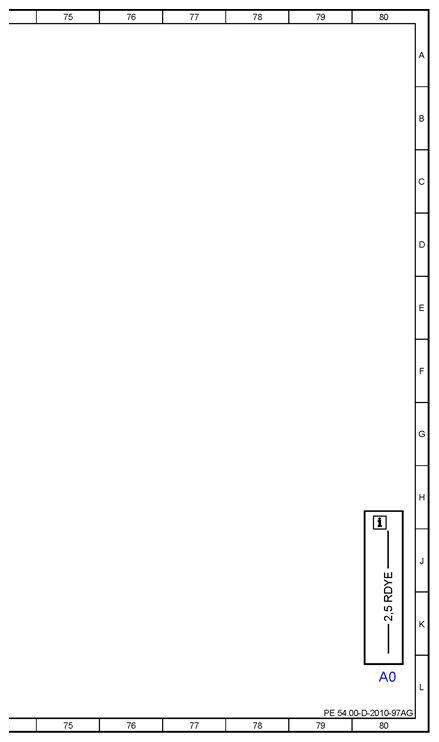

| A0 |
Color code key |
80L |
| Code F49 |
Heated windshield |
29H |
| Code FR7 |
Backup Assist electrical system preinstallation |
52G |
| Code FR7 |
Backup Assist electrical system preinstallation |
54G |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
67G |
| Code FZ4 |
Anti-theft alarm system with interior protection and tow-away protection |
69G |
| Code FZ5 |
Anti-theft alarm system |
67G |
| Code FZ5 |
Anti-theft alarm system |
69H |
| Code H08 |
Uprated roof air conditioner |
41A |
| Code H72 |
Electric roof ventilator |
36H |
| Code HH5 |
|
41A |
| Code HH7 |
|
41B |
| Code JV7 |
|
69G |
| Code JV7 |
|
72G |
| Code JW0 |
Backup warning system |
47G |
| Code JW3 |
Shutoff for backup warning system |
49G |
| Code MJ8 |
ECO start/stop function |
13A |
| Code T57 |
Right load compartment sliding door electric step |
39A |
| Code T58 |
Left load compartment sliding door electric step |
39A |
| Code W78 |
Window in liftgate or hinged rear door with wiper/washer system |
33H |
| Code ZM1 |
Low frame chassis preinstallation |
54G |
| Code ZU7 |
Canada national version |
4G |
| Code ZU7 |
Canada national version |
40H |
| Code ZU7 |
Canada national version |
66A |
| Code ZU8 |
USA national version |
4H |
| Code ZU8 |
USA national version |
66A |
| Code ZU8 |
USA national version |
40H |
| E3/6 |
Left tail lamp |
56L |
| E4/6 |
Right tail lamp |
58L |

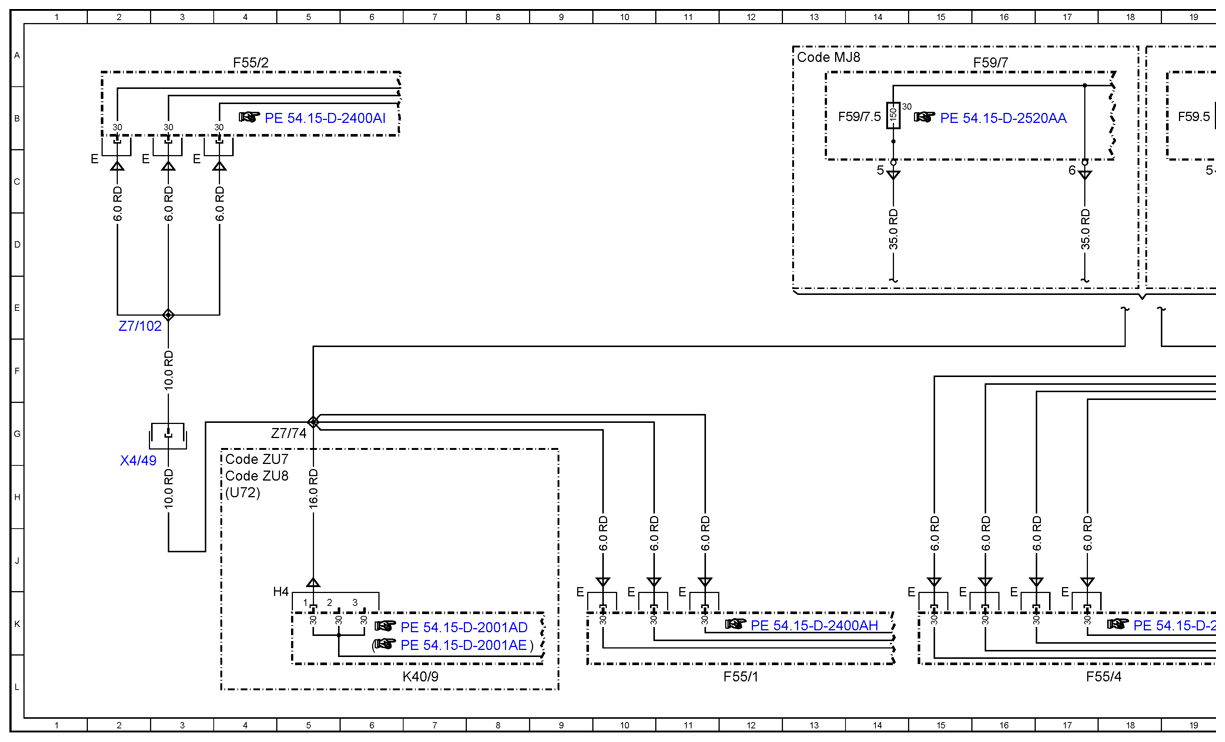

| F55/1 |
Fuse block (1, 9-pin) |
12L |
| F55/2 |
Fuse block 2 (9-pin) |
4A |
| F55/4 |
Fuse block 4 (9-pin) |
17L |

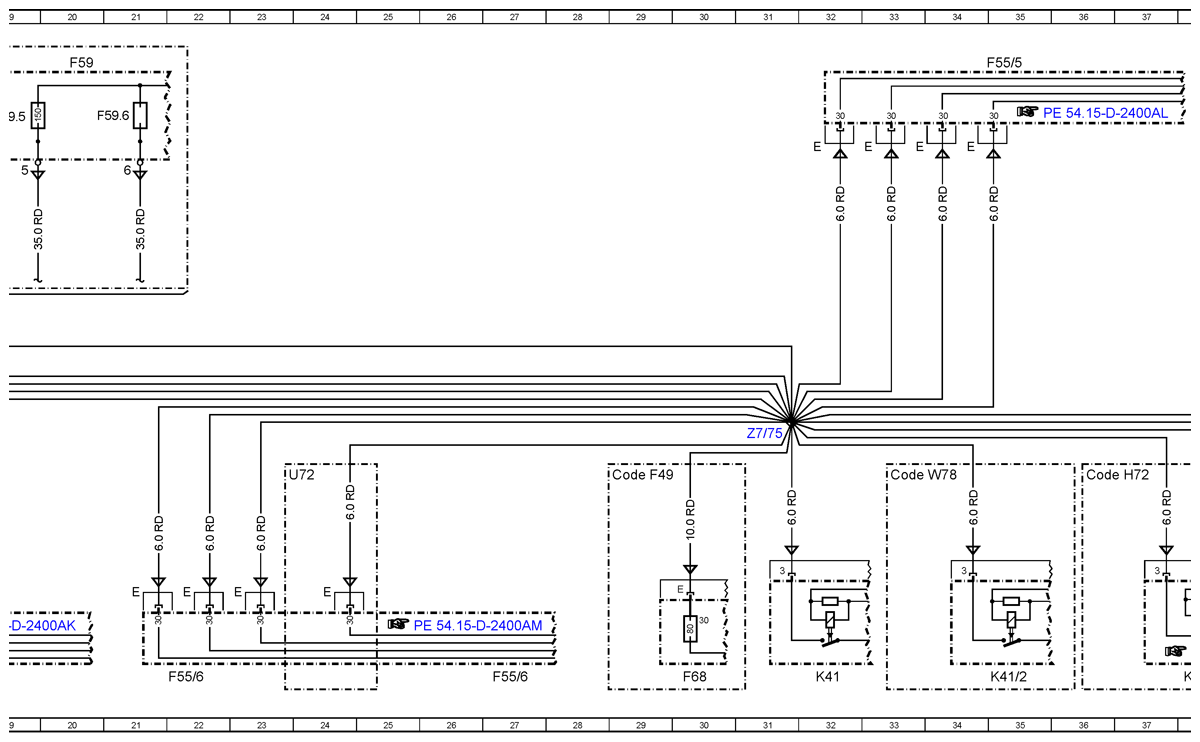

| F55/5 |
Fuse block 5 (9-pin) |
35A |
| F55/6 |
Fuse block 6 (9-pin) |
27L |
| F55/6 |
Fuse block 6 (9-pin) |
22L |
| F55/7 |
Fuse block 7 (9-pin) |
43A |
| F59 |
Fuse box |
20A |
| F59. 5 |
Fuse, circuit 30 SAM/fuse and relay module |
19B |
| F59. 6 |
Circuit 30 jumper |
21B |
| F59/7 |
Fuse box |
16A |
| F59/7.5 |
Fuse, circuit 30 |
14B |
| F68 |
Fuse, windshield heater |
30L |
| H1 |
Signaling horn |
71L |

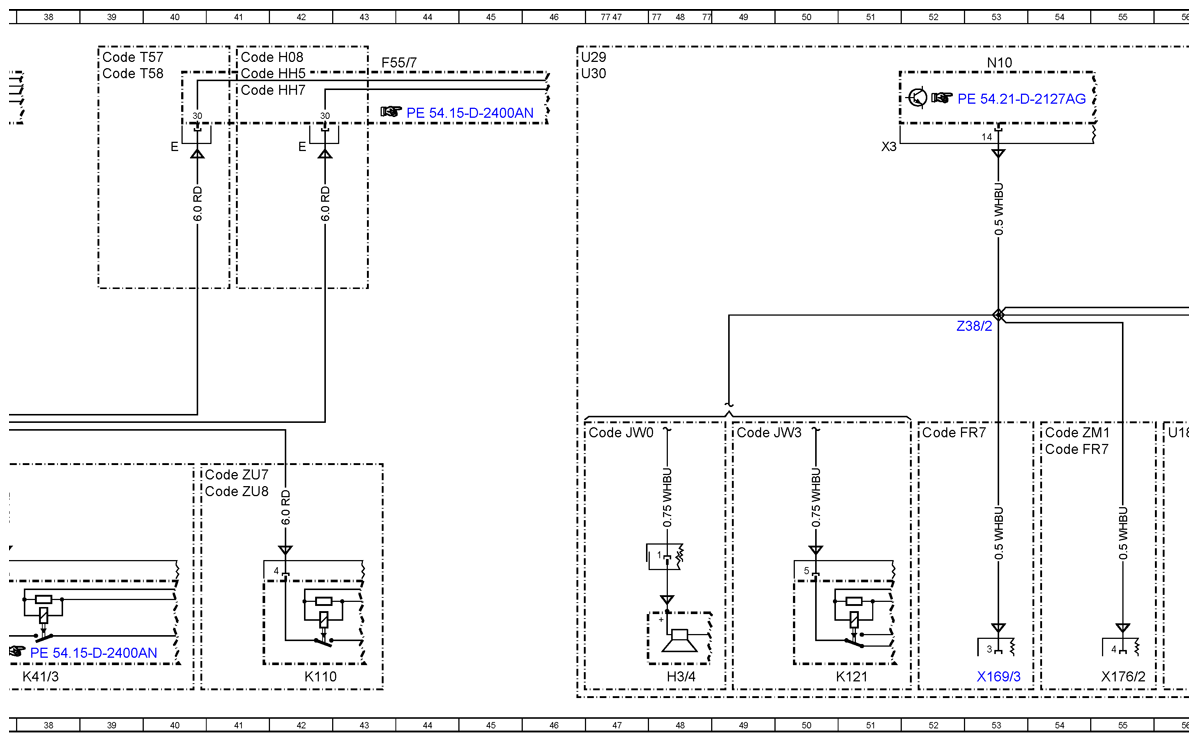

| H3/4 |
Backup warning system horn |
48L |
| Kl 10 |
AdBlue® relay |
42L |
| K121 |
Backup warning system OFF relay |
51L |
| K121 |
Backup warning system OFF relay |
63L |
| K39/3 |
Anti-theft alarm system horn relay |
68L |
| K40/9 |
Fuse and relay module |
7L |
| K40/9 |
Fuse and relay module |
69A |
| K40/9f1 |
Horn fuse |
68A |
| K41 |
Circuit 15 relief relay |
32L |
| K41/2 |
Circuit 15R relief relay |
35L |
| K41/3 |
Circuit 15 relief relay 2 |
38L |
| K57 |
Battery cutoff relay |
61L |
| K57/4 |
Battery cutoff relay RHD |
61L |

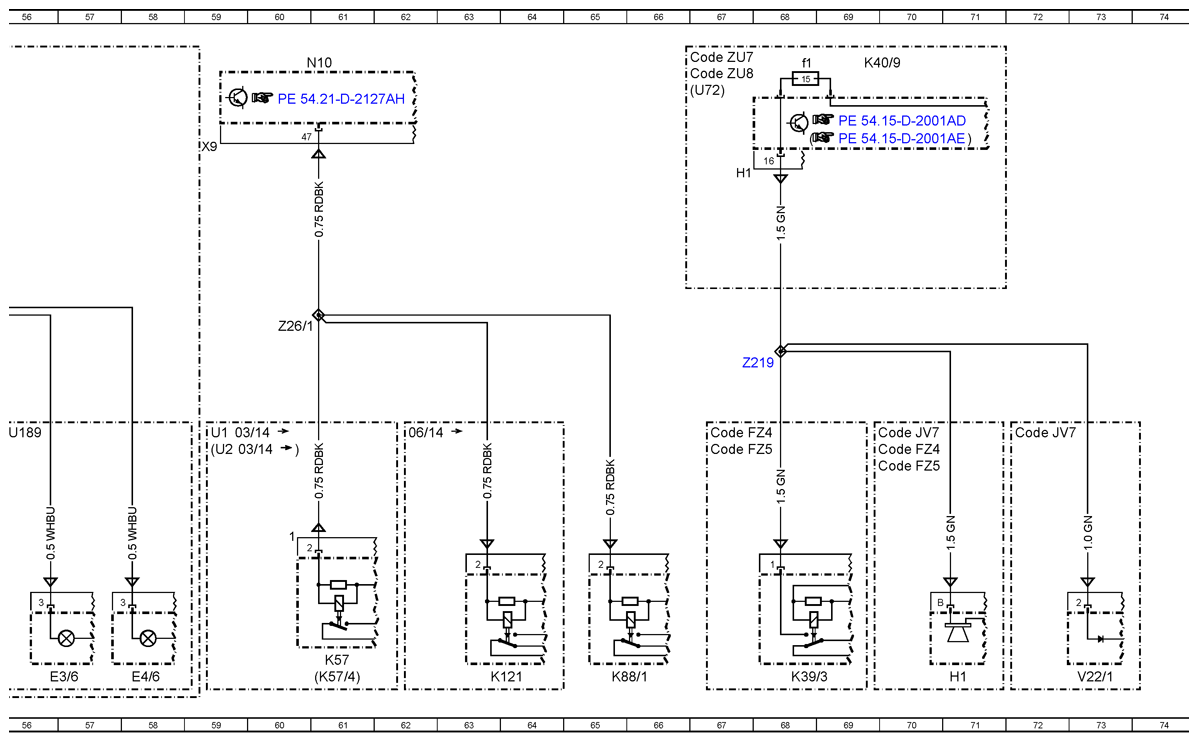

| K88/1 |
Body manufacturer circuit D+ relay |
65L |
| N10 |
SAM control unit |
53A |
| N10 |
SAM control unit |
61A |
| U1 |
Valid for left-hand drive vehicles |
59G |
| U189 |
Valid without code ZM1 (Low frame chassis preinstallation) |
56G |
| U2 |
Valid for right-hand drive vehicles |
59G |
| U29 |
Valid for short cab version |
46A |
| U30 |
Valid for long cab version |
46A |
| U72 |
Valid for all except USA, Canada |
23H |
| U72 |
Valid for all except USA, Canada |
4H |
| U72 |
Valid for all except USA, Canada |
66B |
| V22/1 |
Tone sequence/horn decoupling diode |
73L |
| X169/3 |
Body manufacturer reversing camera electrical connector 1 |
53L |
| X176/2 |
Low frame electrical connector 2 |
55L |
| X4/49 |
Circuit 30 electrical connector |
2H |
| Z219 |
Signaling horn actuation connector sleeve |
68F |
| Z26/1 |
Circuit D+ connector sleeve |
60E |
| Z38/2 |
Backup lamp connector sleeve |
53E |
| Z7/102 |
Tml. 30 connector sleeve |
2E |
| Z7/74 |
Tml. 30 connector sleeve |
5G |
| Z7/75 |
Tml. 30 connector sleeve |
31G |
